Volkswagen Engine Replacement - Compare Prices & Save

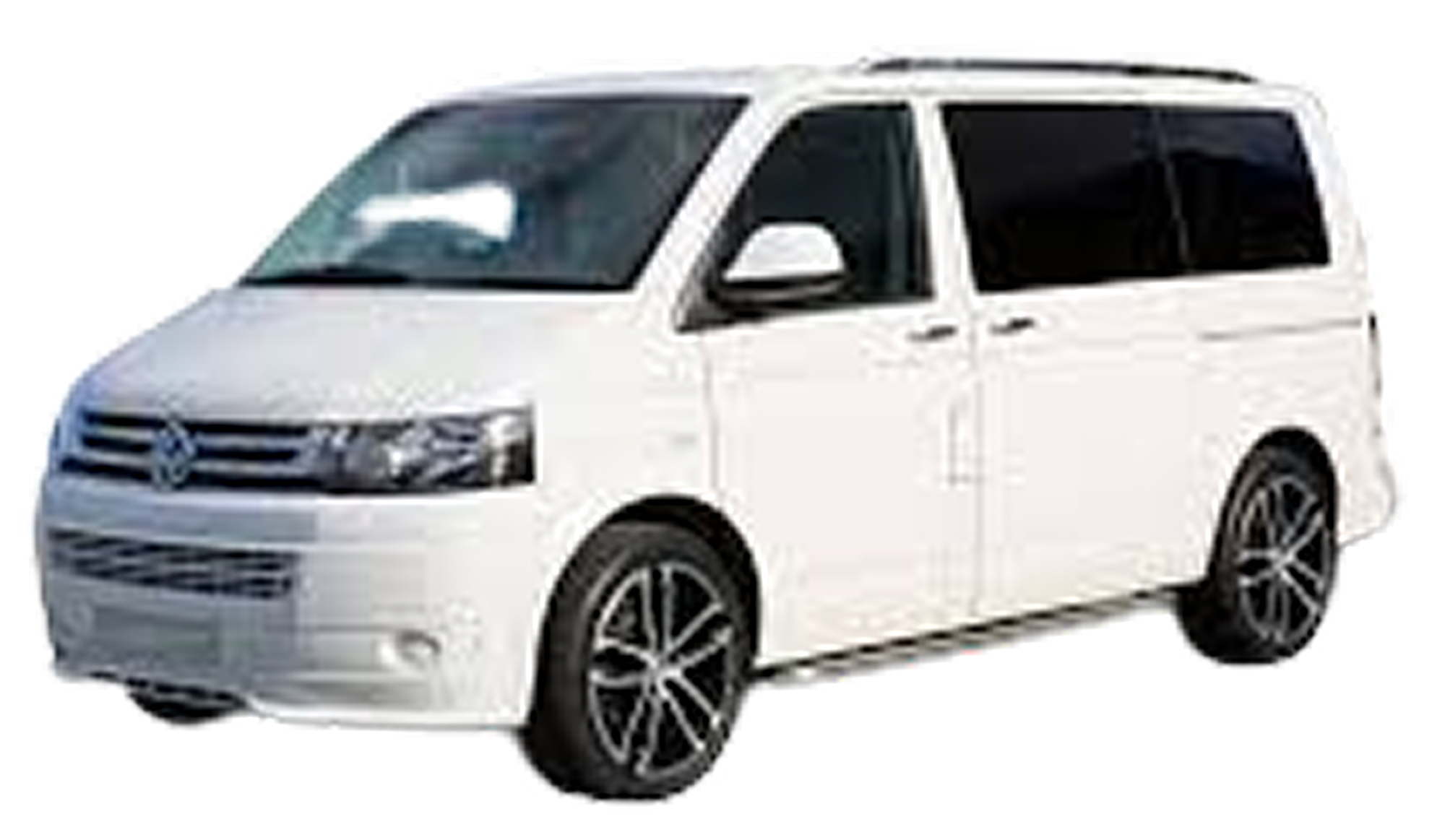

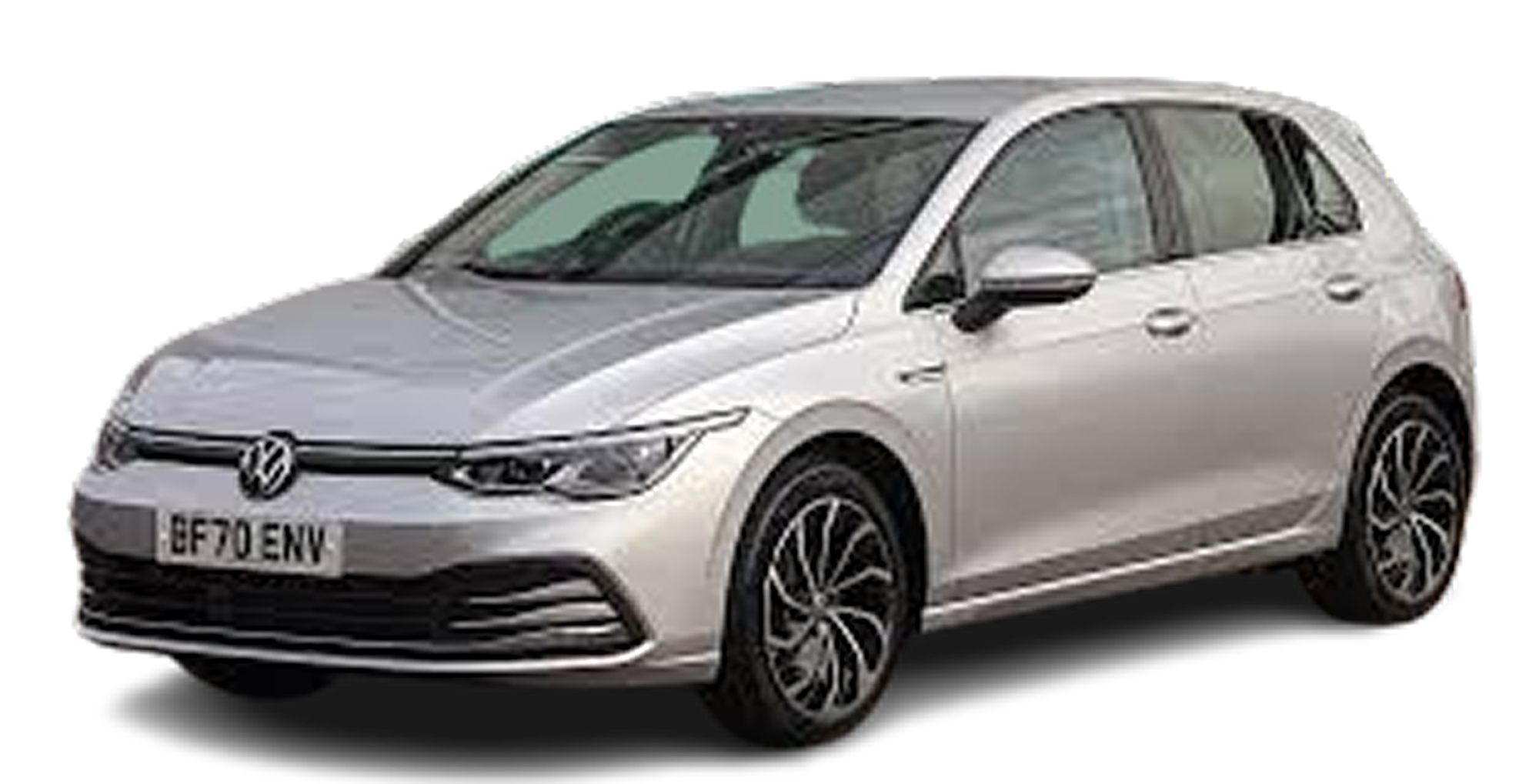

A rebuilt Volkswagen engine typically costs between £1,500 and £4,500 for common models, depending on the engine code. A 1.9 TDI (ALH, BLS) often falls around £1,500-£2,800, while a 2.0 TDI EA189 (BKD, CBAB) runs £1,800-£3,300. A 2.0 TSI EA888 for a Golf GTI usually costs £2,200-£4,200, and a Transporter 2.0 BiTDI (CFCA) can reach £5,500. Fitting adds another £450-£800.

Four key factors drive the price: (1) engine size and family - a 1.2 TSI (CBZB) is cheaper than a 3.0 V6 TDI; (2) engine condition - used is cheapest, rebuilt with upgraded components costs more but lasts longer; (3) vehicle complexity - a Transporter engine swap costs more labour than a Golf; (4) supply-only versus supply-and-fit. Location matters too - labour in London can be 20-30% higher. Our marketplace brings you transparent, fixed-price quotes from UK Volkswagen specialists so there are no surprises.

In most cases, yes. If your Volkswagen’s chassis, gearbox, and bodywork are solid, a rebuilt engine often costs less than buying another used car of the same vintage - especially for Golf, Passat, and Transporter models that hold value well. A rebuilt engine with upgraded components (billet oil pump drive on EA189, revised chain tensioner on EA888) often outlasts the original. The only time replacement doesn’t make sense is if the car has catastrophic structural rust or a failed gearbox.

Supply-and-fit includes: sourcing the correct rebuilt or reconditioned engine for your exact Volkswagen model and engine code, removing the old unit, installing the replacement, all new fluids and filters, a workmanship warranty (typically 12 months), and disposal of the old engine. Most specialists also include a road test after installation. Fitting costs add £450-£800 depending on the model - Transporter and Touareg take more labour than Polo or Golf. Always ask whether the quote includes VAT and delivery of the replacement engine.

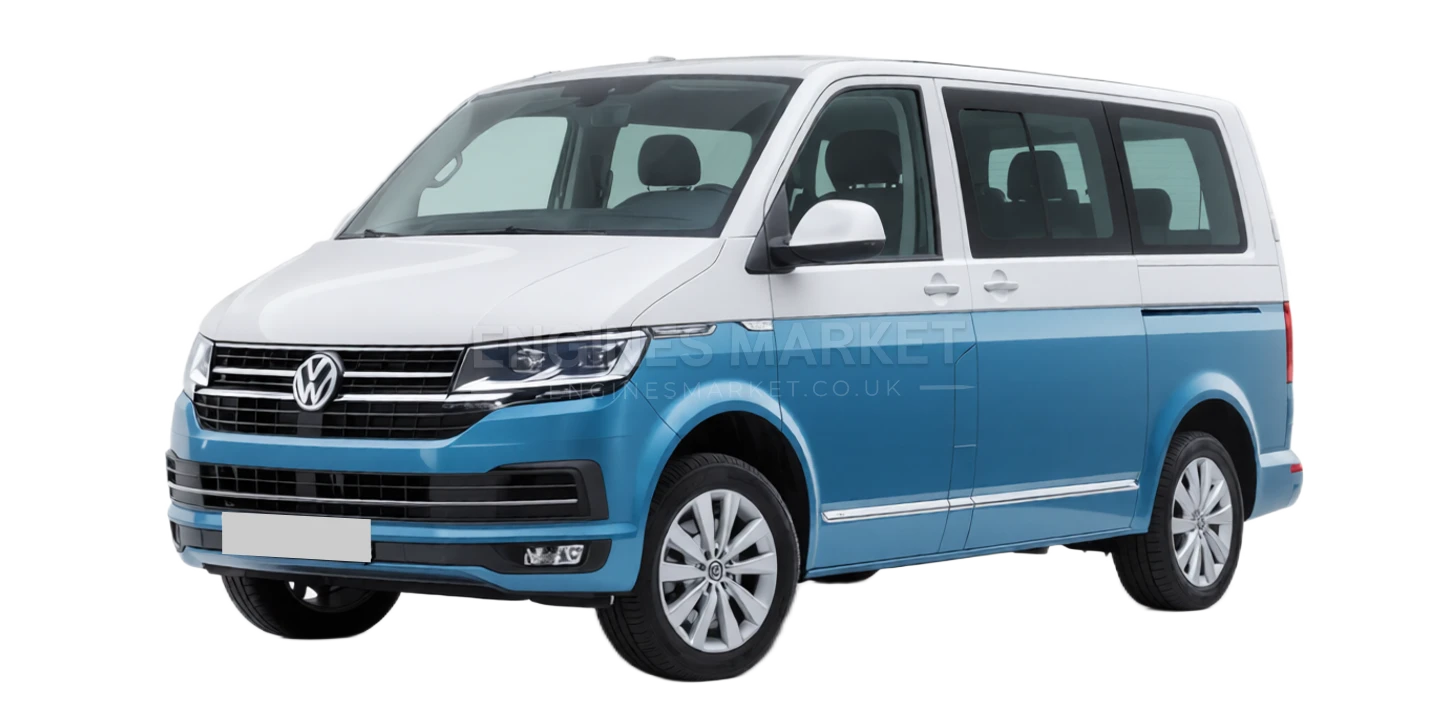

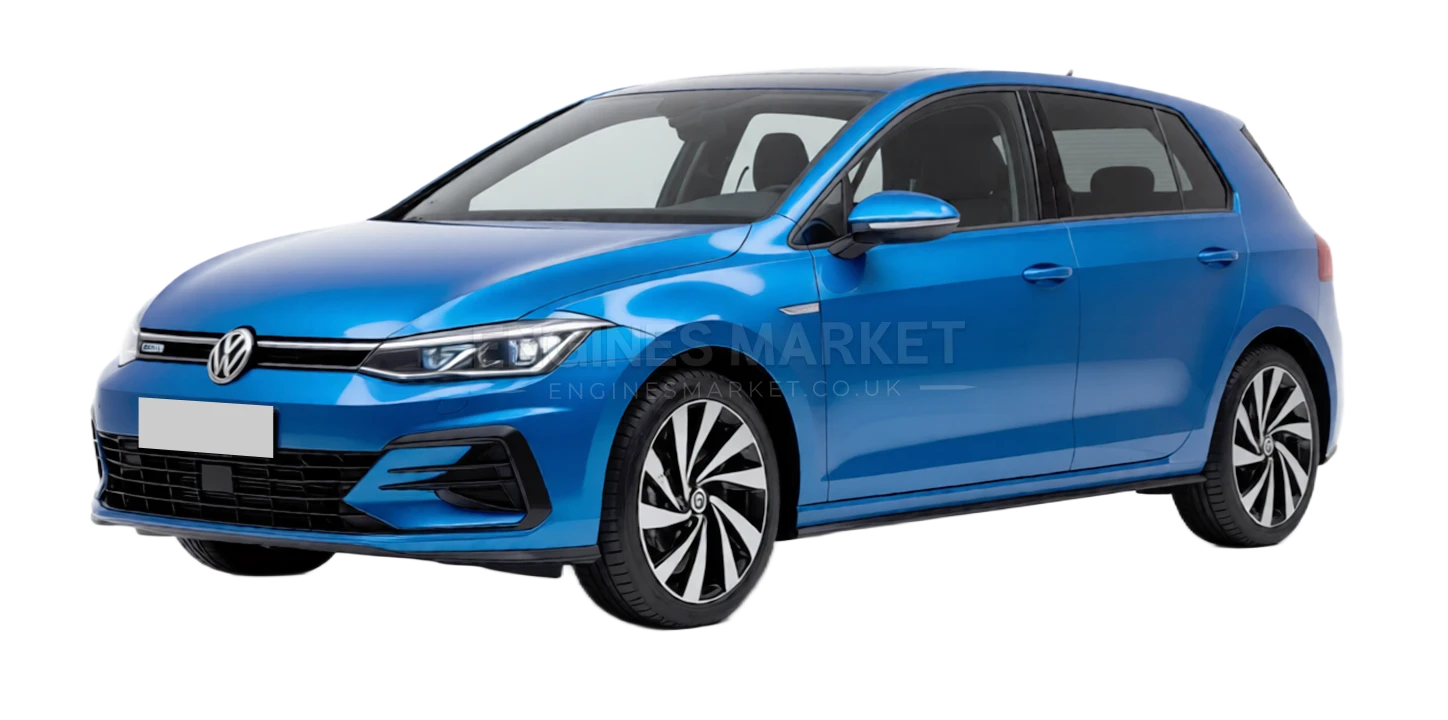

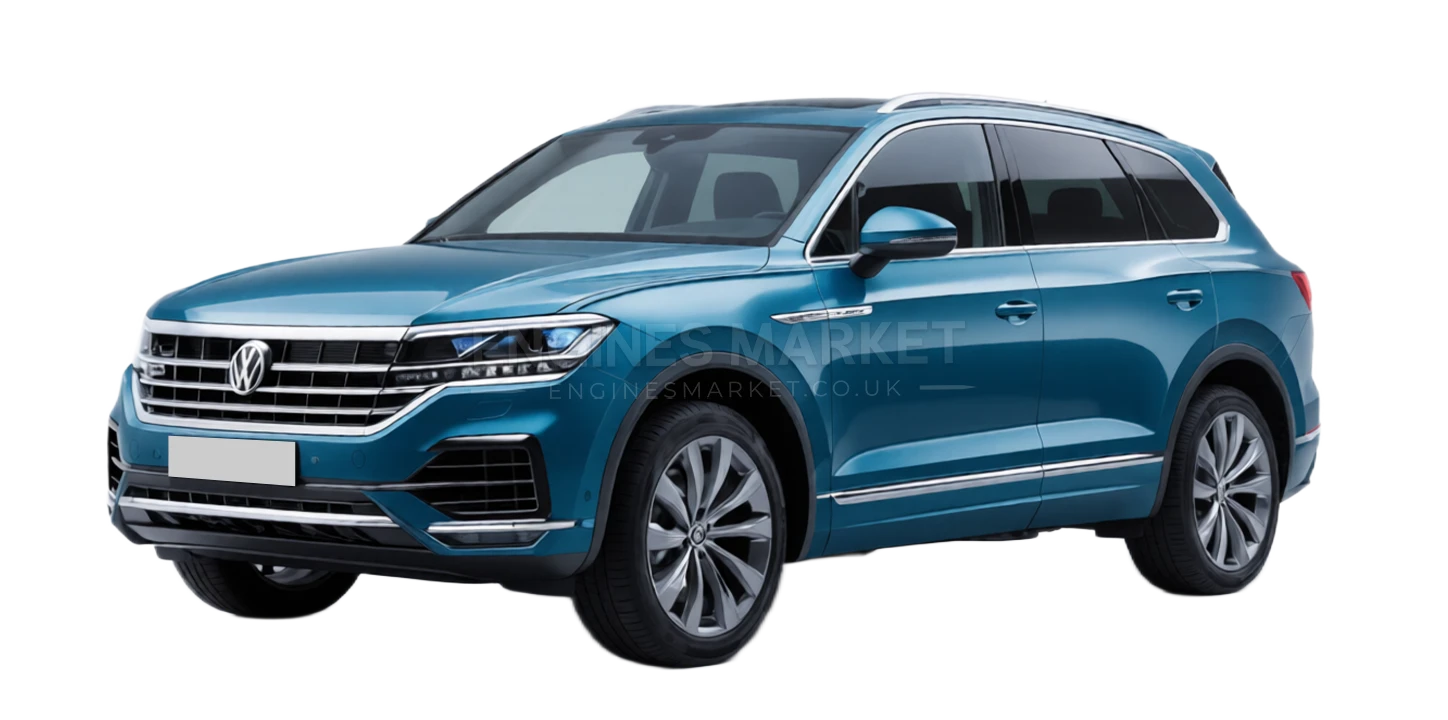

For common Volkswagen models like the Golf 2.0 TDI or Polo 1.2 TSI, a like-for-like engine swap typically takes 3-5 working days. More complex models - Transporter T5/T6 (engine-out through the cab), Touareg V6 TDI, or any 4Motion variant - can take 5-7 days. The biggest variable is sourcing the correct engine code. Our network of UK specialist suppliers stocks commonly replaced codes (BKD, CBAB, CRLB, CCZB, CAYC, CFCA), which dramatically reduces lead times.

Yes. Every reconditioned or rebuilt Volkswagen engine supplied through our network comes with a minimum 12-month unlimited mileage warranty. Many suppliers offer extended 24-month coverage on remanufactured units and EA888 Gen3/EA288 diesels. The warranty typically covers all major internal components: crankshaft, pistons, conrods, timing chain/belt, oil pump, cylinder head, and gaskets. Labour for fitting-related faults is often included, but always confirm exact terms with your chosen specialist before proceeding. We recommend asking for the warranty document in writing.

Used engines are cheaper upfront - typically £800-£2,200 - and are a good temporary fix if you plan to sell the car soon. However, you inherit unknown mileage and the original failure points (e.g., old timing chains on EA888). Reconditioned engines cost more (£1,800-£4,500) but include upgraded components - billet oil pump drives on 2.0 TDI EA189, revised tensioners on EA888, new rings and bearings throughout. For a Volkswagen you plan to keep for another 3-5 years, a reconditioned engine with a 12-24 month warranty is almost always the better investment.

EngineMarket connects you with a UK-wide network of Volkswagen engine specialists who stock your exact engine code and offer supply-and-fit. Enter your registration number, and we match you with suppliers in your region - from Scotland to the South Coast. While Volkswagen specialists are concentrated across the Midlands, Yorkshire, and the South East, our network covers every corner of the UK, with nationwide delivery and fitting arranged locally. You don’t need to travel - your chosen specialist can often arrange recovery and fitting at a garage near you.

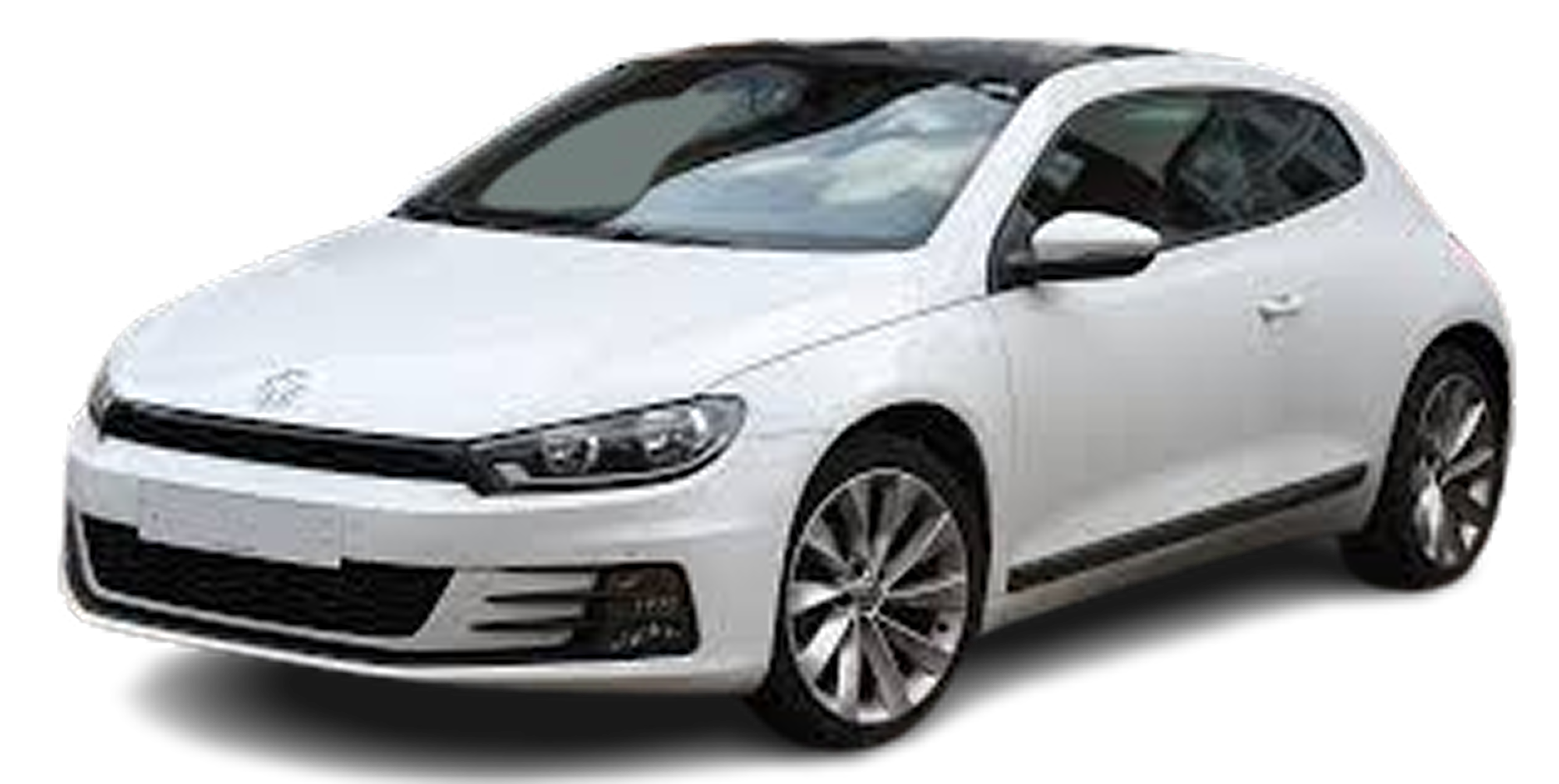

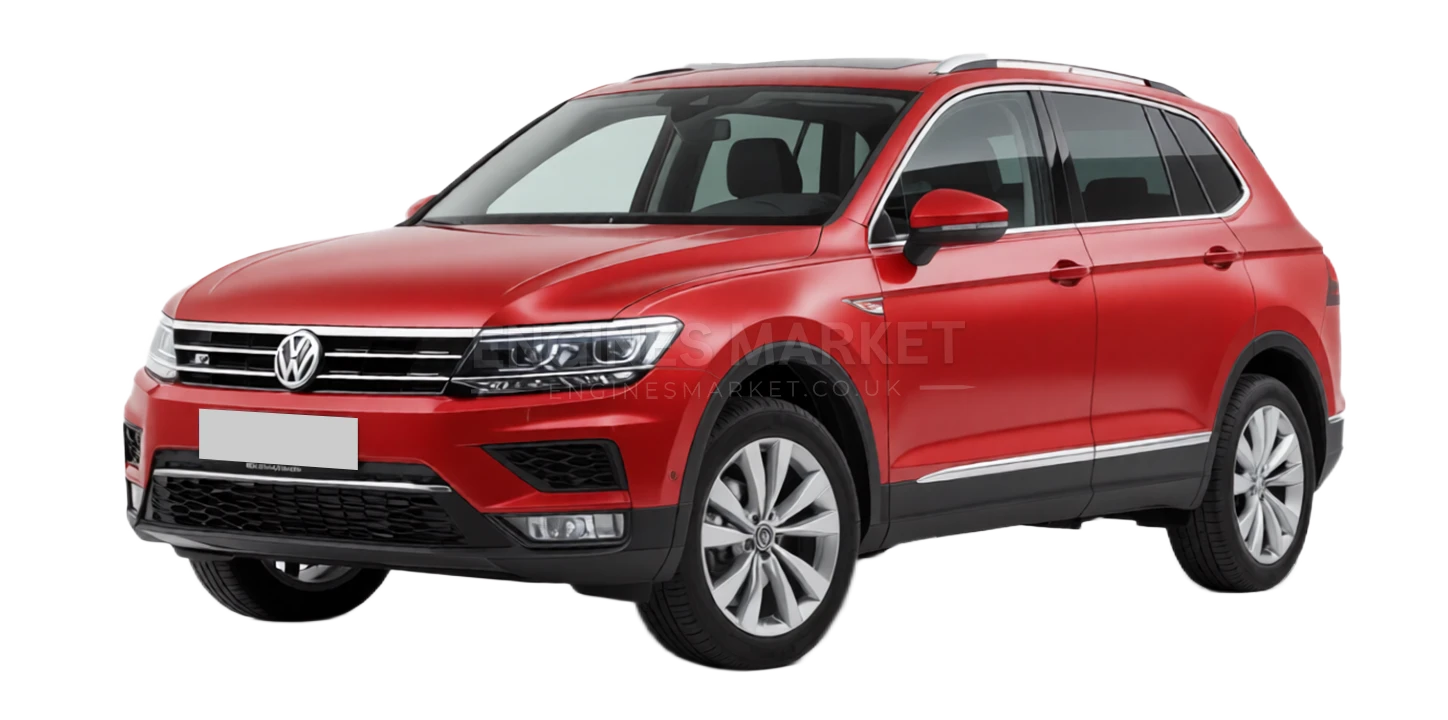

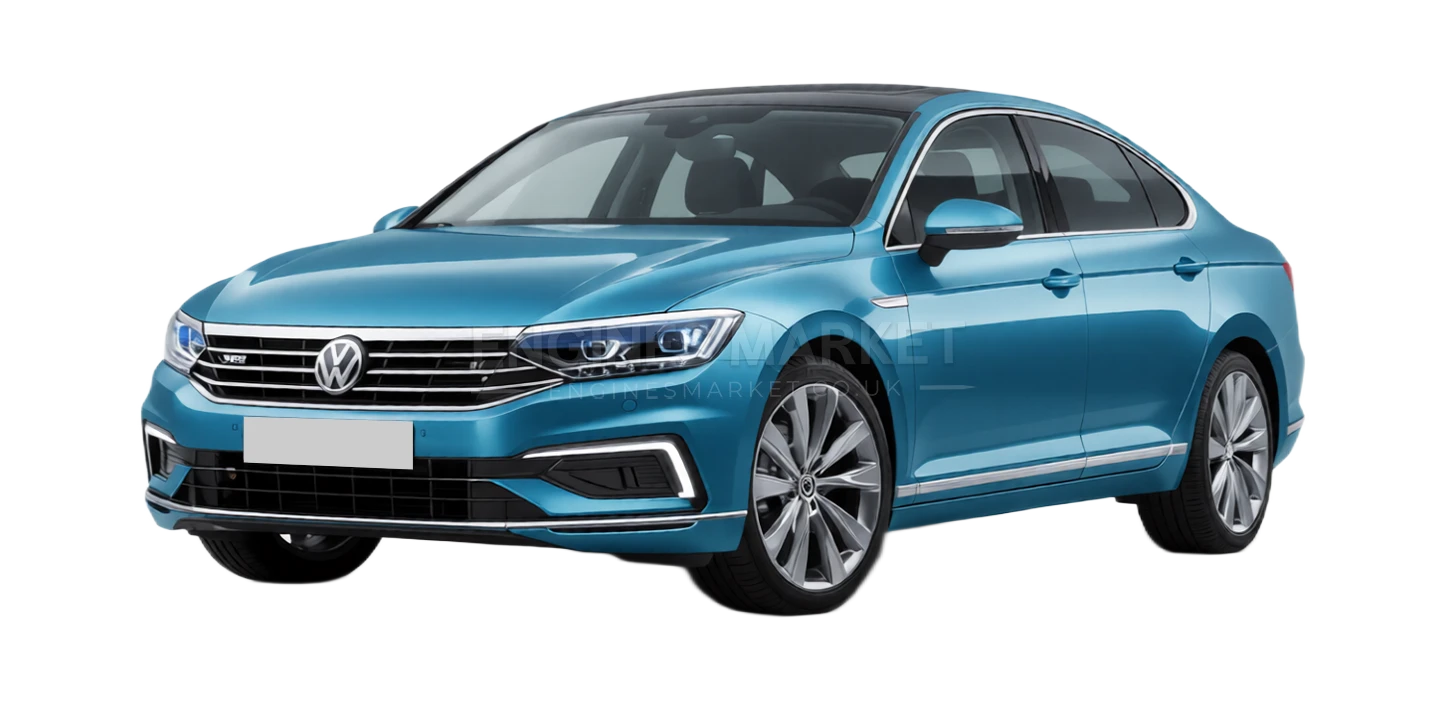

The most common replacement-driving failures across Volkswagen engines are: (1) EA888 Gen1/2 timing chain tensioner failure (Golf GTI Mk6, Scirocco - chain jumps, valves bend); (2) EA189 2.0 TDI oil pump hex key wear (BKD, CBAB - sudden oil pressure loss, ruins crankshaft); (3) EA288 2.0 TDI AdBlue pump / NOx sensor failure (Passat B8, Tiguan - countdown to no-start); (4) 1.4 TSI Twincharger supercharger clutch & timing chain (Polo GTI, Golf Mk6); (5) EA188 PD 2.0 TDI crankshaft bearing & injector seal failure (BKP, AZV). Once these failures occur, full engine replacement is almost always the most cost-effective solution.

Always compare multiple quotes - prices for the same engine code (e.g., BKD or CRLB) can vary by over £1,000 between suppliers. Consider used if you have a very tight budget, but reconditioned with upgraded components is better value for long-term ownership. Ask for supply-only if you have a trusted local garage - you save on the specialist’s fitting markup. Always check whether the quoted price includes delivery, fitting, VAT, and the old engine collection.
