Toyota Yaris 1.4 D4D Engine Replacement - Compare Prices & Get Quotes
Get quotes today from trusted UK Toyota Yaris 1.4 D-4D engine specialists. Compare prices on reconditioned, rebuilt and used engines for your Yaris 1.4 D-4D - free, no-obligation quotes from our vetted network.
Supply & Fit Available
12-Month Warranty
Nationwide Delivery
100+ Suppliers
From TV - from £1,500 to £2,800
Used from £500 · Reconditioned from £1,200 · Common codes: 1ND-TV
From £500
Tested, bare/short engine
From £1,200
Rod bearings addressed, tested
From quote
Upgraded bearings, full teardown, revised valvetrain
Secure enquiry - no spam, no pressure. Genuine quotes only from vetted UK Toyota Yaris 1.4 D-4D specialists.
3 Simple Steps3 Simple Stepsto Finding the Best Toyota Yaris 1.4 D-4D Replacement Engineto Finding the Best Toyota Yaris 1.4 D-4D Replacement Engine
Most replacements completed within 3-5 days.

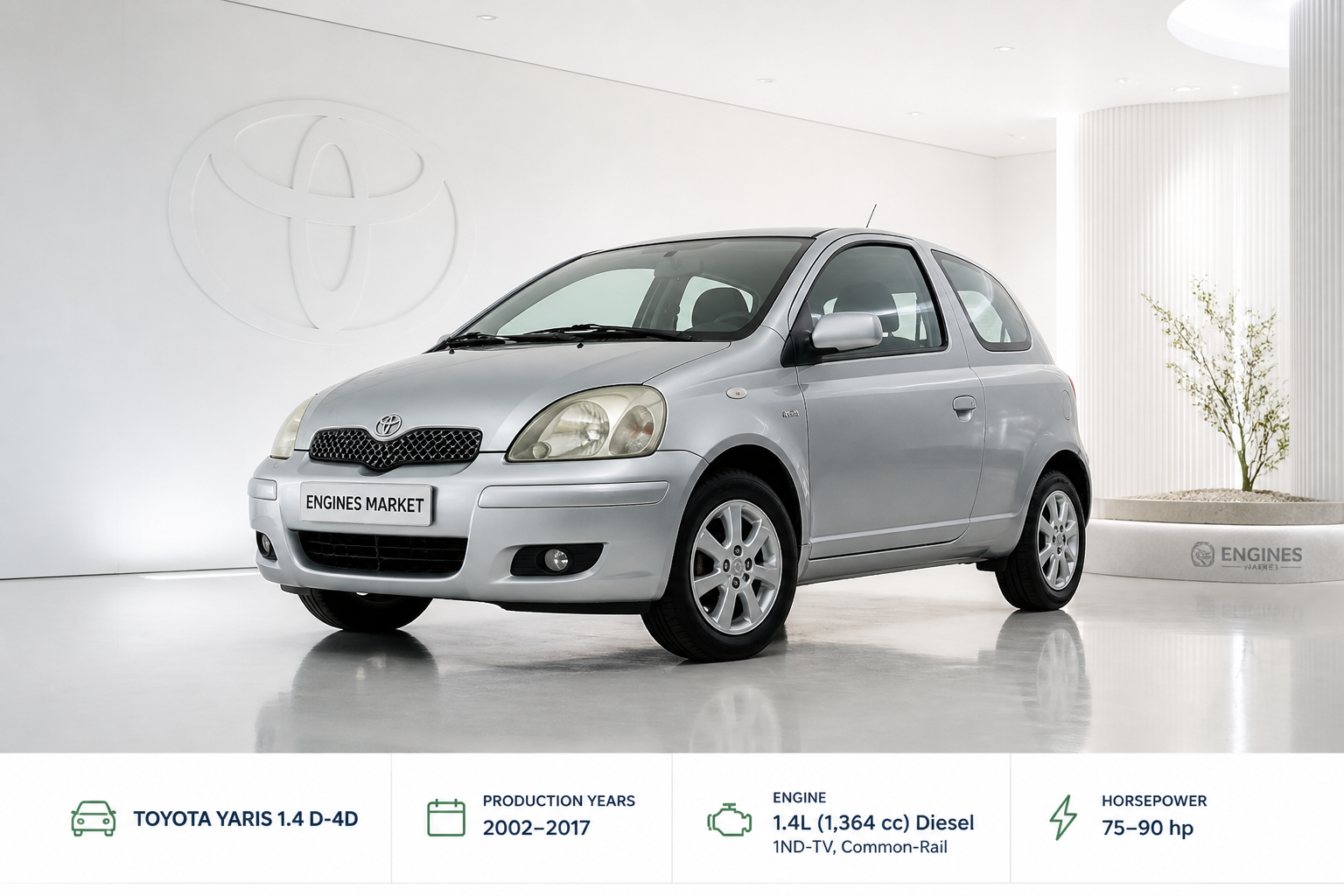

Variant HistoryToyota Yaris 1.4 D-4D - Engine History & Specs at a Glance
The Toyota Yaris 1.4 D-4D joined the Yaris range in 2002 as Toyota's first diesel engine with an aluminium cylinder block. It remained available across three Yaris generations until 2017, making it one of the longest-running diesel options in the supermini class.
Variant HistoryToyota Yaris 1.4 D-4D - Engine History & Specs at a Glance
The Toyota Yaris 1.4 D-4D joined the Yaris range in 2002 as Toyota's first diesel engine with an aluminium cylinder block. It remained available across three Yaris generations until 2017, making it one of the longest-running diesel options in the supermini class.
Toyota Yaris 1.4 D-4D
Fuel TypeDiesel (D-4D common-rail direct injection)
Engine Size Range1.4L (1,364cc)
Power Output Range75-90hp across the variant's historyEngine History Timeline
Toyota Yaris 1.4 D-4D launched with 1ND-TV engine 75hp output (XP10 generation)
Yaris Mk2 (XP90) launched; 1ND-TV continues with 90hp output
Major recall announced for 1.4 D-4D engines (2008-2013 models) for turbo intercooler oil flow issues
Yaris Mk3 (XP130) launched; 1ND-TV continues with 90hp Euro 5 compliant
Facelifted Yaris Mk3 (XP13) retains 1.4 D-4D with 90hp Euro 6b compliant
Yaris 1.4 D-4D production ends; replaced by hybrid powertrains in Mk4
Key Specs Snapshot
Fuel TypeDiesel (D-4D common-rail direct injection)Engine Size Range1.4L (1,364cc)Power Output Range75-90hp across the variant's historyYears Produced2002-2017Every engine fitted to the Toyota Yaris 1.4 D-4D is covered below, with UK rebuilt pricing and known failure points.
Toyota Yaris 1.4 D-4D Engine Codes - Specifications & Replacement CostToyota Yaris 1.4 D-4D Engine Codes - Specifications & Replacement Cost
1.4 D-4D (2002-2017)
Power Output75-90hp (55-66kW)Torque170-205 NmYears Fitted2002-2017
Compatible Trim Levels
- T2
- T3
- T Spirit
- TR
- SR
- Icon
- Design
- Excel
Find your exact engine code, specs and UK replacement cost guide.
Used
Tested, ready-to-fit engine
£500-£1,200
Reconditioned
Addressed known issues, tested
£1,200-£2,200
Rebuilt
Full teardown, upgraded internals
£1,500-£2,800
Common Failure
Water pump failure is the most critical issue on the 1ND-TV - the pump is structurally weak and fails without warning, causing rapid overheating and head gasket failure. The 2008-2013 recall for turbo intercooler oil flow issues also affected thousands of UK Yaris 1.4 D-4D models.
The Toyota Yaris 1.4 D-4D is widely regarded as the Yaris engine to avoid. While the 1KR-FE and 1NR-FE petrol engines are robust and reliable, the 1ND-TV diesel has multiple well-documented failure points that can make replacement more cost-effective than repair - especially given the low market value of ageing Yaris examples. Rebuilt engines through EnginesMarket include upgraded components addressing the original failure points, plus a minimum 12-month unlimited-mileage warranty.
Why the Toyota Yaris 1.4 D-4D Overheats Without Warning
Affected Vehicles
Toyota Yaris 1.4 D-4D (1ND-TV, 2002-2017)
Typical Failure Mileage
60k-120k
Root Cause
The 1ND-TV's water pump has a structural weakness - it fails without warning, leading to rapid coolant loss and sudden overheating. The pump failure often damages the head gasket before the driver notices any problem. Toyota has acknowledged this as a design flaw affecting all D-4D engines.
Why It Happens
The 1ND-TV's water pump has a structural weakness - it fails without warning, leading to rapid coolant loss and sudden overheating. The pump failure often damages the head gasket before the driver notices any problem. Toyota has acknowledged this as a design flaw affecting all D-4D engines.
Dealer (parts + labour)
£400-£700
Specialist (parts + labour)
£250-£450
What it involves
Replace water pump, flush cooling system, inspect for head gasket damage
Suitability
Best if caught before overheating
1 - 2 daysDealer (parts + labour)
£1,200-£2,000
Specialist (parts + labour)
£800-£1,500
What it involves
Replace head gasket, skim cylinder head if warped, replace water pump
Suitability
When overheating has occurred but block is undamaged
1 - 2 daysDealer (parts + labour)
£2,200-£3,800
Specialist (parts + labour)
£1,500-£2,800
What it involves
Supply & fit, upgraded water pump and head gasket components, 12-month warranty
Suitability
When overheating has caused bottom-end damage or cylinder head cracking
1 - 2 daysAll prices are indicative UK market ranges based on current UK specialist supplier data.| Repair Tier | Dealer (Parts + Labour) | Specialist (Parts + Labour) | What It Involves | Suitability | Estimated Time |
|---|---|---|---|---|---|
 Water pump replacement Minor | £400-£700 | £250-£450 | Replace water pump, flush cooling system, inspect for head gasket damage | Best if caught before overheating | 1 - 2 days |
 Head gasket replacement Best Value | £1,200-£2,000 | £800-£1,500 | Replace head gasket, skim cylinder head if warped, replace water pump | When overheating has occurred but block is undamaged | 1 - 2 days |
Full Replacement - rebuilt/reconditioned engine Best Value | £2,200-£3,800 | £1,500-£2,800 | Supply & fit, upgraded water pump and head gasket components, 12-month warranty | When overheating has caused bottom-end damage or cylinder head cracking | 1 - 2 days |
Vehicle Value Check
Vehicle Value Check
A typical Toyota Yaris 1.4 D-4D (2005-2011) is worth £1,000-£4,000, with Mk3 (2011-2017) examples ranging £3,000-£7,000. With water pump replacement costing £250-£700, this is justifiable if caught early. However, head gasket replacement at £800-£2,000 often approaches or exceeds the value of older Yaris examples. For cars worth under £2,000, a used engine or full replacement may be the only sensible option.
Our Recommendation
Our Recommendation
If you catch the water pump failure before it overheats, replacing the pump is the sensible route. But if the head gasket has already failed - or if the car is worth under £2,000 - a used or reconditioned engine is often the most cost-effective solution. The 1.4 D-4D is simply not worth throwing good money after bad on a high-mileage example.
Don't Let Engine Failure Write Off Your Toyota Yaris 1.4 D-4D
The Toyota Yaris 1.4 D-4D is one of the most problematic engines Toyota has ever made - and it's a shame, because the Yaris itself is a great little car. Water pump failure, head gasket issues, a major recall, and EGR/injector problems mean this engine can quickly become a money pit. Whether you need a full rebuilt engine, a reconditioned unit, or just a targeted repair, comparing quotes through EnginesMarket ensures you get competitive pricing from vetted UK specialists - all with a minimum 12-month warranty on rebuilt units.
Compare rebuilt 1ND-TV Toyota Yaris 1.4 D-4D engine prices
12-Month Minimum
UK Specialists Vetted
Best Price GuidanceImportant Information
Important Information
"All prices are indicative UK market ranges based on historical quote data and repair requests from our network of engine specialists. Dealer pricing is estimated based on published main dealer labour rates and genuine OEM parts pricing. Specialist pricing reflects actual quote data from EnginesMarket's UK network. Actual costs vary depending on damage severity, vehicle condition, variant, and workshop location within the UK. Use our free comparison tool to get tailored quotes for your specific Toyota Yaris 1.4 D-4D. Every engine supplied through EnginesMarket carries a minimum 12-month unlimited mileage warranty - always confirm exact terms with your chosen supplier."
Toyota Yaris 1.4 D-4D Engine ReplacementFrequently Asked Questions
Question 1How much does a Toyota Yaris 1.4 D-4D engine replacement cost in the UK-
A Toyota Yaris 1.4 D-4D engine replacement typically costs between £1,200 and £2,800 for the engine itself, plus labour for supply and fit. Used engines start from around £500, reconditioned units from £1,200, and fully rebuilt engines from £1,500.
- Used: £500-£1,200
- Reconditioned: £1,200-£2,200
- Rebuilt: £1,500-£2,800
Question 2Why is the Toyota Yaris 1.4 D-4D considered an engine to avoid-
The 1.4 D-4D is widely regarded as the Yaris engine to avoid due to multiple well-documented issues. The water pump is structurally weak and fails without warning, causing rapid overheating and head gasket failure. The engine was also subject to a major recall (2008-2013) for turbo intercooler oil flow issues that could cause serious engine damage. EGR clogging and injector failure are also common.
-> Get your Yaris 1.4 D-4D inspectedQuestion 3What are the signs of water pump failure on a Toyota Yaris 1.4 D-4D-
The water pump on the 1ND-TV engine often fails without warning. Look for:
- Pink/white crust or a fresh drip at the pump's weep hole or around the pulley
- Coolant smell, low coolant level, or a small puddle under the front of the engine bay
- Overheating gauge climbing rapidly
Question 4Was there a recall on the Toyota Yaris 1.4 D-4D-
Yes. Toyota recalled approximately 13,000 Yaris 1.4 D-4D models in the UK (2008-2013) as part of a 39,700-vehicle European campaign. The issue was poor airflow from the turbo intercooler, which could allow oil to flow into the combustion chamber and cause serious engine damage. The fix involves repositioning the turbo and updating the ECU. If you own a 2008-2013 Yaris 1.4 D-4D, check whether the recall has been completed - it's free at any Toyota dealer.
-> Check your Yaris recall statusQuestion 5Is it worth replacing the engine in a Toyota Yaris 1.4 D-4D-
This depends on your Yaris's condition and value. A typical 2005-2011 Yaris 1.4 D-4D is worth £1,000-£4,000. If the car is in excellent condition with low mileage and the body/interior are good, a replacement engine (£1,200-£2,800) may be justifiable. For cars worth under £2,000, a used engine or repair is often more cost-effective. Always check whether the car has had the recall work completed before committing.
- Check your Yaris's current market value first
- Consider the car's overall condition - rust, suspension, interior
- A rebuilt engine includes a 12-month warranty for peace of mind
Question 6How long does a Toyota Yaris 1.4 D-4D engine replacement take-
A typical Toyota Yaris 1.4 D-4D engine replacement takes 6-9 hours for a specialist workshop, usually completed within 1-2 working days. The 1ND-TV is a relatively compact engine, so access is straightforward compared to larger diesel units.
- Allow 1-2 days for a full supply & fit
- Delivery times vary by supplier location
- Some specialists offer same-day or next-day fitting
Why Choose UsCompare Toyota Yaris 1.4 D-4DEngine PricesToday
500+ Yaris engines supplied through our network
12-Month Warranty on every rebuilt Yaris 1.4 D-4D engine
Nationwide UK delivery
supply & fit available
Comparing quotes for your Toyota Yaris 1.4 D-4D engine replacement is completely free and carries no obligation. Whether you need a used 1ND-TV, a reconditioned unit, or a fully rebuilt engine with warranty, our network of vetted UK specialists provides transparent pricing tailored to your exact Yaris and engine code. Enter your registration above and get matched with suppliers who stock your engine today.
Enter your registration
and get matched with verified Toyota Yaris 1.4 D-4D specialists.
