Toyota Avensis 2.0 D4D Engine Replacement - Compare Prices & Get Quotes
Get quotes today from trusted UK Toyota Avensis 2.0 D-4D engine specialists and compare prices on reconditioned, rebuilt and used 1CD-FTV and 1AD-FTV engines for your diesel family car or estate.
Supply & Fit Available
12-Month Warranty
Nationwide Delivery
100+ Suppliers
From FTV / 1AD-FTV - from £1,500 to £3,500
Used from £500 · Reconditioned from £1,200 · Common codes: 1CD-FTV, 1AD-FTV
From £500
Tested, bare/short engine
From £1,200
Rod bearings addressed, tested
From quote
Upgraded bearings, full teardown, revised valvetrain
Secure enquiry - no spam, no pressure. Genuine quotes only from vetted UK Toyota Avensis 2.0 D-4D specialists.
3 Simple Steps3 Simple Stepsto Finding the Best Toyota Avensis 2.0 D-4D Replacement Engineto Finding the Best Toyota Avensis 2.0 D-4D Replacement Engine
Most replacements completed within 3-5 days.

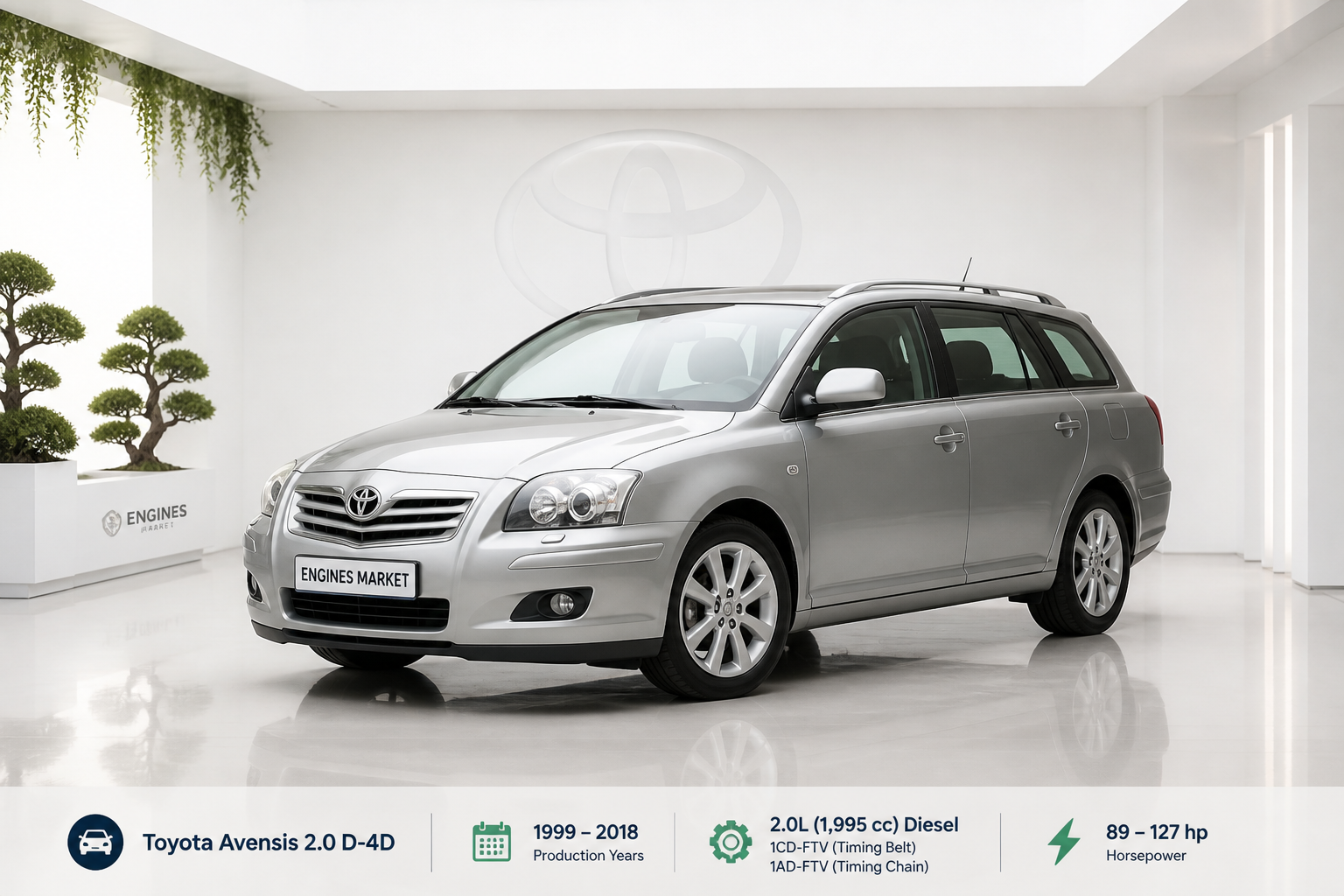

Variant HistoryToyota Avensis 2.0 D-4D - Engine History & Specs at a Glance
The Toyota Avensis 2.0 D-4D arrived in UK showrooms in 1999 as part of the first-generation Avensis range, with the 1CD-FTV engine becoming the backbone of Toyota's diesel offering in the family car segment. Across two generations - the T25 (2003-2009) and the T27 (2009-2018) - the 2.0 D-4D earned a reputation as a durable, economical workhorse for UK families, fleets and private hire operators. A critical distinction exists between early and late T25 models, with a change from timing belt to timing chain and from 1CD-FTV to the updated 1AD-FTV engine.
Variant HistoryToyota Avensis 2.0 D-4D - Engine History & Specs at a Glance
The Toyota Avensis 2.0 D-4D arrived in UK showrooms in 1999 as part of the first-generation Avensis range, with the 1CD-FTV engine becoming the backbone of Toyota's diesel offering in the family car segment. Across two generations - the T25 (2003-2009) and the T27 (2009-2018) - the 2.0 D-4D earned a reputation as a durable, economical workhorse for UK families, fleets and private hire operators. A critical distinction exists between early and late T25 models, with a change from timing belt to timing chain and from 1CD-FTV to the updated 1AD-FTV engine.
Toyota Avensis 2.0 D-4D
Fuel TypeDiesel (D-4D common-rail turbocharged)
Engine Size2.0L (1,995cc)
Power Output Range89-127hp across the variant's historyEngine History Timeline
**1999** - First-generation Avensis launched with the 1CD-FTV 2.0 D-4D turbocharged diesel engine producing 89-116hp and 215-280Nm of torque.
**2003** - T25 second-generation Avensis introduced; 1CD-FTV continued with 116hp output (2003-2006) and a timing belt requiring replacement at 105,000km.
**2006** - Mid-life facelift for T25 Avensis; 1AD-FTV engine introduced with 124-127hp and 300Nm of torque replacing the 1CD-FTV. The 1AD-FTV features a timing chain rather than a belt.
**2009** - T27 third-generation Avensis launched; 1AD-FTV continued with refinements and engine issues (head gasket, oil consumption) were addressed in models built after February 2009.
**2015** - 1.6 D-4D (1WW) introduced as a lower-emission alternative; 2.0 D-4D production continued alongside.
Key Specs Snapshot
Fuel TypeDiesel (D-4D common-rail turbocharged)Engine Size2.0L (1,995cc)Power Output Range89-127hp across the variant's historyYears Produced1999-2018 (T25 and T27 generations)Every engine fitted to the Toyota Avensis 2.0 D-4D is covered below, with UK rebuilt pricing and known failure points for the 1CD-FTV and 1AD-FTV.
Toyota Avensis 2.0 D-4D Engine Codes - Specifications & Replacement CostToyota Avensis 2.0 D-4D Engine Codes - Specifications & Replacement Cost
2.0 D-4D Turbo Diesel (1999-2006)
Power Output89-116hp (66-87kW)Torque215-280NmYears Fitted1999-2006 (first-generation Avensis and early T25)Timing BeltRequires replacement every 105,000km (approx. 65,000 miles)
Compatible Trim Levels
- TR
- T2
- T3
- T4
- T Spirit
- Business Edition
Find your exact engine code, specs and UK replacement cost guide.
Used
Tested, ready-to-fit engine
£375-£800
Reconditioned
Addressed known issues, tested
£1,095-£1,500
Rebuilt
Full teardown, upgraded internals
£1,500-£2,800
Common Failure
The 1CD-FTV is generally robust but suffers from EGR valve clogging, injector failure, turbocharger issues, and oil leaks. The EGR system is particularly prone to soot buildup, causing loss of power and increased emissions. Some 1CD-FTV engines were fitted with Toyota's D-CAT system (combined DPF/NOx adsorber) - check your engine cover for "D-CAT" badging.
The Toyota Avensis 2.0 D-4D - whether the 1CD-FTV or 1AD-FTV - is a durable diesel workhorse that has served UK families, fleets and private hire operators for nearly two decades. However, age and mileage bring predictable failure points. Rebuilt engines through EnginesMarket include upgraded components addressing the original failure points, plus a minimum 12-month unlimited-mileage warranty.
Why the Toyota Avensis 2.0 D-4D Suffers Catastrophic Engine Damage
Affected Vehicles
Toyota Avensis 2.0 D-4D (1AD-FTV, 2006-2018, particularly pre-2009 models)
Typical Failure Mileage
80,000-150,000 miles
Root Cause
The AD series engines have a known weakness in the head gasket design, leading to coolant loss, overheating, and eventual catastrophic failure. Toyota addressed this with a goodwill repair program covering vehicles up to 7 years / 111,846 miles from first registration.
Why It Happens
The AD series engines have a known weakness in the head gasket design, leading to coolant loss, overheating, and eventual catastrophic failure. Toyota addressed this with a goodwill repair program covering vehicles up to 7 years / 111,846 miles from first registration.
Dealer (parts + labour)
£1,500-£2,500
Specialist (parts + labour)
£900-£1,500
What it involves
Replace head gasket, skim cylinder head if warped
Suitability
Suitable if caught early; no bottom-end damage
1 - 2 daysDealer (parts + labour)
£4,000-£6,000
Specialist (parts + labour)
£2,200-£3,500 (supply) + £800-£1,200 fitting
What it involves
Supply & fit, upgraded components, 12-month warranty
Suitability
If overheating has caused bottom-end damage or vehicle has high mileage
1 - 2 daysAll prices are indicative UK market ranges based on current UK specialist supplier data.| Repair Tier | Dealer (Parts + Labour) | Specialist (Parts + Labour) | What It Involves | Suitability | Estimated Time |
|---|---|---|---|---|---|
 Head gasket replacement Minor | £1,500-£2,500 | £900-£1,500 | Replace head gasket, skim cylinder head if warped | Suitable if caught early; no bottom-end damage | 1 - 2 days |
 Full replacement - rebuilt engine Best Value | £4,000-£6,000 | £2,200-£3,500 (supply) + £800-£1,200 fitting | Supply & fit, upgraded components, 12-month warranty | If overheating has caused bottom-end damage or vehicle has high mileage | 1 - 2 days |
Vehicle Value Check
Vehicle Value Check
A typical Toyota Avensis 2.0 D-4D (2006-2012) is worth approximately £1,500-£5,000, with newer T27 models reaching higher values. For vehicles worth under £2,500, a head gasket repair (£900-£1,500) is often the sensible choice. For vehicles worth £3,000+, a rebuilt engine (£2,200-£3,500 supply) is viable if you plan to keep the car 2+ years. For vehicles worth under £1,500, evaluate scrap value before committing to any major repair - replacement cost may exceed vehicle value.
Our Recommendation
Our Recommendation
If your Avensis 2.0 D-4D is overheating or losing coolant, have the head gasket inspected immediately. A £900-£1,500 head gasket replacement is far cheaper than a £2,200+ engine rebuild. For post-2009 models, the head gasket issue was addressed, making them a safer bet.
Don't Let Engine Failure Write Off Your Toyota Avensis 2.0 D-4D
Whether you own a 1CD-FTV or 1AD-FTV Avensis 2.0 D-4D, predictable failure points - head gasket, EGR, DPF, injectors and turbo - can be addressed with the right specialist support. From a simple EGR clean to a full rebuilt engine with 12-month warranty, EnginesMarket connects you with vetted UK specialists offering competitive pricing, nationwide delivery, and a minimum 12-month warranty on every rebuilt unit.
Compare rebuilt 1AD-FTV Toyota Avensis 2.0 D-4D engine prices
12-Month Minimum
UK Specialists Vetted
Best Price GuidanceImportant Information
Important Information
"All prices are indicative UK market ranges based on historical quote data and repair requests from our network of engine specialists. Dealer pricing is estimated based on published main dealer labour rates and genuine OEM parts pricing. Specialist pricing reflects actual quote data from EnginesMarket's UK network. Actual costs vary depending on damage severity, vehicle condition, variant, and workshop location within the UK. Use our free comparison tool to get tailored quotes for your specific Toyota Avensis 2.0 D-4D. Every engine supplied through EnginesMarket carries a minimum 12-month unlimited mileage warranty - always confirm exact terms with your chosen supplier."
Toyota Avensis 2.0 D-4D Engine ReplacementFrequently Asked Questions
Question 1How much does a Toyota Avensis 2.0 D-4D engine replacement cost in the UK-
A Toyota Avensis 2.0 D-4D engine replacement typically costs £375-£1,200 for a used unit, £1,095-£2,200 for a reconditioned engine, and £1,500-£3,500 for a fully rebuilt unit (supply only). Fitting adds approximately £800-£1,200 in labour (10-14 hours at specialist rates). Total fitted cost for a rebuilt engine typically ranges from £2,300 to £4,700.
- Used 1CD-FTV / 1AD-FTV from £375 - lower cost, unknown provenance
- Reconditioned from £1,095 - tested and warrantied
- Rebuilt from £1,500 - like-new with 12-month warranty
Question 2What are the signs of engine failure in a Toyota Avensis 2.0 D-4D-
Common warning signs include overheating or coolant loss (head gasket failure on 1AD-FTV), loss of power or engine management light (EGR or DPF issues), rough idling or poor fuel economy (injector failure), and blue or black exhaust smoke (turbo or injector problems).
- Overheating / coolant loss - head gasket (1AD-FTV)
- Loss of power / EML - EGR or DPF clogging
- Rough idling / poor economy - injector failure
- Blue / black smoke - turbo or injector issues
Question 3Is it worth replacing the engine in a Toyota Avensis 2.0 D-4D-
For an Avensis 2.0 D-4D worth £1,500-£5,000, a rebuilt engine (£1,500-£3,500 supply) is viable if you plan to keep the car for 2+ years. For vehicles worth under £2,000, a head gasket or EGR repair is typically more cost-effective than a full replacement.
- Vehicle worth £3,000+ - replacement is viable
- Vehicle worth £1,500-£3,000 - evaluate repair options first
- Vehicle worth under £1,500 - consider scrap value
Question 4How long does a Toyota Avensis 2.0 D-4D engine replacement take-
A Toyota Avensis 2.0 D-4D engine replacement typically takes 10-14 hours for a specialist workshop. Supply-only delivery takes 1-2 days, and supply & fit typically requires 2-4 working days total.
- Supply only: 1-2 days for delivery
- Supply & fit: 2-4 working days total
- Timing belt engines (1CD-FTV) may require additional time
Question 5Is the Toyota Avensis 2.0 D-4D engine reliable-
The 1CD-FTV is generally robust with predictable EGR and injector issues. The 1AD-FTV has known head gasket and oil consumption issues, but these were addressed in post-February 2009 models. With regular maintenance, both engines can exceed 200,000 miles.
- 1CD-FTV (1999-2006): robust, timing belt, EGR/injector issues
- 1AD-FTV (2006-2018): timing chain, head gasket risk (pre-2009)
- Post-2009 1AD-FTV: improved reliability
Question 6What's the difference between the 1CD-FTV and 1AD-FTV engines-
The 1CD-FTV (1999-2006) produces 89-116hp and uses a timing belt requiring replacement at 105,000km. The 1AD-FTV (2006-2018) produces 124-127hp and 300Nm of torque, features a timing chain, and was introduced with the T25 facelift. The 1AD-FTV also has known head gasket and DPF issues that the 1CD-FTV largely avoids.
- 1CD-FTV: 89-116hp, timing belt, pre-2006
- 1AD-FTV: 124-127hp, timing chain, 2006-2018
- Check your engine code via VIN or registration
Why Choose UsCompare Toyota Avensis 2.0 D-4DEngine PricesToday
1CD-FTV / 1AD-FTV engines supplied through our network
12-Month Warranty on every rebuilt Toyota Avensis 2.0 D-4D engine
Nationwide UK delivery
supply & fit available
Comparing quotes for your Toyota Avensis 2.0 D-4D engine replacement is free, fast, and carries no obligation. Enter your registration above to connect with vetted UK specialists who stock used, reconditioned and rebuilt 1CD-FTV and 1AD-FTV engines - all with transparent pricing, nationwide delivery, and a minimum 12-month warranty on every rebuilt unit. Whether you need a simple EGR clean or a full engine replacement, get your quotes today.
Enter your registration
and get matched with verified Toyota Avensis 2.0 D-4D specialists.
