Toyota Auris 1.6 Valvematic Engine ReplacementCompare Prices & Get Quotes
Get quotes today from trusted UK Toyota Auris 1.6 Valvematic engine specialists. Compare prices on reconditioned, rebuilt and used engines for your Auris 1.6 Valvematic - free, no-obligation quotes from our vetted network.
Supply & Fit Available
12-Month Warranty
Nationwide Delivery
100+ Suppliers
From FAE - from £1,500 to £2,800
Used from £800 · Reconditioned from £1,500 · Common codes: 1ZR-FAE
From £800
Tested, bare/short engine
From £1,500
Rod bearings addressed, tested
From quote
Upgraded bearings, full teardown, revised valvetrain
Secure enquiry - no spam, no pressure. Genuine quotes only from vetted UK Toyota Auris 1.6 Valvematic specialists.
3 Simple Steps3 Simple Stepsto Finding the Best Toyota Auris 1.6 Valvematic Replacement Engineto Finding the Best Toyota Auris 1.6 Valvematic Replacement Engine
Most replacements completed within 3-5 days.

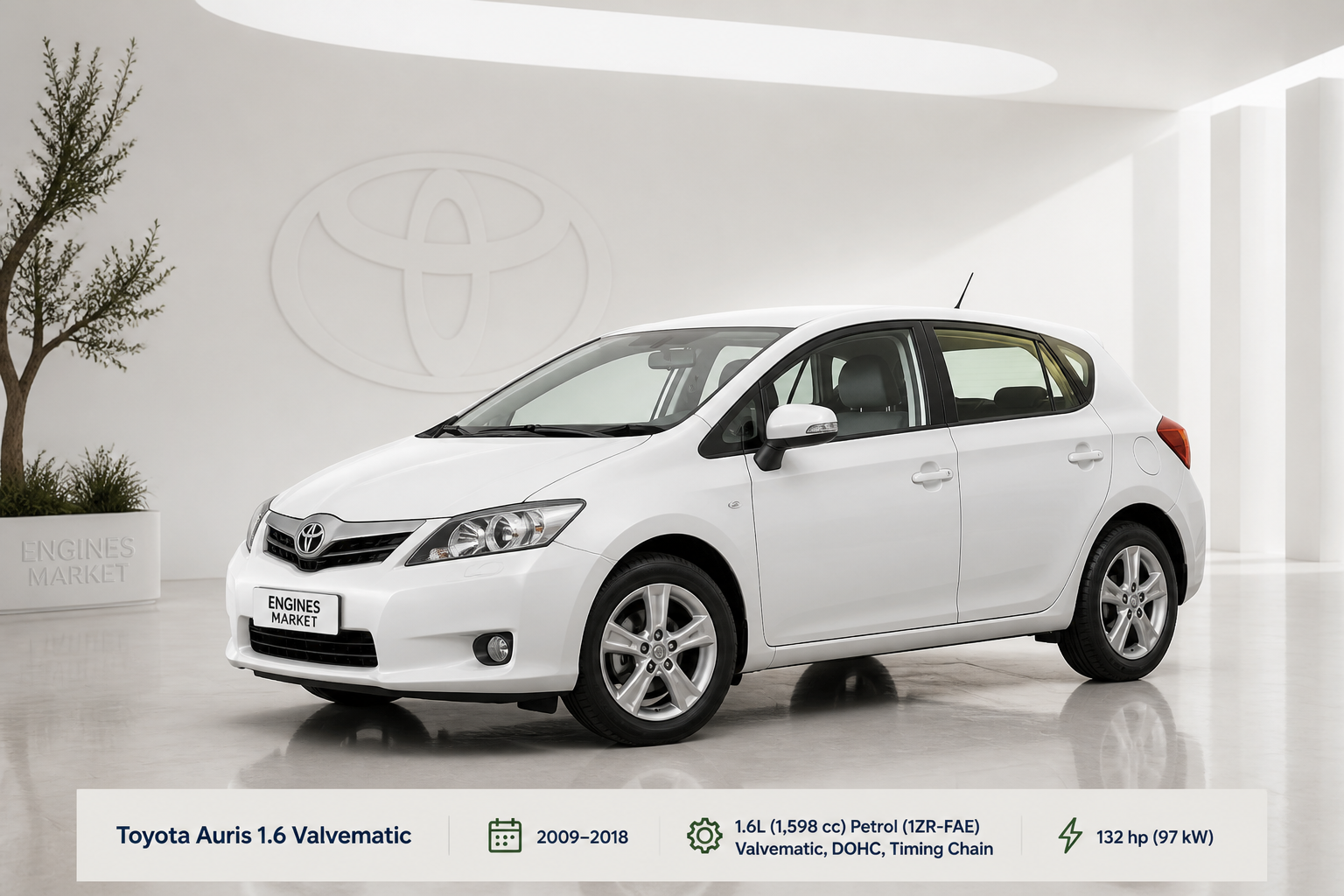

Variant HistoryToyota Auris 1.6 Valvematic - Engine History & Specs at a Glance
The Toyota Auris 1.6 Valvematic joined the Auris range in 2009 as the replacement for the earlier 1.6 VVT-i engine. Built at Toyota's Deeside engine plant in the UK, the 1ZR-FAE was expected to be the largest-selling unit in the Auris range. Valvematic technology brought improved power, torque and fuel efficiency compared to the outgoing VVT-i engine.
Variant HistoryToyota Auris 1.6 Valvematic - Engine History & Specs at a Glance
The Toyota Auris 1.6 Valvematic joined the Auris range in 2009 as the replacement for the earlier 1.6 VVT-i engine. Built at Toyota's Deeside engine plant in the UK, the 1ZR-FAE was expected to be the largest-selling unit in the Auris range. Valvematic technology brought improved power, torque and fuel efficiency compared to the outgoing VVT-i engine.
Toyota Auris 1.6 Valvematic
Fuel TypePetrol (Valvematic variable valve lift)
Engine Size1.6L (1,598cc)
Power Output132hp (97kW) at 6,400rpmEngine History Timeline
Toyota Auris 1.6 Valvematic (1ZR-FAE) launched with 132hp replacing the 123hp 1.6 VVT-i
Facelifted Auris (E150) continues with 1ZR-FAE engine
Second-generation Auris (E180) launched; 1.6 Valvematic continues as a petrol option alongside new 1.33 Dual VVT-i and hybrid powertrains
Facelifted second-generation Auris retains 1.6 Valvematic engine
Toyota Auris name replaced by Corolla; 1.6 Valvematic production ends
Key Specs Snapshot
Fuel TypePetrol (Valvematic variable valve lift)Engine Size1.6L (1,598cc)Power Output132hp (97kW) at 6,400rpmTorque160Nm at 4,400rpmBore × Stroke80.5mm × 78.5mmCompression Ratio10.7:1ValvetrainDOHC, 16-valve with Valvematic variable liftTiming DriveChain-driven camshaftsOil Capacity4.2 litresYears Produced2009-2018Every engine fitted to the Toyota Auris 1.6 Valvematic is covered below, with UK rebuilt pricing and known failure points.
Toyota Auris 1.6 Valvematic Engine Codes - Specifications & Replacement CostToyota Auris 1.6 Valvematic Engine Codes - Specifications & Replacement Cost
1.6 Valvematic (2009-2018)
Power Output132hp (97kW) at 6,400rpmTorque160Nm at 4,400rpmDisplacement1.6L (1,598cc)Bore × Stroke80.5mm × 78.5mmCompression Ratio10.7:1ValvetrainDOHC, 16-valve with Valvematic variable liftTiming DriveChain-drivenOil Capacity4.2 litresYears Fitted2009-2018
Compatible Trim Levels
- TR
- T3
- T Spirit
- Icon
- Design
- Excel
- Business Edition
Find your exact engine code, specs and UK replacement cost guide.
Used
Tested, ready-to-fit engine
£800-£1,500
Reconditioned
Addressed known issues, tested
£1,500-£2,200
Rebuilt
Full teardown, upgraded internals
£1,800-£2,800
Common Failure
The most critical issue on the 1ZR-FAE is Valvematic controller failure. The continuously variable valve lift controller (part number 222A0-37025) can fail, triggering P1047, P1049 or P2649 error codes. Symptoms include loss of power, delayed acceleration and the engine management light coming on. Replacement controllers cost £800+ new or around £250 from a breakers. Timing chain wear is also reported from 80,000 km (approx 50,000 miles).
The Toyota Auris 1.6 Valvematic (1ZR-FAE) is generally a reliable petrol engine, but the Valvematic system - while innovative - introduced complexity that can fail. The most common and costly issue is Valvematic controller failure, which can render the car undriveable. Timing chain stretch and oil consumption are also reported on higher-mileage examples. Rebuilt engines through EnginesMarket include upgraded components addressing the original failure points, plus a minimum 12-month unlimited-mileage warranty.
Why the Toyota Auris 1.6 Valvematic Loses Power
Affected Vehicles
Toyota Auris 1.6 Valvematic (1ZR-FAE, 2009-2018)
Typical Failure Mileage
60k-120k
Root Cause
The continuously variable valve lift controller (a small electric motor that controls intake valve lift height) can fail electronically. Common fault codes include P1047 (Valvematic Driver Learned Value Error), P1049 (Valvematic Circuit B1) and P2649 (Rocker Arm Actuator Control Circuit High). The controller is a known weak point on the 1.6 Valvematic.
Why It Happens
The continuously variable valve lift controller (a small electric motor that controls intake valve lift height) can fail electronically. Common fault codes include P1047 (Valvematic Driver Learned Value Error), P1049 (Valvematic Circuit B1) and P2649 (Rocker Arm Actuator Control Circuit High). The controller is a known weak point on the 1.6 Valvematic.
Dealer (parts + labour)
£1,100-£1,500
Specialist (parts + labour)
£850-£1,200
What it involves
Replace controller unit (part 222A0-37025), recalibrate system
Suitability
Best for permanent fix with warranty
1 - 2 daysDealer (parts + labour)
N/A
Specialist (parts + labour)
£350-£500
What it involves
Fit used controller from breakers
Suitability
Lower-cost option but carries risk
1 - 2 daysDealer (parts + labour)
£2,500-£4,000
Specialist (parts + labour)
£1,800-£2,800
What it involves
Supply & fit, all Valvematic components updated, 12-month warranty
Suitability
When controller failure has caused valve or timing damage
1 - 2 daysAll prices are indicative UK market ranges based on current UK specialist supplier data.| Repair Tier | Dealer (Parts + Labour) | Specialist (Parts + Labour) | What It Involves | Suitability | Estimated Time |
|---|---|---|---|---|---|
 Valvematic controller replacement (new) Minor | £1,100-£1,500 | £850-£1,200 | Replace controller unit (part 222A0-37025), recalibrate system | Best for permanent fix with warranty | 1 - 2 days |
 Valvematic controller replacement (used) Best Value | N/A | £350-£500 | Fit used controller from breakers | Lower-cost option but carries risk | 1 - 2 days |
Full Replacement - rebuilt/reconditioned engine Best Value | £2,500-£4,000 | £1,800-£2,800 | Supply & fit, all Valvematic components updated, 12-month warranty | When controller failure has caused valve or timing damage | 1 - 2 days |
Vehicle Value Check
Vehicle Value Check
A typical Toyota Auris 1.6 Valvematic (2009-2018) is worth £2,000-£9,000 depending on age and mileage. Valvematic controller replacement at £850-£1,200 is a significant cost but usually justifiable on a car worth £3,000+. For cars worth under £2,500, a used controller or a used engine may be more cost-effective. New controller prices are eye-watering, so evaluate carefully.
Our Recommendation
Our Recommendation
If you have P1047, P1049 or P2649 codes, the Valvematic controller is almost certainly the culprit. A new controller is expensive but provides the most reliable fix. A used controller (around £250 from a breakers) can work but carries risk. For high-mileage examples (100k+), a reconditioned engine with all Valvematic components updated may offer better long-term value - especially with the 12-month warranty included.
Don't Let Engine Failure Write Off Your Toyota Auris 1.6 Valvematic
The Toyota Auris 1.6 Valvematic is a capable and efficient family hatchback, but Valvematic controller failure, timing chain wear and oil consumption can turn a reliable car into a costly headache. Whether you need a full rebuilt engine, a reconditioned unit, or just a targeted repair, comparing quotes through EnginesMarket ensures you get competitive pricing from vetted UK specialists - all with a minimum 12-month warranty on rebuilt units.
Compare rebuilt 1ZR-FAE Toyota Auris 1.6 Valvematic engine prices
12-Month Minimum
UK Specialists Vetted
Best Price GuidanceImportant Information
Important Information
"All prices are indicative UK market ranges based on historical quote data and repair requests from our network of engine specialists. Dealer pricing is estimated based on published main dealer labour rates and genuine OEM parts pricing. Specialist pricing reflects actual quote data from EnginesMarket's UK network. Actual costs vary depending on damage severity, vehicle condition, variant, and workshop location within the UK. Use our free comparison tool to get tailored quotes for your specific Toyota Auris 1.6 Valvematic. Every engine supplied through EnginesMarket carries a minimum 12-month unlimited mileage warranty - always confirm exact terms with your chosen supplier."
Toyota Auris 1.6 Valvematic Engine ReplacementFrequently Asked Questions
Question 1How much does a Toyota Auris 1.6 Valvematic engine replacement cost in the UK-
A Toyota Auris 1.6 Valvematic engine replacement typically costs between £1,500 and £2,800 for the engine itself, plus labour for supply and fit. Used engines start from around £800, reconditioned units from £1,500, and fully rebuilt engines from £1,800.
- Used: £800-£1,500
- Reconditioned: £1,500-£2,200
- Rebuilt: £1,800-£2,800
Question 2What are the signs of Valvematic controller failure on a Toyota Auris 1.6 Valvematic-
The most common signs include:
- Engine management light coming on (solid yellow)
- Loss of power or delayed acceleration - "like driving a 1.0 Micra"
- No limp mode or misfiring in many cases
- Fault codes P1047, P1049 or P2649
Question 3What is a Valvematic controller and why does it fail-
The Valvematic controller is a small electric motor that controls the lift height of the intake valves. It can fail electronically, cutting the power supply to the actuator and preventing the valve lift from being learned correctly. It's a known weak point on the 1.6 Valvematic, with some owners reporting failure after 5+ years of ownership despite regular servicing with genuine Toyota 0W-20 oil.
Question 4Is it worth replacing the engine in a Toyota Auris 1.6 Valvematic-
This depends on your Auris's condition and value. A typical 2009-2018 Auris 1.6 Valvematic is worth £2,000-£9,000. If the car is in excellent condition with low mileage and the body/interior are good, a replacement engine (£1,500-£2,800) may be justifiable. For cars worth under £2,500, a used engine or targeted repair is often more cost-effective. Condition is everything on older cars rather than just going off the age.
- Check your Auris's current market value first
- Consider the car's overall condition - corrosion underneath is a key thing to look out for
- A rebuilt engine includes a 12-month warranty for peace of mind
Question 5How long does a Toyota Auris 1.6 Valvematic engine replacement take-
A typical Toyota Auris 1.6 Valvematic engine replacement takes 8-12 hours for a specialist workshop, usually completed within 2-3 working days. The 1ZR-FAE is a relatively straightforward engine to access in the Auris engine bay.
- Allow 2-3 days for a full supply & fit
- Delivery times vary by supplier location
- Some specialists offer same-day or next-day fitting
Question 6What oil should I use in a Toyota Auris 1.6 Valvematic-
The recommended oil for the 1ZR-FAE engine is 0W-20 fully synthetic, with an oil capacity of 4.2 litres. Toyota's preferred oil for petrol Auris models is 0W-20. Using the correct low-viscosity oil is critical for the Valvematic system's proper operation.
- Recommended: 0W-20 fully synthetic
- Capacity: 4.2 litres
- Change interval: Every 10,000 miles or annually - more frequently for urban driving
Why Choose UsCompare Toyota Auris 1.6 ValvematicEngine PricesToday
500+ Auris engines supplied through our network
12-Month Warranty on every rebuilt Auris 1.6 Valvematic engine
Nationwide UK delivery
supply & fit available
Comparing quotes for your Toyota Auris 1.6 Valvematic engine replacement is completely free and carries no obligation. Whether you need a used 1ZR-FAE, a reconditioned unit, or a fully rebuilt engine with warranty, our network of vetted UK specialists provides transparent pricing tailored to your exact Auris and engine code. Enter your registration above and get matched with suppliers who stock your engine today.
Enter your registration
and get matched with verified Toyota Auris 1.6 Valvematic specialists.
