Rod Bearing Failure
Repair Before It Escalates

Catching rod bearing failure early is critical. Click any stage to see full detail.

Bearings worn but crank journal still undamaged. Oil film has broken down, metal touching metal.

Stop driving immediately. Book a diagnostic inspection. If caught early, bearing replacement may be possible.

£800-£1,500 for bearing replacement. Labour: 12-20 hours at £65-£95/hr.

Crank journal scored, bearings destroyed. Bearing material has shed into the oil system.

Stop driving. Specialist inspection required - crank may need regrinding or replacement.

£1,200-£2,000 for crank regrind + oversized bearings. If beyond limits: engine replacement £3,000-£6,000+.

Connecting rod exited the block. Bearing failed catastrophically, rod snapped.

Do not attempt to restart. Call recovery. Engine replacement is the only option - the block is scrap.

£3,000-£10,000+ for reconditioned engine replacement. On lower-value vehicles, this often means scrapping the car.

Catching rod bearing failure early is critical. Click any stage to see full detail. £800 Light knocking, cold start, oil pressure normal Bearings worn but crank journal undamaged £800 - £1,500 £1,200 Loud rhythmic knock, low oil pressure at idle Crank journal scored, bearings destroyed £1,200 - £2,000 (regrind) or £3,000-£6,000 (engine) £10,000+ Loud bang, engine stops, oil on road Connecting rod exited block ("windowed block") £3,000 - £10,000+ Likely cause Bearings worn but crank journal still undamaged. Oil film has broken down, metal touching metal. What to do Stop driving immediately. Book a diagnostic inspection. If caught early, bearing replacement may be possible. Repair cost £800-£1,500 for bearing replacement. Labour: 12-20 hours at £65-£95/hr. Likely cause Crank journal scored, bearings destroyed. Bearing material has shed into the oil system. What to do Stop driving. Specialist inspection required - crank may need regrinding or replacement. Repair cost £1,200-£2,000 for crank regrind + oversized bearings. If beyond limits: engine replacement £3,000-£6,000+. Likely cause Connecting rod exited the block. Bearing failed catastrophically, rod snapped. What to do Do not attempt to restart. Call recovery. Engine replacement is the only option - the block is scrap. Repair cost £3,000-£10,000+ for reconditioned engine replacement. On lower-value vehicles, this often means scrapping the car. What is rod bearing failure-

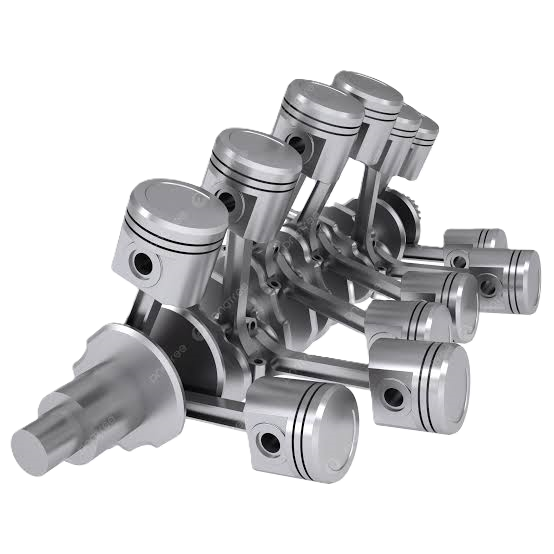

What are rod bearings- Rod bearings are thin, precision-made layers of soft metal (usually copper-lead or aluminium-tin) that sit between the connecting rod and the crankshaft. They allow the rod to rotate smoothly around the crank journal under extreme pressure. When rod bearings fail The oil film breaks down. Metal touches metal. The bearing material wears away rapidly, creating increasing clearance between the rod and crank. The "knock" you hear is the rod literally slapping against the crankshaft with every revolution. If ignored: The bearing can spin (rotate inside the rod), weld itself to the crankshaft, or disintegrate entirely. The connecting rod can then snap or punch a hole through the engine block. Why do rod bearings fail-

Based on 24,650 quote requests in 2025 [EM-VERIFIED], oil starvation and extended oil change intervals are the two most common causes of rod bearing failure.

Based on KNOWN FAILURE PATTERNS table and EM_Proprietary_Data_2025.

Based on KNOWN FAILURE PATTERNS table and EM_Proprietary_Data_2025. Land Rover 306DT (SDV6/TDV6 3.0) 80k-140k 980 [EM-VERIFIED] Crankshaft bearing failure - cold-start knock is early warning. BMW N47D20 / N47D20C 60k-120k 1,450 [EM-VERIFIED] Timing chain debris contaminates oil - leads to bearing wear. BMW N57D30 80k-150k 830 [EM-VERIFIED] Oil pump failure can accelerate bearing wear. Land Rover 276DT (2.7 TDV6) 80k-140k 700 [EM-VERIFIED] Oil pump housing failure - kills oil pressure. Subaru EJ20 / EJ25 (boxer) 60k-100k - Flat-four design; common on Impreza WRX/STI. [ESTIMATED] BMW S54 / S65 (M engines) 60k-100k - Rod bearing clearance too tight from factory. Preventative replacement at 60k-80k. [ESTIMATED] Affected models - rod bearing risk

Based on per-model request volumes [EM-VERIFIED] and failure pattern data.

Vehicle values from EM Model Ownership Decision Tables [ESTIMATED].

🔵 EARLY WARNING (Stop driving) • Light knocking noise on cold start that may disappear as engine warms • Knocking noise that increases with engine RPM - most distinctive symptom • Knock is loudest under load - acceleration makes it worse • Low oil pressure warning light - especially at idle 🔴 PROGRESSED DAMAGE (Catastrophic risk) • Loud, rhythmic knock even at idle - bearings are severely worn • Metal flakes in oil filter - copper/bronze coloured particles • Engine vibration - imbalance from damaged bearings • Loss of power - increased internal friction • Engine seizure - final stage 🚨 STOP DRIVING if: You hear a deep, rhythmic knock that gets louder with RPM. Continuing to drive will turn a £1,000 bearing replacement into a £5,000+ engine replacement - or write off the car entirely. Consequences of delay

• • Light knocking noise on cold start that may disappear as engine warms
• • Knocking noise that increases with engine RPM - most distinctive symptom
• • Knock is loudest under load - acceleration makes it worse
• • Low oil pressure warning light - especially at idle
• • Loud, rhythmic knock even at idle - bearings are severely worn
• • Metal flakes in oil filter - copper/bronze coloured particles
• • Engine vibration - imbalance from damaged bearings
• • Loss of power - increased internal friction
• • Engine seizure - final stage

Stage Damage Cost to Fix Stage 1 Bearing wear - bearing material worn, crank undamaged £800 - £1,500 Stage 2 Journal damage - crank surface scored £1,200 - £2,000 Stage 3 Spun bearing - bearing welded to crank £3,000 - £10,000+ Stage 4 Windowed block - con rod exits block Car may be scrap Real-world example from specialist forums (anonymised): 2011 BMW 530d N57, 118,000 miles. Owner noticed a light knock on cold start but ignored it for 2 months. The knock became constant. By the time they got to a garage, the crank journal was scored beyond repair. Total cost: £5,800 for a reconditioned engine. The same owner could have paid £1,200 for bearing replacement 8 weeks earlier. Repair vs replace - rod bearing failure

Not every engine failure requires a full replacement. Where damage is isolated (early-stage rod knock), bearing replacement may be economical. However, advanced rod knock almost always requires engine replacement.

✓ Choose bearing replacement if: Rod knock just started (mild noise, not constant) Oil pressure still normal Crank journals undamaged (inspect with bearings removed) Vehicle value high enough to justify £800-£1,500 spend Labour: 12-20 hours 🔧 Choose crank regrind if: Crank journals scored but not cracked Oversized bearings available Total cost £2,000-£3,500 - only economical on higher-value vehicles ⚠ Choose engine replacement if: Crankshaft damaged beyond regrind limits Connecting rod damaged or snapped Engine block damaged ("windowed block") Labour to strip, inspect, replace bearings exceeds cost of reconditioned engine Vehicle value under £4,000-£6,000 - replacement rarely economical " If you hear a rod knock, stop driving immediately. Bearing replacement is possible only if caught before the crank is damaged. On high-performance engines (BMW M, Subaru STI), consider preventative bearing replacement at 60k-80k miles - it's cheaper than a new engine. - Specialist rule of thumb (UK) Not every engine failure requires a full replacement. Where damage is isolated (early-stage rod knock), bearing replacement may be economical. However, advanced rod knock almost always requires engine replacement. Compare repair vs replacement quotes for your engine → Get quotes Vehicle value threshold

• Rod knock just started (mild noise, not constant)
• Oil pressure still normal
• Crank journals undamaged (inspect with bearings removed)
• Vehicle value high enough to justify £800-£1,500 spend
• Labour: 12-20 hours
• Crank journals scored but not cracked
• Oversized bearings available
• Total cost £2,000-£3,500 - only economical on higher-value vehicles
• Crankshaft damaged beyond regrind limits
• Connecting rod damaged or snapped
• Engine block damaged ("windowed block")
• Labour to strip, inspect, replace bearings exceeds cost of reconditioned engine
• Vehicle value under £4,000-£6,000 - replacement rarely economical

If the lowest viable repair cost exceeds approximately 60% of the vehicle's current market value, evaluate scrap/part-ex value before committing.

Vehicle Value Recommended Action Reasoning Under £3,000 Scrap the vehicle Replacement cost (£1,500-£4,000) likely exceeds value £3,000 - £5,000 Used engine replacement (if car is otherwise excellent) Bearing repair borderline; used engine may be cheaper £5,000 - £8,000 Evaluate both - bearing replacement or used engine Bearing replacement (£800-£1,500) viable if caught early £8,000 - £15,000 Bearing replacement (if caught early) or reconditioned engine Warranty justifies cost £15,000+ Bearing replacement or reconditioned engine Replacement cost small relative to vehicle value If the lowest viable repair cost exceeds approximately 60% of the vehicle's current market value, evaluate scrap/part-ex value before committing. Market intelligence - UK 2025 data

Based on 24,650 quote requests in 2025 [EM-VERIFIED], rod bearing failure is one of the most common catastrophic engine issues, particularly on high-mileage diesel engines.

Based on 24,650 quote requests in 2025 [EM-VERIFIED], rod bearing failure is one of the most common catastrophic engine issues, particularly on high-mileage diesel engines. 0 verified UK quote requests analysed in 2025 [EM-VERIFIED] Land Rover 306DT (SDV6/TDV6) Crankshaft bearing failure - 980 requests [EM-VERIFIED] 980 requests [EM-VERIFIED] BMW N57D30 Crankshaft bearing issues - 830 requests [EM-VERIFIED] 830 requests [EM-VERIFIED] BMW N47D20 / N47D20C Chain debris contaminates oil - 1,450 requests [EM-VERIFIED] 1,450 requests [EM-VERIFIED] Land Rover 276DT (2.7 TDV6) Oil pump housing failure - 700 requests [EM-VERIFIED] 700 requests [EM-VERIFIED] Known failure insight "The Land Rover SDV6/TDV6 (306DT) generated 980 quote requests in 2025 [EM-VERIFIED n=980], reflecting the high failure rate of crankshaft bearings. Specialists report bearing failure typically occurs between 80,000 and 140,000 miles, with cold-start knock as the primary early warning." - KNOWN FAILURE PATTERNS table Based on 24,650 real UK quotes in 2025. Rod bearing failure is often ignored until it's too late - early diagnosis is your only chance of avoiding a full engine replacement. Preventative maintenance

Rod bearing failure is largely preventable with proper maintenance.

Rod bearing failure is largely preventable with proper maintenance. 01 Regular oil changes with correct grade Every 6k-8k miles on performance engines, 8k-12k on standard. Use manufacturer-spec oil (BMW LL04, VW 507.00, etc.). 02 Never ignore low oil pressure warnings Even a momentary flicker is a red flag - stop and investigate immediately. 03 Check oil level weekly Low oil is the #1 cause of bearing failure. Top up if low. 04 Consider oil analysis on high-risk engines Detects bearing material before failure becomes catastrophic. Especially BMW N-series, Subaru EJ. 05 Preventative bearing replacement (performance engines) BMW S54/S65, Subaru EJ20/EJ25: replace bearings at 60k-80k miles as insurance. Cost: £800-£1,500. Preventative maintenance (per year) £150-£300 Oil changes, basic servicing VS Catastrophic failure - engine replacement £3,000-£10,000+ Reconditioned engine or full rebuild The maths is simple. Get a preventative bearing replacement quote → Get quotes Frequently asked questions
