BMW X3 18d Engine ReplacementCompare Prices & Get Quotes
Get quotes today from trusted UK BMW X3 18d engine specialists. Compare prices on reconditioned, rebuilt and used BMW X3 18d engines - supply & fit available nationwide for sDrive18d and xDrive18d variants.
Supply & Fit Available
12-Month Warranty
Nationwide Delivery
100+ Suppliers
From £1,400 to £3,200
Used from £800 · Reconditioned from £1,600 · Common codes: N47D20C, N47D20, B47D20A
From £800
Tested, bare/short engine
From £1,600
Rod bearings addressed, tested
From quote
Upgraded bearings, full teardown, revised valvetrain
Secure enquiry - no spam, no pressure. Genuine quotes only from vetted UK BMW X3 18d specialists.
3 Simple Steps3 Simple Stepsto Finding the Best BMW X3 18d Replacement Engineto Finding the Best BMW X3 18d Replacement Engine
Most replacements completed within 3-5 days.

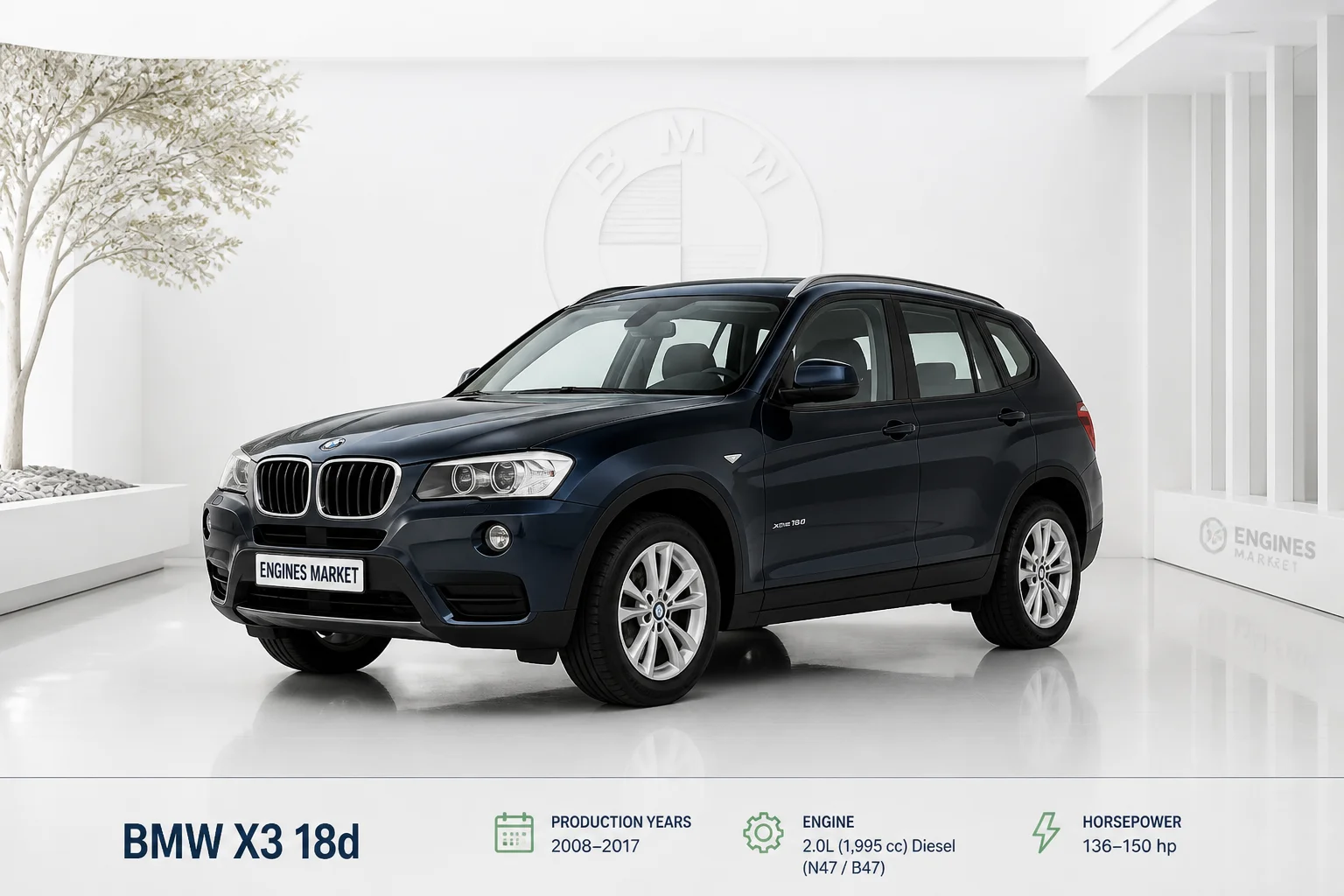

Variant HistoryBMW X3 18d - Engine History & Specs at a Glance
The BMW X3 18d arrived as the entry-level diesel variant, offering the lowest running costs in the X3 range. First introduced in the E83 generation (2008) with the 143hp N47D20C, the 18d badge continued into the F25 generation (2010-2017) with both N47 and later B47 engines, before being phased out as BMW consolidated its diesel line-up.
Variant HistoryBMW X3 18d - Engine History & Specs at a Glance
The BMW X3 18d arrived as the entry-level diesel variant, offering the lowest running costs in the X3 range. First introduced in the E83 generation (2008) with the 143hp N47D20C, the 18d badge continued into the F25 generation (2010-2017) with both N47 and later B47 engines, before being phased out as BMW consolidated its diesel line-up.
BMW X3 18d
Fuel TypeDiesel
Engine Size2.0L (1,995cc)
Power Output136-150hp (depending on generation and engine code)Engine History Timeline
E83 generation gains xDrive18d with N47D20C 143hp, 350Nm torque
F25 generation launches; sDrive18d (rear-wheel drive) and xDrive18d (all-wheel drive) available with N47D20C 143hp
F25 LCI updates N47D20C to B47D20A in late-production 18d models 150hp, 360Nm
B47D20A becomes standard across all F25 18d variants
G01 generation launches; 18d badge discontinued in favour of xDrive20d
2024 - G01 xDrive20d (B47) effectively replaces the 18d as the entry diesel
Key Specs Snapshot
Fuel TypeDieselEngine Size2.0L (1,995cc)Power Output136-150hp (depending on generation and engine code)Torque350-360NmYears Produced2008-2017 (E83, F25)Every engine fitted to the BMW X3 18d is covered below, with UK rebuilt pricing and known failure points.
BMW X3 18d Engine Codes - Specifications & Replacement CostBMW X3 18d Engine Codes - Specifications & Replacement Cost
2.0L Diesel (2008-2015)
Power Output143hp (E83, early F25); 141hp (later F25)Torque350Nm @ 1,750-2,750rpmYears Fitted2008-2015 (E83 xDrive18d; F25 sDrive18d / xDrive18d)NotesDrive18d (rear-wheel drive, F25) and xDrive18d (all-wheel drive, F25/E83) have different sump designs and engine mounts - verify drivetrain before ordering
Compatible Trim Levels
- E83 xDrive18d
- E83 xDrive18d M Sport
- F25 sDrive18d
- F25 sDrive18d M Sport
- F25 xDrive18d
- F25 xDrive18d M Sport
Find your exact engine code, specs and UK replacement cost guide.
Used
Tested, ready-to-fit engine
£800-£1,600
Reconditioned
Addressed known issues, tested
£1,600-£2,800
Rebuilt
Full teardown, upgraded internals
£1,400-£3,200
Common Failure
Timing chain stretch and guide fracture - the N47's rear-mounted timing chain is the single biggest reason X3 18d engines fail.Chain guides become brittle with heat cycling, fracture, and allow the chain to stretch or snap. This can destroy the engine with little warning.
The BMW X3 18d is powered by the N47 2.0-litre diesel in E83 and early F25 models - the engine with the infamous rear-mounted timing chain that has defined BMW diesel replacement demand for over a decade. The improved B47 diesel in late F25 18d models resolves the chain issue but introduces EGR cooler concerns. Every rebuilt engine supplied through Engines Market includes upgraded components addressing the original failure point - plus a minimum 12-month unlimited-mileage warranty. Below we break down the most common X3 18d failures, what genuine repair costs look like, and when a rebuilt engine is the smarter financial decision.
Why the Entry-Level Diesel Fails Catastrophically
Affected Vehicles
BMW X3 E83 xDrive18d, F25 sDrive18d, F25 xDrive18d (2008-2015, N47D20C & N47D20)
Typical Failure Mileage
60,000-120,000 miles
Root Cause
The timing chain is mounted at the rear of the engine, making it difficult to lubricate adequately.Plastic chain guides become brittle with heat cycling, fracture, and allow the chain to stretch or snap.When the chain snaps, pistons hit valves - the engine destroys itself.
Why It Happens
The timing chain is mounted at the rear of the engine, making it difficult to lubricate adequately.Plastic chain guides become brittle with heat cycling, fracture, and allow the chain to stretch or snap.When the chain snaps, pistons hit valves - the engine destroys itself.
Dealer (parts + labour)
£1,800-£2,500
Specialist (parts + labour)
£1,000-£1,600
What it involves
Replace timing chain, tensioner, guides, sprockets - engine remains in car
Suitability
Prevents catastrophic failure if done before rattles appear. Adds 60k+ miles
1 - 2 daysDealer (parts + labour)
£3,500-£5,000
Specialist (parts + labour)
£2,200-£3,200
What it involves
Remove cylinder head, replace bent valves, rebuild head, fit new timing assembly
Suitability
Only viable if chain slipped without snapping. High labour, uncertain outcome
1 - 2 daysDealer (parts + labour)
£4,500-£6,500
Specialist (parts + labour)
£2,800-£4,000
What it involves
Supply of rebuilt unit with upgraded timing components, fitted, tested, 12-month warranty
Suitability
Best long-term solution. Upgraded chain guides prevent recurrence
1 - 2 daysAll prices are indicative UK market ranges based on current UK specialist supplier data.| Repair Tier | Dealer (Parts + Labour) | Specialist (Parts + Labour) | What It Involves | Suitability | Estimated Time |
|---|---|---|---|---|---|
 Minor - Preventative Timing Chain Replacement Minor | £1,800-£2,500 | £1,000-£1,600 | Replace timing chain, tensioner, guides, sprockets - engine remains in car | Prevents catastrophic failure if done before rattles appear. Adds 60k+ miles | 1 - 2 days |
 Intermediate - Post-Failure Cylinder Head Rebuild Best Value | £3,500-£5,000 | £2,200-£3,200 | Remove cylinder head, replace bent valves, rebuild head, fit new timing assembly | Only viable if chain slipped without snapping. High labour, uncertain outcome | 1 - 2 days |
Full Replacement - Rebuilt N47 Engine (Supply & Fit) Best Value | £4,500-£6,500 | £2,800-£4,000 | Supply of rebuilt unit with upgraded timing components, fitted, tested, 12-month warranty | Best long-term solution. Upgraded chain guides prevent recurrence | 1 - 2 days |
Vehicle Value Check
Vehicle Value Check
A typical 2008-2015 E83 or F25 BMW X3 18d is worth £2,500-£8,000 depending on age and mileage. A preventative timing chain replacement at £1,000-£1,600 is excellent value on a £3,500-£6,000 car. Once the chain has snapped, a £2,800-£4,000 rebuilt engine on a sub-£4,000 example requires careful evaluation - if the car is otherwise sound, replacement often makes sense given the cost of a comparable used X3.
Our Recommendation
Our Recommendation
If your X3 18d's N47 rattles on cold start-up for 1-2 seconds, replace the timing chain preventatively at a specialist - £1,000-£1,600 is cheap insurance. If the chain has already snapped, a specialist rebuilt engine is usually cheaper than main dealer cylinder head work - and gives you a warranty.
Don't Let Engine Failure Write Off Your BMW X3 18d
The failures above account for the majority of BMW X3 18d engine replacement enquiries we see - N47 timing chain failure, injector issues, and DPF/EGR problems. Engines Market makes it simple to compare prices from trusted UK BMW X3 18d specialists who use upgraded components specifically designed to prevent these failures from recurring. Every rebuilt engine includes a minimum 12-month unlimited-mileage warranty, nationwide delivery, and supply & fit options. Compare prices today and get back on the road without the main dealer premium.
Compare rebuilt N47D20C BMW X3 18d engine prices
12-Month Minimum
UK Specialists Vetted
Best Price GuidanceImportant Information
Important Information
"All prices are indicative UK market ranges based on historical quote data and repair requests from our network of engine specialists. Dealer pricing is estimated based on published main dealer labour rates and genuine OEM parts pricing. Specialist pricing reflects actual quote data from Engines Market's UK network. Actual costs vary depending on damage severity, vehicle condition, variant, and workshop location within the UK. Use our free comparison tool to get tailored quotes for your specific BMW X3 18d. Every engine supplied through Engines Market carries a minimum 12-month unlimited mileage warranty - always confirm exact terms with your chosen supplier."
BMW X3 18d Engine ReplacementFrequently Asked Questions
Question 1How much does a BMW X3 18d engine replacement cost in the UK-
A BMW X3 18d rebuilt engine typically costs £1,400-£3,200 supply-only, with N47D20C units at the higher end and earlier N47D20 variants starting lower. Supply & fit adds £500-£900 depending on the specialist and your location.
- N47D20C (2008-2015): £1,400-£3,200 supply-only
- B47D20A (2014-2017): £1,800-£3,400 supply-only
- Used engines start from £800 supply-only
- xDrive variants may require additional labour for drivetrain calibration
- Main dealer replacement costs 40-60% more than specialist prices
Question 2Is the BMW X3 18d N47 timing chain failure really that common-
Yes - the N47 diesel in 2008-2015 X3 18d models has a well-documented timing chain failure risk between 60,000-120,000 miles.The chain is mounted at the rear of the engine with inadequate lubrication.Chain guides become brittle and shatter, allowing the chain to skip teeth or snap completely.
- Chain mounted at rear of engine - labour-intensive to replace
- Failure can destroy the engine with little audible warning
- Preventative replacement costs £1,000-£1,600 at a specialist
- Post-failure replacement typically £2,800-£4,000 for a rebuilt unit
Question 3What is the most reliable BMW X3 18d engine - N47 or B47-
The B47D20A (2014-2017) is significantly more reliable than the N47 it replaced. BMW relocated the timing chain to the front of the engine, making it both more durable and easier to service. B47 engines have far fewer timing chain failures than N47 units.
- B47 has front-mounted timing chain - accessible and more durable
- B47 common issues are limited to EGR cooler failures (subject to recalls)
- N47 timing chain failure is the single biggest reason X3 18d engines are replaced
- Late 2014-2017 F25 18d models with B47 are the most desirable
Question 4What causes BMW X3 18d B47 EGR cooler failure-
The B47 EGR cooler can crack internally, allowing coolant to leak into the exhaust system.BMW issued recalls on many B47 engines for this component. Symptoms include coolant loss, white exhaust smoke, and in severe cases, engine misfire or hydrolock.
- Coolant escapes from defective cooler into exhaust or combustion chambers
- Combined with soot creates risk of hydrolock if coolant enters cylinders
- Affects B47 diesel engines across BMW's range
- BMW used an improved cooler from a different supplier from 2022
Question 5Is it worth replacing the engine on a high-mileage BMW X3 18d-
On a 2008-2015 E83 or F25 X3 18d worth £2,500-£8,000, a £2,800-£4,000 rebuilt engine often makes sense if the car is otherwise sound.On newer F25 models with B47 engines, replacement is almost always worthwhile.
- E83 X3 18d (2008-2010): borderline decision - depends on body and chassis condition
- F25 X3 18d (2010-2017): replacement is usually cost-effective - car worth £3,500-£8,000
- Rebuilt engine includes 12-month warranty and upgraded timing components
- Specialist replacement costs half what a main dealer charges
Question 6What is the labour cost to replace a BMW X3 18d engine-
Specialist labour for BMW X3 18d engine replacement typically costs £500-£900, covering 8-12 hours of work. Main dealers charge £1,200-£2,000 for the same job.
- Independent BMW specialist: £60-£80 per hour, 8-12 hours total
- Main dealer: £150-£250 per hour, same labour time
- xDrive variants may incur additional labour for drivetrain calibration
- Supply & fit packages typically add £500-£900 to engine price
