A premium visual breakdown of white smoke, coolant loss, overheating, and the decision to rebuild a CFCA 2.0 TDI engine instead of replacing it.

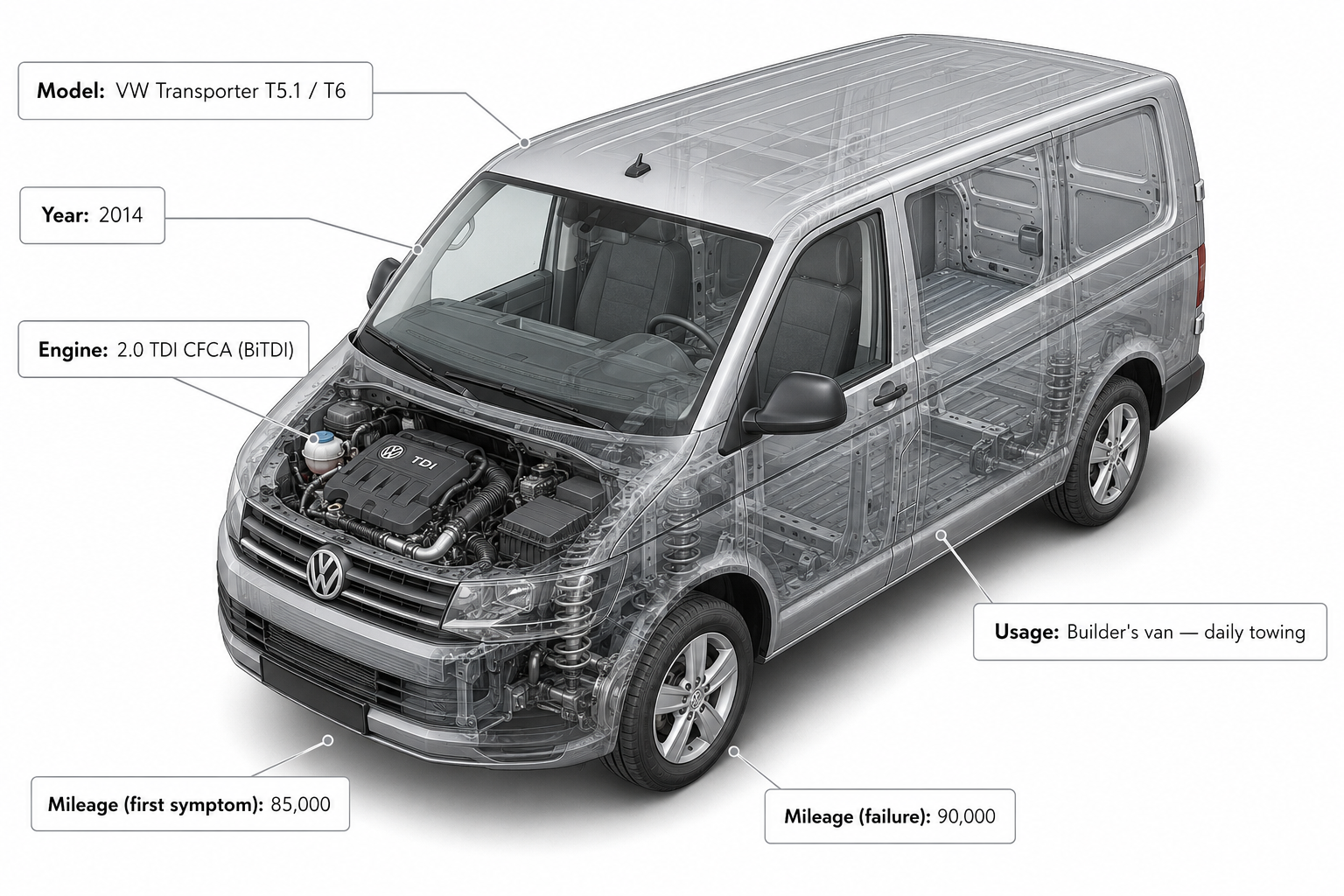

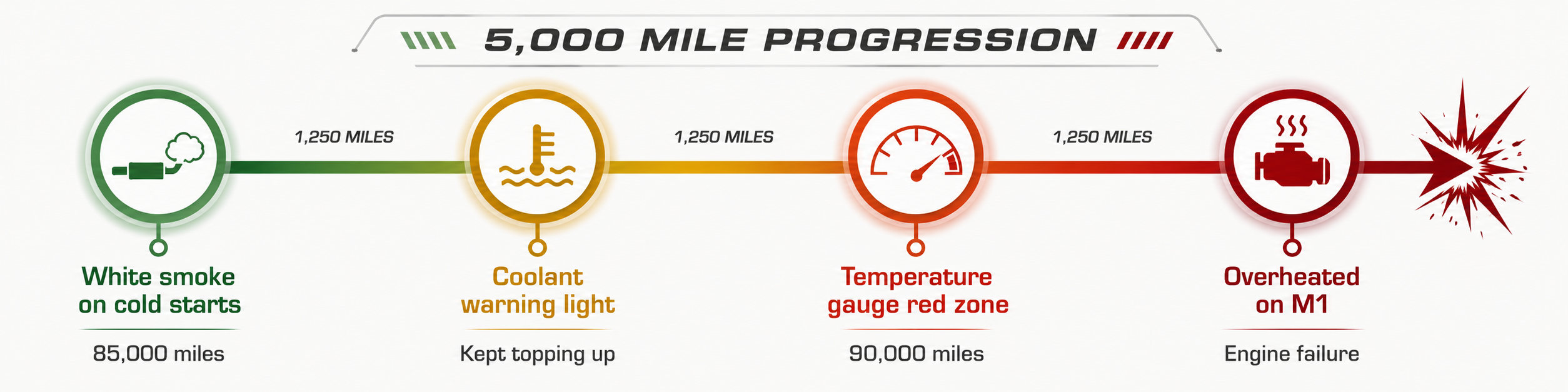

The owner first noticed white smoke from the exhaust on cold starts around 85,000 miles. A few weeks later, the coolant warning light began appearing every few days. The owner topped up the coolant but didn't investigate further. Within 5,000 miles, the temperature gauge entered the red zone.
The owner first noticed white smoke from the exhaust on cold starts. A few weeks later, the coolant warning light began appearing every few days. The owner topped up the coolant but didn't investigate further.

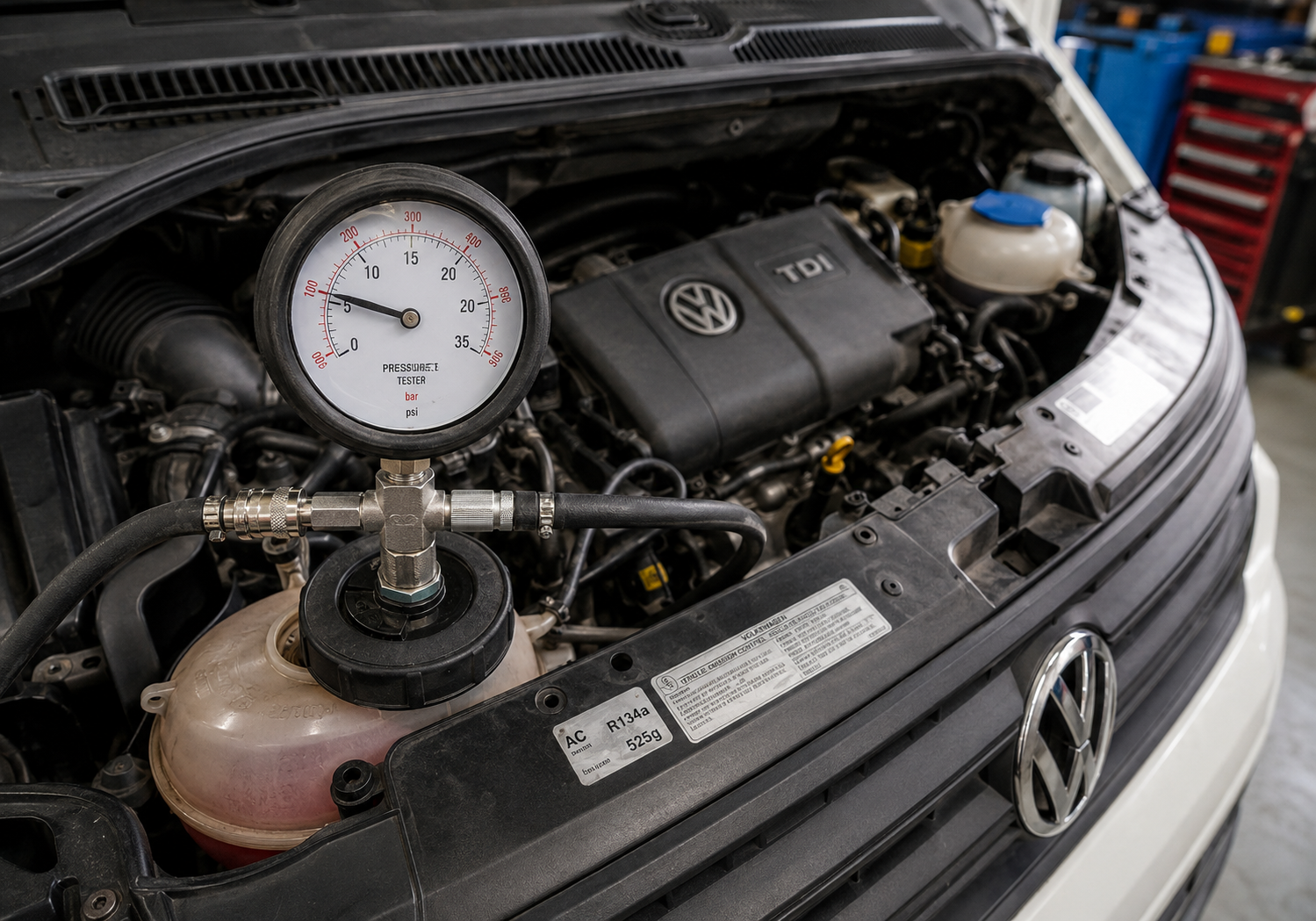

The specialist performed a cooling system pressure test. The findings confirmed the cylinder head had failed - combustion gases were entering the coolant system.
"Probably a small coolant leak. I'll get it checked at the next service."
Cracked cylinder head between exhaust ports. Head gasket blown. Combustion gases entering coolant system.
The specialist performed a cooling system pressure test. The findings were severe - the cylinder head had cracked, and the head gasket was blown.
"The cylinder head has failed. It needs to come off. If the bottom end is intact, we can replace the head. But if there's damage from overheating, you're looking at a full rebuild."
The specialist presented three distinct paths. Each had different costs, risks, and outcomes. The owner chose the full rebuild for long-term reliability.
Fitted cost at independent specialist. Best when budget matters more than long-term certainty.
New cylinder head, head gasket, timing kit, water pump. Bottom end and turbo condition unknown.
New cylinder head, timing set, oil pump, bottom end inspection, gaskets.

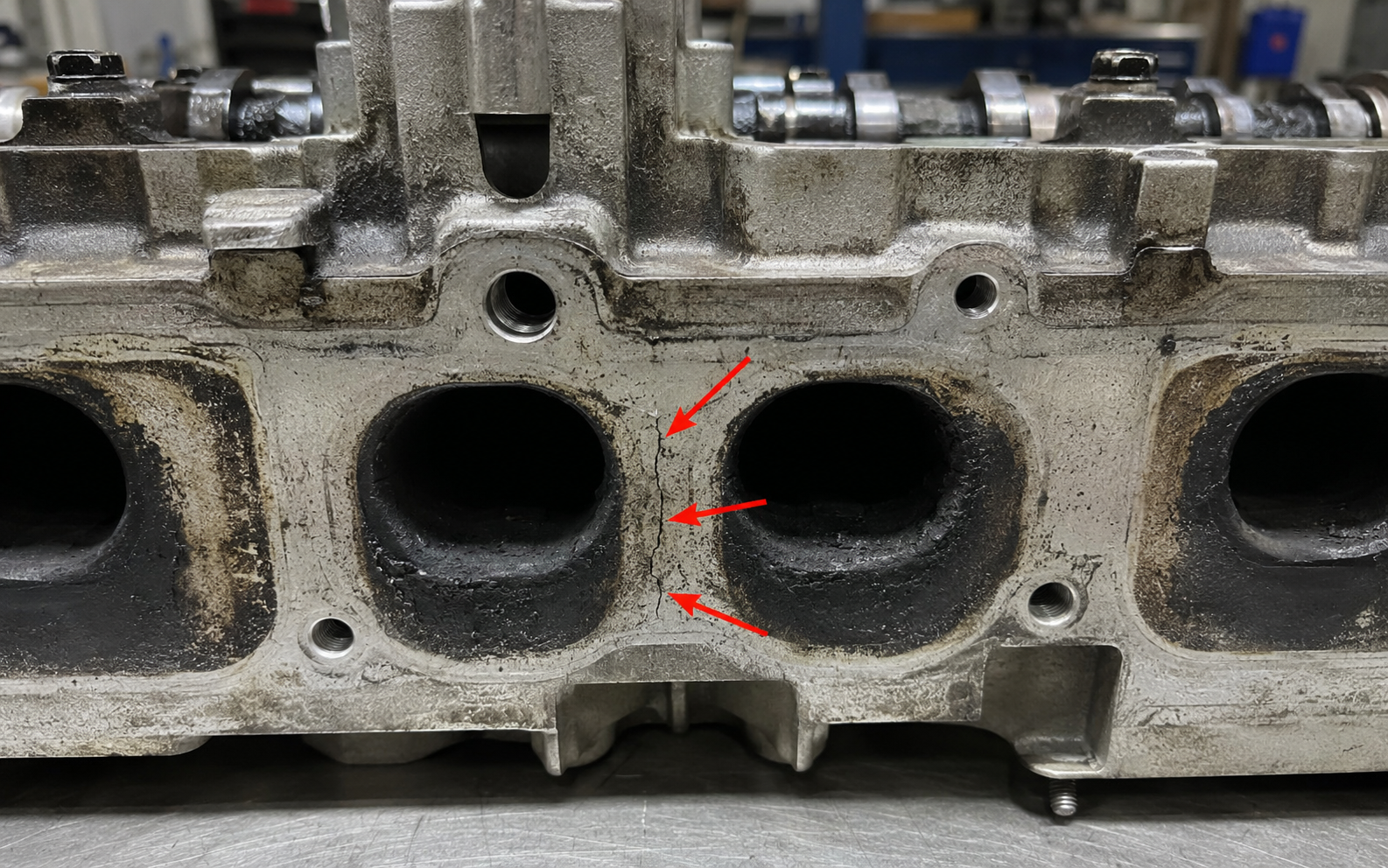

When the specialist removed the cylinder head, they found visible cracking between the exhaust ports on cylinders 2 and 3. The engine had overheated before the owner stopped driving - overheating can cause cylinder bores to distort or piston rings to lose tension.
Replace only the cylinder head and head gasket - keep existing bottom end and turbos.
£2,800If bottom end fails later: add £2,000-£3,500. If turbos fail later: add £1,500-£2,500.
Full engine rebuild - new head, timing set, oil pump, inspect bottom end.
£4,500Eliminates most post-repair risks. Full peace of mind.
The vehicle was worth approximately £8,000-£15,000 [THIRD-PARTY - Auto Trader, March 2025]. The owner chose the full rebuild for long-term reliability - a 24-month warranty provided peace of mind for continued towing work.
£2,800. New head, gasket, timing kit. Bottom end and turbo risk remain.
£4,500. New head, timing set, oil pump, bottom end inspected. 24-month warranty.
"I should have acted sooner when I first saw the white smoke. A head replacement would have been cheaper than the full rebuild. But with the towing I do, I wanted everything fresh."
£4,500 rebuild = ~30-55% of value - acceptable for commercial use.
Needed full reliability for continued work. Could not afford repeated downtime.
Full rebuild with 24-month warranty provided peace of mind for commercial use.
Could not afford repeat downtime. Chose full rebuild over top-only repair.
Owner waited 5,000 miles from first white smoke - the repair cost doubled as a result.
Full engine rebuild with 24-month warranty. Original block retained.
The owner chose full rebuild for long-term reliability with towing work. A £2,500 head replacement at first white smoke would have saved £2,000 compared to the full rebuild.
The owner paid £4,500 for a full engine rebuild - new cylinder head, timing set, oil pump, and gaskets. The bottom end was inspected and found to be sound. The van was back on the road in 9 days with a 24-month warranty.
White smoke on cold start or frequent coolant loss requires immediate investigation. The owner in this scenario waited 5,000 miles - the repair cost doubled as a result.
Early detection of head gasket or head failure before catastrophic damage.
Engine continues to run safely when action is taken before overheating.
Van off the road 7-10 days. Repair cost doubled by waiting.
| Component | VW OEM Part Number |
|---|---|
| Cylinder head (replacement) | 03L103508S |
| Cylinder head gasket set | 03L103383S |
| Head bolt set | 03L103385S |
| Timing belt kit (with water pump) | 03L198119A |
| Timing belt tensioner | 03L109243S |
| Water pump | 03L121011S |
| Oil pump assembly | 03L115105S |
| EGR cooler | 03L131513S |
| Turbocharger (high-pressure) | 03L145721S |
| Turbocharger (low-pressure) | 03L145722S |
| Injector seal kit (per injector) | 03L130219S |
| Thermostat | 03L121113S |
Compare quotes from UK VW specialists for CFCA cylinder head failure, head gasket issues, engine rebuilds, and full replacement options.
Data sources used in the content: Engines Market 2025 internal quote data, workshop consensus, third-party vehicle market references, and known CFCA/EA189 failure-pattern data.
