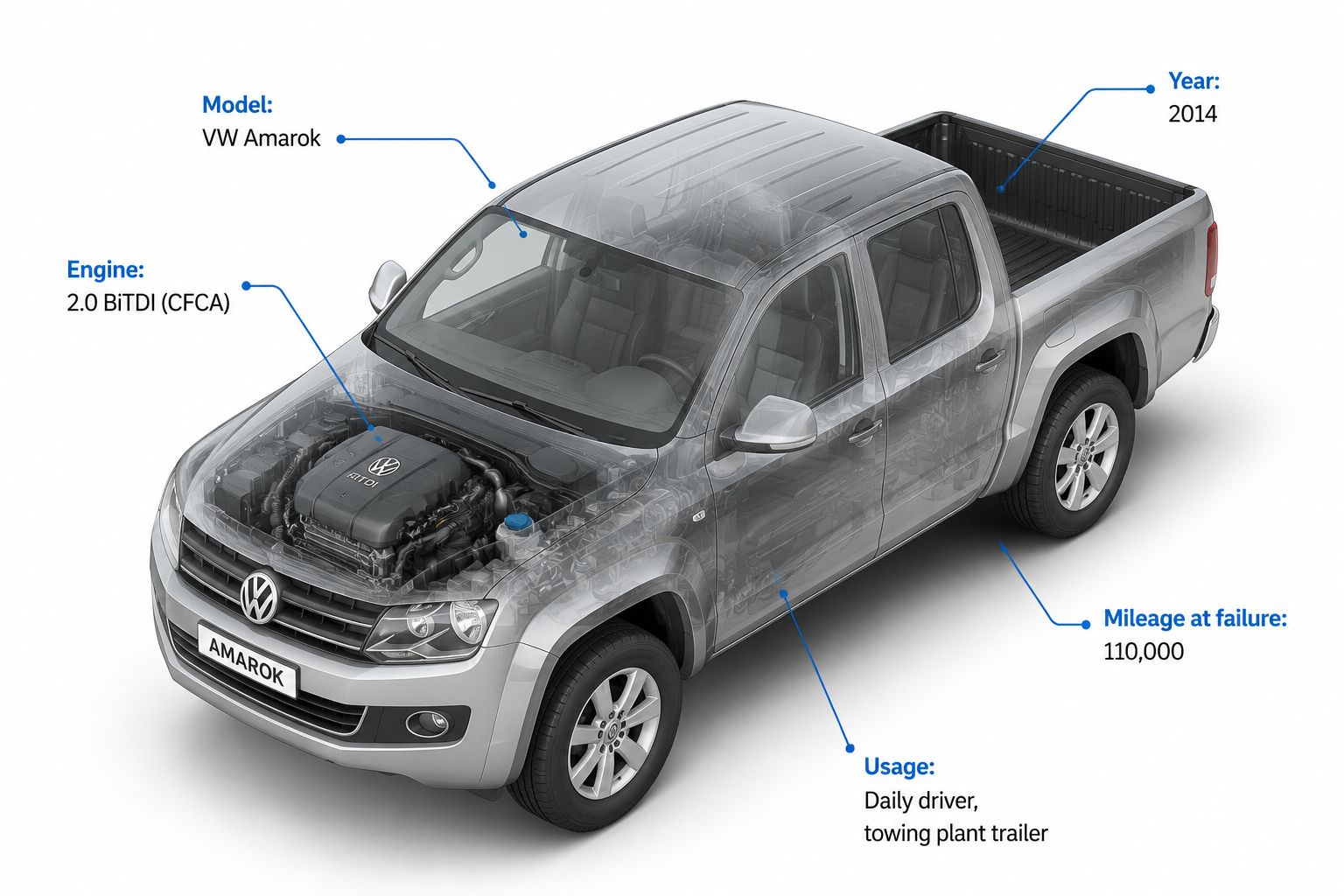

A premium visual breakdown of bottom-end failure, dealer vs specialist pricing, and the decision that saved over £6,500 on a 2014 Amarok 2.0 BiTDI.

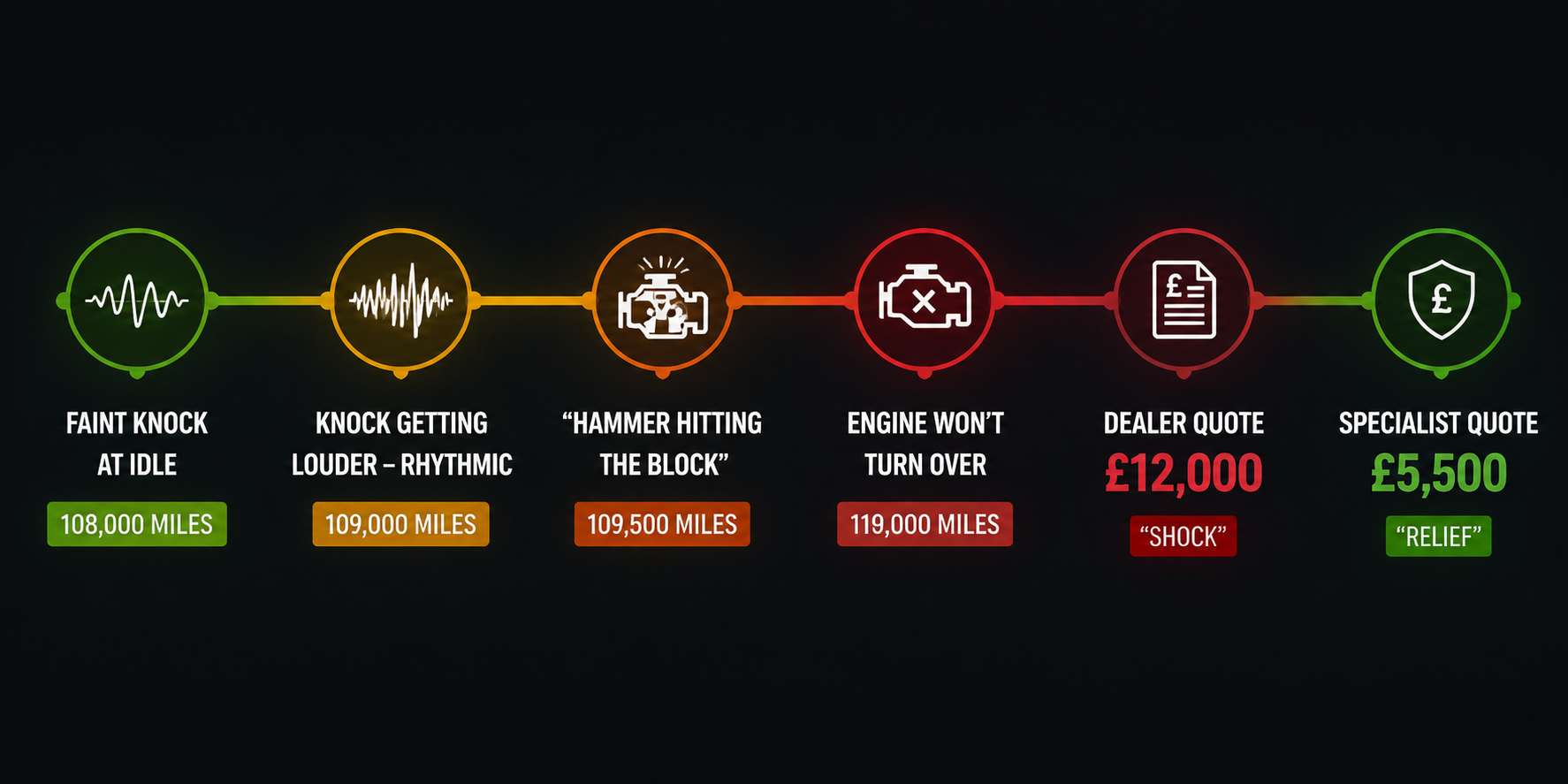

The owner first noticed a faint knocking noise from the engine bay around 108,000 miles. Within two weeks, the knock became louder and more rhythmic - consistent with bottom-end failure. The following morning, the engine would not turn over at all.
The knock was most noticeable at idle and would quieten slightly as the engine warmed up, but never disappeared completely. The owner had been using the Amarok for regular towing - a 1,500kg plant trailer several times a week.

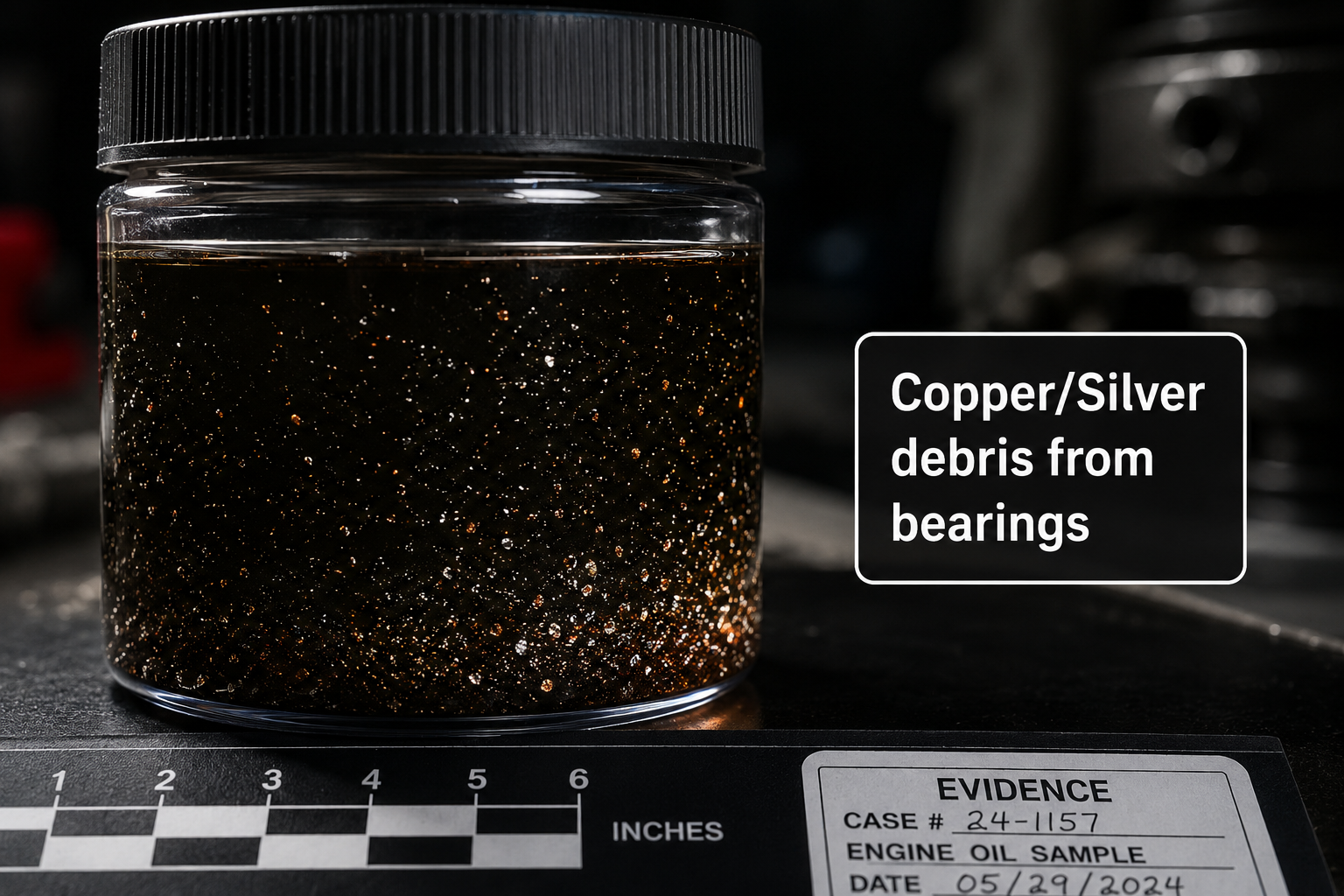

The dealer performed a preliminary inspection. The oil was drained and found to contain visible metallic particles - silver and copper glitter consistent with bearing material. A borescope inspection through the oil filler cap confirmed the bottom end had failed.
"Complete bottom-end failure requiring a full engine replacement. £12,000 for a new crate engine. We only fit new VW parts."
"A reconditioned unit with 12-month warranty for less than half the price. Why not-"

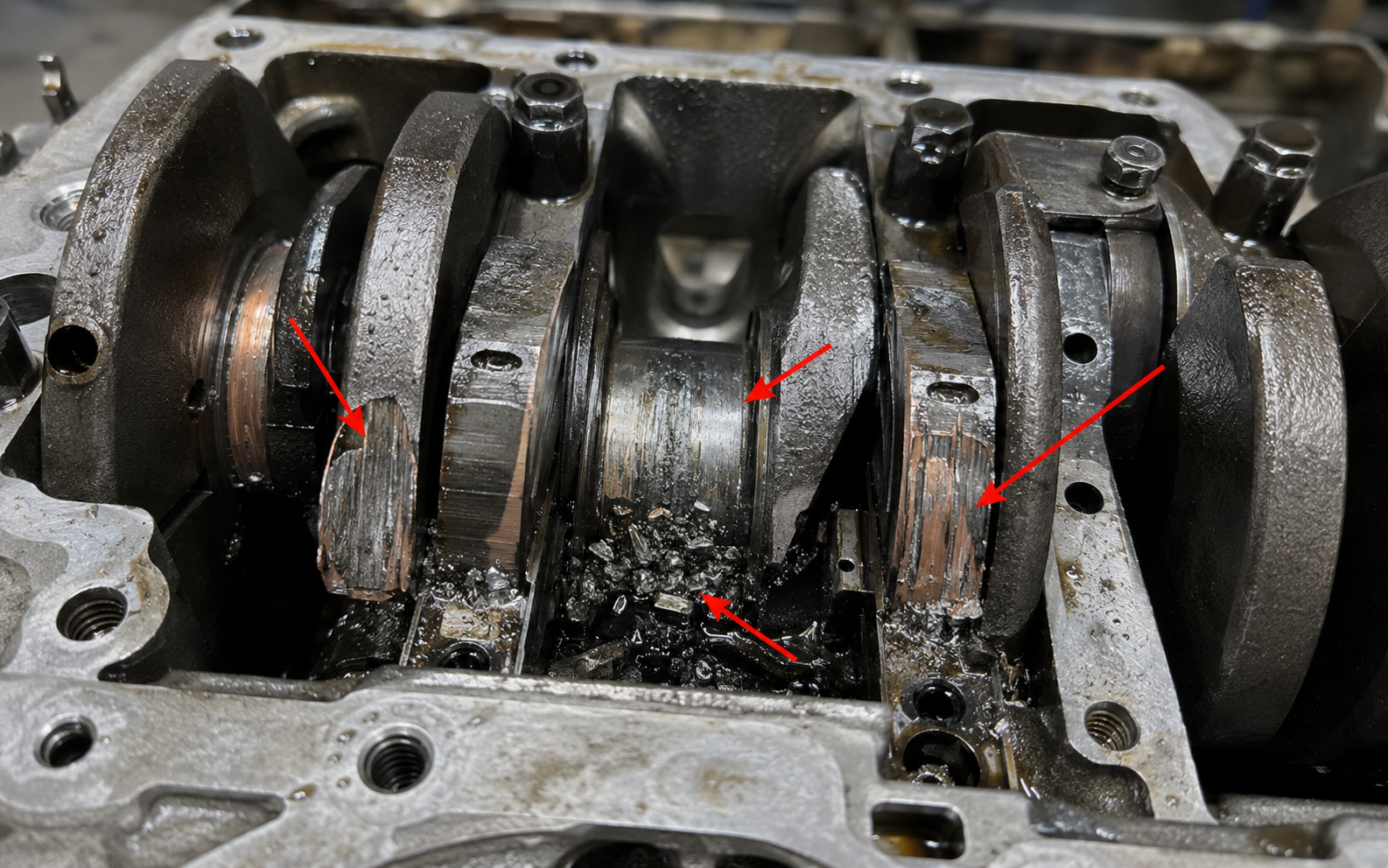

The dealer performed an inspection. The findings were severe - complete bottom-end failure with no rebuildable components.
"The bottom end has failed. The crankshaft is seized. We don't rebuild these engines - we replace them. A new engine is £12,000 fitted. That's the only option we offer."
The specialist presented three distinct paths. Each had different costs, risks, and outcomes. The owner chose the reconditioned engine route.
Fitted cost at independent specialist. Best when budget matters more than long-term certainty.
Fully reconditioned long engine with new bearings, rings, gaskets, timing set, oil pump.
Zero-mile factory engine with full VW parts warranty.

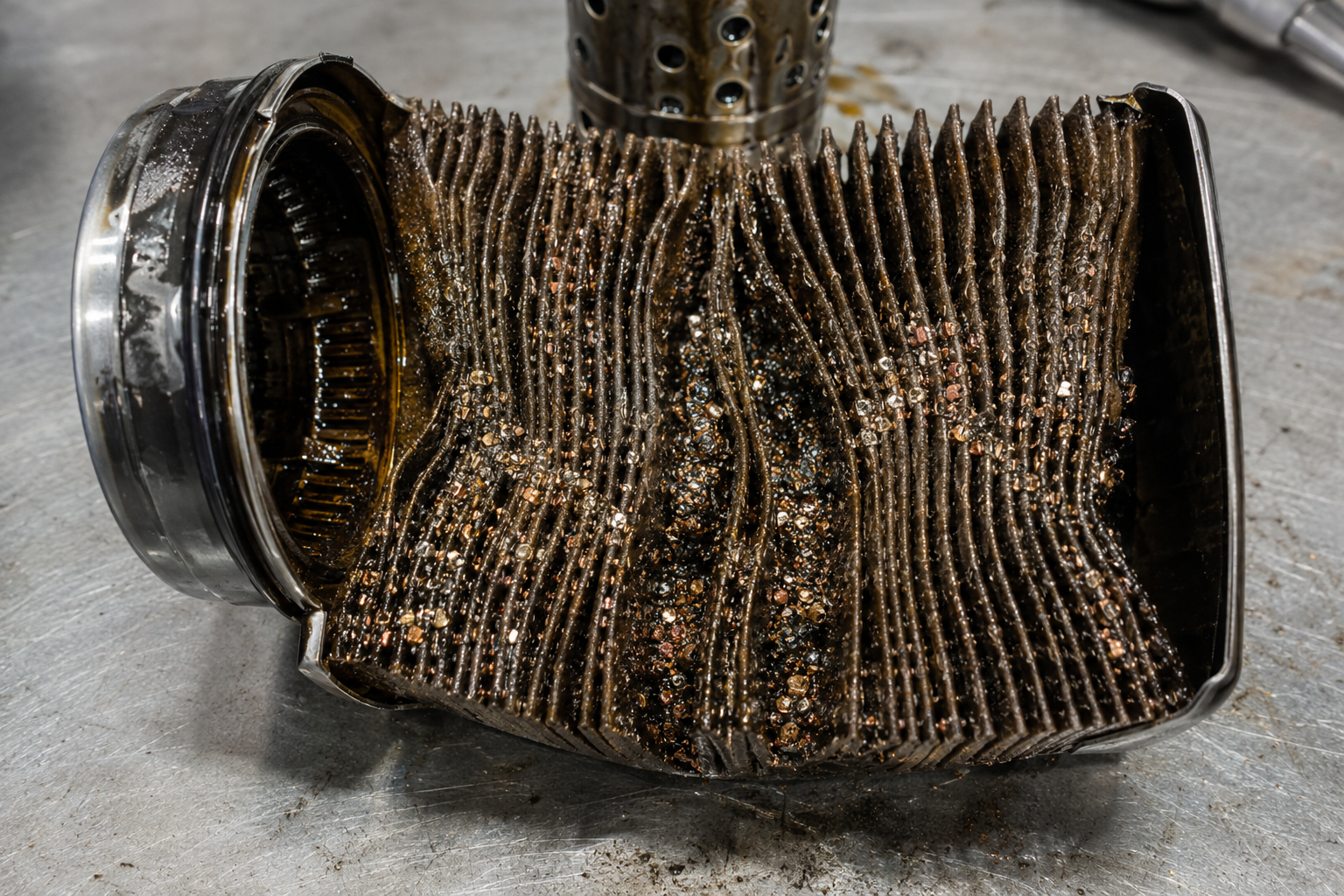

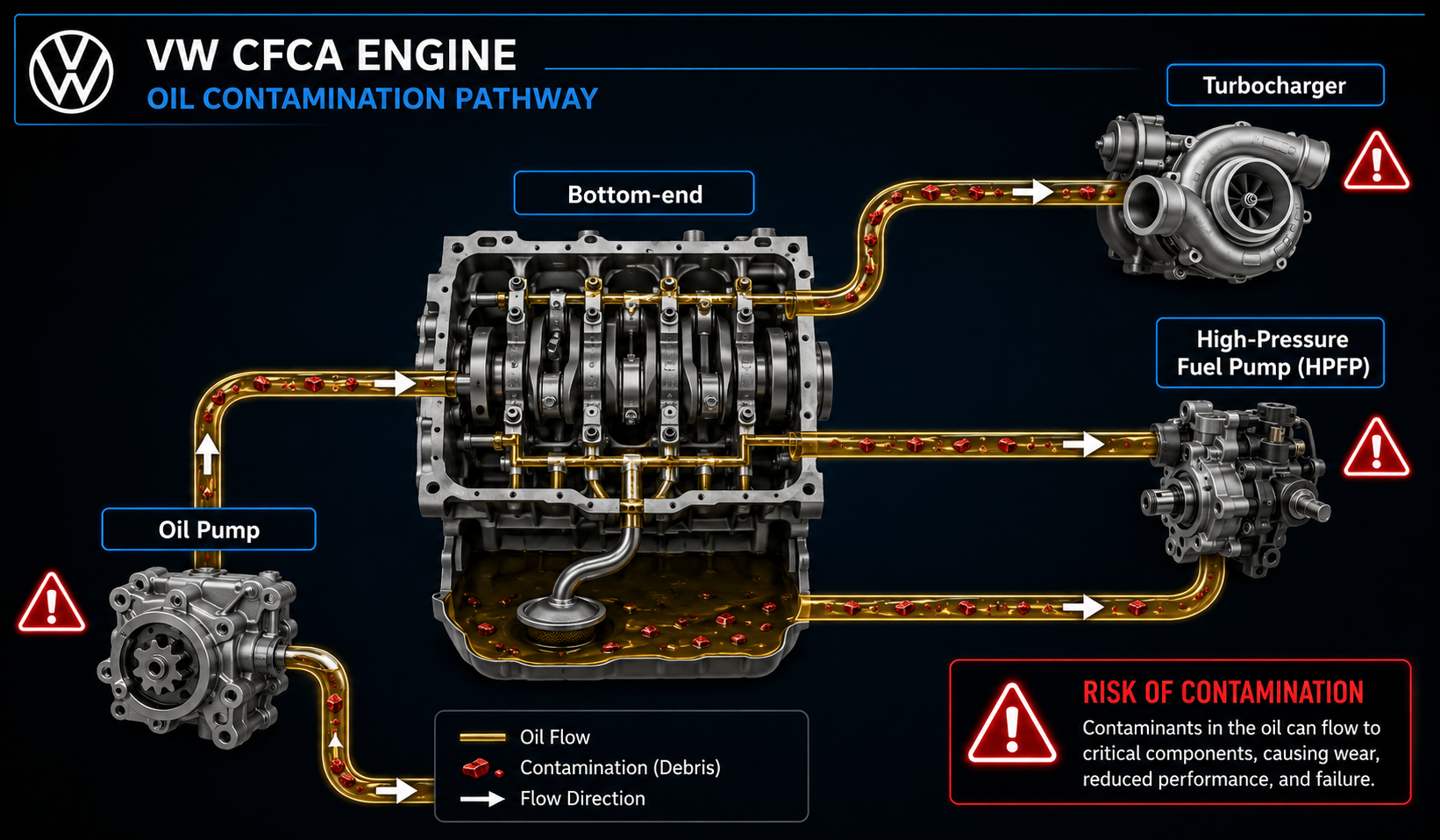

When the specialist removed the oil filter and cut it open, they found significant amounts of metallic debris throughout the filter media. The turbocharger's oil supply comes directly from the main oil gallery - debris could have scored the turbo bearings.

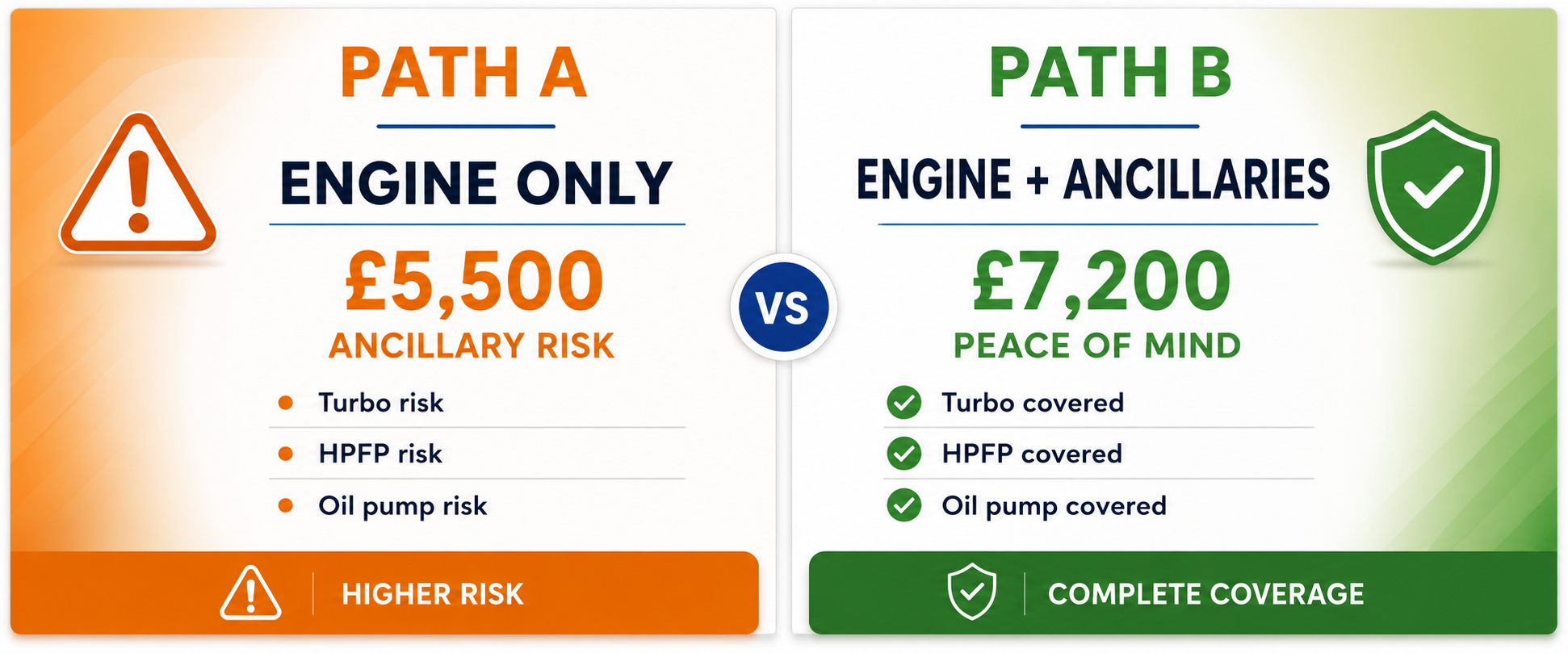

Fit only the reconditioned engine and take the risk on existing ancillaries.
£5,500If turbo fails later: add £1,000-£1,800 + labour. If HPFP fails later: add £800-£1,500 + labour.
Replace turbo, HPFP, and oil pump preventatively at the same time as the engine.
£7,200£5,500 engine + £1,700 for ancillaries. Eliminates all post-repair risks.
The vehicle was worth approximately £8,000-£12,000 before failure [THIRD-PARTY - Auto Trader, March 2025]. A dealer engine at £12,000 would mean spending more than the vehicle's value. A reconditioned engine at £5,500 represented approximately 45-70% of the vehicle's value - expensive but viable for a well-maintained example.
£2,500-£5,000 fitted. Unknown history - same weakness. Short warranty.
£5,500 fitted. Fully rebuilt with 12-month warranty. Balance of cost and reliability.
The specialist did a reconditioned unit for £5,500. The owner asked: "Why would anyone go to a dealer for a 10-year-old vehicle-"
£12,000 dealer engine would exceed vehicle value - uneconomical.
Dealer refused to fit anything other than new. Specialist offered reconditioned with 12-month warranty for less than half the price.
Owner planned to keep the truck - 12-month warranty provided adequate peace of mind.
Could not afford Path B (ancillaries). Chose Path A - reconditioned engine only.
Understood debris contamination was possible but hoped for the best.
Reconditioned long engine fitted. 12-month warranty. Savings over dealer: £6,500.
The owner avoided the £12,000 dealer quote and kept the vehicle on the road for less than half that amount.
The owner paid £5,500 for a reconditioned engine supply and fit - avoiding the £12,000 dealer quote. The vehicle covered approximately 50,000 miles on the reconditioned unit without reported engine-related issues.
For a vehicle over 8 years old, a reconditioned engine with warranty is almost always better value than a new crate motor. The maths: A £12,000 dealer engine would have exceeded the vehicle's £8,000-£12,000 value. A £5,500 reconditioned engine kept the vehicle on the road economically and came with a 12-month warranty.
Insurance claims or vehicles under 5 years old.
Vehicles worth £8,000-£15,000. Balance of cost and reliability.
Budget-limited repairs or selling soon. Higher risk of repeated failure.
| Component | VW OEM Part Number |
|---|---|
| Crankshaft (new) | 03L105101S |
| Crankshaft bearing set | 03L105591S |
| Conrod bearing set | 03L105701S |
| Oil pump assembly | 03L115105S |
| Timing belt kit (with water pump) | 03L198119A |
| Timing belt tensioner | 03L109243S |
| Water pump | 03L121011S |
| Cylinder head gasket set | 03L103383S |
| Head bolt set | 03L103385S |
| Turbocharger (remanufactured) | 03L145721S |
| HPFP (high-pressure fuel pump) | 03L130755S |
| Injector seal kit (per injector) | 03L130219S |
| Oil filter housing gasket set | 03L115441S |
| Sump gasket | 03L103609S |
Compare quotes from UK VW specialists for CFCA bottom-end failure, reconditioned engines, used engines, and full replacement options.
Data sources used in the content: Engines Market 2025 internal quote data, workshop consensus, third-party vehicle market references, and known CFCA/EA189 failure-pattern data.
