Vauxhall Vivaro M9R Engine Failure Case Study

Case summary

A Vauxhall Vivaro with 95,000 miles and an M9R engine that seized due to a failed turbo seal.

The owner ignored a DPF warning light for 3 months and dismissed a small oil leak. The turbo seal failed, pumping oil out of the engine until it seized on the M25.

ModelVauxhall Vivaro (2012)

EngineM9R 2.0 dCi

Mileage at failure95,000 miles

Service historyIndependent garage every 15,000–20,000 miles

Primary useCourier work, daily driving, towing light trailer

Disclaimer: This is an illustrative representative scenario based on workshop consensus and known M9R failure patterns [INDUSTRY ESTIMATE]. Individual outcomes vary.

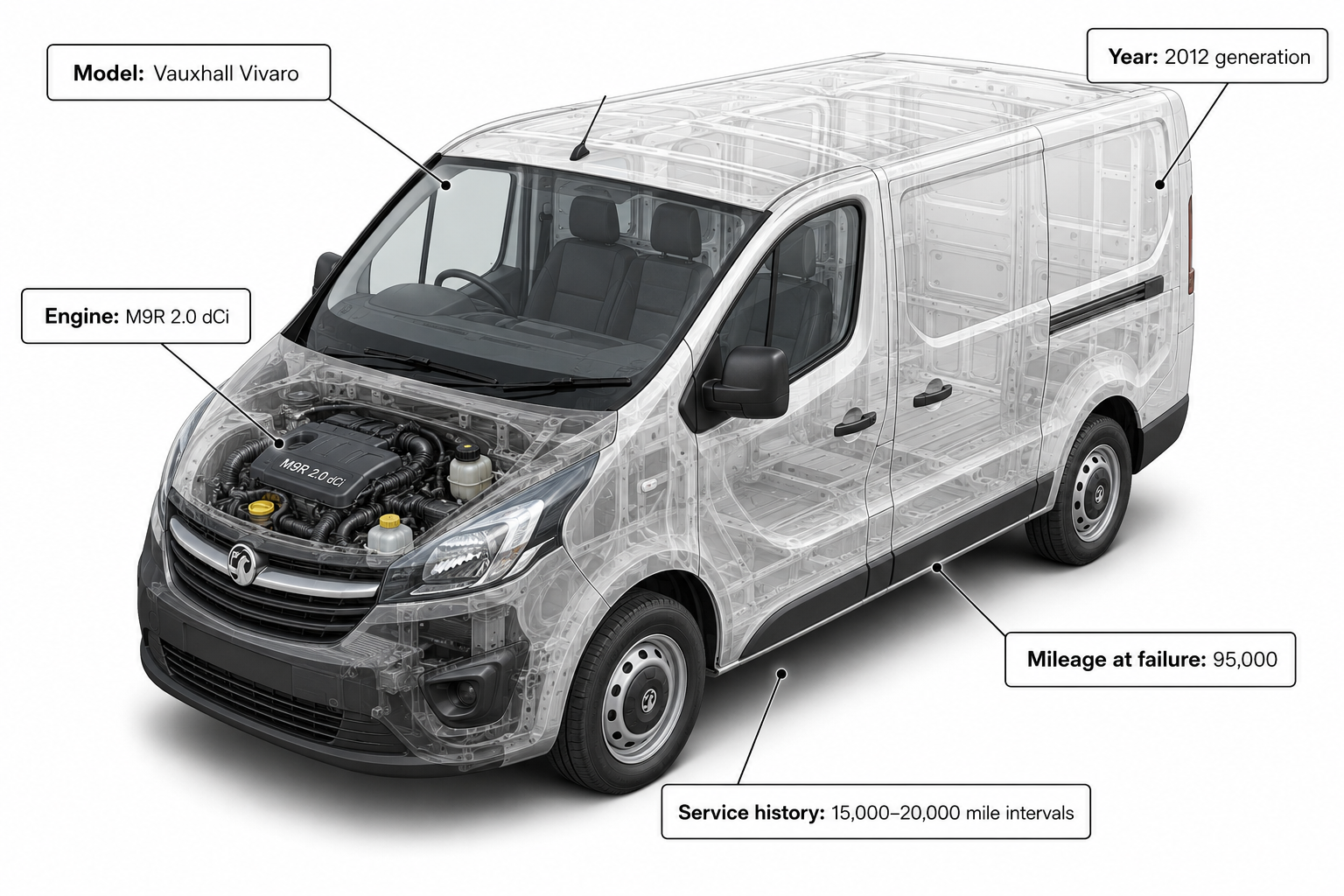

Isometric 3D render of Vauxhall Vivaro with M9R diesel engine and vehicle specifications

Early warning

The whole disaster started with a DPF light and a small oil patch.

The DPF light was ignored for 3 months. A small oil leak was topped up without investigation. Within weeks, the turbo seal failed and the engine seized.

Vauxhall Vivaro M9R broken down on M25 hard shoulder with seized engine

What owner thought“It’ll be fine”

The van still drove, so the DPF light and oil leak did not feel urgent.

What it actually wasTurbo seal failure

The blocked DPF caused back-pressure, contributing to turbo seal failure.

Why it mattersEngine seizure

Once the turbo seal fails, oil is pumped out quickly, leading to catastrophic engine failure.

If your M9R-engined van develops a DPF warning light or an oil leak, investigate immediately. A blocked DPF can cause turbo seal failure, and a leaking turbo seal can drain the sump within weeks.

Failure timeline

From DPF light to seized engine in just 3 months.

This case is a classic M9R turbo seal failure: the owner ignored the warning signs and paid the price.

Vauxhall Vivaro M9R timeline showing 3 months of ignored warnings leading to engine seizure

What the owner noticed

DPF light at 85k, oil patch at 90k, high oil consumption at 93k, engine seized at 95k.

What was happening internally

Blocked DPF increased back-pressure, turbo seal failed, oil pumped out, engine seized.

“I learned the hard way. The DPF light isn’t a suggestion. An oil leak isn’t ‘normal’. I should have fixed it earlier. Instead, I paid £4,800. But the van is back on the road, and I’ve changed my servicing habits completely.”

85,000 milesDPF light ignored

95,000 milesEngine seized on M25

SpecialistReconditioned engine fitted

Workshop diagnosis

The turbo seal had failed, the DPF was blocked, and the engine had seized.

The specialist drained less than 1 litre of oil from the sump. The turbo shaft had excessive play, and the DPF was blocked with soot.

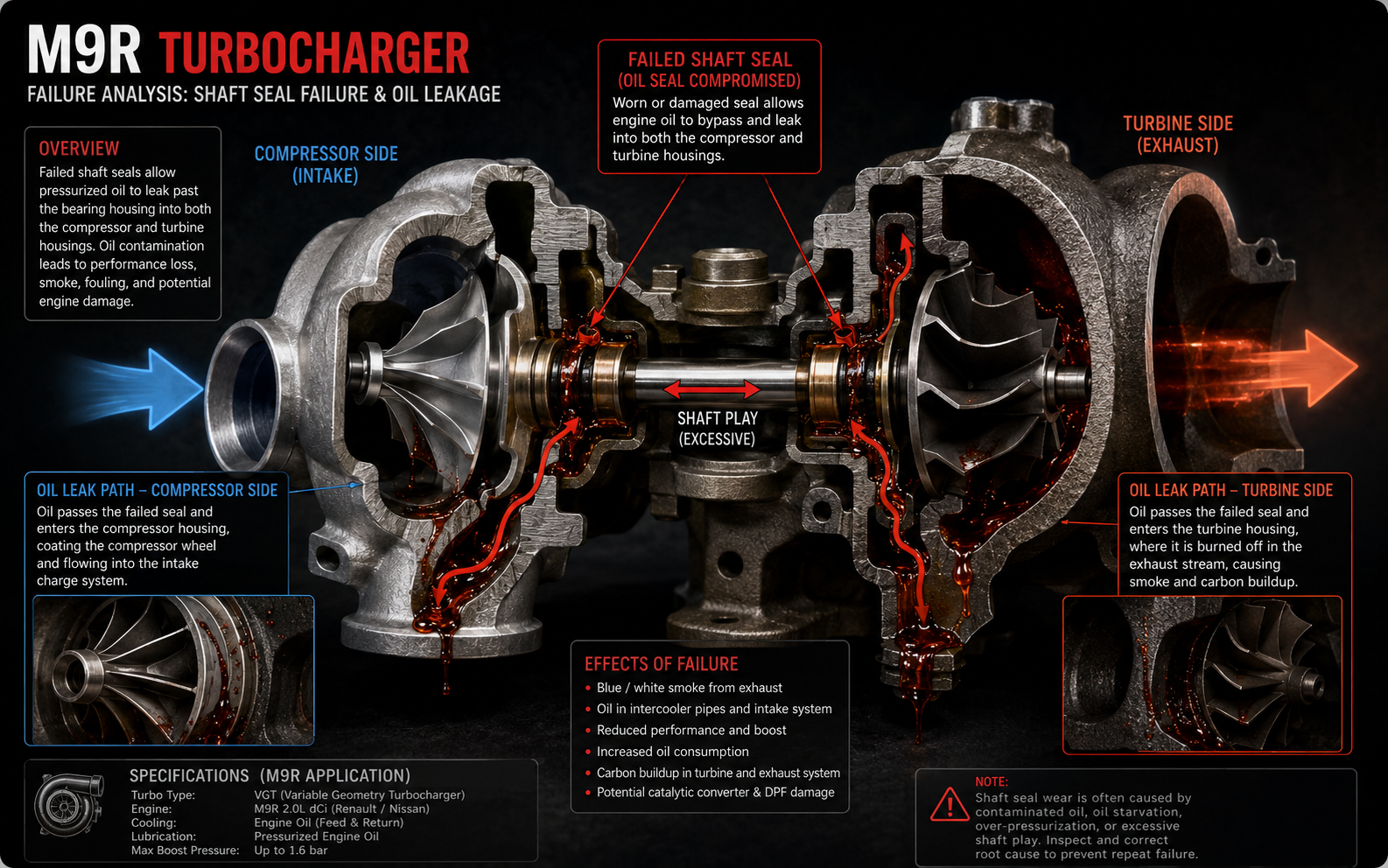

Vauxhall M9R turbo seal failure causing oil leak into intake and exhaust

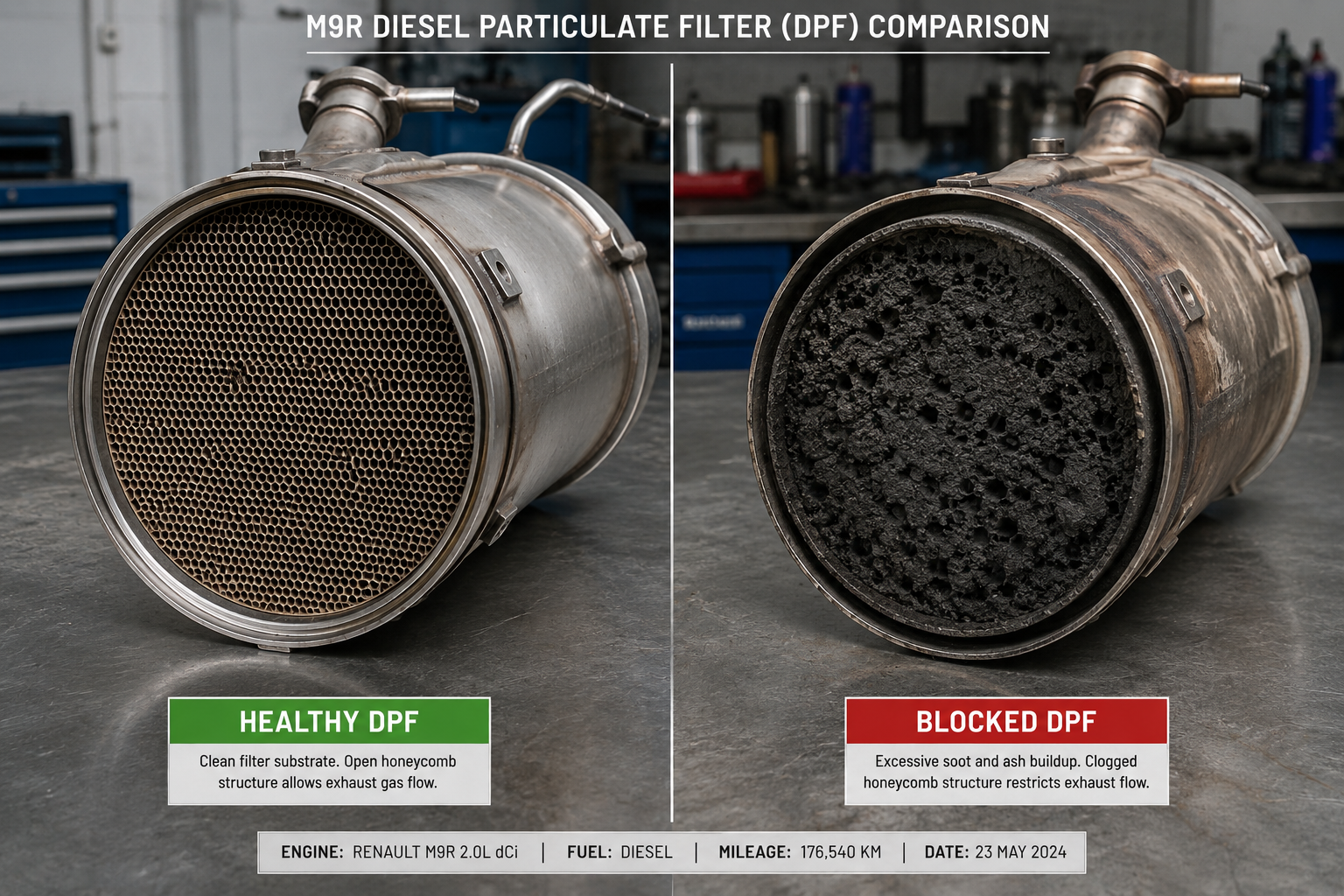

Vauxhall M9R DPF blocked with excessive soot from ignored warning light

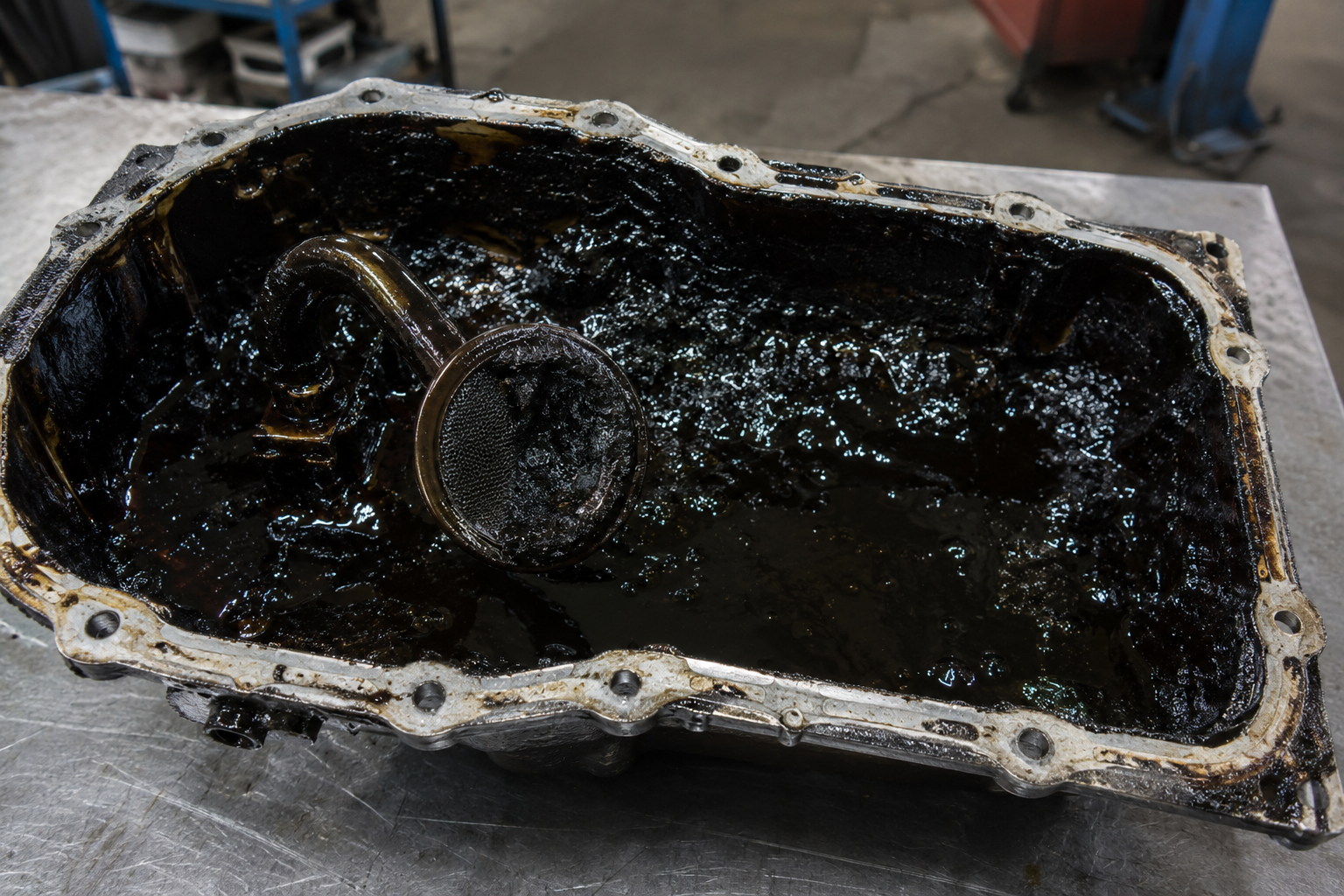

Vauxhall M9R oil pan showing less than 1 litre of thick black oil sludge from seized engine

Oil levelLess than 1 litre drained from 6.5 litre capacity

Oil conditionThick, black, contaminated with carbon debris

TurbochargerShaft seal failed — oil leaking into intake and exhaust

Turbo shaftExcessive play — bearings destroyed

EngineSeized — bottom end locked solid

DPFBlocked — likely contributed to back-pressure issues

Oil pickup strainerPartially blocked with carbonised oil sludge

Specialist summary

“The turbo seal failed. The engine pumped its oil out through the exhaust and intake over several weeks. The engine has seized. You need a replacement engine.”

Repair options

Scrap the van, used engine, reconditioned supply only, or reconditioned supply and fit.

Compare the routes the owner faced after diagnosis. The reconditioned engine (supply and fit) is selected by default because that was the chosen route.

Total loss

Scrap the Van

£100–£300

Sell as spares/repair.

ScopeSell as spares/repair

Return£100–£300 estimated

Best forOwners who cannot afford replacement or whose van has other major issues

Budget route

Used Engine

£1,800–£2,800

Used M9R from breaker — unknown service history, higher risk.

ScopeUsed M9R from breaker (80k–120k miles, unknown service history)

Supply cost£500–£1,200

Fitted cost (indie)£1,800–£2,800

Warranty30–90 days typical

Lead time2–5 days

Best forBudget-limited owners who accept higher risk

Supply only

Reconditioned Engine (Supply Only)

£1,800–£2,800

Fully reconditioned M9R long engine — plus fitting costs.

ScopeFully reconditioned M9R long engine

WarrantyWarranty terms vary by supplier — confirm before purchase

Lead time3–5 days

Best forOwners fitting themselves or using independent garage

Chosen route

Reconditioned Engine (Supply and Fit)

£3,500–£5,000

Reconditioned M9R + fitting by independent specialist.

ScopeReconditioned M9R + fitting by independent specialist

WarrantyWarranty terms vary by supplier — confirm before purchase

Lead time5–7 days

Best forOwners wanting single-point responsibility

The uncertainty play

The engine was not the only question. The root cause of the turbo failure was unknown.

With the DPF blocked and the oil cooler potentially contaminated, the specialist could not know whether a new engine would suffer the same fate without addressing the root causes.

Path A

Fit reconditioned engine only. Keep existing DPF and oil cooler.

£3,500

If DPF blockage or contaminated oil cooler causes future turbo failure, additional costs will arise.

Path B

Fit reconditioned engine + new DPF + new oil cooler + new turbo.

£4,800

Eliminates all related failure points. Complete peace of mind.

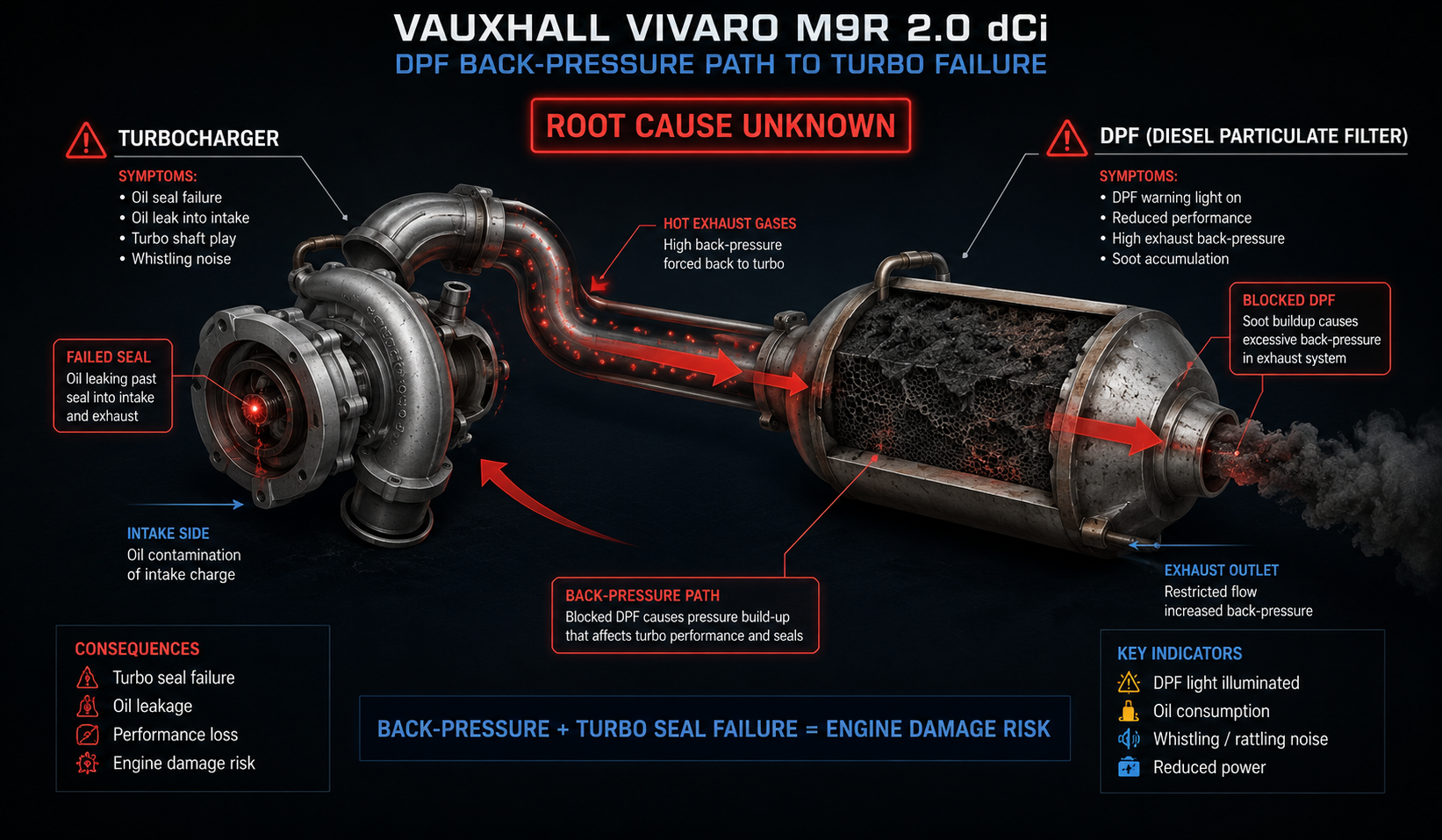

Vauxhall M9R DPF back-pressure diagram showing blocked DPF affecting turbocharger

The owner chose Path B — an extra £1,300 for complete peace of mind and commercial reliability. Key takeaway: when one turbo fails, the root cause may still be present. A blocked DPF or contaminated oil cooler could affect the replacement engine.

Fork in the road

The owner had to decide: scrap it, fit a used engine, or invest in a reconditioned unit with new ancillaries.

The van was worth approximately £4,000–£7,000 before failure. A £4,800 reconditioned engine fitted with new ancillaries was at the upper end of viable — but cheaper than a replacement van.

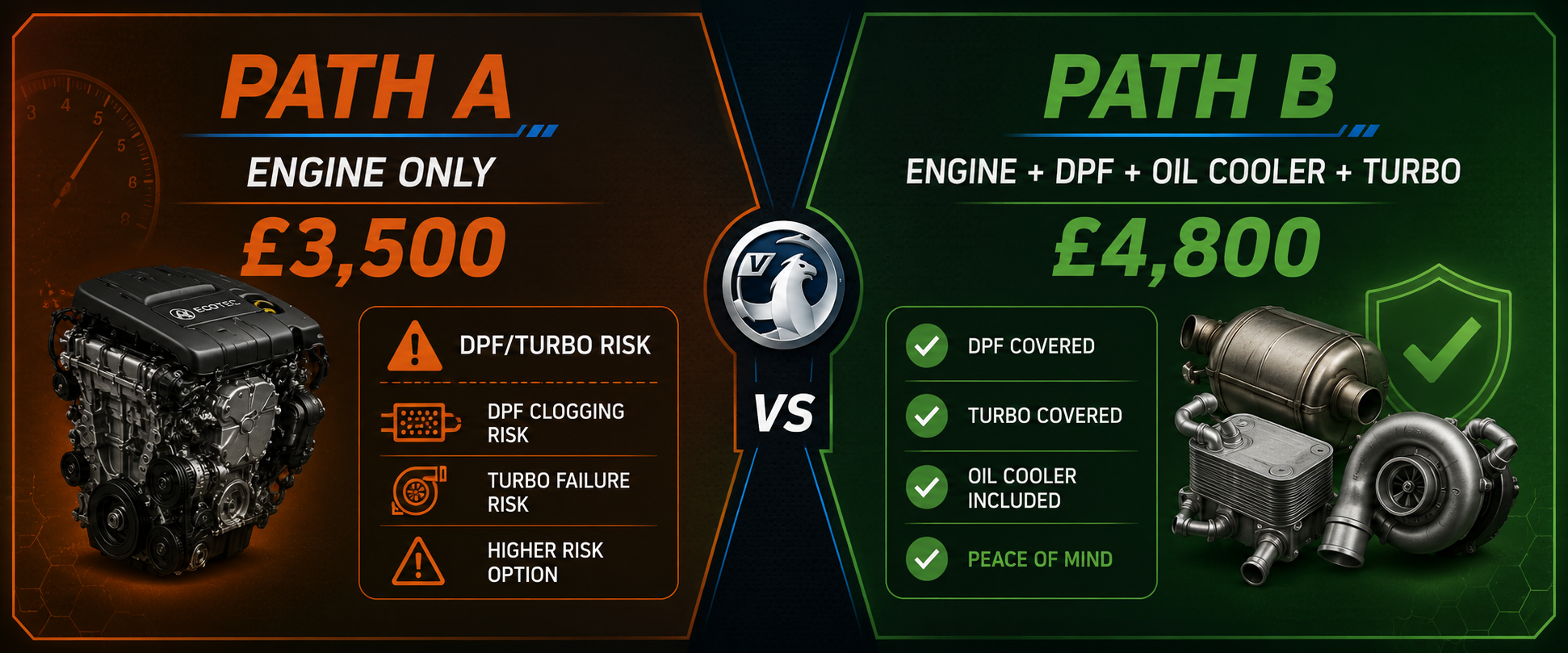

Vauxhall Vivaro repair decision - engine only at £3,500 with risks versus full package at £4,800 with peace of mind

Scrap the vanPath 1

Sell as spares/repair — return £100–£300.

Used engine (unknown history)Path 2

£1,800–£2,800 fitted — cheaper upfront, higher risk.

Recon engine + DPF + cooler + turboPath 3 - chosen

£4,800 total. Complete peace of mind for commercial use.

Commercial need — van is a work tool, downtime costs moneyWhy

The owner needed the van back on the road quickly for courier work. A full package with a 6-day turnaround was critical.

£4,000–£7,000Vehicle value

Pre-failure value set the ceiling for viable repair spend.

70–120%Repair ratio

£4,800 rebuild = 70-120% of value — expensive but still less than new van.

3–4 yearsOwnership plan

Owner planned to keep the van another 3-4 years for courier work — warranty provided initial protection.

Commercial needDowntime costs money

Quick turnaround (6 days) was critical for business continuity.

New van cost£8,000–£12,000

£4,800 rebuild = 40-60% of replacement cost — clear financial logic.

£4,800Total paid

Reconditioned engine + new DPF + new oil cooler + new turbo, fitted.

Reconditioned engine + new ancillaries — because the van is a work toolFinal verdict

The decision balanced vehicle value, commercial need, downtime costs, and the risk of future failure. A full package with new ancillaries provided complete peace of mind for a working van.

Outcome

What happened after the reconditioned engine was fitted-

Six days later, the van was back on the road. The owner now services the van every 6,000 miles and investigates every warning light immediately.

Final cost£4,800

Used engine alternative£1,800–£2,800

Savings vs new van£3,200–£7,200

Lead time6 days

New service approachOil and filter every 6,000 miles

Long-term resultVan back in service, owner's habits changed

“The M9R is a good engine if you service it properly. Many commercial operators choose more frequent oil servicing than the maximum manufacturer interval, particularly where vehicles operate under heavy-duty conditions. I won’t make that mistake again.”

Blurred Vauxhall workshop background with Vivaro on ramp for repair outcome quote card

Lessons learned

If your M9R-engined van develops a DPF warning light or an oil leak, don't ignore it.

The commercial lesson is simple: warnings are cheaper when caught early. A blocked DPF can cause turbo seal failure, and a leaking turbo seal can drain the sump within weeks.

Address DPF warning promptly£200–£500

DPF clean or replacement before it causes turbo issues.

Ignore DPF light & oil leak£4,800

Engine seizure, reconditioned engine + new ancillaries.

Used engine (unknown history)£1,800–£2,800

Cheaper upfront but risk of repeat failure.

6,000-mile oil changes£80–£150 per service

Prevents oil sludge and turbo feed blockages.

A £4,800 reconditioned engine on a £6,000 van is 80% of its value — expensive but justifiable for a commercial vehicle where replacement cost is £8,000–£12,000+. If your M9R-engined van is used for commercial purposes, consider reducing your oil change interval to 6,000 miles.

📋 Click to expand — Nissan / Renault M9R (Vauxhall CDTi) component part numbers

Component	OEM Part Number
Turbocharger assembly (remanufactured)	14411-EC00A (Nissan) / 8200689599 (Renault)
Turbo oil feed pipe	14455-EC00A
Turbo oil return pipe	14456-EC00A
Oil cooler assembly	21300-EC00A
Oil filter	15208-EC00A
Sump gasket / sealant	11140-EC00A (gasket) / ThreeBond 1215 (sealant)
Oil pickup strainer	15010-EC00A
DPF assembly	20800-EC00A
DPF pressure sensor	28185-EC00A
EGR valve	14710-EC00A
Injector seal kit (per injector)	16600-EC00A
Camshaft seal	13042-EC00A
Crankshaft seal (front)	13510-EC00A
Crankshaft seal (rear)	12279-EC00A
Timing belt kit	13028-EC00A
Water pump	21010-EC00A

Data sources: [INDUSTRY ESTIMATE] based on workshop consensus | [THIRD-PARTY] UK breaker market and Auto Trader van values June 2025.
