Toyota Hilux 1KD-FTV 3.0 D-4D Injector Failure Representative Case Study

Toyota Hilux 1KD-FTV Engine Rebuild — Why a £3,500 Rebuild Is Worth It on a £12,000 Truck

A premium visual breakdown of how a failed injector tip scored a bore, and why a full rebuild at £4,000 was cheaper than buying a replacement Hilux.

“The Hilux started chugging white smoke at traffic lights. The idle was rough, like it was missing on one cylinder. Then the knock started — a deep, rhythmic thud from the engine bay. My mechanic pulled the injectors and said, ‘The tip’s gone on number three. It’s been bouncing around in there. The bore is scored.’ I thought my truck was scrap. But he said, ‘Mate, it’s a Hilux. We rebuild it. It’ll outlast you.’”
Compare Hilux Rebuild Quotes See the Failure Timeline
120kFailure mileage
White smokeFirst symptom
Scored boreInjector tip damage
£4,000Final repair
18 moWarranty
Case summary

A 2008 Toyota Hilux with 120,000 miles and an injector tip that failed catastrophically.

The owner noticed white smoke from the exhaust, which worsened over several weeks. The engine developed a rough idle and a pronounced knocking noise. Power dropped significantly. A failed injector tip had scored the bore on cylinder three.

ModelToyota Hilux
Year2008
Engine1KD-FTV 3.0 D-4D
Mileage at failure120,000 miles
Service historyIndependent garage every 10,000 miles
Disclaimer: This is an illustrative representative scenario based on common 1KD-FTV failure patterns, Engines Market 2025 quote-request data, workshop consensus, and known failure-pattern data. Individual outcomes vary.

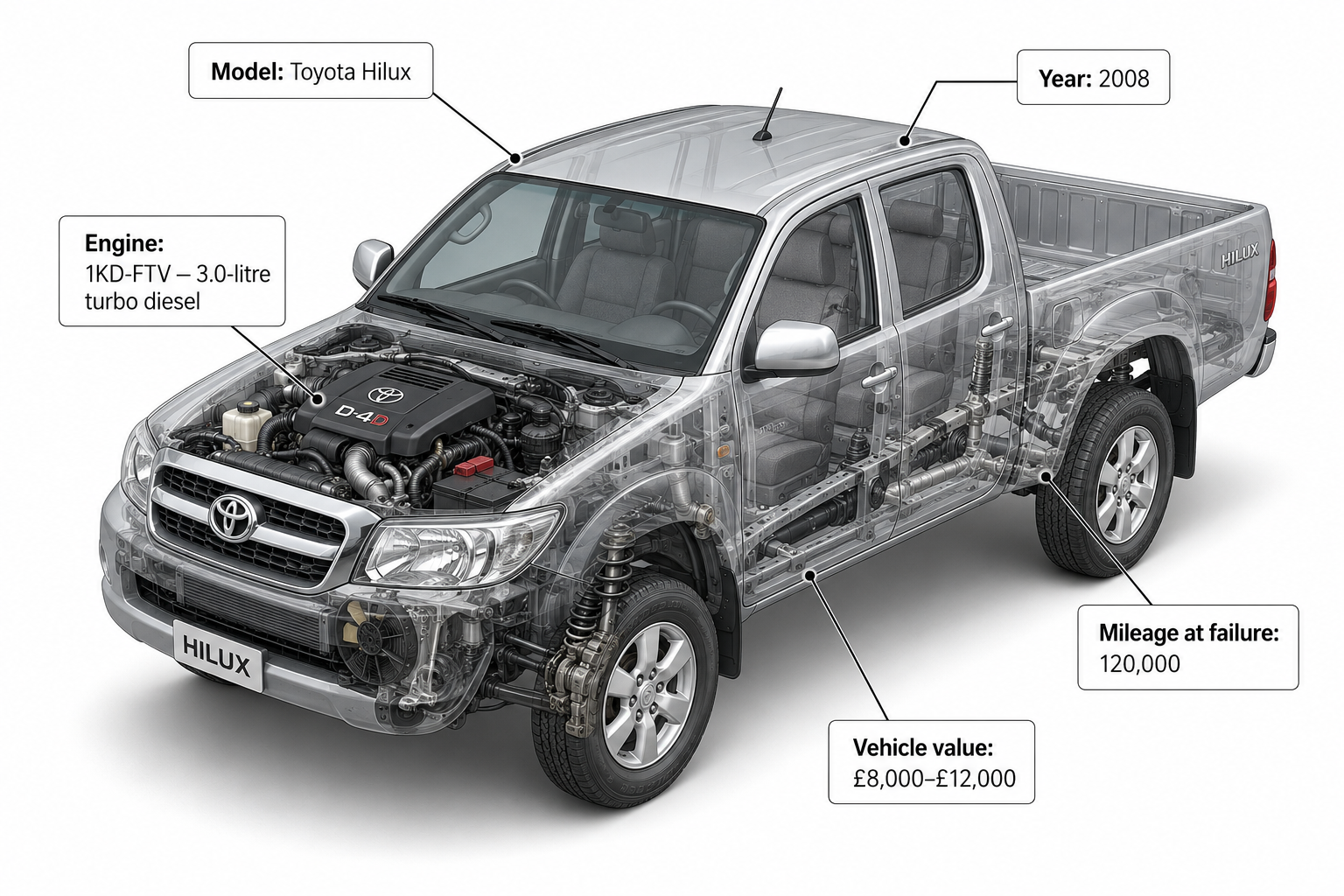

Isometric 3D render of 2008 Toyota Hilux with 1KD-FTV diesel engine and vehicle specifications
Early warning

The whole disaster started with white smoke at traffic lights.

The owner noticed white smoke on cold starts, which worsened over several weeks. A rough idle and knocking followed. The 1KD-FTV injector tip had detached and was bouncing around inside the cylinder, scoring the bore.

Toyota Hilux comparison - £4,000 rebuild vs £40,000 new Hilux
What owner thought“Maybe it’s just a sensor”

The truck still drove, so the symptom did not feel urgent.

What it actually wasInjector tip failure

The tip detached, scored the bore, and damaged the piston crown.

Why it mattersScored bore = rebuild

Once the bore is scored, the only fix is a re-bore and oversize pistons.

If your 1KD-FTV develops white smoke, rough idle, or a knock, have the injectors tested immediately. A £200 injector test could save a £4,000 rebuild.
Failure timeline

From white smoke to scored bore in just a few weeks.

This case is a classic 1KD-FTV injector failure: the owner ignored the warning signs and paid the price.

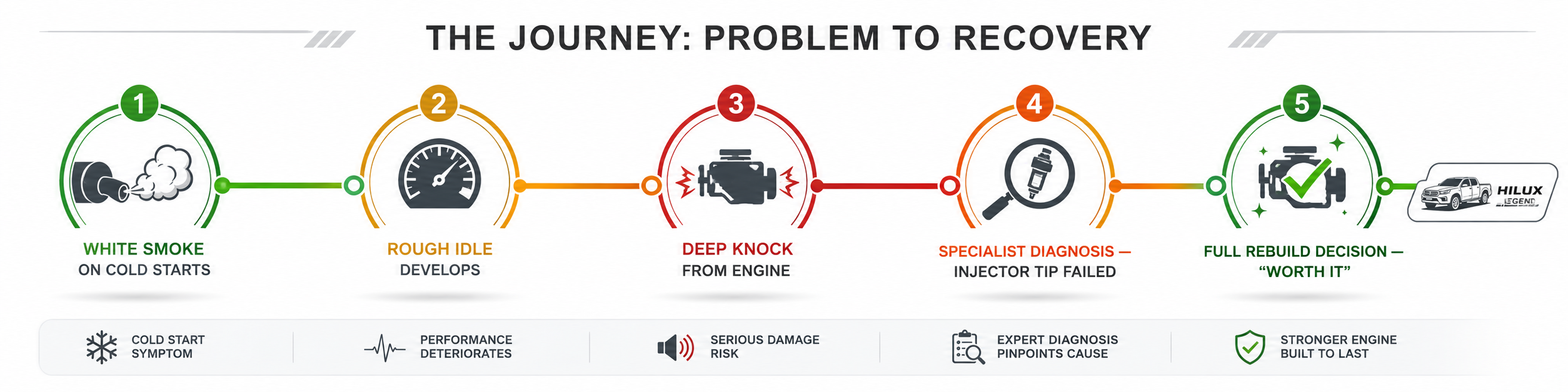

Toyota Hilux 1KD-FTV timeline from white smoke to full rebuild
What the owner noticed

White smoke at traffic lights became a rough idle, knocking, and loss of power within weeks.

What was happening internally

The injector tip detached, scored the bore, damaged the piston crown, and contaminated the oil system.

“The rebuild cost £4,000. That hurt. But a new Hilux is £40,000. My truck has another 200,000 miles in it easily. The chassis will outlast three petrol engines. It was worth every penny.”

120,000 milesWhite smoke & rough idle
SpecialistInjector tip missing, bore scored
WorkshopFull rebuild with new injectors
Workshop diagnosis

The injector tip was missing. The bore was scored. The piston was damaged.

The specialist performed a compression test and borescope inspection. The findings were severe: the injector tip had detached, scored the bore, and damaged the piston crown.

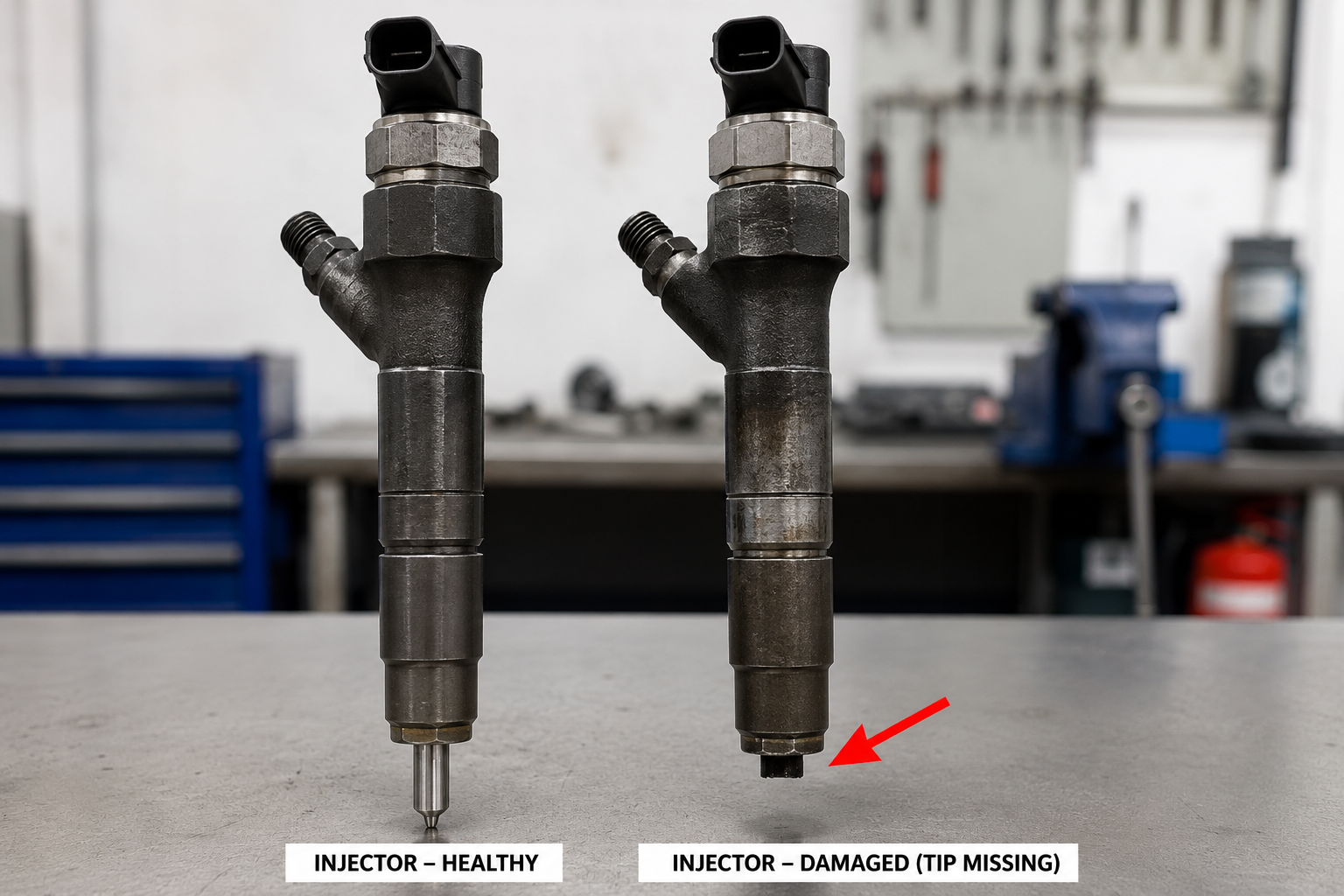

Toyota 1KD-FTV injector with missing snapped tip that scored cylinder bore

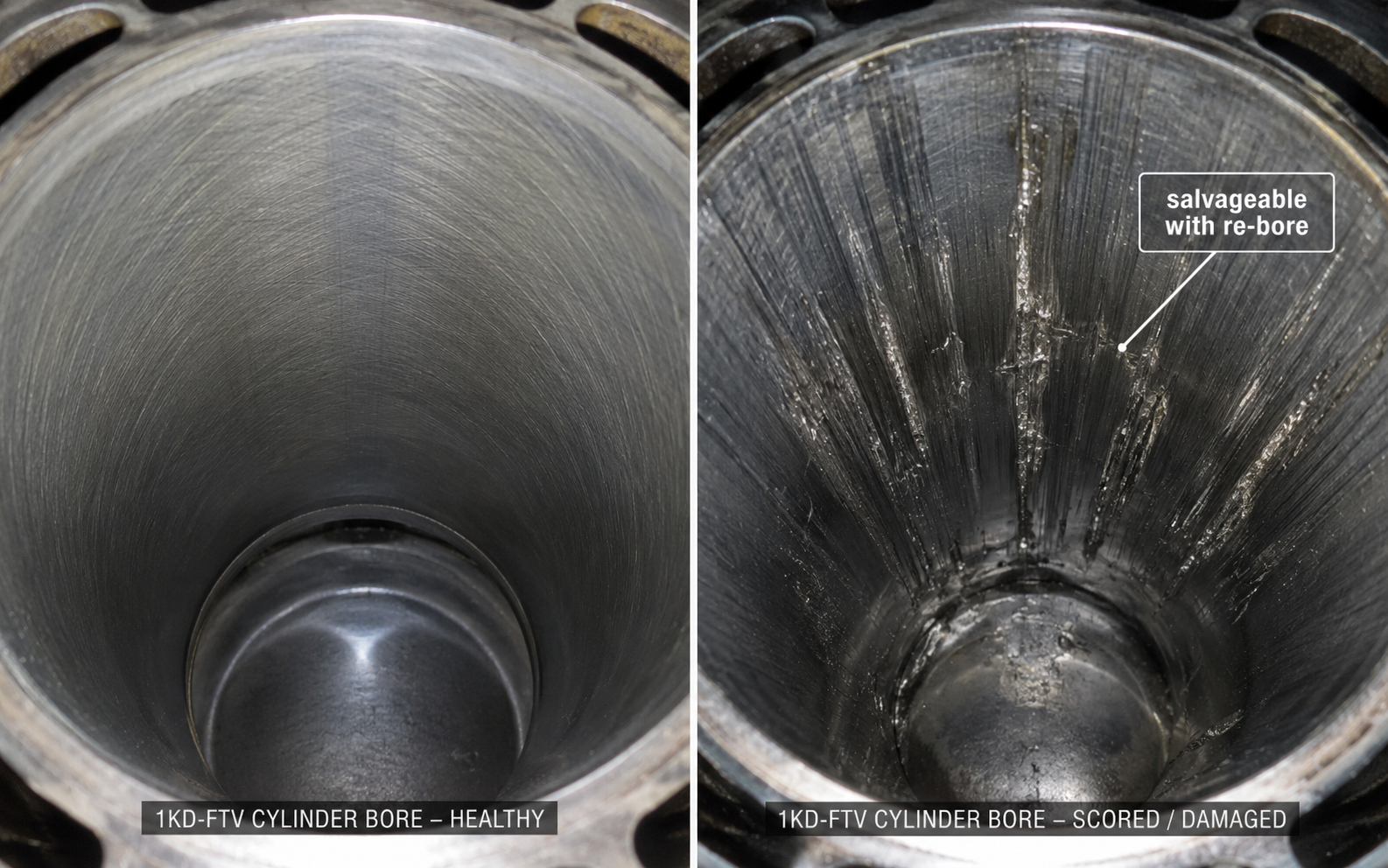

Toyota 1KD-FTV cylinder bore scored from metal injector tip damage

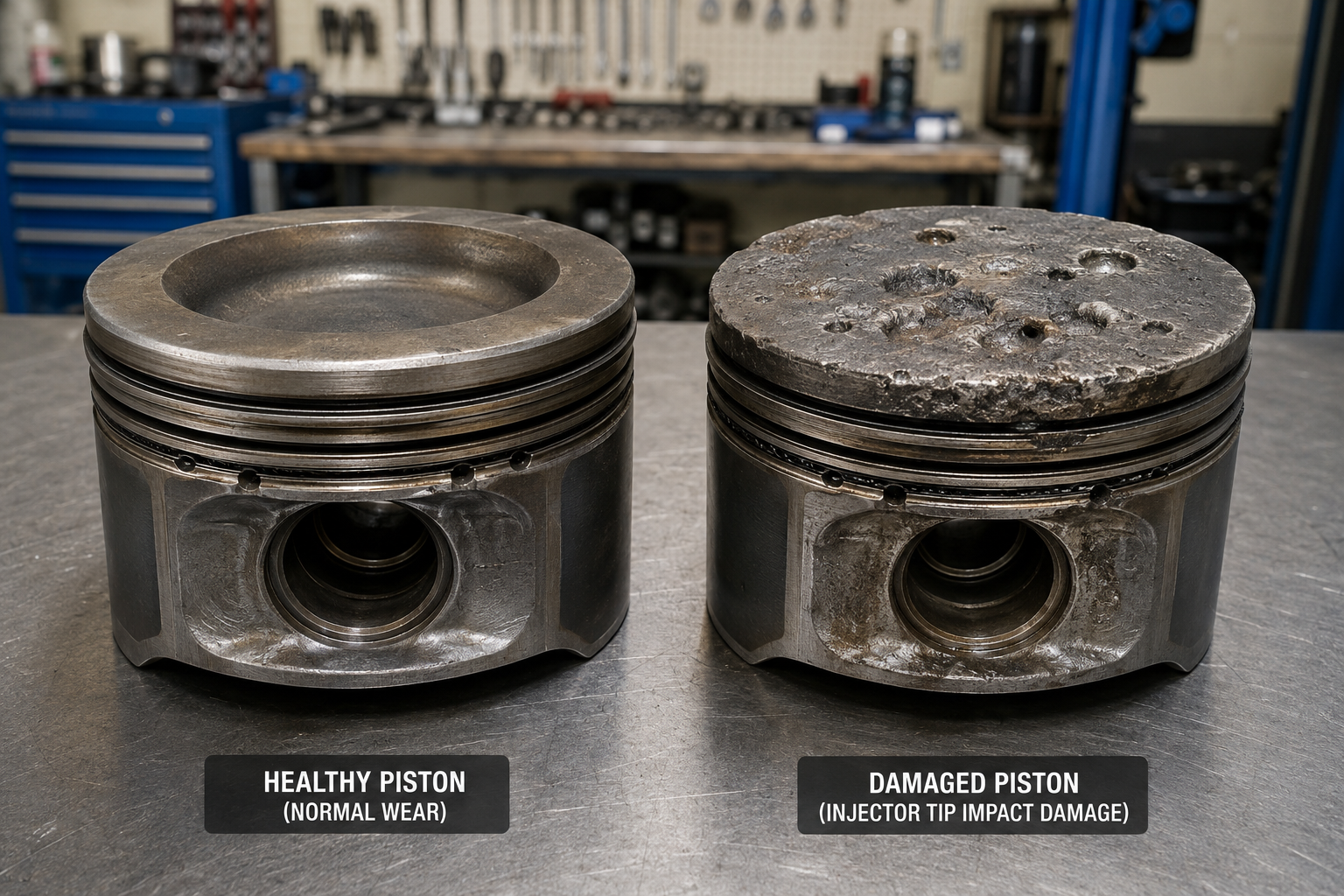

Toyota 1KD-FTV piston crown damaged by injector tip impact
Injector (cylinder 3)Tip missing — detached inside cylinder
Cylinder bore (cylinder 3)Scored — damaged by metal tip
Piston (cylinder 3)Crown damage
Piston rings (cylinder 3)Damaged
Remaining injectorsUnknown condition — potential risk of same failure
Specialist summary

“The injector tip broke off. It’s scored the bore on cylinder three. The block is salvageable with a re-bore and oversize pistons. You need a rebuild.”

Repair options

Used engine, rebuilt engine, or new short block from Toyota.

Compare the routes the owner faced after diagnosis. The full rebuild with new injectors is selected by default because that was the chosen route.

Budget route

Used Engine

£780–£2,730

Used 1KD-FTV from donor vehicle — unknown service history, same injector vulnerability.

ScopeUsed 1KD-FTV from donor vehicle
Warranty1–6 months (supplier dependent)
Lead time3–7 days
Key riskUnknown service history; same injector vulnerability; no guarantee of prior maintenance
Best forBudget-limited owners or those selling immediately
Chosen route

Rebuilt Engine

£1,560–£4,680

Full rebuild with re-bored block, oversize pistons, new rings, bearings, seals, new injectors.

ScopeFull rebuild with re-bored block, oversize pistons, new rings, bearings, seals, new injectors
Warranty12–24 months
Lead time7–14 days
Best forOwners keeping the vehicle long-term
Dealer route

New Short Block (Toyota)

£2,500–£5,000+

New Toyota short block (block, crank, pistons fitted) — genuine parts with full warranty.

ScopeNew Toyota short block (block, crank, pistons fitted)
Warranty24 months (Toyota)
Lead time7–14 days
Best forOwners wanting genuine Toyota parts with full warranty
The uncertainty play

The rebuild was not the only question. The remaining injectors were a ticking time bomb.

With one injector tip failed, the other three were of the same age and batch. If another tip detached, the engine would need another rebuild. The specialist recommended replacing all four.

Path A

Rebuild only the damaged cylinder — re-bore cylinder three, one oversize piston, leave other three cylinders and existing injectors.

£2,500

If another injector fails later: add £1,500–£2,500 for another rebuild.

Path B

Full rebuild — all four cylinders re-bored, four oversize pistons, new rings, bearings, full set of new injectors.

£4,000

Eliminates risk of future injector failure. Expected life: 200,000+ miles.

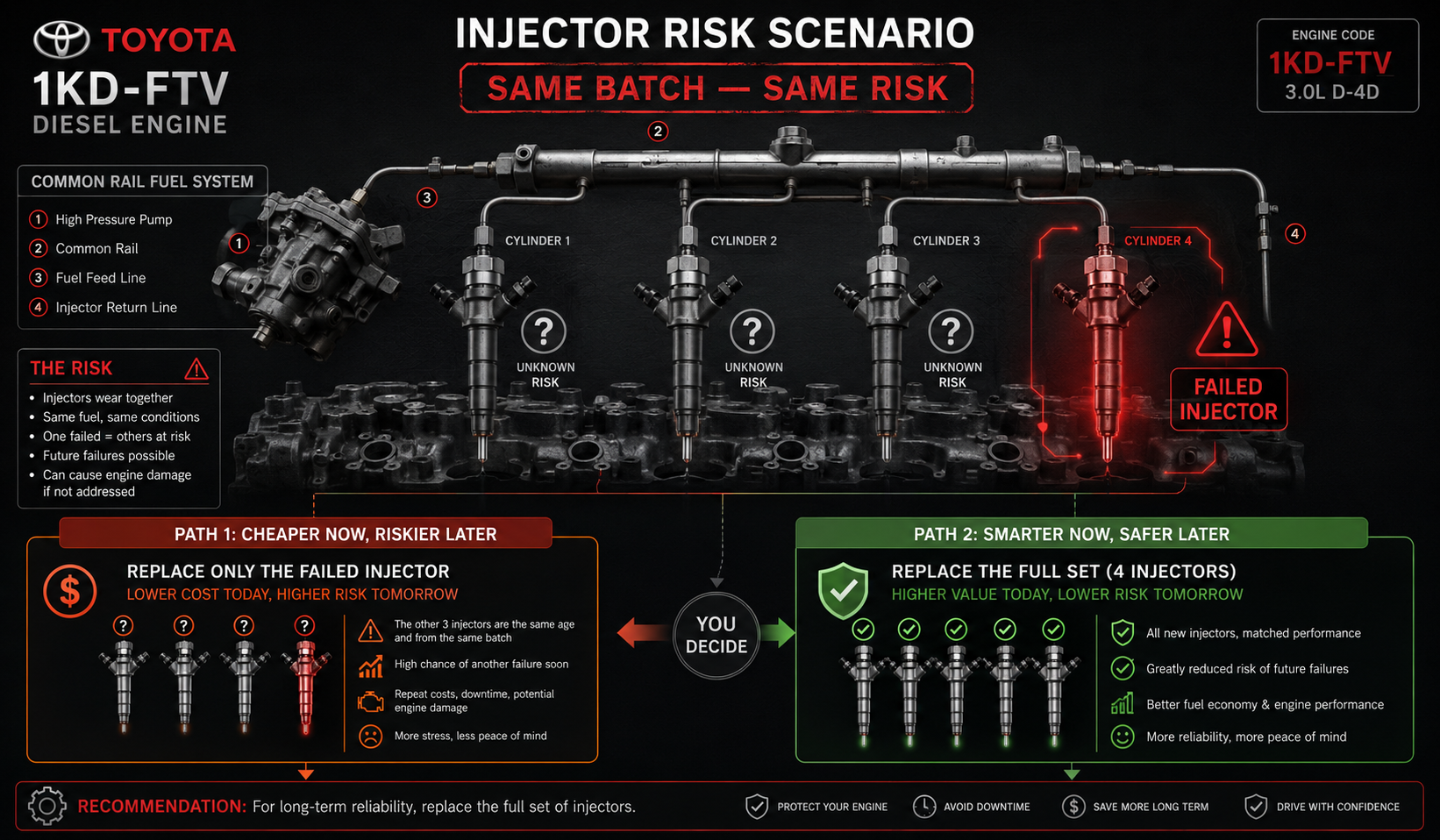

Toyota 1KD-FTV injector set diagram showing risk of remaining injectors failing
The owner chose Path B. For a Hilux intended to last another 200,000 miles, doing the job properly once made more sense than cutting corners. Key takeaway: when one injector fails catastrophically, replace all four.
Fork in the road

The owner had to decide: scrap it, fit a used engine, or rebuild properly.

The vehicle was worth approximately £8,000–£12,000 before failure. A £4,000 rebuild represented 30-50% of its value — expensive but justifiable for a Hilux known to last 300,000+ miles.

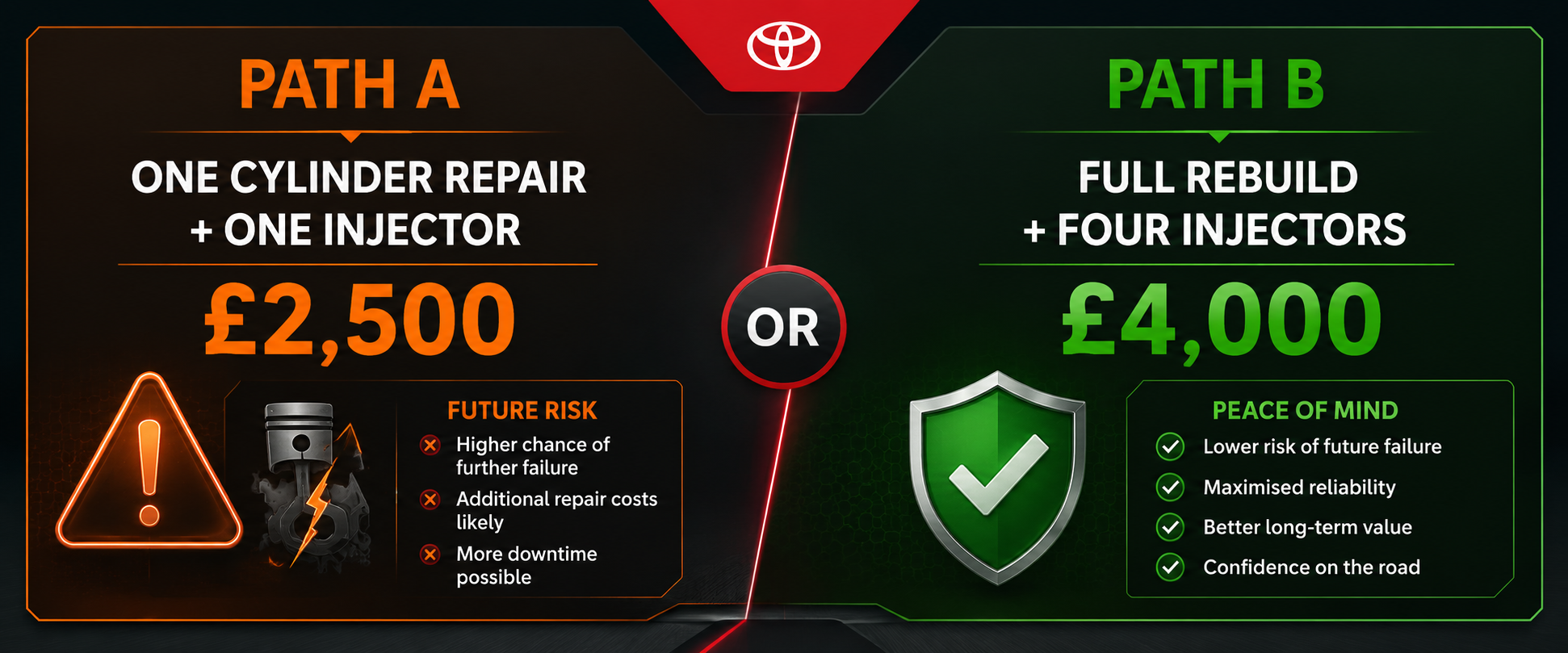

Toyota Hilux repair decision - one cylinder at £2,500 with risks versus full rebuild at £4,000 with peace of mind
Scrap the vehiclePath 1

Sell as spares/repair — return £2,000–£4,000.

Used engine (unknown history)Path 2

£780–£2,730 — cheaper upfront, higher risk.

Full rebuild + new injectorsPath 3 - chosen

£4,000 total. Re-bored block, four oversize pistons, new injectors.

Hilux reputation — 300,000+ mile engineWhy

The owner planned to keep the truck another 5-10 years. A full rebuild with new injectors provided long-term peace of mind.

£8,000–£12,000Vehicle value

Pre-failure value set the ceiling for viable repair spend.

30–50%Repair ratio

£4,000 rebuild = 30-50% of value — expensive but justifiable.

300,000+ milesHilux reputation

Known to last 300,000+ miles when maintained — rebuild extends life significantly.

5–10 yearsOwnership plan

Owner planned to keep the truck another 5-10 years — warranty provided coverage.

Future riskUsed engine vulnerability

Used engine carried same injector vulnerability — decided against unknown history.

£4,000Total paid

Full rebuild with re-bored block, oversize pistons, rings, bearings, new injectors.

Full rebuild + all new injectors — because the Hilux is worth itFinal verdict

The decision balanced vehicle value, Hilux reputation, ownership horizon, and the risk of future injector failure. A full rebuild with new injectors provided 200,000+ miles of peace of mind.

Outcome

What happened after the full rebuild-

Ten days later, the Hilux was back on the road. The owner now knows: when one injector fails, replace all four. A full rebuild is worth it on a Hilux.

Final cost£4,000
Lead time10 days
Warranty18 months / 18,000 miles
Long-term resultEngine runs perfectly. Expected to last another 200,000 miles.
“The Hilux is a legend for a reason. Yes, injectors fail. Yes, rebuilds are expensive. But the truck is worth it. I’ll get another decade out of it easily.”
Blurred Toyota workshop background with Hilux on ramp for repair outcome quote card
Lessons learned

If your 1KD-FTV Hilux suffers an injector failure, replace all four injectors.

The commercial lesson is simple: injector failures are cheaper when caught early. Replacing all four injectors at the same time eliminates the risk of a second failure and another rebuild.

Single injector replacement£400–£600

Other injectors remain at risk. Failure means another strip-down.

Replace all four injectors£1,200–£2,000

Eliminates future injector risk.

Repair one cylinder only£2,500

Other three cylinders remain original. Future failure means another rebuild.

Full rebuild (all four cylinders)£3,500–£5,000

Fresh engine. Expected life: 200,000+ miles.

A £4,000 full rebuild on a £10,000 Hilux is 40% of its value — expensive but justifiable for 200,000 more miles. Scrapping the truck would cost £10,000 to replace. The rebuild saves £6,000. If your 1KD-FTV is over 100,000 miles, have the injectors tested professionally.
📋 Click to expand — Toyota 1KD-FTV injector and engine component part numbers
ComponentToyota OEM Part Number
Injector (each)23670-0L010
Injector seal kit (per injector)23670-0L015
Injector washer (each)23670-0L016
Piston (oversize, each)13101-0L020
Piston ring set (oversize, each)13011-0L020
Connecting rod bearing set13021-0L010
Main bearing set13011-0L015
Cylinder head gasket11116-0L020
Cylinder head bolt set11117-0L010
Timing chain kit13506-0L010
Timing chain tensioner13540-0L010
Oil pump assembly15100-0L010
Water pump16100-0L015
Turbocharger (remanufactured)17201-0L040
Sump gasket12151-0L010

Data sources: EM-VERIFIED n=240 from EnginesMarket.co.uk 2025 internal data, workshop consensus, Toyota dealer pricing and specialist workshop records.
