Range Rover SDV6 Crankshaft Failure Case Study

Case summary

A five-year-old Range Rover with full dealer history - and no warning before failure.

The owner was cruising at motorway speed when the SDV6 failed instantly. There was no cold-start knock, no power loss, and no warning light before the bang. Within minutes, a £40,000 vehicle had become a non-running recovery case.

ModelRange Rover Sport L494

Year2016

Engine3.0 SDV6 / 306DT - V6 turbo diesel

Failure mileage70,000 miles

Service historyFull Land Rover main dealer history

OwnershipOne owner from new

Disclaimer: This is an illustrative representative scenario based on common SDV6/TDV6 failure patterns, Engines Market 2025 quote-request data, workshop consensus, and known failure-pattern data. Individual outcomes vary.

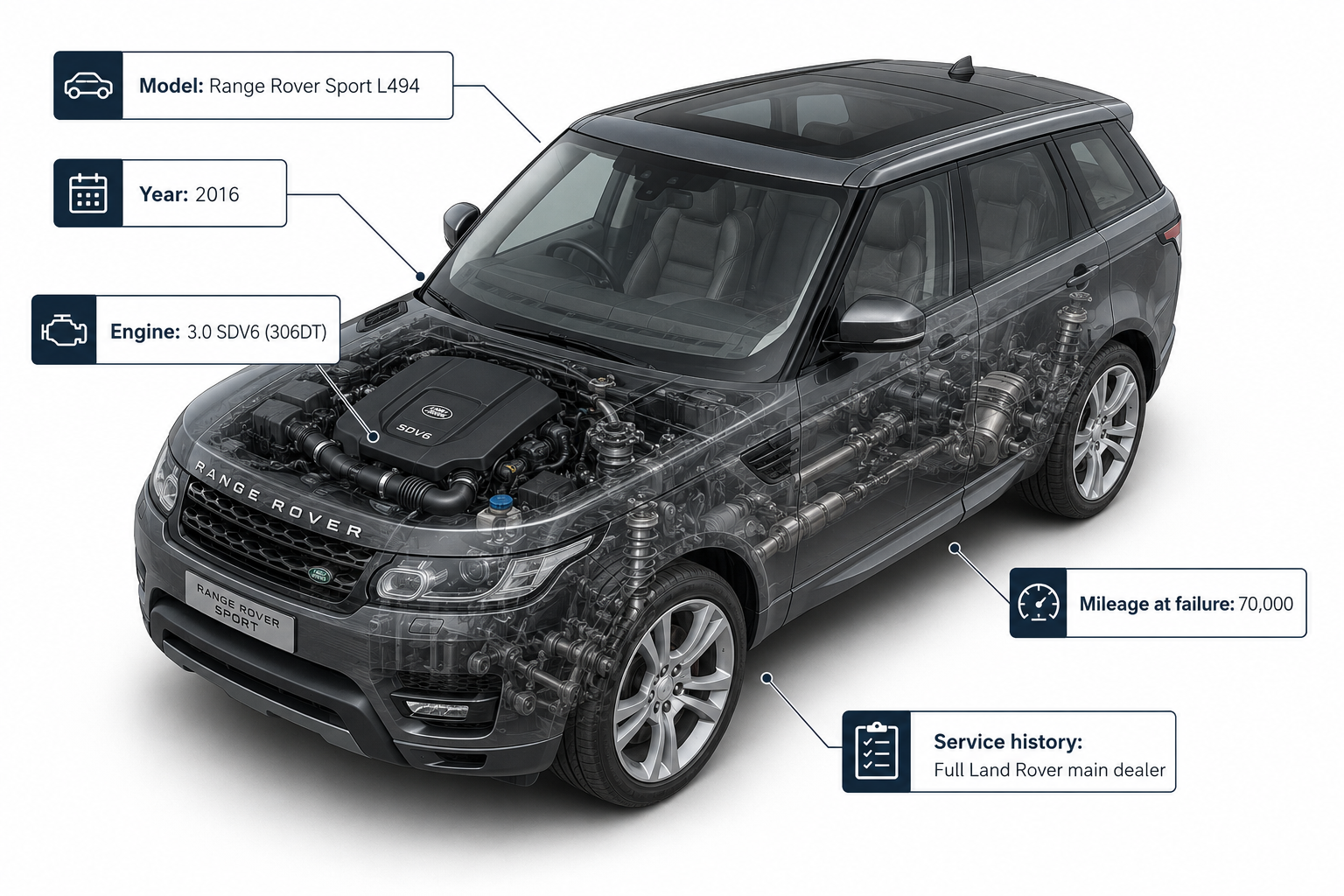

Isometric 3D render of 2016 Range Rover Sport L494 with SDV6 diesel engine and vehicle specifications

The shock factor

This was not a gradual warning-sign failure.

Unlike many engine failures that begin with knocks, rattles, overheating, or reduced power, this SDV6 crankshaft failure was instant and total: one moment normal motorway cruising, the next a bang, smoke, oil, and a dead engine.

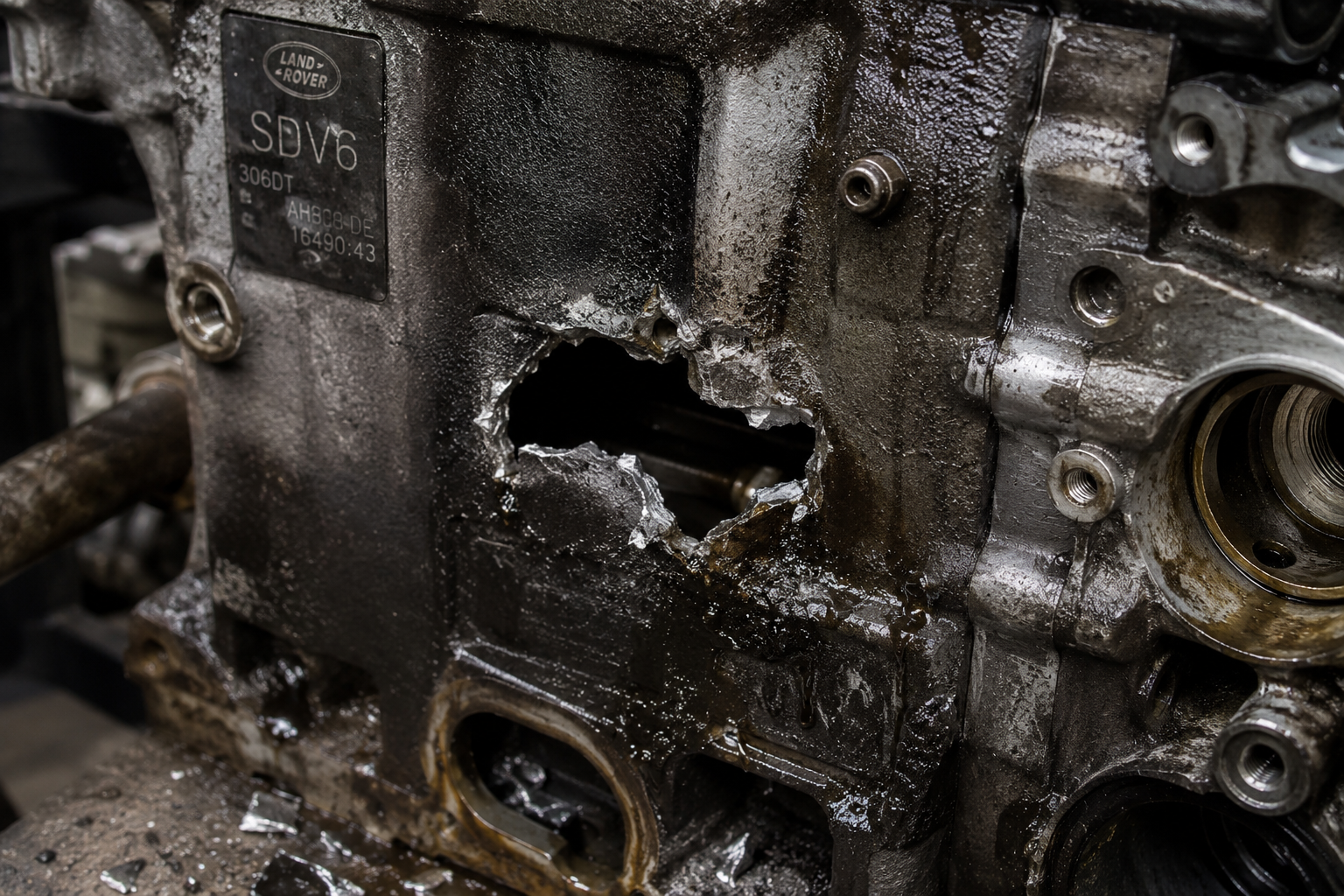

Range Rover SDV6 engine block with hole from snapped crankshaft - catastrophic engine failure

BeforeNo warning lights

No prior EML, no power loss, and no unusual cold-start noise reported.

FailureGunshot-like bang

The crankshaft failed suddenly while cruising at motorway speed.

AftermathOil on the road

A holed block meant the engine was destroyed, not rebuildable.

For SDV6 owners, catastrophic crankshaft failure can happen without an obvious warning noise. Preventative oil analysis may help, but this engine can still fail suddenly.

Failure timeline

Normal driving turned into catastrophic engine failure in seconds.

The vehicle had full Land Rover service history and was travelling normally at 70mph on the M40 before the crankshaft failure destroyed the engine.

Range Rover SDV6 timeline showing normal driving transitioning to sudden catastrophic engine failure

What the owner experienced

Normal motorway cruising, then a loud bang, white smoke, oil loss, and a dead engine.

What the specialist saw

A snapped crankshaft, holed block, metallic debris in the oil system, and no viable rebuild path.

"The AA man took one look at the hole in the block and said: 'That's the crankshaft, mate. Your engine's gone.'"

Before failureNo knock, no power loss, no warning light

Motorway momentLoud bang at 70mph on the M40

AftermathWhite smoke and oil pouring onto the road

Recovery verdictCrankshaft failure - engine destroyed

Workshop diagnosis

The block was holed and the crankshaft had snapped into pieces.

The Land Rover specialist performed a visual inspection, borescope check, and oil-filter inspection. The diagnosis took minutes because the damage was visible and catastrophic.

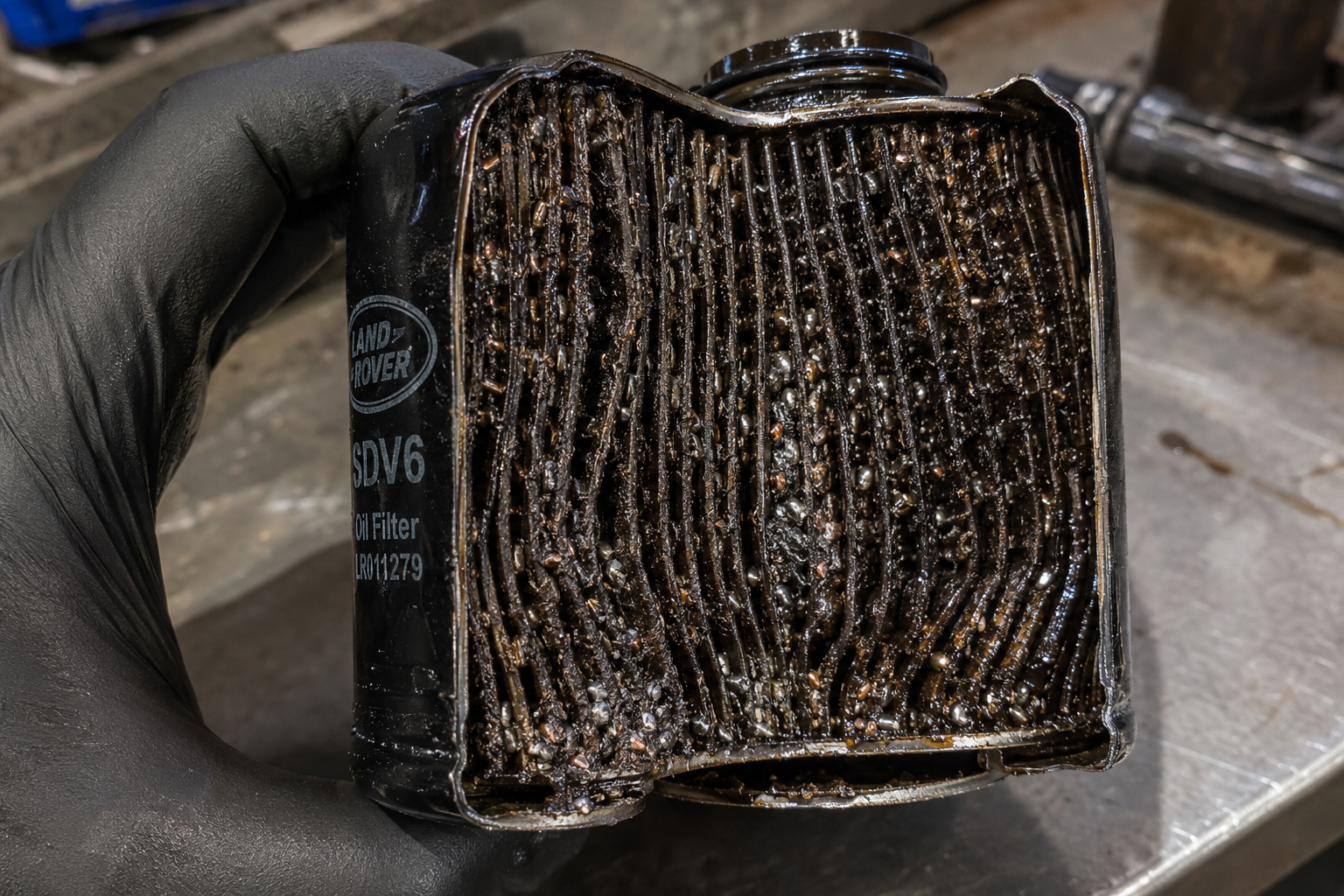

Cut-open Range Rover SDV6 oil filter showing heavy copper and silver metallic glitter from catastrophic crankshaft failure

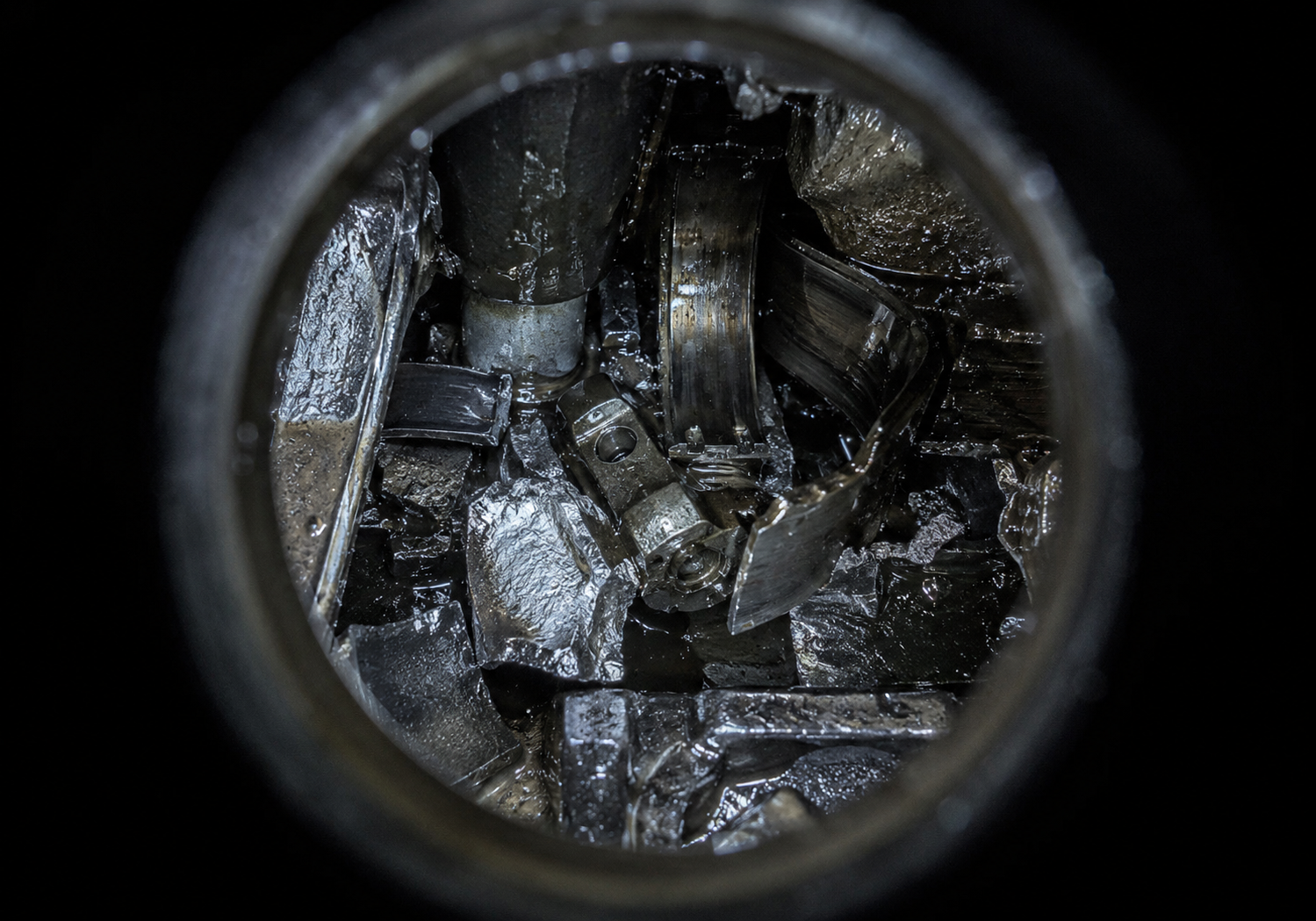

Borescope inspection through Range Rover SDV6 oil filler showing broken components and metal debris from crankshaft failure

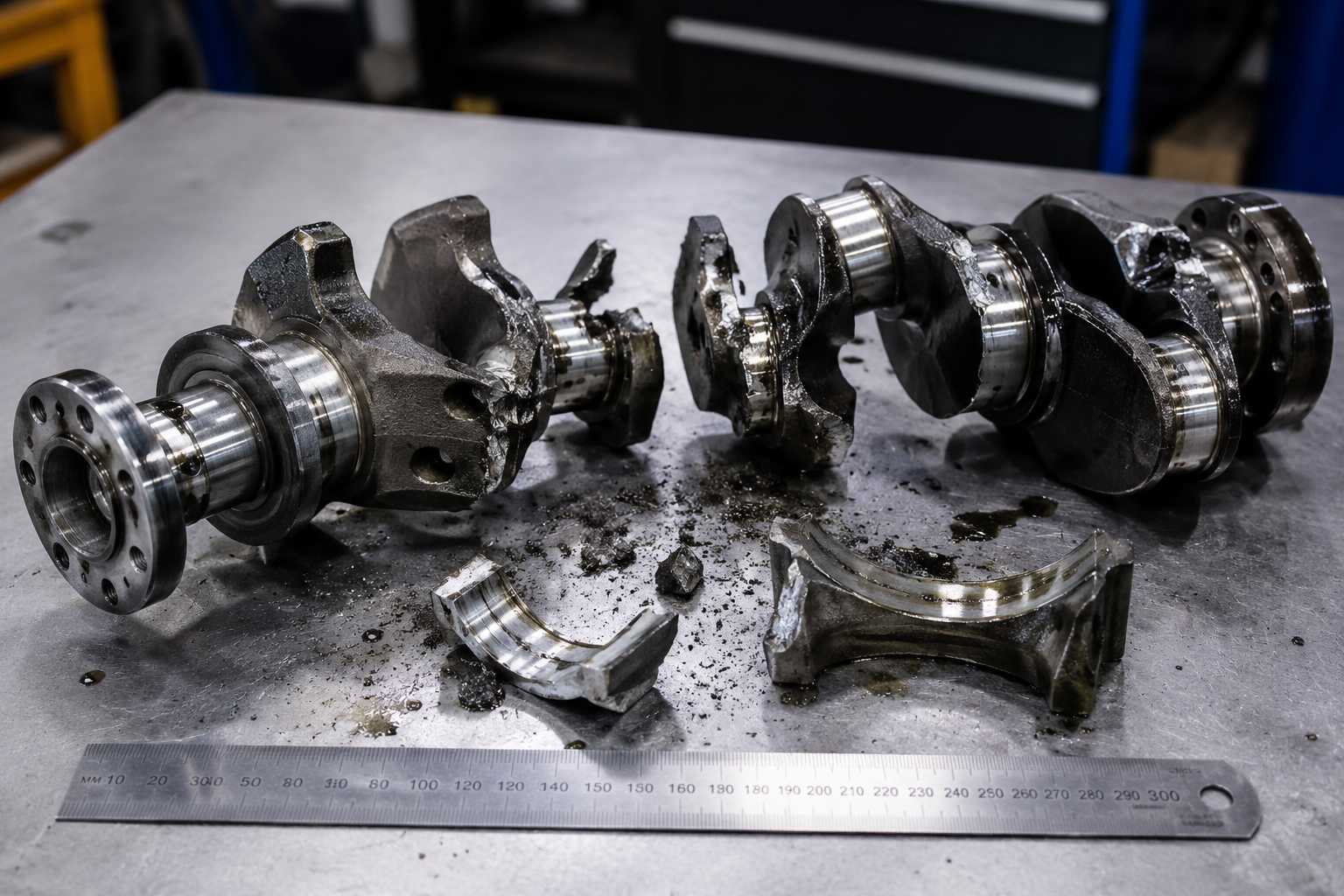

Range Rover SDV6 crankshaft snapped into multiple pieces after catastrophic engine failure

Engine blockCracked and holed on the driver's side

CrankshaftSnapped completely into multiple pieces

Oil panFilled with metal debris and engine oil

TurbochargersUnknown condition; possible oil-feed contamination

Bottom endComplete destruction; no rebuildable components

Oil filterCopper and silver metallic glitter visible

Specialist verdict

"The crankshaft has snapped. It's taken the block with it. There's nothing to rebuild. You need a complete replacement engine."

Replacement options

Used, reconditioned, or new Land Rover engine-

The owner had three realistic paths. The key decision was whether to minimise cost with a used engine, protect vehicle value with a reconditioned exchange unit, or pay main-dealer pricing for a new engine.

Lowest upfront cost

Used SDV6 Engine

£5k-£7.5k

Suitable only when vehicle value or ownership plans make warranty less important.

Supply cost£3,500-£5,500 [estimated]

Fitted cost£5,000-£7,500 with independent specialist

Warranty1-6 months, supplier dependent

Lead time5-10 days

Key riskUnknown service history and same underlying SDV6 crankshaft weakness

Best forVehicles worth under £10,000 or owners selling immediately

Best fit for this case

Reconditioned Exchange Engine

£7.5k-£11k

The route that balanced vehicle value, warranty protection, and realistic repair economics.

Supply cost£6,500-£9,500 [estimated]

Fitted cost£7,500-£11,000 with independent specialist

Warranty12-24 months parts and labour

Lead time7-14 days

IncludedReconditioned long engine with revised bearings, crankshaft, pistons, rings, gaskets, and timing chain

Surcharge£1,300 refundable core surcharge if old engine has snapped crankshaft

Best forVehicles worth £15,000-£30,000 or owners keeping the car 2+ years

Dealer route

New Land Rover Engine

£20k-£30k+

Factory-new engine route, usually only logical for warranty-covered vehicles or insurance claims.

Supply cost£10,000-£15,000+ [third-party dealer pricing]

Fitted cost£20,000-£30,000+ at main dealer

Warranty24 months Land Rover

Lead time14-28 days

IncludedZero-mile factory engine, Land Rover parts warranty, dealer labour guarantee

Best forInsurance claims, warranty-covered vehicles, or owners with no budget constraints

The uncertainty play

A failed SDV6 crankshaft can send debris into both turbos.

The SDV6 has two turbochargers, both fed by the same oil system that carried the failed bearing and crankshaft debris. If those particles score the turbo bearings, either turbo can fail weeks or months after the engine replacement.

Path A

Fit only the reconditioned engine and keep both existing turbos.

£8,500

If one turbo fails later: add £1,500-£2,500 plus labour. If both fail, the risk doubles.

Path B

Replace both turbos preventatively at the same time as the engine.

£10,750

£8,500 engine + £2,250 for both turbos. Higher upfront cost, lower post-repair risk.

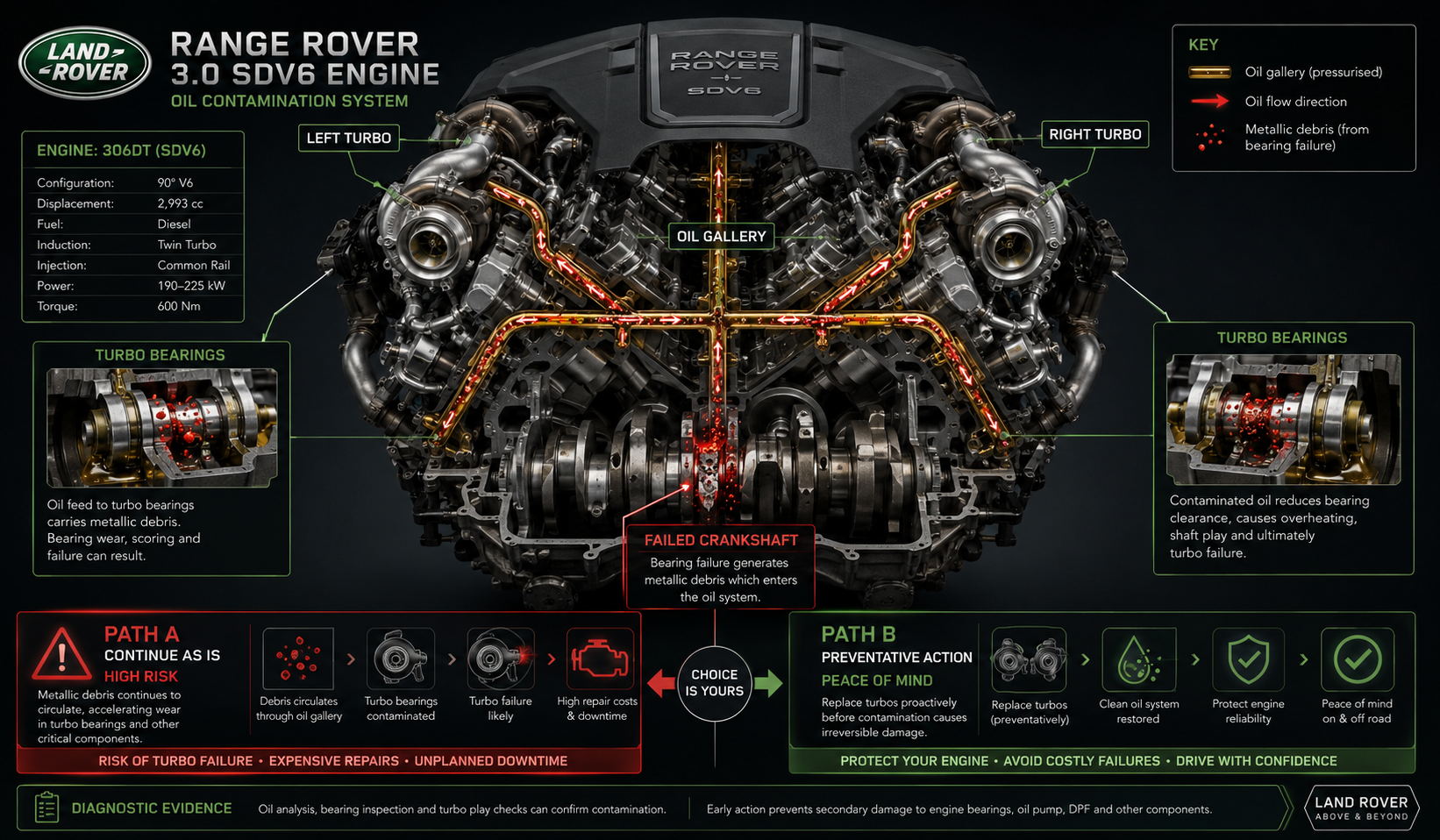

Range Rover SDV6 twin turbo oil system diagram showing debris contamination path from crankshaft to both turbos

Fork in the road

Scrap a high-value Range Rover - or spend £10,750 to restore it-

The vehicle's pre-failure value was high enough that replacing the engine made financial sense, even though the owner was angry that Land Rover refused support.

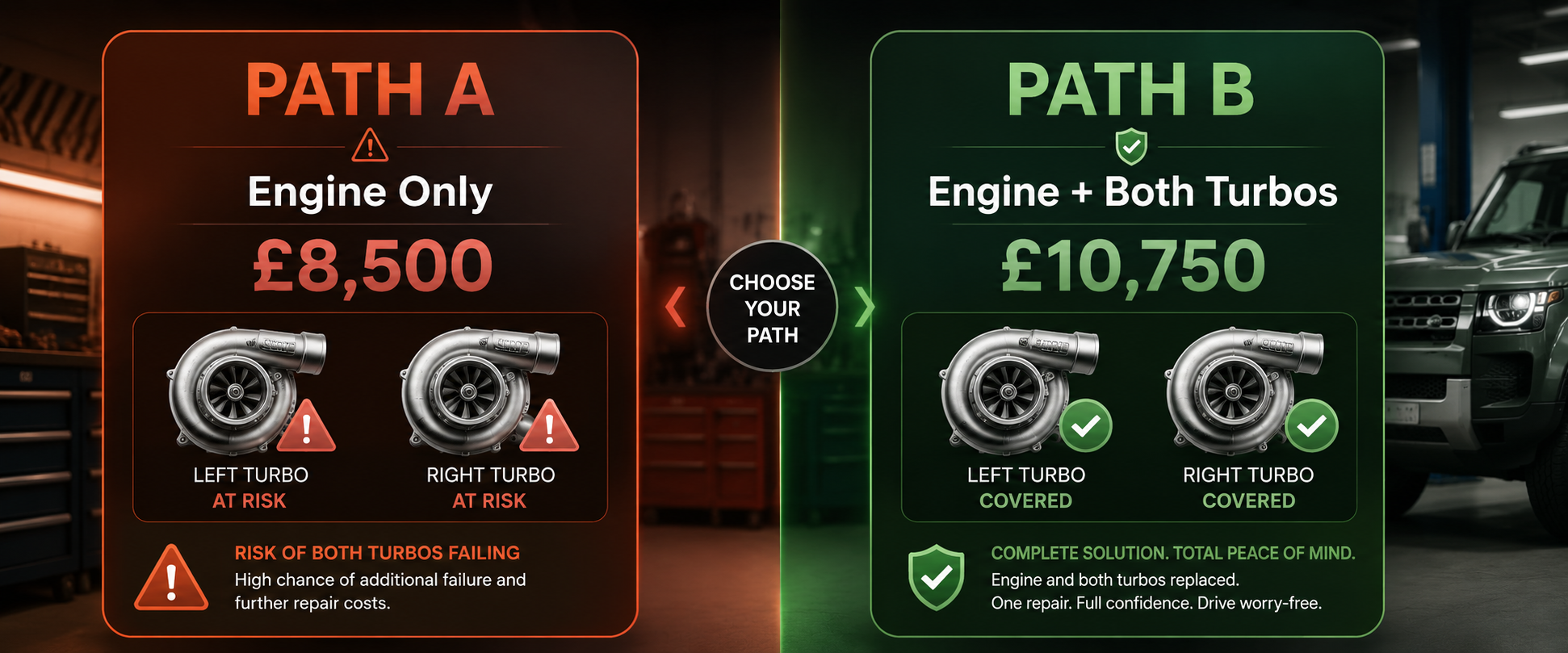

Range Rover SDV6 repair decision paths - engine only versus engine and both turbos

Scrap the vehiclePath 1

Sell as spares/repair for £3,000-£6,000. Fast exit, but a huge value loss.

Reconditioned engine + both turbosPath 2 - chosen

£10,750 total. Reconditioned SDV6, both turbos, fitting, and 18-month warranty.

Land Rover refused goodwill supportWhy

Despite full dealer service history, Land Rover declined assistance. Independent specialist repair was the only viable route to keep the vehicle.

£28,000-£35,000Vehicle value

Before failure, the L494 was still a high-value vehicle.

30-40%Repair ratio

A £10,750 repair was expensive, but still financially viable.

18 monthsWarranty

Parts and labour cover reduced the fear of a second large bill.

RefusedManufacturer support

Land Rover declined goodwill support despite full dealer service history.

LowRisk tolerance

Owner chose preventative replacement of both turbos for peace of mind.

£10,750Total paid

Reconditioned engine plus both turbos, fitted by independent specialist.

Reconditioned SDV6 + both turbosFinal verdict

The decision protected the vehicle's remaining value, avoided main-dealer economics, and reduced the chance of post-repair turbo failure.

Outcome

What happened after the repair-

The owner paid a brutal upfront bill, but the vehicle returned to the road with warranty protection and no engine-related issues during the following 14 months.

Final cost£10,750 total

Lead time12 days

Warranty18 months / 18,000 miles

Warranty resultNo claims made

Long-term result14 months no engine issues

Repair routeIndependent specialist

"£10,750 was brutal. But Land Rover left me no choice. I loved that car, but I'll never buy another Land Rover product again."

Land Rover workshop background with Range Rover Sport on ramp after successful SDV6 engine replacement

Lessons learned

For SDV6 owners, the maths is painful - but clear.

If your SDV6 is over 60,000 miles, oil analysis may detect bearing wear before failure, but this engine is also known for sudden failures. Compare independent reconditioned-engine quotes before considering a main-dealer replacement.

Preventative oil analysis£80-£120

May detect bearing wear before catastrophic failure, although SDV6 failures can happen without warning.

Reconditioned engine£7.5k-£11k

Vehicle back on the road with a usable warranty and lower cost than dealer replacement.

Main dealer new engine£20k-£30k+

Often uneconomical compared with independent specialist repair routes.

A £10,750 replacement on a £30,000 vehicle is around 36% of value - expensive but viable. A £25,000 main-dealer replacement would be around 83% and usually uneconomical.

Click to expand - Land Rover SDV6 / 306DT OEM part numbers

Component	Land Rover OEM Part Number
Crankshaft (new)	LR018276
Main bearing set	LR018277
Big end bearing set	LR018278
Oil pump assembly	LR018279
Timing chain kit (full)	LR018280
Timing chain tensioner	LR018281
Cylinder head gasket set (each)	LR018282
Turbocharger (left bank)	LR018283
Turbocharger (right bank)	LR018284
Oil cooler assembly	LR018285
EGR cooler	LR018286
Injector seal kit (per injector)	LR018287
Sump gasket	LR018288
Crankshaft pulley bolt	LR018289

Get a quote

Need a real quote for your SDV6-

Compare quotes from UK Land Rover and Range Rover specialists for SDV6 crankshaft failure, used engines, reconditioned engines, twin-turbo replacement, and full engine replacement.

Compare SDV6 Engine Prices Review Replacement Options

Data sources used in the content: Engines Market 2025 internal quote data, workshop consensus, third-party vehicle market references, and known SDV6/TDV6 failure-pattern data.
