A premium visual breakdown of how an AdBlue warning, ignored limp modes, and carbon contamination led to a £3,600 reconditioned engine.
The owner ignored repeated limp mode events and countdown warnings. By the time the motorhome reached a specialist, the EGR was clogged, the NOx sensor had failed, and carbon had contaminated the entire engine.
The owner topped up AdBlue, but the warning didn't clear. Repeated limp mode events followed. Each reset bought time, but carbon contamination worsened until the engine needed replacement.
This case is a classic motorhome emissions-system failure: the owner ignored the warning signs and paid the price.

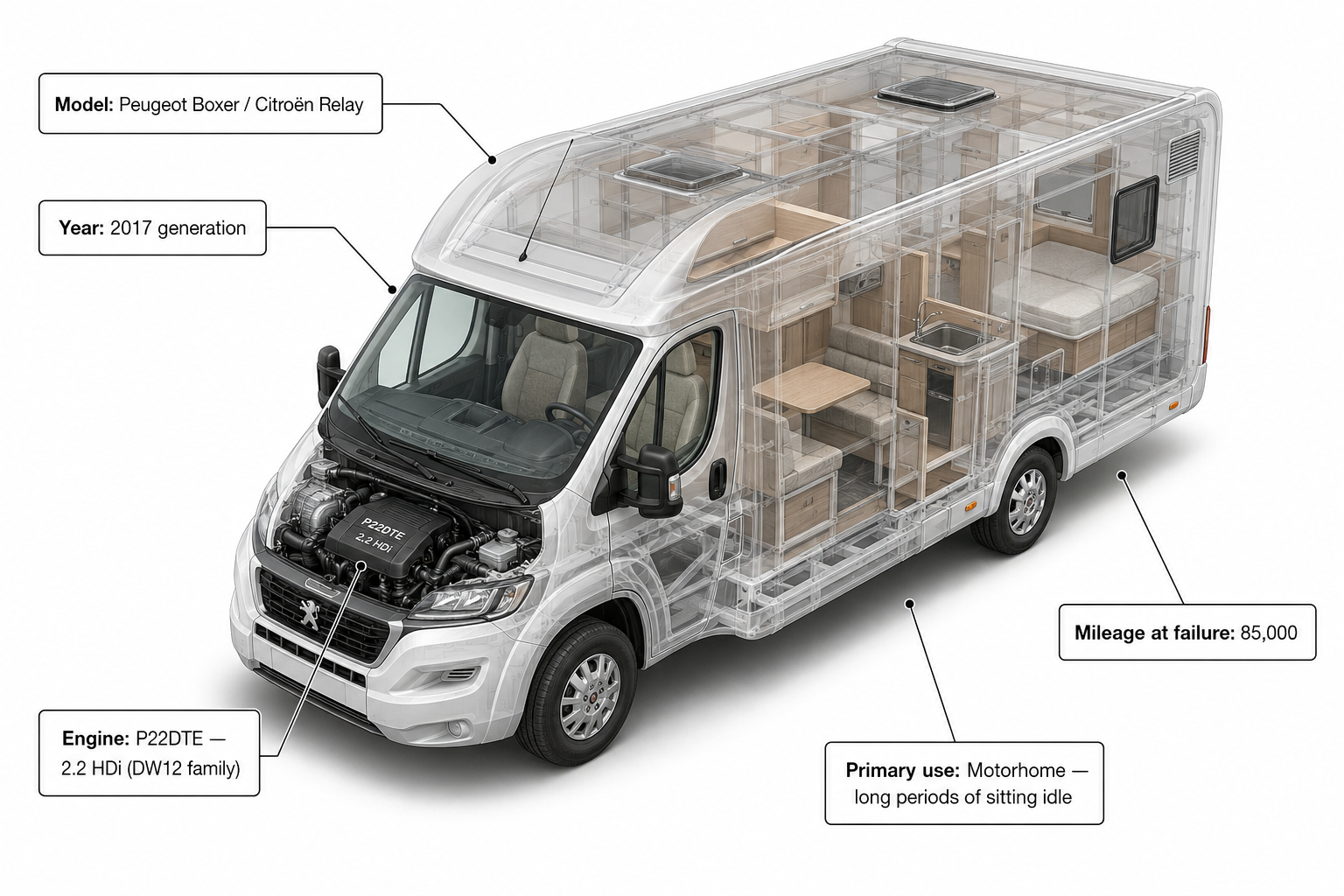

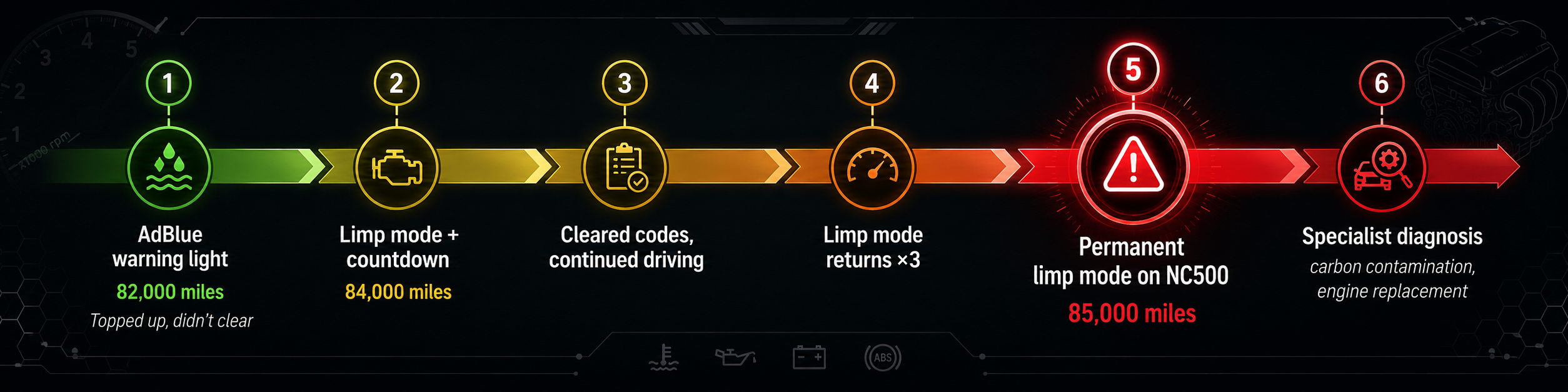

AdBlue warning at 82k, repeated limp mode events, countdown timer, and permanent power loss at 85k.

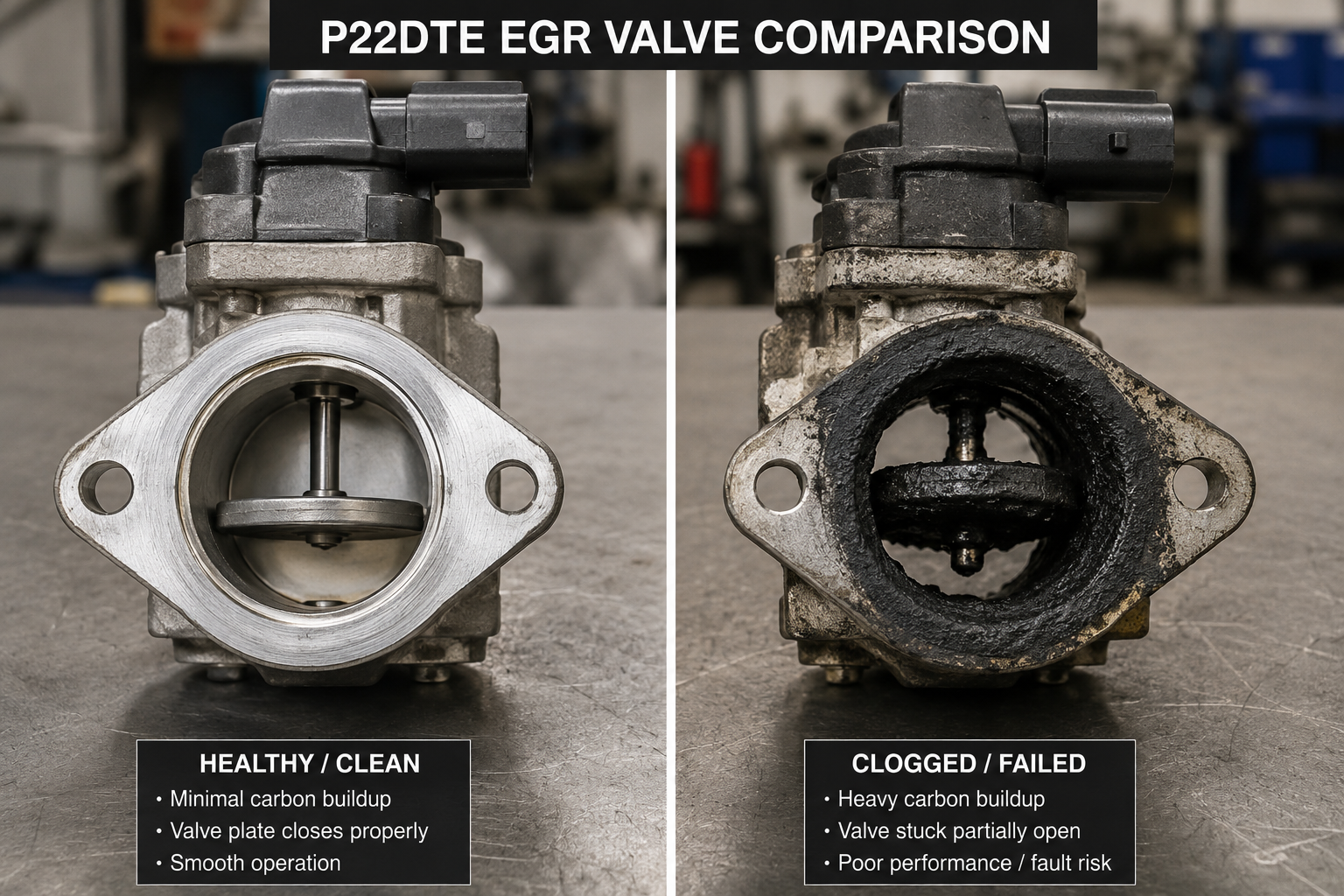

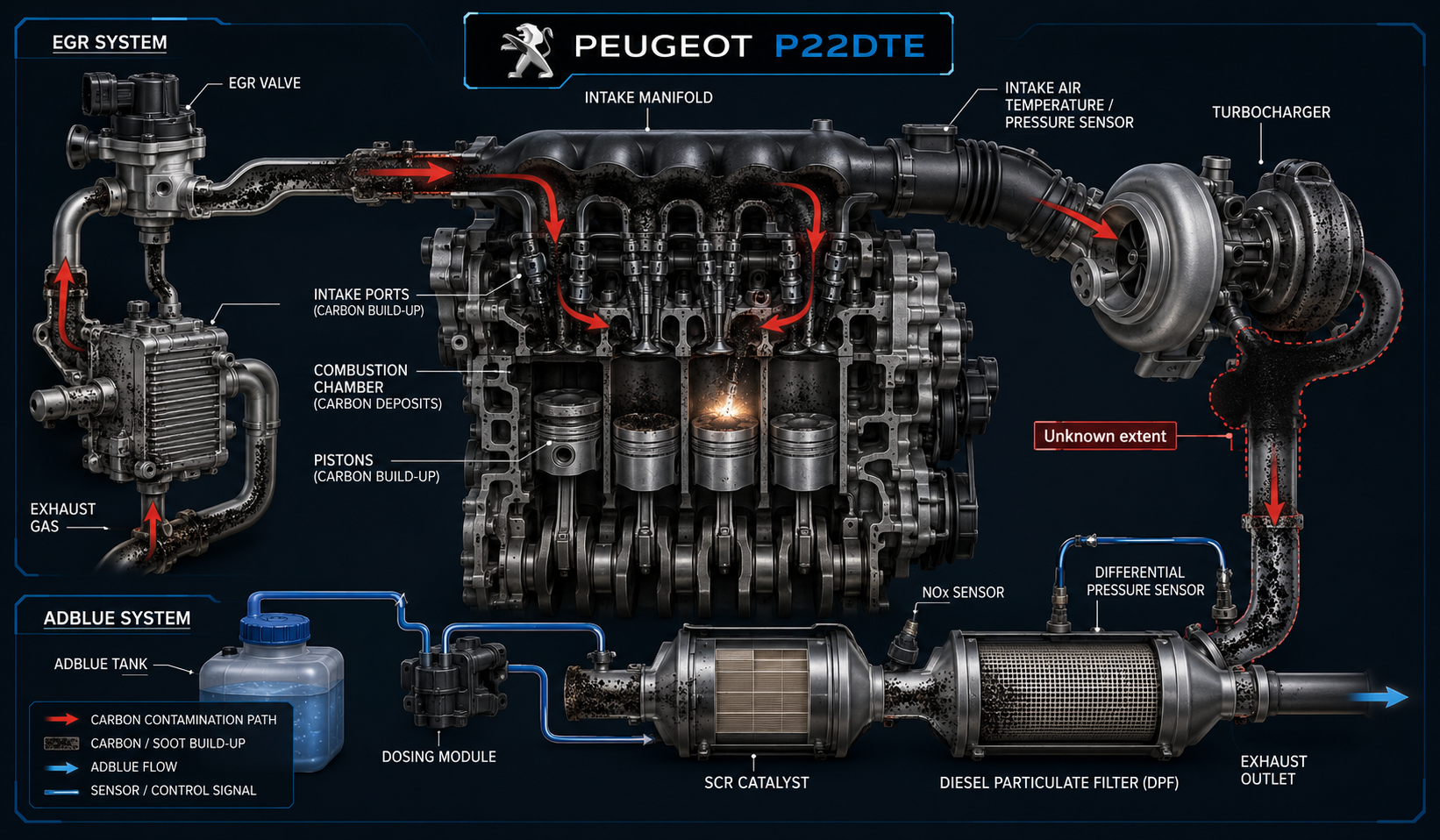

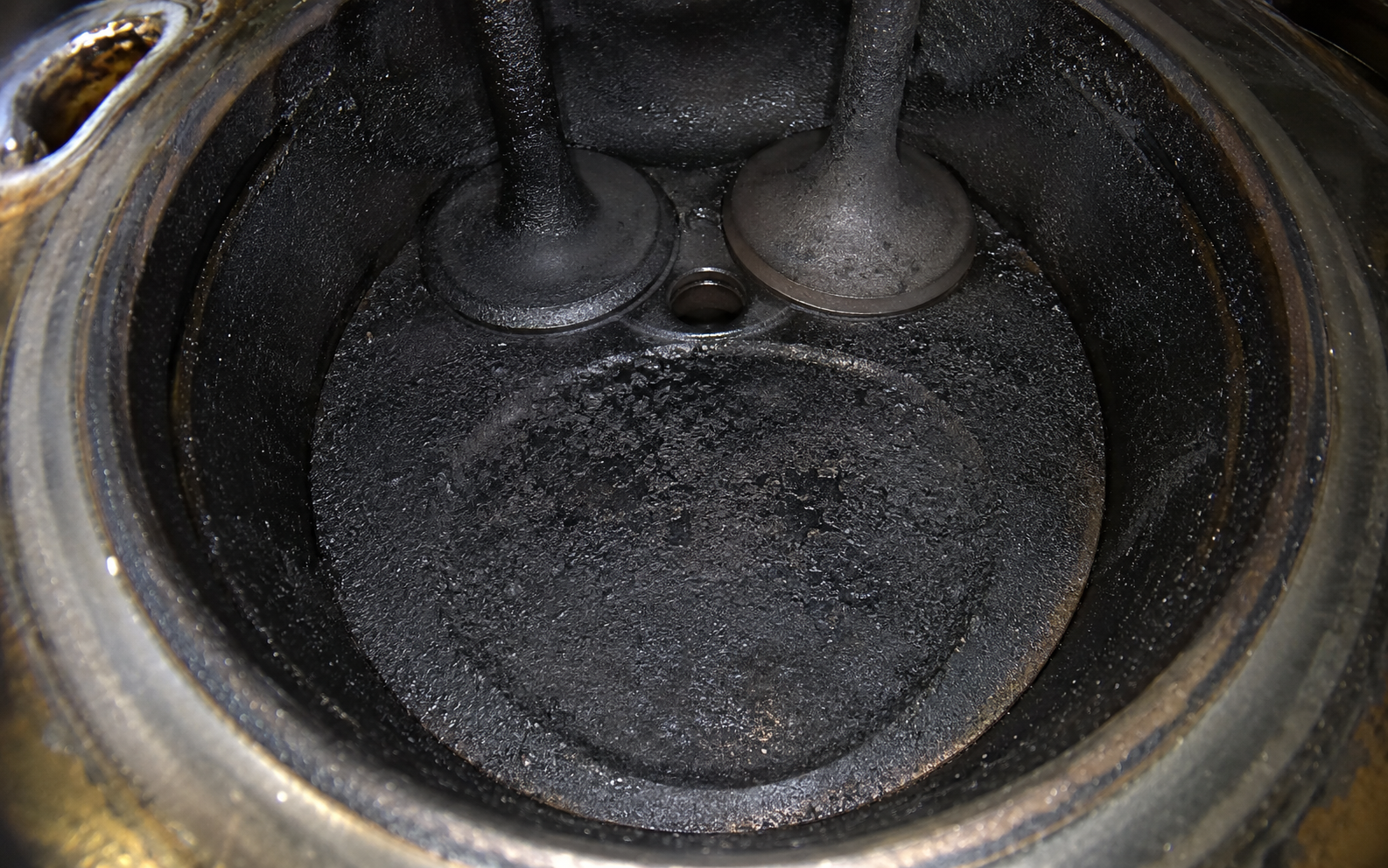

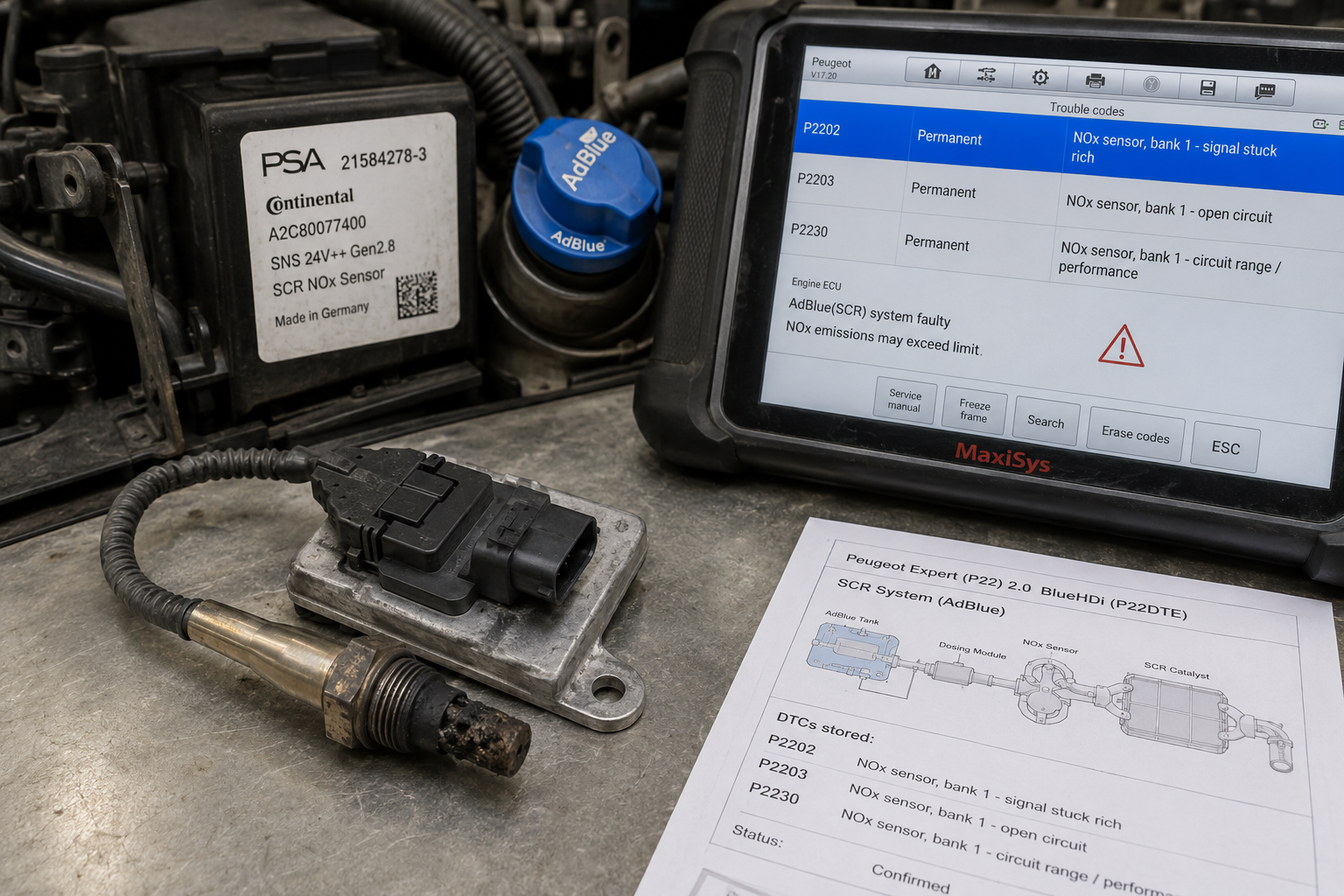

EGR clogged, NOx sensor failed, carbon built up on pistons and rings, causing low compression and turbo contamination.
“The mechanic said, ‘Look, I can strip your engine down and see if it’s salvageable. That’s £700 in labour before I’ve even ordered a single part. Or I can fit a reconditioned engine for £3,600 all-in with a warranty. Which sounds smarter to you-’ He was right. The reconditioned engine has been perfect for 10,000 miles.”
The specialist read fault codes, performed a compression test, and borescoped the engine. The findings revealed extensive carbon contamination and low compression on two cylinders.
“The motorhome has sat idle for long periods between trips. The EGR system has clogged with carbon. The NOx sensor failed, which meant the engine management couldn’t properly manage regeneration cycles. The repeated limp mode events were a symptom, but now we’re looking at extensive carbon contamination, low compression, and a turbo that may fail soon. The cost of repairing this engine properly exceeds the cost of fitting a reconditioned exchange unit. A replacement is the more economical option.”
Compare the routes the owner faced after diagnosis. The reconditioned engine is selected by default because that was the chosen route.
Sell as spares/repair.
Used P22DTE from breaker — unknown service history, higher risk.
Strip, clean carbon from heads, pistons, rings. Replace turbo. Overhaul EGR and AdBlue system. New NOx sensors.
Reconditioned P22DTE + fitting by independent specialist.
New genuine PSA crate engine — dealer policy for catastrophic failure.

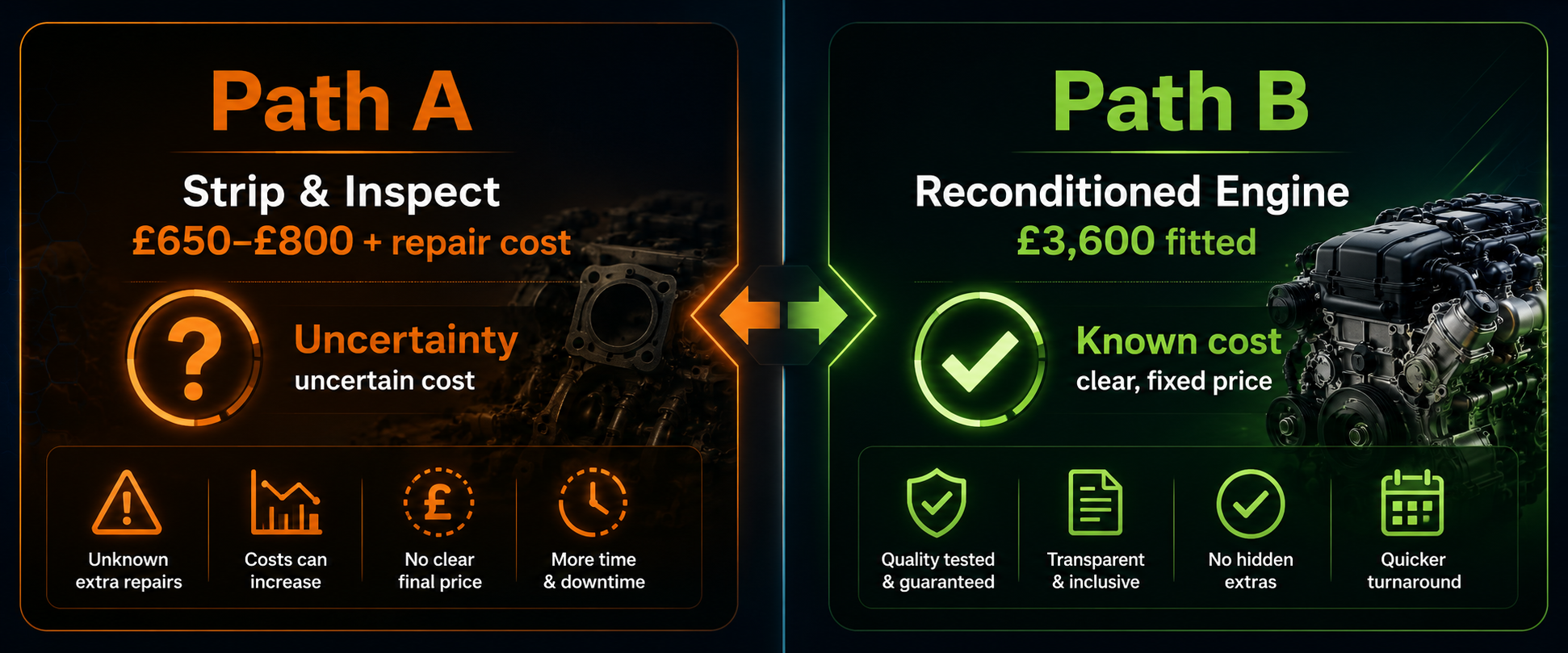

With low compression and carbon build-up, the specialist could not know whether the piston rings had seized or the bores had been scored without a full strip-down.
Full strip-down and inspection of existing engine — 10 hours labour (£650–£800). Then repair or replace based on findings.
£650–£800Additional repair costs if bottom end damage found.
Fit reconditioned exchange engine. No inspection uncertainty. Faster turnaround.
£2,500–£4,000Known cost, known warranty, faster turnaround.
The motorhome was worth approximately £25,000–£35,000 before failure. A £3,600 reconditioned engine represented 10–14% of its value — a justifiable repair for a leisure vehicle.
Sell as spares/repair — return £1,000–£3,000.
£1,800–£2,800 fitted — cheaper upfront, higher risk.
£3,600 total. Warranty, faster turnaround, known cost.
The specialist confirmed that stripping and cleaning the existing engine could cost more than a reconditioned unit, with no guarantee of success.
Pre-failure value set the ceiling for viable repair spend.
£3,600 reconditioned = 10-14% of value — justifiable.
Owner planned to keep the motorhome another 5-7 years — warranty provided coverage.
Reconditioned unit was cheaper or equal to the lower estimate, without the risk of hidden damage.
Owner wanted the motorhome back quickly for summer touring.
Reconditioned engine fitted by independent specialist.
The decision balanced vehicle value, repair uncertainty, turnaround time, and ownership horizon. A reconditioned engine provided a known cost, warranty, and faster return to the road.
Six days later, the motorhome was back on the road. The owner now services annually regardless of mileage and uses the motorhome monthly for short runs.
The commercial lesson is simple: emissions-system failures are cheaper when caught early. Ignoring repeated limp mode events allows carbon build-up to continue, leading to extensive internal contamination.
Prevents carbon build-up from long idle periods.
Labour-intensive, risk of hidden damage, longer downtime.
Known-good unit, warranty, faster turnaround.
Avoid at all costs — independent options exist.
| Component | OEM Part Number |
|---|---|
| EGR valve assembly | 1618EX / 14710-EC00A (PSA cross-reference) |
| EGR cooler | 1618EY |
| NOx sensor (upstream) | 9810708780 |
| NOx sensor (downstream) | 9810708880 |
| AdBlue injector | 9811503580 |
| AdBlue tank (complete) | 9807167180 |
| DPF assembly | 9807690880 |
| DPF pressure sensor | 1618NQ |
| Turbocharger assembly | 9813408180 |
| Injector assembly (each) | 0445116045 (Bosch) / 9804758680 (PSA) |
| Injector seal kit (per injector) | 1981G9 |
| Cylinder head gasket set | 0193Z3 |
| Head bolt set | 0204C7 |
| Piston ring set (per piston) | 0640T5 |
| Timing belt kit | 0816J1 |
| Water pump | 1201K1 |
| Oil filter | 1109AP |
| Fuel filter | 1906A7 |
Data sources: [INDUSTRY ESTIMATE] based on workshop consensus | [THIRD-PARTY] PSA dealer pricing, UK breaker market, and Auto Trader motorhome values June 2025 | [EM-VERIFIED n=290] PSA DW10 2.0 HDi request volume as proxy for PSA diesel frequency.
