A premium visual breakdown of how a brief cold-start rattle became a snapped chain, bent valves, and a £6,500 engine replacement.

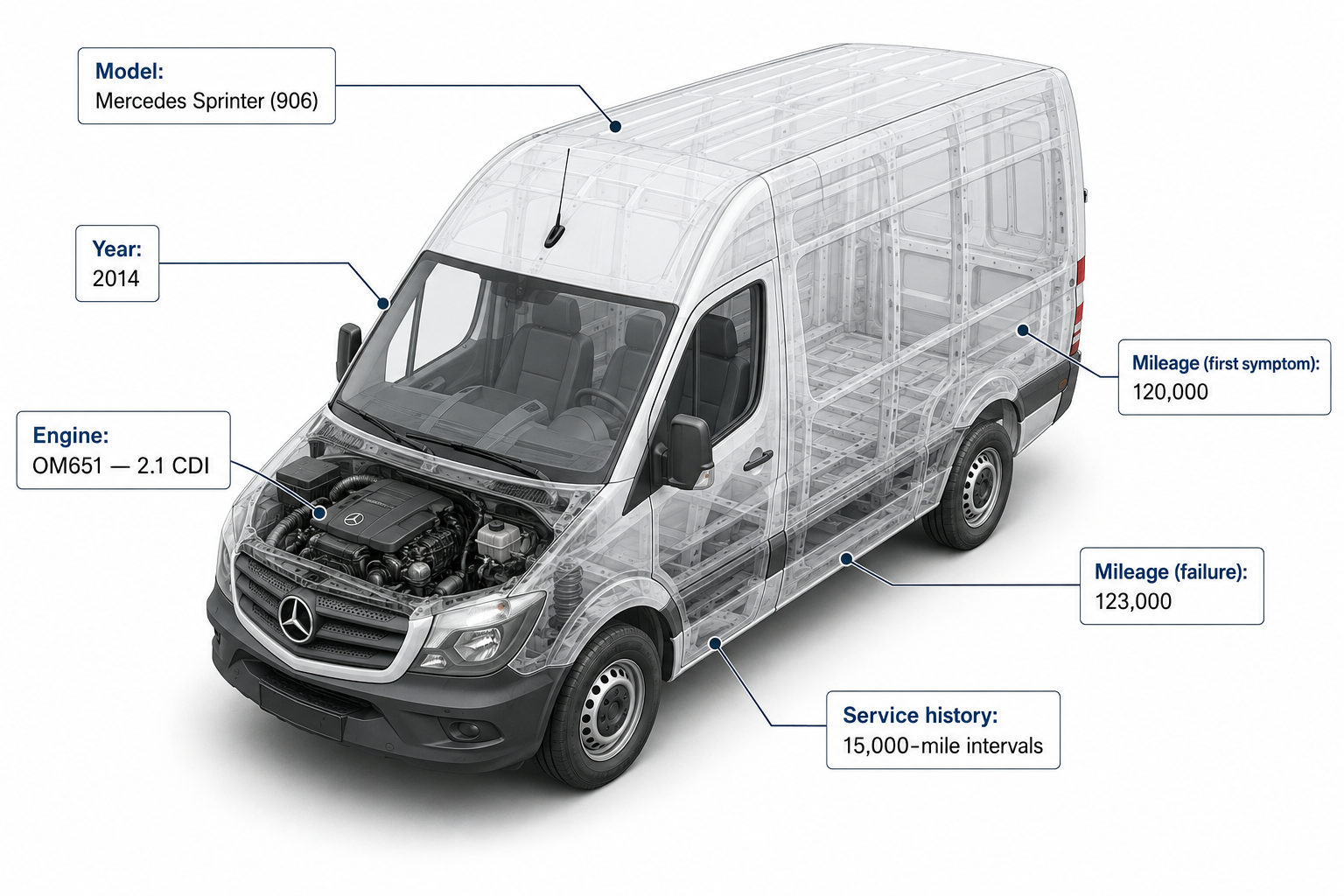

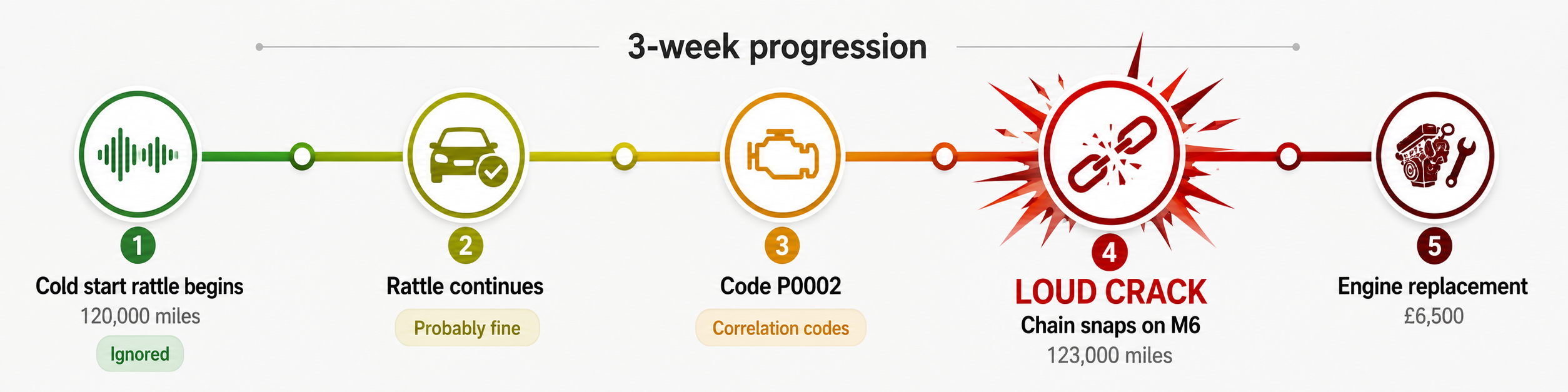

At 120,000 miles the owner heard a brief rattle on cold starts. The sound lasted only two seconds, so it was dismissed as normal diesel behaviour. Within 3,000 miles, the chain snapped at motorway speed, causing catastrophic engine damage.
The sound lasted only two seconds. That short window is why many owners ignore it until the chain snaps and the engine is destroyed.
This case is a classic catastrophic OM651 timing-chain failure: the owner ignored the warning signs and paid the price.
A brief cold-start rattle became a snapped chain at 65mph within 3,000 miles.

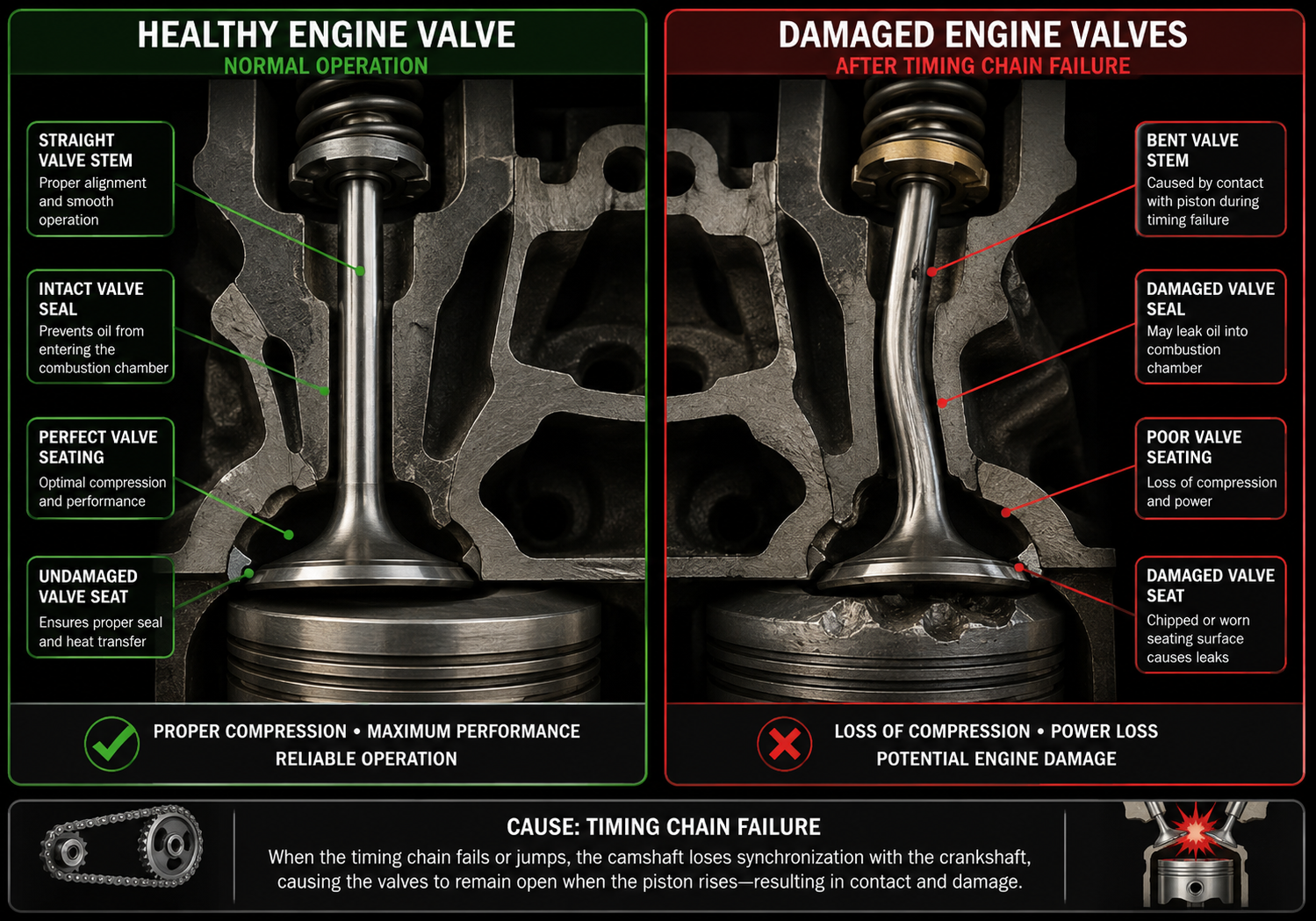

The tensioner failed, the chain stretched and snapped, causing valve-to-piston contact and catastrophic engine damage.
“I thought I was saving money by ignoring it. Cost me £7,000 in the end. Change your oil every 8,000 miles and get the chain done at the first rattle.”

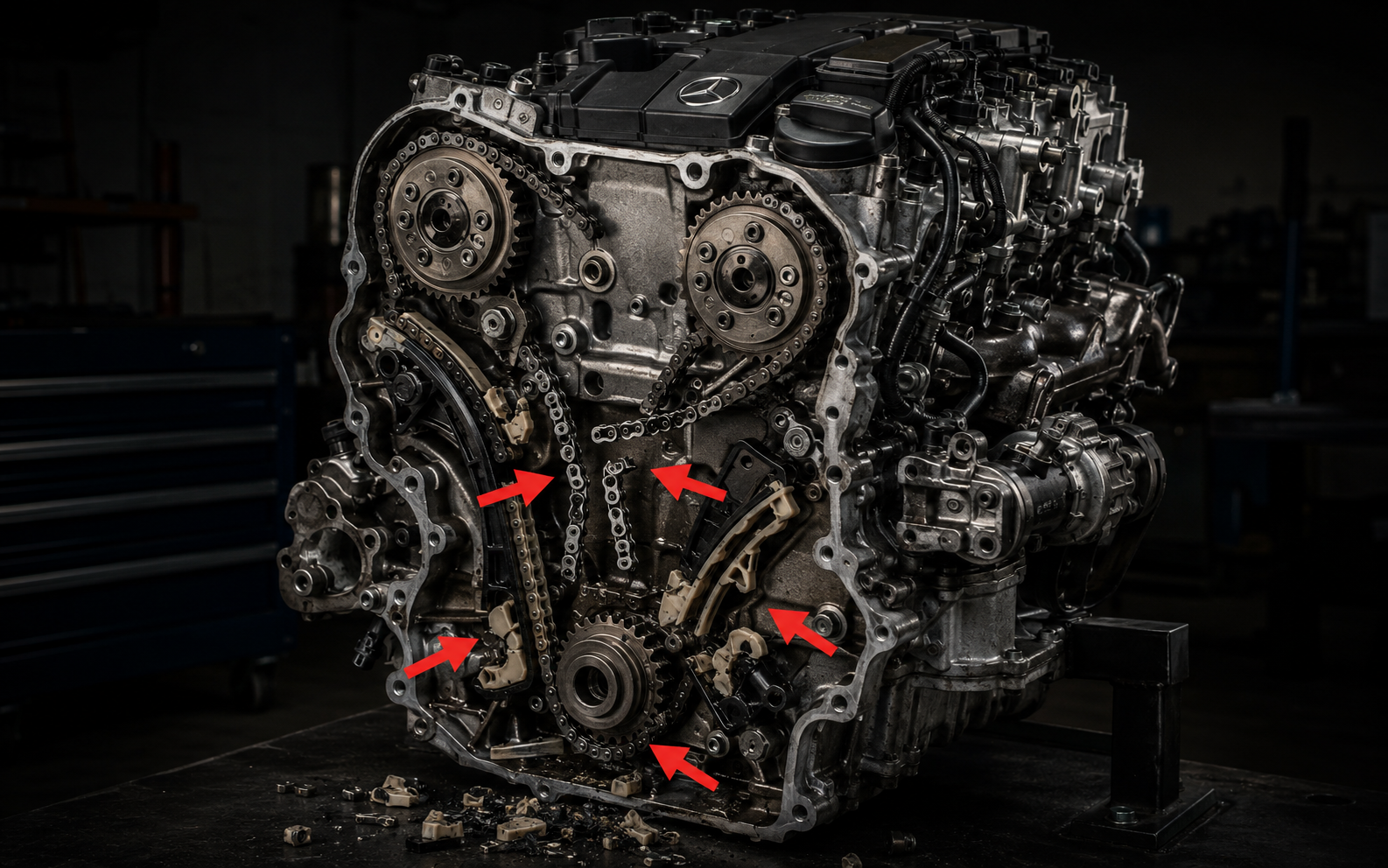

The AA recovered the vehicle to a Mercedes specialist. The findings were severe: the chain had snapped, guides shattered, valves bent, and pistons damaged.
“The chain snapped. It’s taken the head and valves with it. This engine is beyond economical repair. You need a replacement.”
Compare the routes the owner faced after the snap. The specialist preventative chain replacement is shown first as the missed opportunity; the replacement engine is selected as the chosen (but costly) route.
Timing chain, tensioner, guides, sprockets, gaskets — the job that would have saved the engine.
Timing chain, tensioner, guides, sprockets, plus injector seals (preventative) — peace of mind.
Used or reconditioned OM651 engine — the only way to get the van back on the road after chain snap.

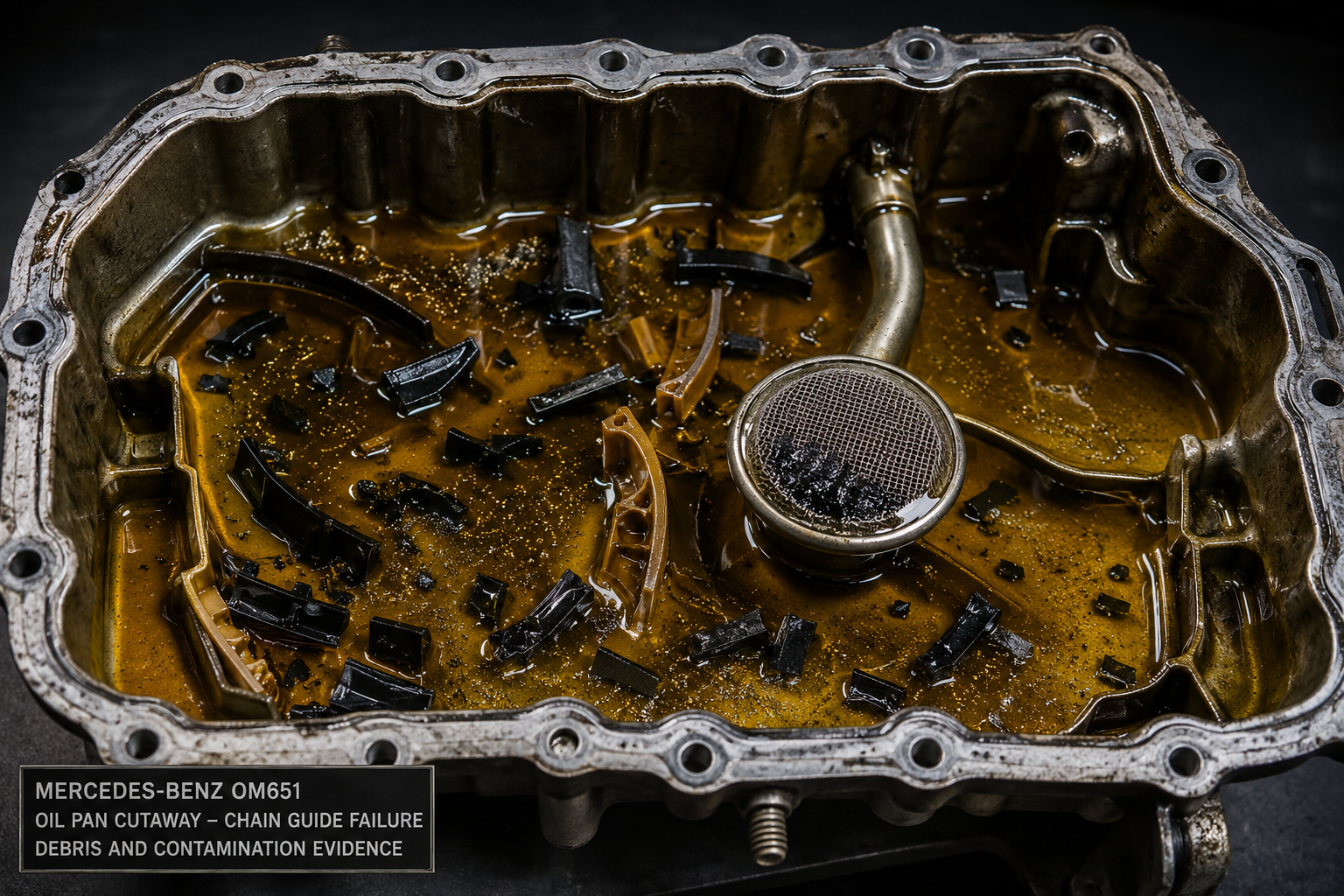

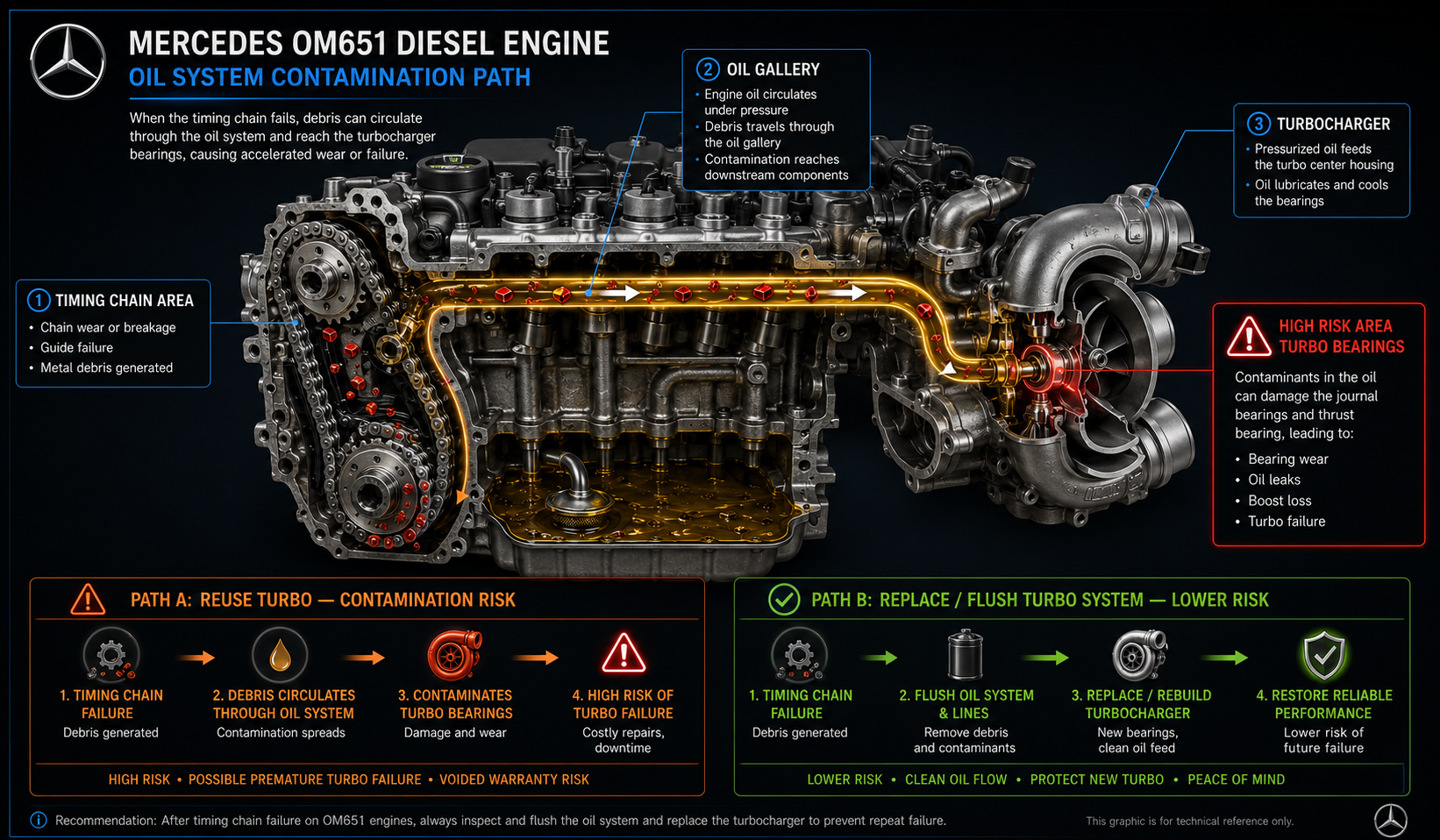

With shattered guide pieces and metal particles throughout the oil system, the specialist could not fully know whether the turbocharger or oil pump had already been affected without further disassembly.

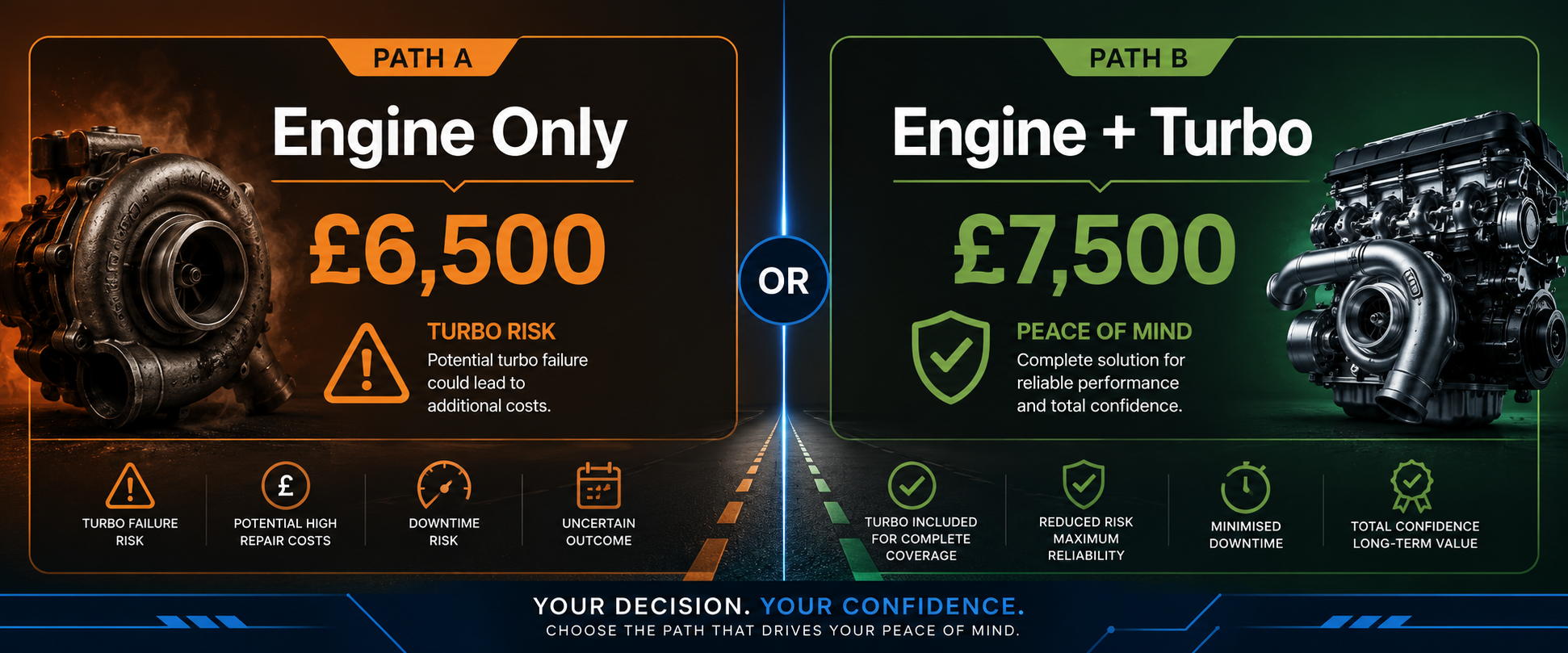

Fit only the replacement engine — take risk on existing turbo and oil system.
£6,500If turbo fails later: add £800–£1,500 + labour.
Replace turbo preventatively and thoroughly flush oil cooler.
£7,500Higher upfront cost, but significantly reduces post-repair turbo failure risk.
The vehicle was worth approximately £8,000–£12,000 before failure. A £6,500 replacement represented ~55–80% of vehicle value — expensive but necessary for a commercial vehicle needed for work.
Sell as spares/repair. A 2014 Sprinter with a snapped chain is worth £2,000–£4,000.
£6,500 total. Used or reconditioned OM651 engine fitted.
The owner ignored the cold-start rattle to save money. Three weeks later, the chain snapped, costing £6,500 instead of £1,500.
Pre-failure value set the ceiling for viable repair spend.
£6,500 replacement was 55–80% of the van’s value — borderline but necessary.
Van needed for work income — repair was essential, no vehicle = no income.
Tensioner failed after three weeks — £1,500 preventative job would have saved £5,000.
Extended oil change intervals contributed to tensioner wear.
Replacement engine fitted — versus £1,500 preventative chain job.
The decision was forced by catastrophic failure. The owner learned the hard way that a £1,500 chain replacement would have saved £5,000 and kept the van on the road.
Seven days later, the Sprinter was back on the road. The owner now changes oil every 8,000 miles and will never ignore a rattle again.
The commercial lesson is simple: timing-chain symptoms are cheaper when caught early. Waiting for the chain to snap will cost you an engine.
Engine continues to run safely.
Van off the road 5–10 days + potential turbo damage.
Prevents premature tensioner wear.
| Component | Mercedes OEM Part Number |
|---|---|
| Timing chain kit (full) | A651 050 02 01 |
| Timing chain tensioner | A651 050 01 00 |
| Upper chain guide | A651 050 04 00 |
| Lower chain guide | A651 050 06 00 |
| Camshaft sprocket (intake) | A651 050 06 01 |
| Camshaft sprocket (exhaust) | A651 050 07 01 |
| Crankshaft sprocket | A651 050 08 00 |
| Cylinder head gasket set | A651 016 00 00 |
| Injector seal kit (per injector) | A651 017 00 00 |
| Oil pump assembly | A651 180 00 00 |
| Oil pump chain | A651 050 10 00 |
| Sump gasket | A651 014 00 00 |
| Turbocharger (remanufactured) | A651 090 00 00 |
Data sources: EM-VERIFIED n=1,250 from EnginesMarket.co.uk 2025 internal data, workshop consensus, Auto Trader UK market data March 2025, and known failure patterns data.
