A premium visual breakdown of how a subtle rumble under load became a snapped crankshaft, destroyed bottom end, and a £7,610 reconditioned engine replacement.

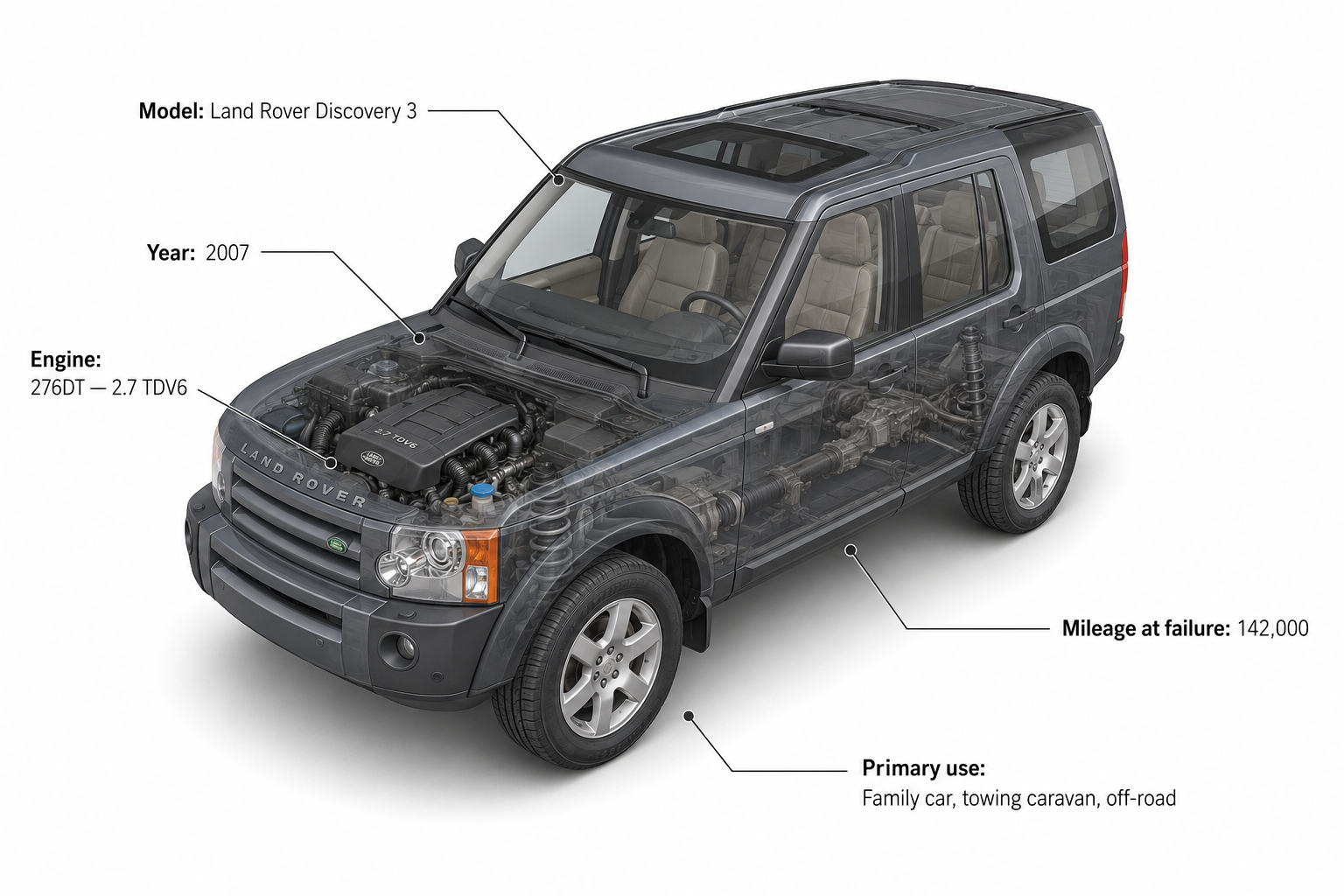

At 138,000 miles the owner heard a subtle rumble under load when towing. He ignored it for a few weeks. At 142,000 miles, the crankshaft snapped at motorway speed, destroying the 2.7 TDV6 engine beyond repair.
The sound was most noticeable when towing uphill. The owner dismissed it as a wheel bearing or exhaust heat shield. Within 4,000 miles, the crankshaft snapped, destroying the engine.
This case is a classic catastrophic TDV6 crankshaft failure: the owner ignored the warning signs and paid the price.
A subtle rumble under load became a snapped crankshaft at 65mph within 4,000 miles.
Bottom-end bearings wore, the crank flexed and snapped, destroying the block and oil system.
“I nearly scrapped it. The repair cost more than the car was worth on paper. But what was I going to buy for £7,600- Another Discovery 3 with unknown history and the same risk- A reconditioned engine at least came with a warranty. I bit the bullet and paid £7,600 to keep it on the road. Two years later, it’s still going strong.”

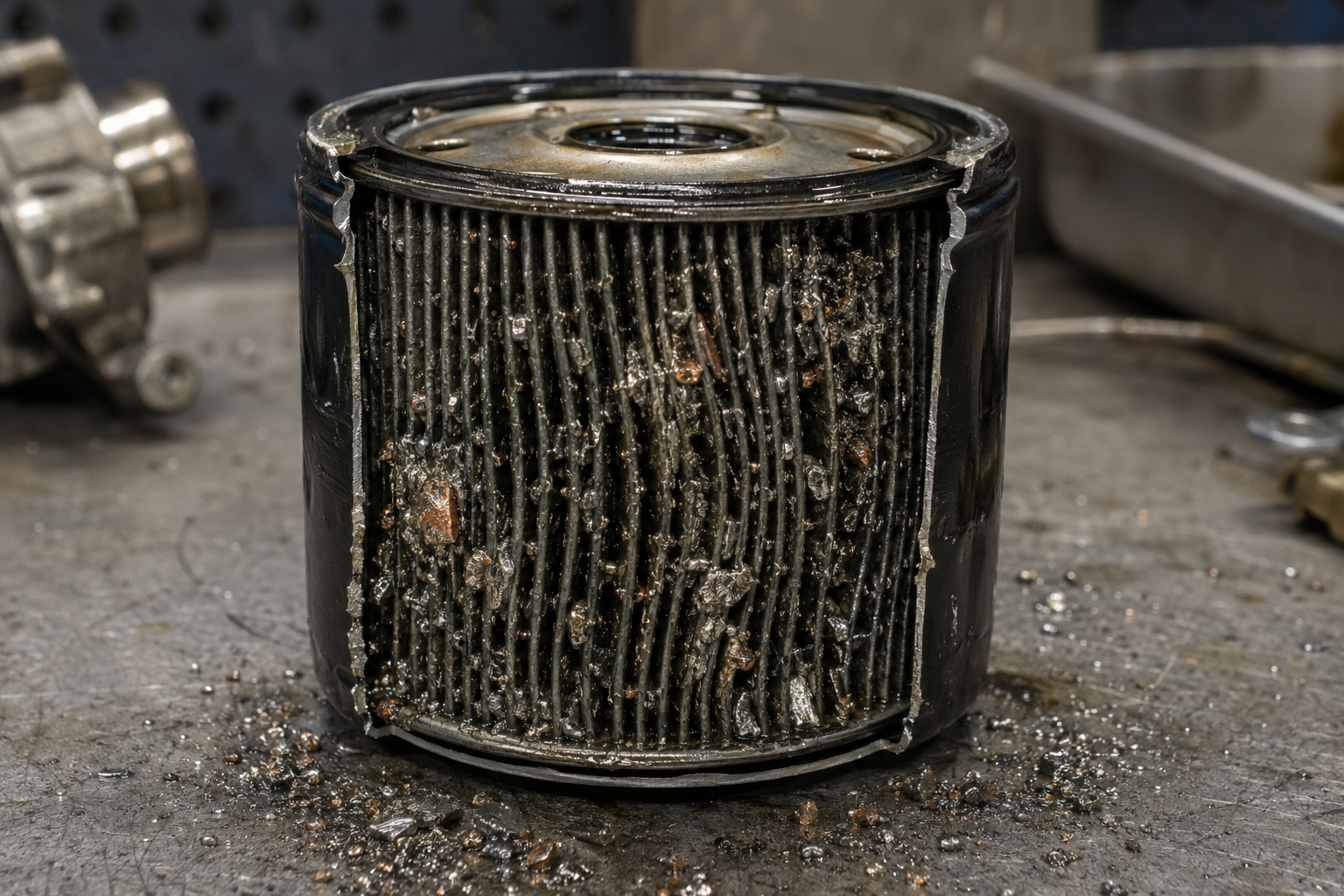

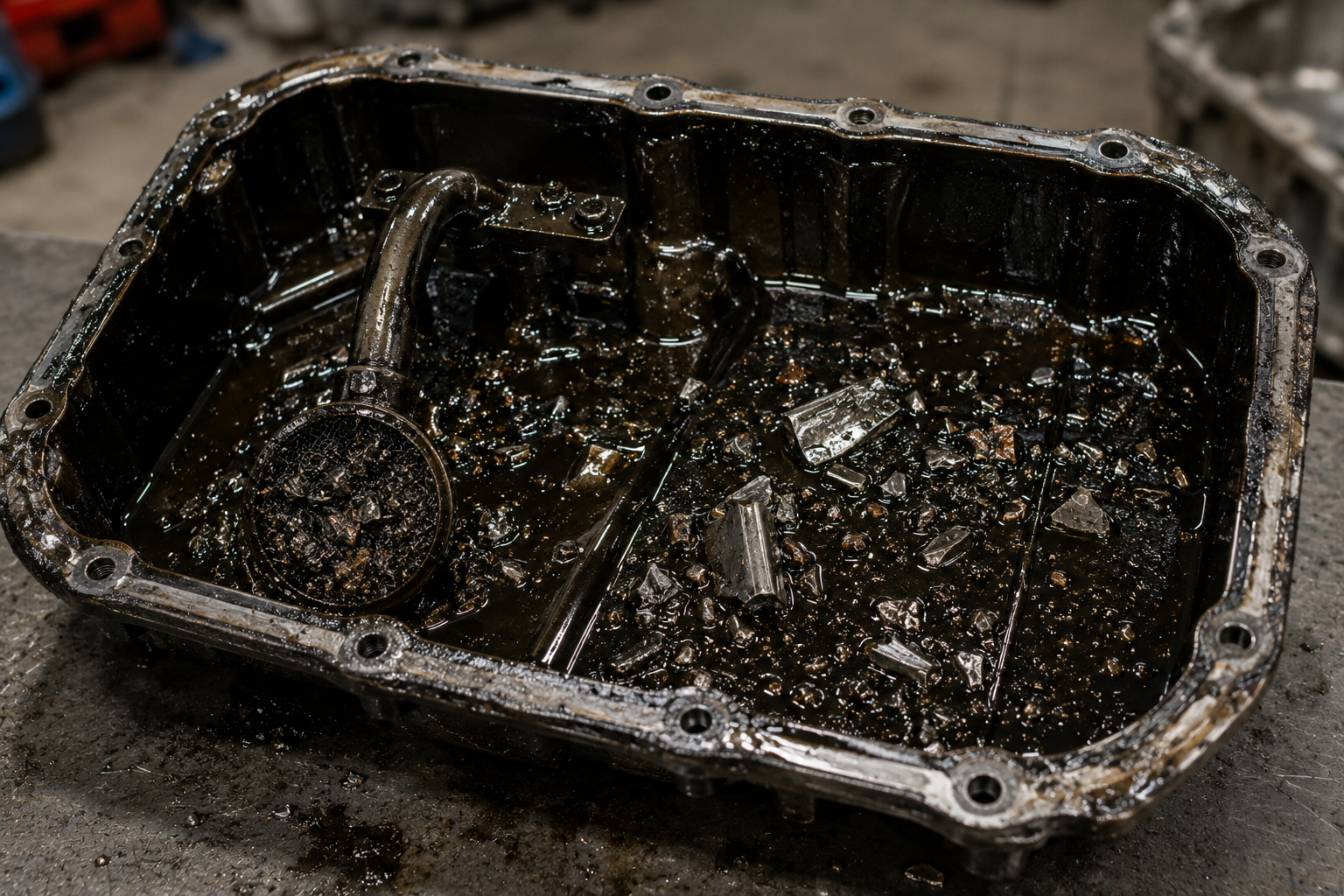

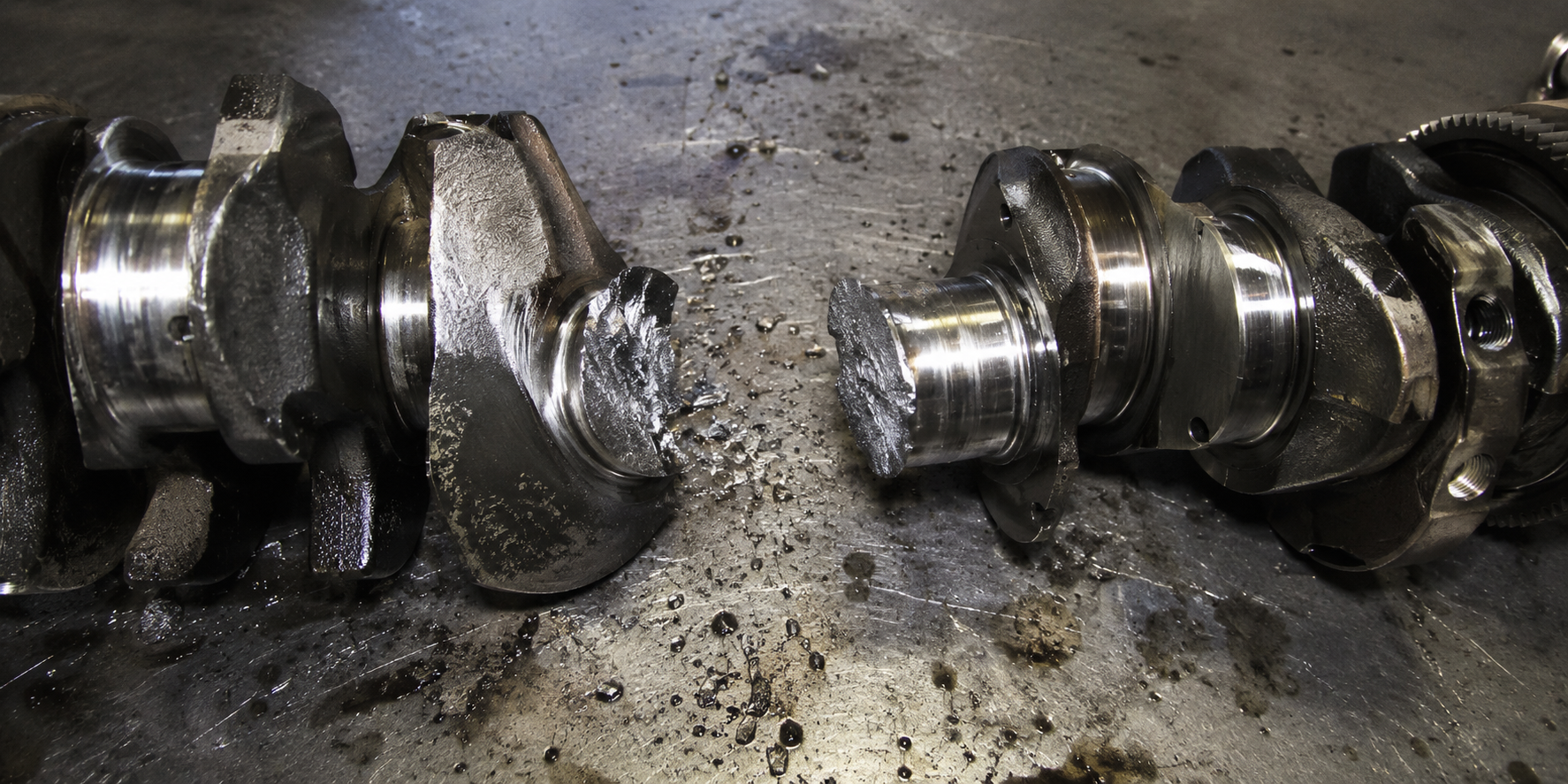

The specialist drained the oil and found metal particles throughout. The crankshaft had snapped between two main bearing journals, destroying the block.
“The crankshaft has snapped. This is a catastrophic bottom-end failure. Land Rover does not allow these engines to be rebuilt satisfactorily by third parties — the block is destroyed, and the crank is in two pieces. You need a full replacement engine.”
Compare the routes the owner faced after diagnosis. The reconditioned long engine is selected by default because that was the chosen route.
Sell as spares/repair. A Discovery 3 with a snapped crankshaft is a total loss for most private sellers.
Used 276DT TDV6 from breaker — unknown service history, higher risk.
Fully reconditioned 276DT long engine — with snapped crank surcharge if core not returnable.
New genuine Land Rover crate engine — dealer policy for catastrophic failure.

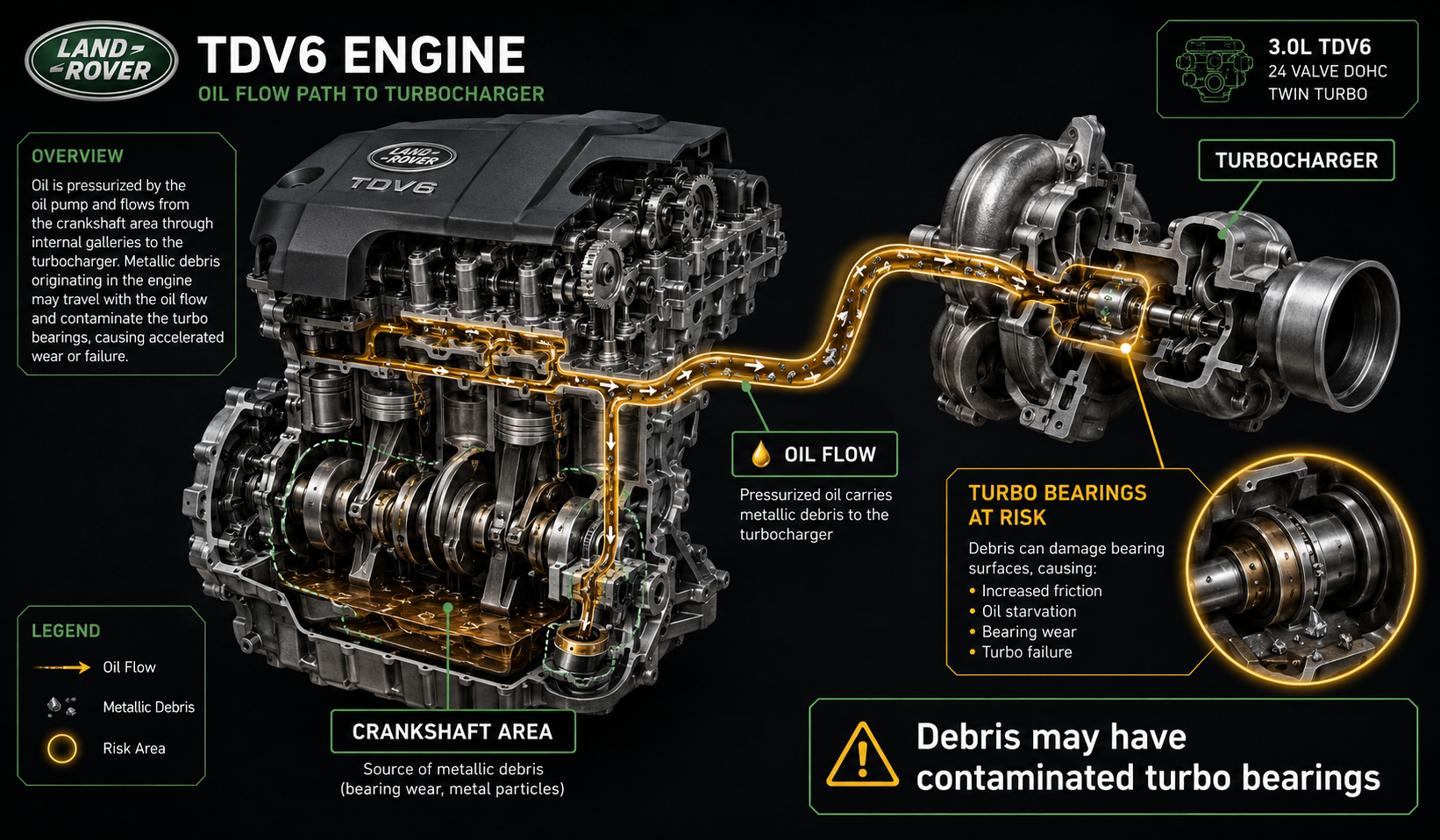

With metal particles throughout the oil system, the specialist could not fully know whether the turbocharger had already been affected by debris contamination.

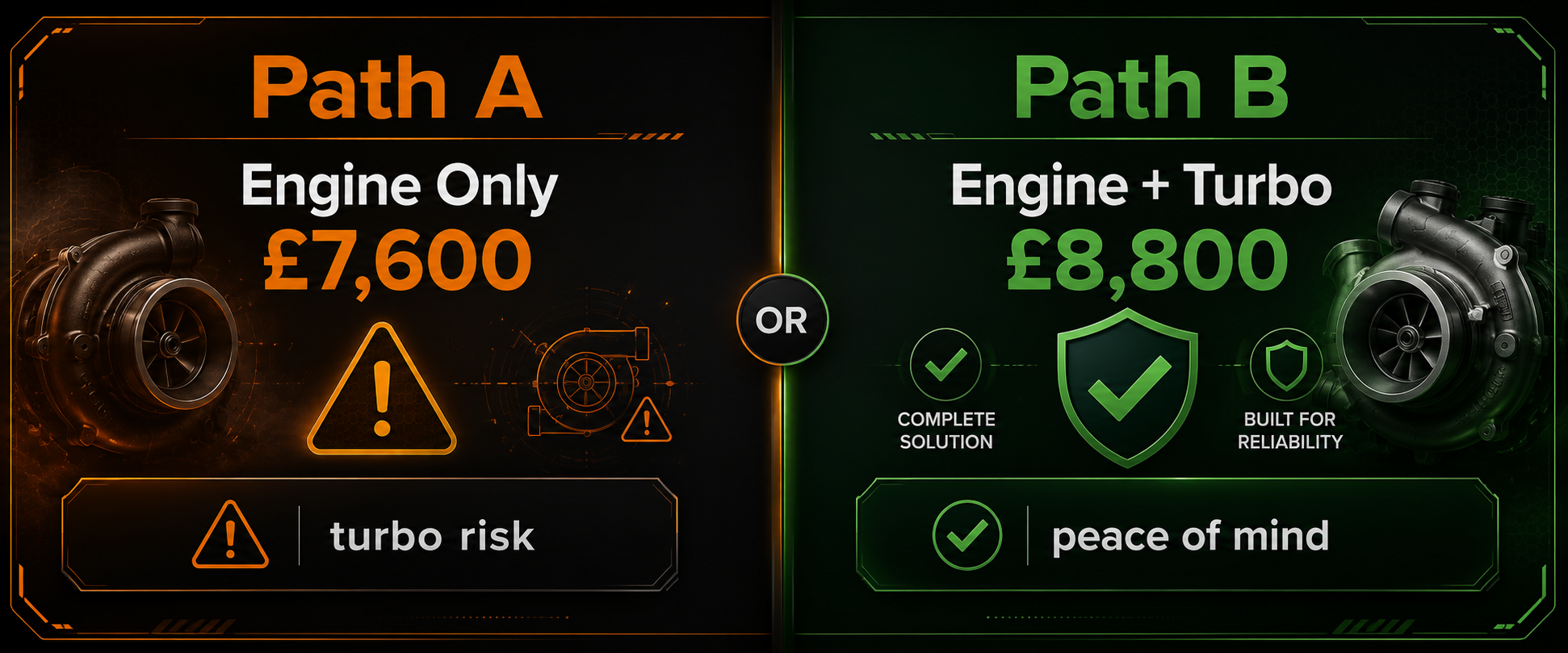

Fit reconditioned long engine only. Keep existing turbocharger.
£7,600If turbo fails later: add £800–£1,200 + labour.
Fit reconditioned long engine + new turbocharger.
£8,800Higher upfront cost, but eliminates turbo failure risk.
The vehicle was worth approximately £5,000–£8,000 before failure. A £7,600 reconditioned engine exceeded the vehicle's value on paper — but replacing the Discovery with a comparable 4x4 would cost £15,000–£25,000+.
Sell as spares/repair. Return £500–£1,500.
£3,500–£5,500 fitted — cheaper upfront, higher risk.
£7,610 total. Exchange engine with 12–24 month warranty.

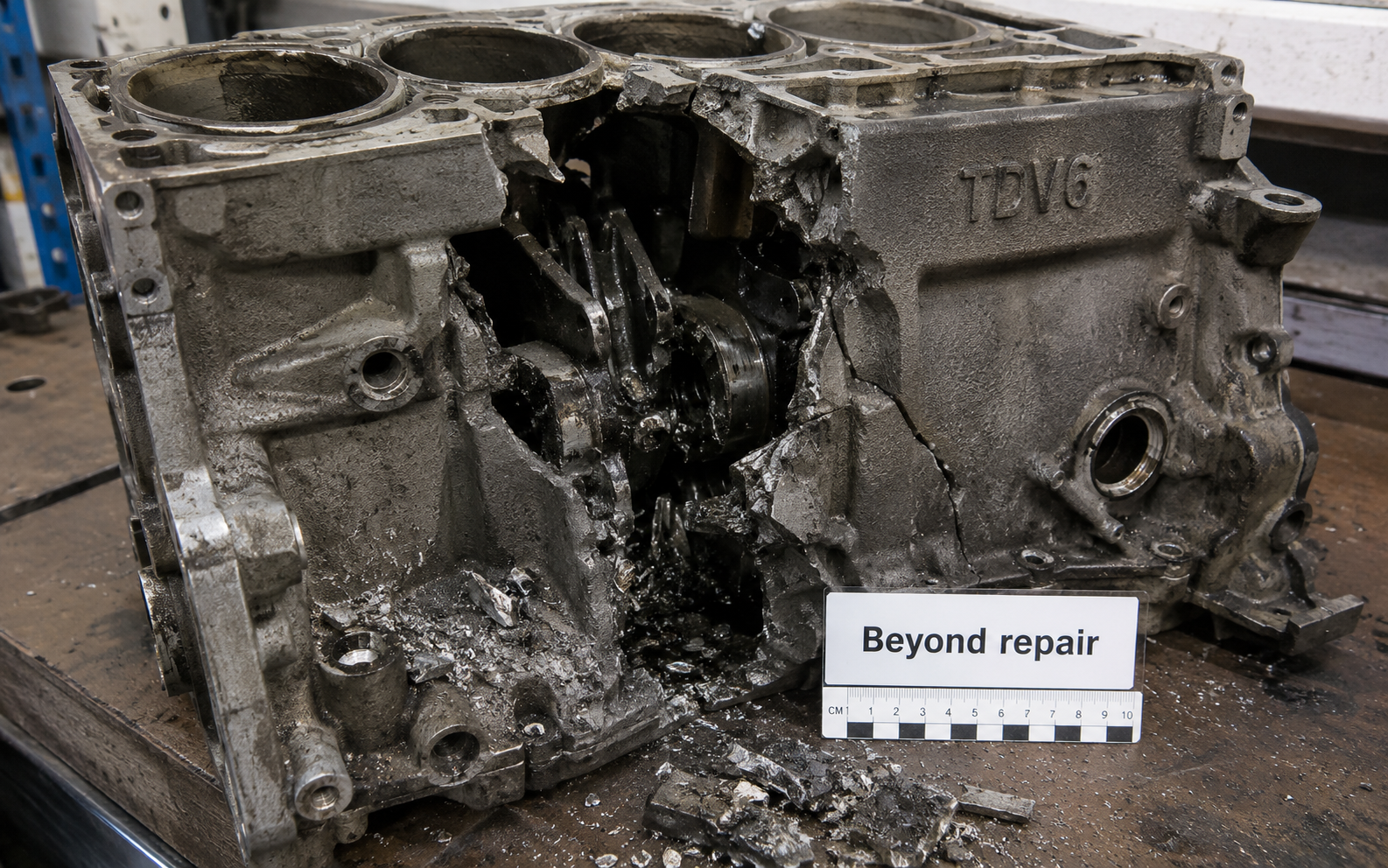

The block is destroyed. A reconditioned exchange engine is almost always the only viable path.
Pre-failure value — the repair exceeded the vehicle's value on paper.
£7,600 reconditioned engine = 95–152% of vehicle value.
Discovery 4 or similar — repair was cheaper than buying a different 4x4.
Owner planned to keep the Discovery another 3–5 years — warranty provided coverage.
Owner had emotional attachment to the vehicle.
Reconditioned long engine + snapped crank surcharge + fitting.
The decision balanced vehicle value, replacement 4x4 cost, ownership horizon, and sentimental value. Land Rover's position on third-party rebuilds made the reconditioned exchange engine the only viable option.
Twelve days later, the Discovery was back on the road. The owner now knows: a rumble under load means bottom-end bearing wear, and ignoring it costs thousands.
The TDV6 is known for crankshaft bearing failure and snapped crankshafts. A rumble under load is often an early warning of bottom-end bearing wear. Ignoring it can lead to catastrophic crankshaft failure.
Catching bearing wear early may prevent a snapped crankshaft.
Land Rover does not authorise third-party rebuilds — exchange engine is the only viable option.
Cheaper upfront, but same failure risk — buyer beware.
| Component | Land Rover OEM Part Number |
|---|---|
| Crankshaft (new) | LR010956 |
| Crankshaft bearing set (main) | LR010957 |
| Connecting rod (each) | LR010958 |
| Connecting rod bearing set (per rod) | LR010959 |
| Piston (with rings, each) | LR010960 |
| Piston ring set (per piston) | LR010961 |
| Cylinder block (short block) | LR010962 |
| Cylinder head gasket set | LR010963 |
| Head bolt set | LR010964 |
| Timing chain kit (both banks) | LR010965 |
| Timing chain tensioner (each) | LR010966 |
| Oil pump assembly | LR010967 |
| Oil cooler | LR010968 |
| Turbocharger (remanufactured, each — two on TDV6) | LR010969 |
| EGR valve (each — two on TDV6) | LR010970 |
| Injector (each — six on TDV6) | LR010971 |
| Injector seal kit (per injector) | LR010972 |
| Crankshaft pulley / damper | LR010973 |
| Oil filter | LR010974 |
| Sump gasket | LR010975 |
Data sources: [INDUSTRY ESTIMATE] based on workshop consensus | [THIRD-PARTY] Land Rover dealer pricing, UK breaker market, and Auto Trader Discovery 3 values June 2025.
