A premium visual breakdown of cold-start knock, injector seal failure, DPF clogging, timing chain wear, diesel oil dilution, and the decision to stop chasing faults and replace the engine.

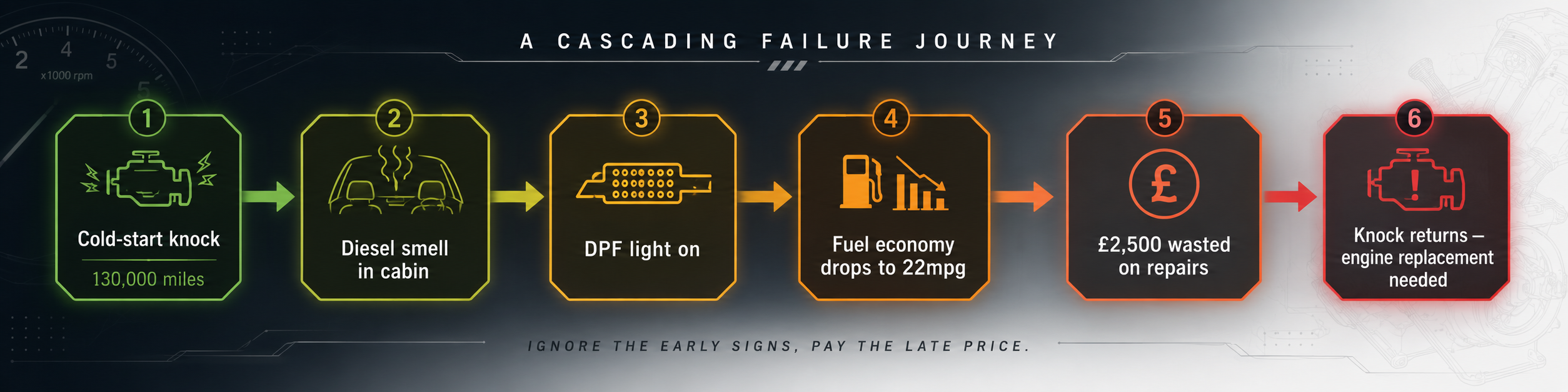

The owner thought one repair would solve the knock. Instead, the XF had injector seal failure, timing chain tensioner wear, DPF clogging, EGR cooler issues, and diesel contamination in the oil - a fault cascade where fixing one item left the others waiting to return.
Every cold morning began with a hammer-like knock for 20-30 seconds. Then came diesel smell in the cabin, intermittent DPF warnings, and fuel economy dropping from 38mpg to 22mpg.
This case did not fail in one dramatic motorway moment. It became expensive because the owner chased individual repairs while related faults continued to damage the wider engine system.
"Maybe it's just one thing. Fix the injectors, problem solved."

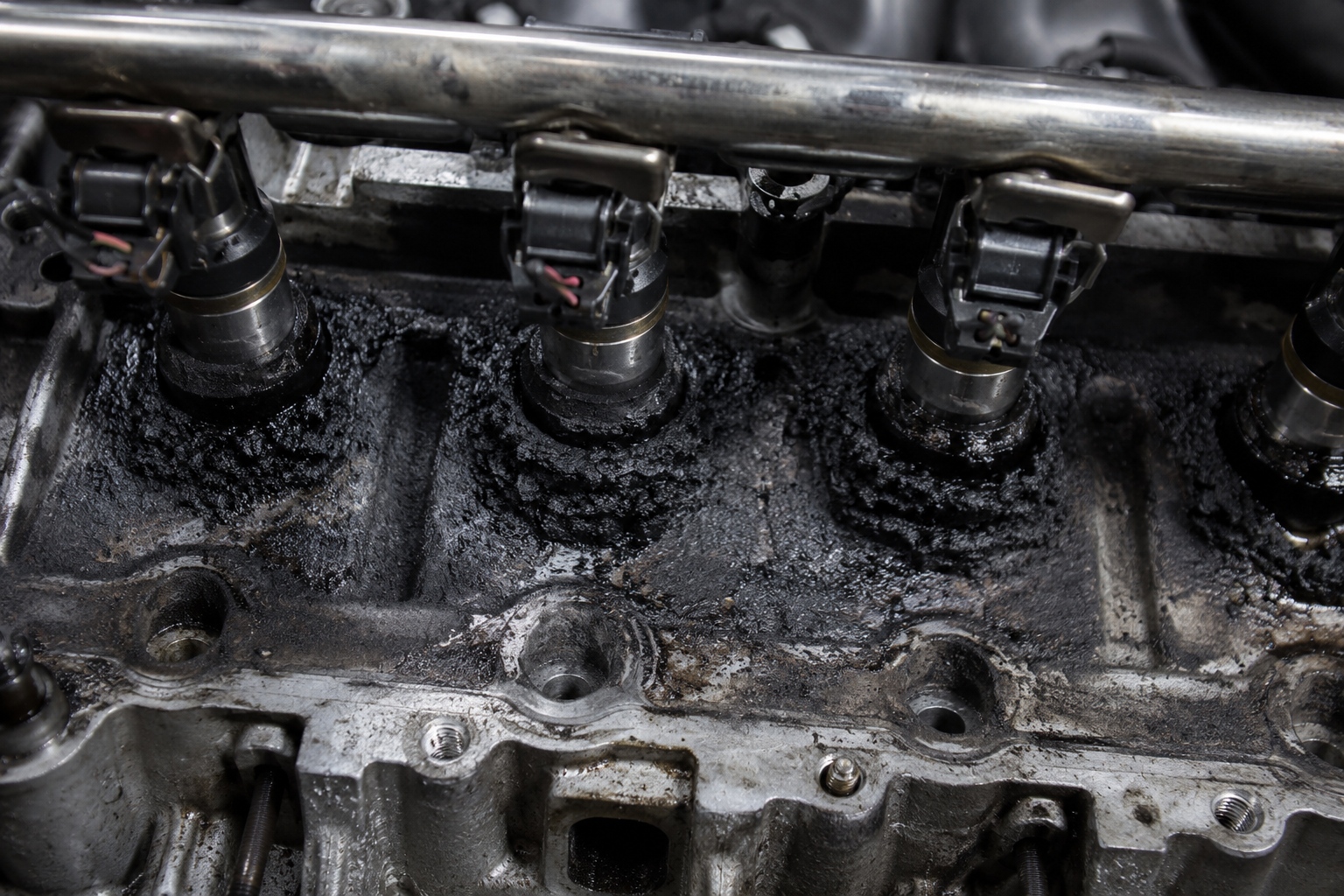

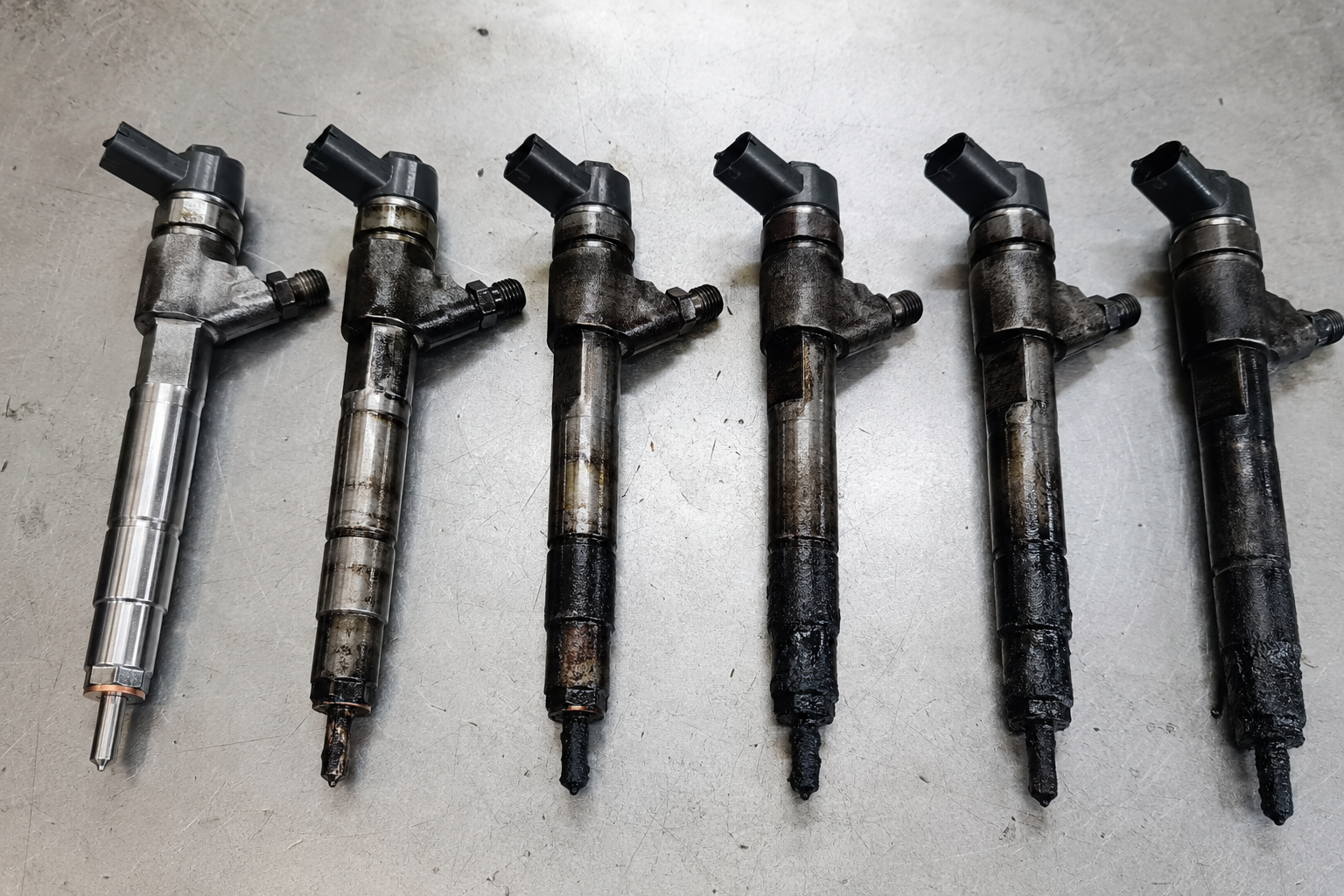

Injector seal failure, timing chain tensioner wear, DPF clogging, EGR cooler failure, and diesel dilution in the oil.
"Fixing just one thing won't work - they'll take each other out again within months."

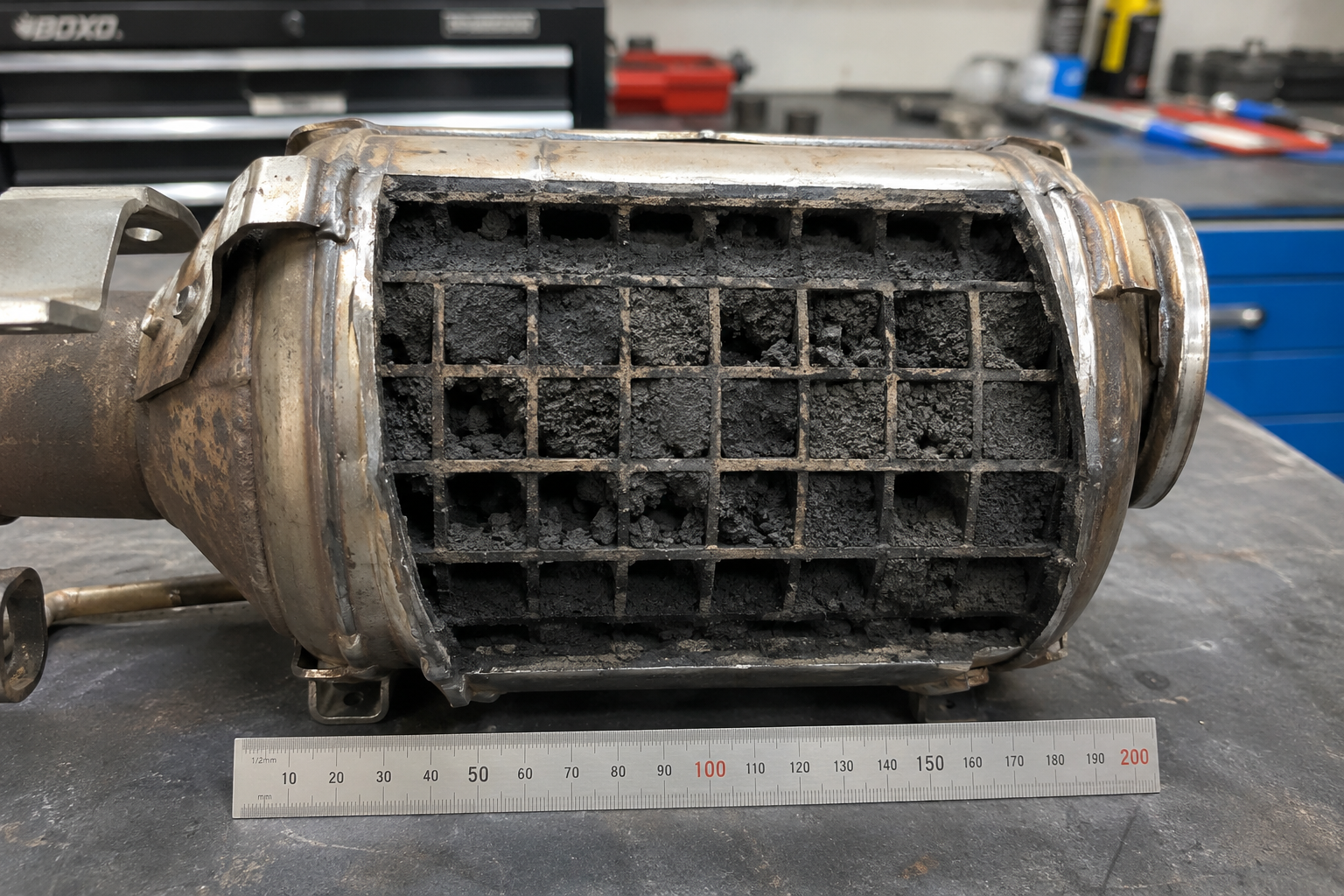

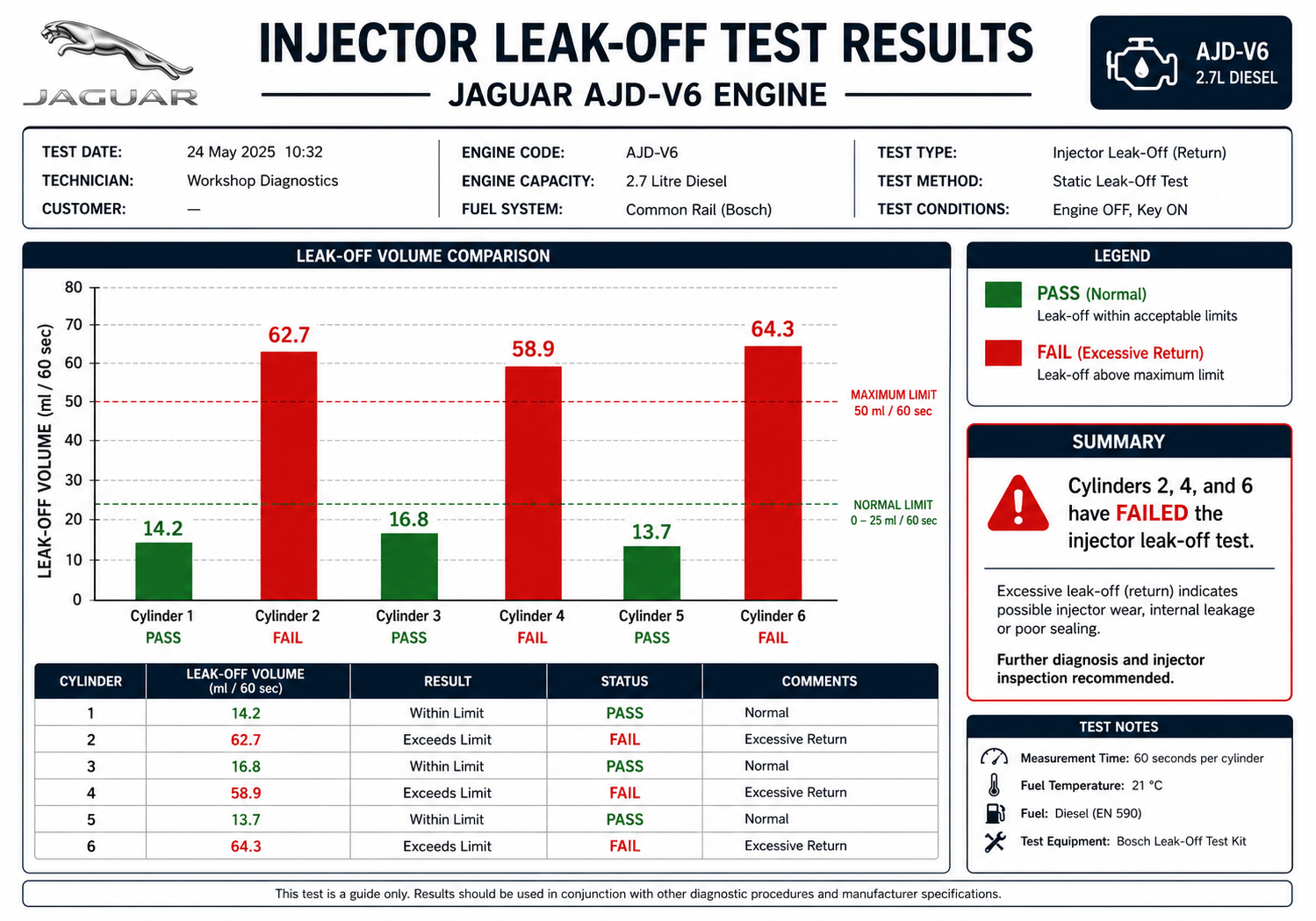

The specialist performed a leak-off test, borescope inspection, and DPF pressure reading. The diagnosis showed why a single component repair was unlikely to last.
"You've got three separate issues that are making each other worse. Fixing just one thing won't work."
Use the interactive toggle to compare the routes the owner faced after the first repair attempt failed.
Injector seals, timing chain kit, DPF clean, and EGR cooler replacement.
A full long engine route that addresses the weak points in one job with a single labour charge.
A brand-new Jaguar crate engine route with dealer-level pricing.
Failed injector seals diluted the oil over several thousand miles. That could score the oil pump gears, crankshaft bearings, or turbo bearings - damage that might only appear weeks or months after a component-only repair.
Replace failed components only.
£3,000If oil pump fails later: add £800-£1,200. If turbo fails later: add £1,200-£1,800.
Replace the engine with a reconditioned unit.
£4,500All weak points addressed together with full warranty and lower post-repair risk.
The Jaguar was worth around £5,000-£8,000 before failure. A £4,500 reconditioned engine was borderline against vehicle value, but it made sense because the owner planned to keep the car and wanted one warrantied repair.
Spend another £3,000+ on injectors, chains, DPF, and EGR without solving every risk.
Full replacement with warranty at £4,500. All weak points addressed in one labour charge.
Injector seals and timing chain work lasted three months. The owner concluded the reconditioned engine should have been chosen first.
Injector seals and timing chain work did not last.
The replacement was borderline but viable for a well-maintained example.
High ratio, but still preferable to losing the car after recent spend.
The owner wanted the car fixed properly, not patched again.
Too many related faults for a single-component mindset.
£2,500 wasted repairs plus £4,500 engine replacement.
The full replacement would have saved £2,500 and months of stress if chosen when the cascade first became clear.
The replacement engine solved the recurring fault pattern. The car drove another 24 months without engine-related issues, but the owner had already lost £2,500 by trying to repair isolated components first.
Cold-start knock, diesel smell, DPF warnings, and poor fuel economy are not just separate inconveniences. Together, they point to a wider engine health problem where partial repair can become the expensive option.
Injector seals and chains only may leave DPF, oil pump, turbo, or oil dilution risk unresolved.
All weak points addressed with 12-24 month warranty and a single labour charge.
Usually only sensible for insurance claims or owners with no budget constraints.
| Component | Jaguar OEM Part Number |
|---|---|
| Timing chain kit (full, both banks) | AJ813994 |
| Timing chain tensioner (left bank) | AJ813995 |
| Timing chain tensioner (right bank) | AJ813996 |
| Upper chain guide (left) | AJ813997 |
| Upper chain guide (right) | AJ813998 |
| Injector seal kit (per injector) | AJ813999 |
| Injector (remanufactured, each) | AJ814000 |
| Water pump | AJ814001 |
| EGR cooler assembly | AJ814002 |
| DPF diesel particulate filter | AJ814003 |
| Oil pump assembly | AJ814004 |
| Oil pump chain | AJ814005 |
| Cylinder head gasket set (each) | AJ814006 |
| Sump gasket | AJ814007 |
| Crankshaft pulley bolt | AJ814008 |
Compare quotes from UK Jaguar specialists for AJD-V6 injector seal failure, timing chain issues, DPF-related engine damage, reconditioned engines, and full replacement options.
Data sources used in the content: Engines Market 2025 internal quote data, workshop consensus, third-party vehicle market references, and known AJ126 / AJD-V6 failure-pattern data.
