A premium visual breakdown of how a brief cold-start rattle became P0011/P0016 timing correlation codes, limp mode, and a specialist timing-chain repair decision.

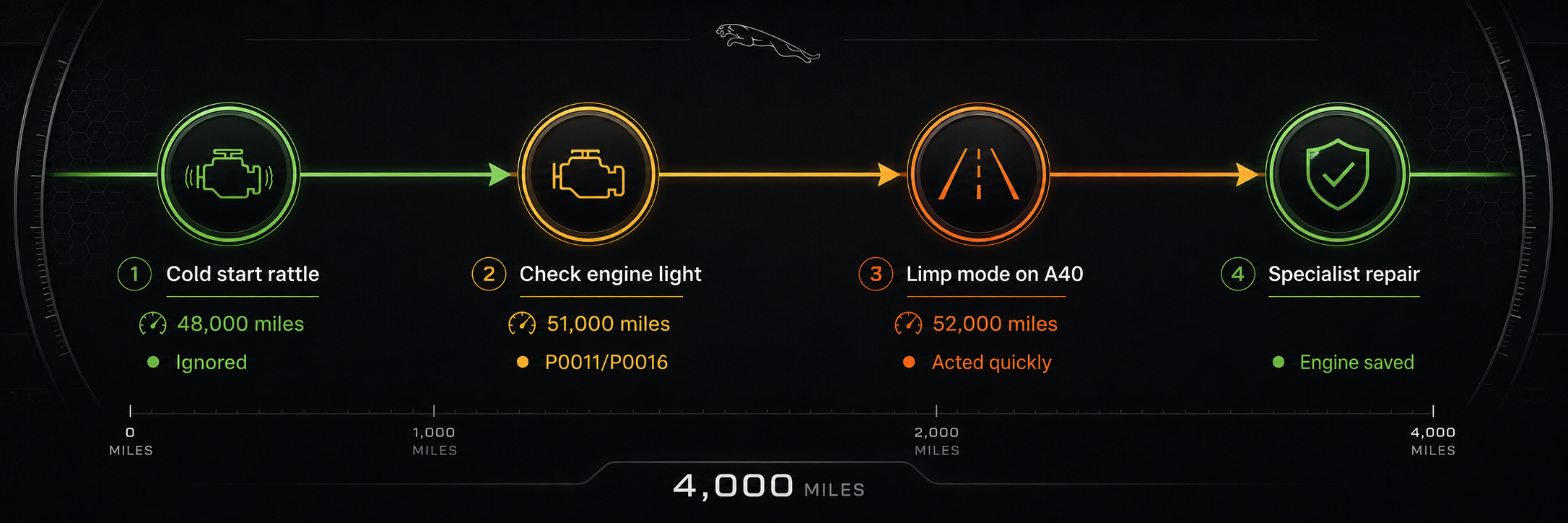

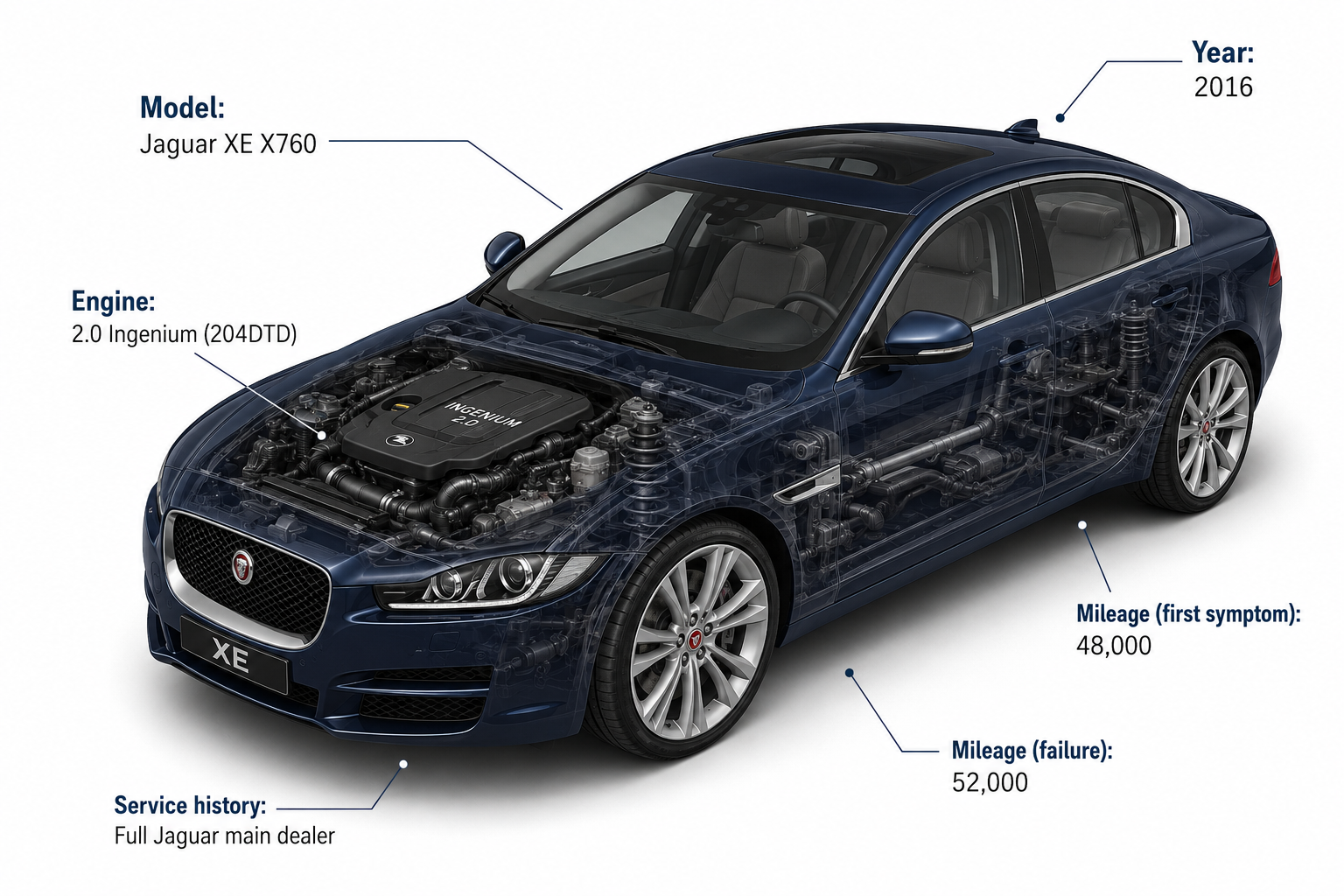

At 48,000 miles the owner heard a short metallic rattle on cold starts. The car drove normally, so the noise was dismissed as normal diesel behaviour. Within 4,000 miles the check engine light appeared and the car entered limp mode.

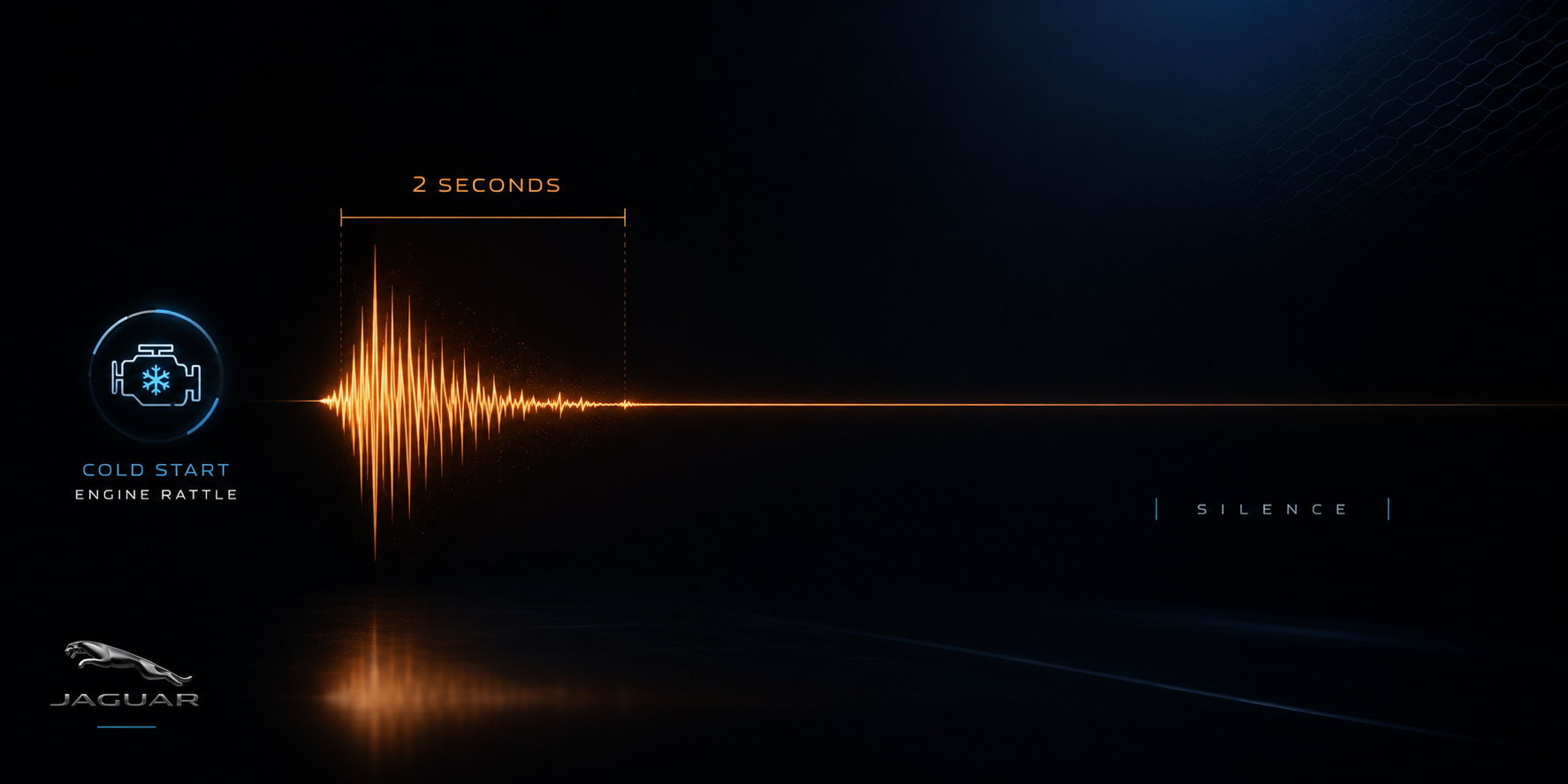

The sound lasted only two or three seconds. That short window is why many owners ignore it until the timing chain has stretched far enough to trigger correlation faults.
This case is a classic pre-catastrophic Ingenium timing-chain failure: the engine had not destroyed itself yet, but it was close.
A brief cold-start rattle became a check engine light and limp mode within 4,000 miles.
The timing chain stretched, guides shattered, and plastic debris circulated through the oil system.
"I thought it was just a diesel thing. Then the check engine light came on and the car would barely pull."

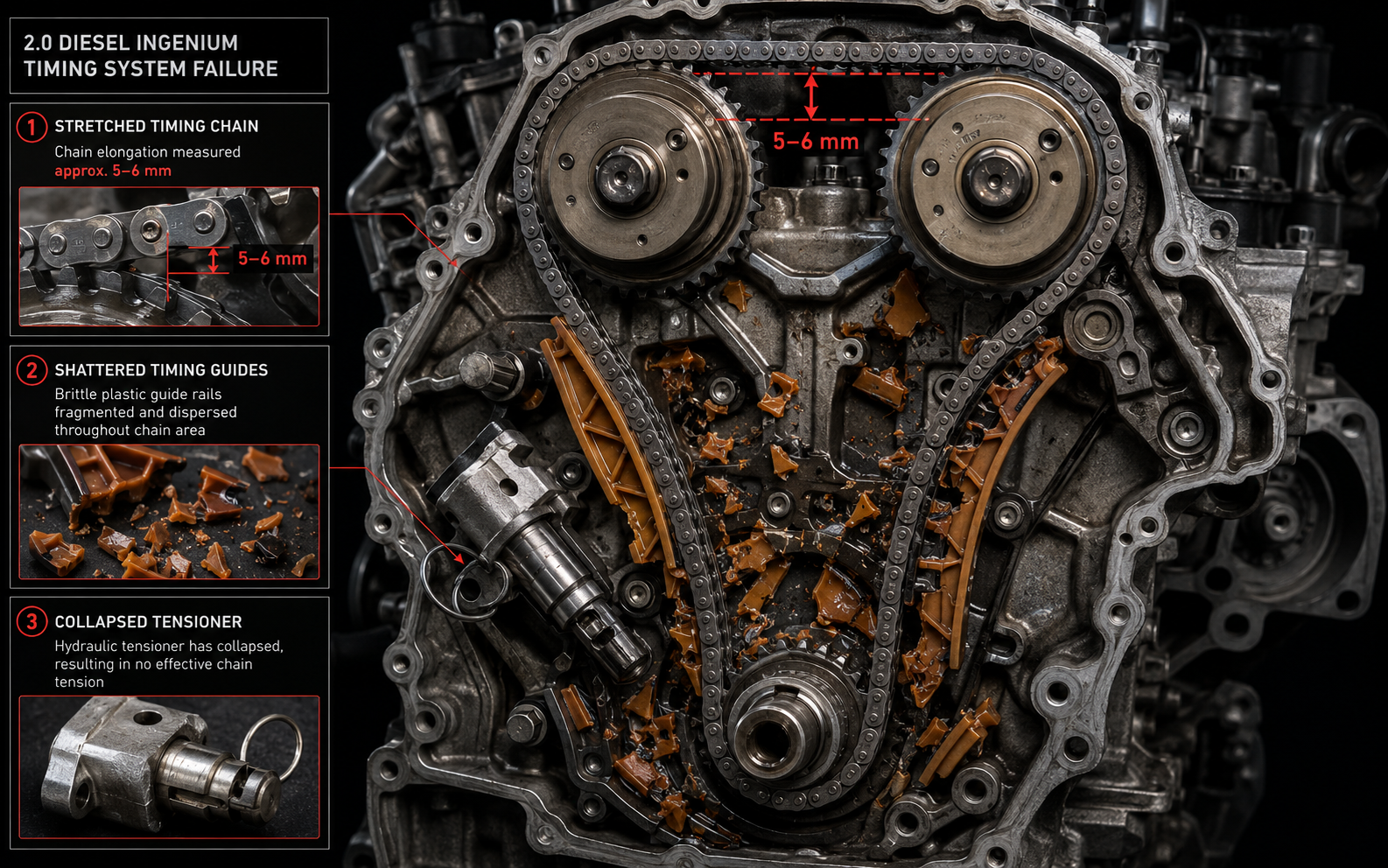

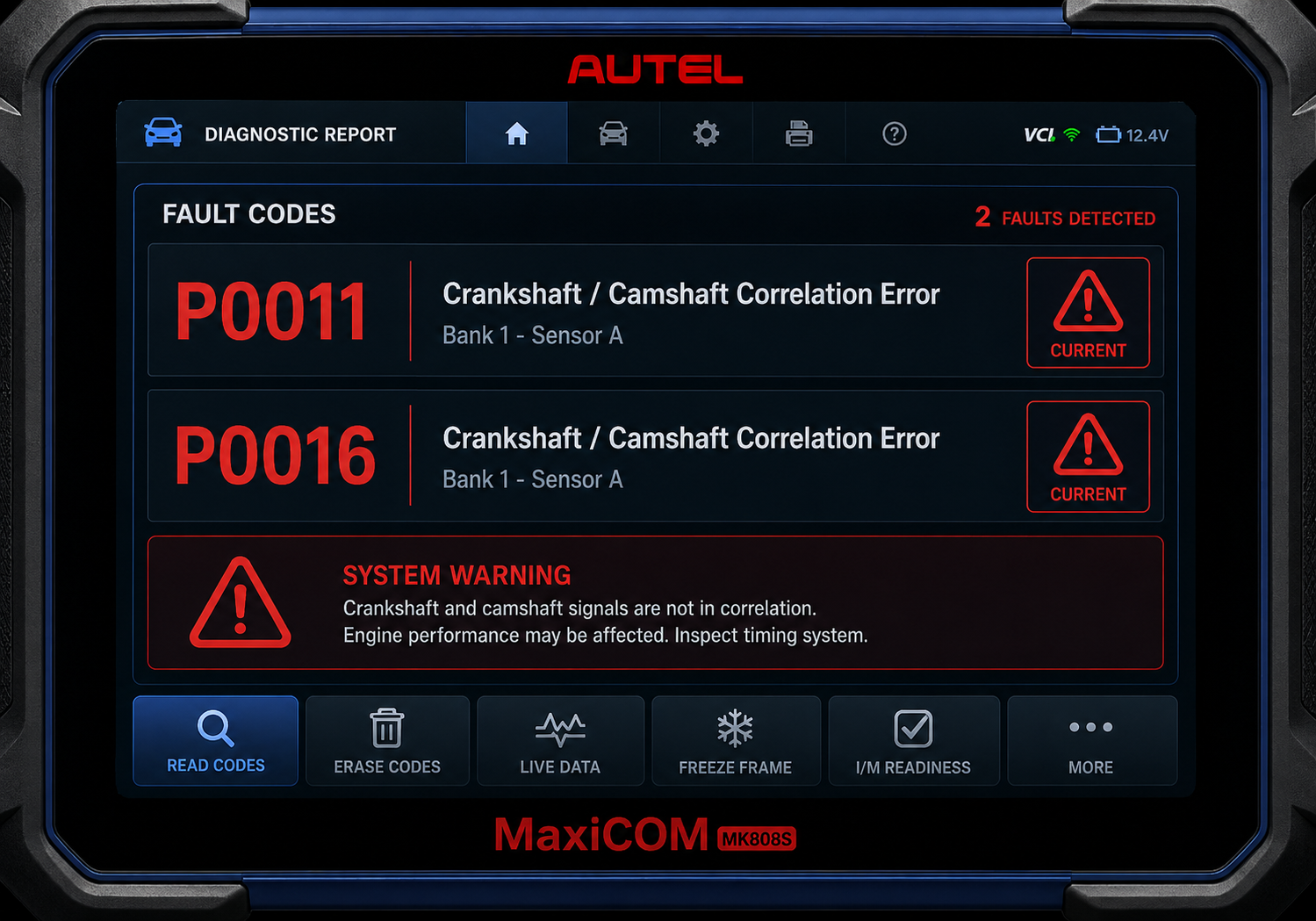

The specialist scanned the car and removed the timing cover. The chain had stretched, guides had shattered, and the timing had shifted out of specification.
"The engine hasn't jumped time catastrophically yet - but it's close. You need a full timing chain kit before the engine destroys itself."
Compare the routes the owner faced after diagnosis. JLR specialist timing chain repair is selected by default because that was the chosen route.
Dealer policy route for timing-chain failure: full engine replacement rather than chain-only repair.
Timing chain, tensioners, guides, sprockets and gaskets using upgraded idlers and tensioners.
Timing chain plus cylinder head inspection and oil pump clean, typically if timing has already jumped.

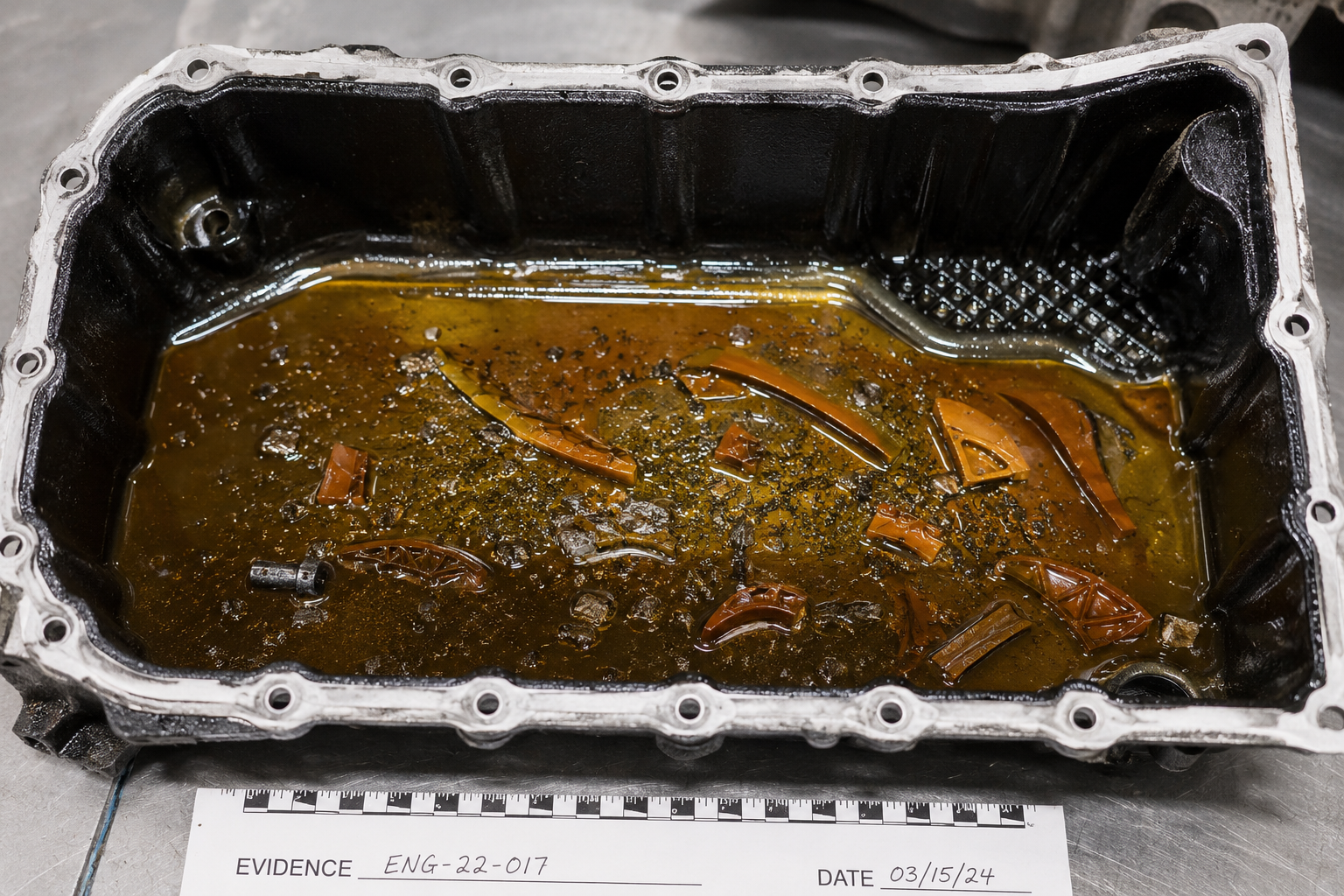

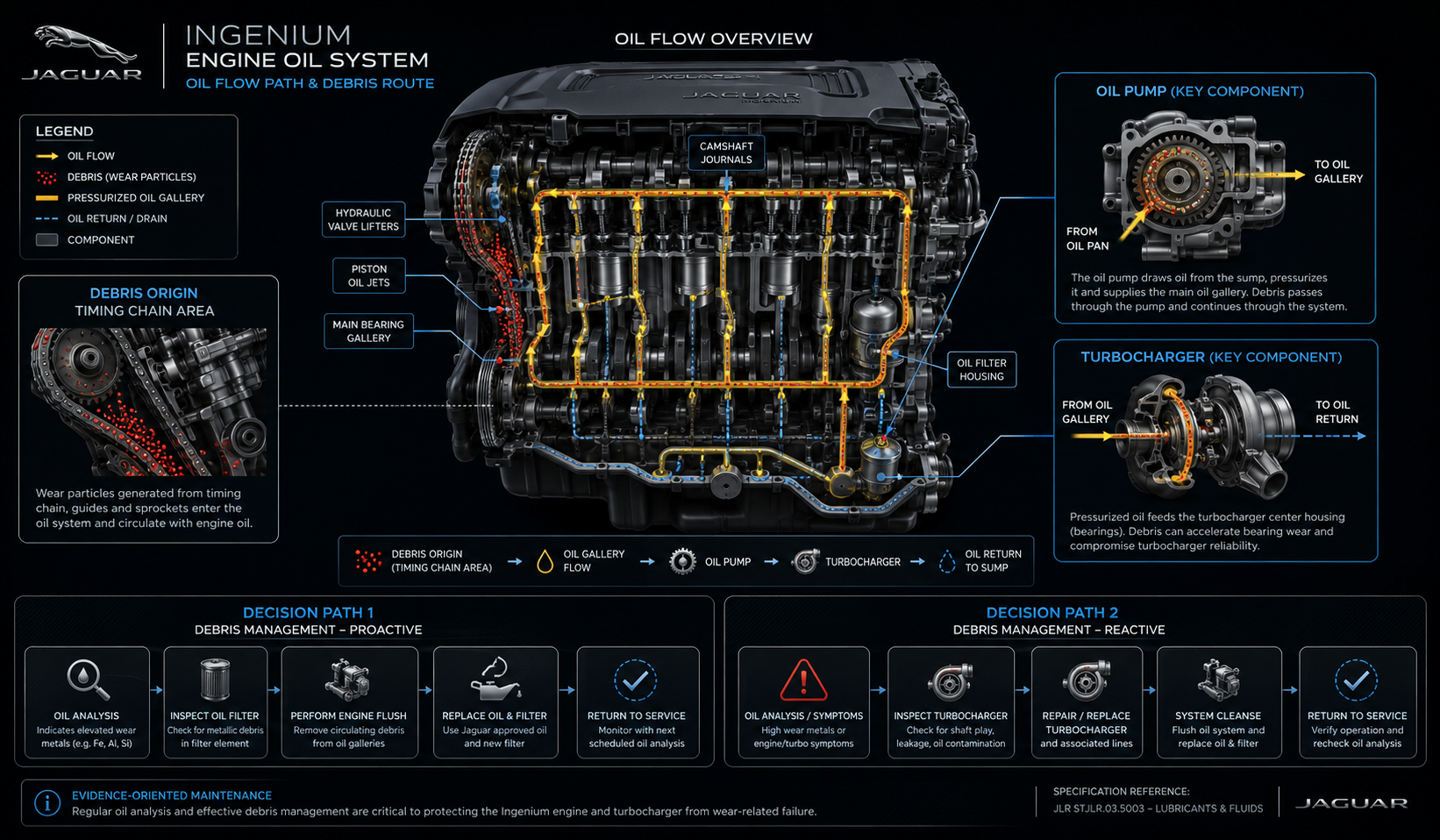

With shattered guide pieces and fine particles in the oil pan, the specialist could not fully know whether the oil pump or turbocharger had already been affected without deeper disassembly.

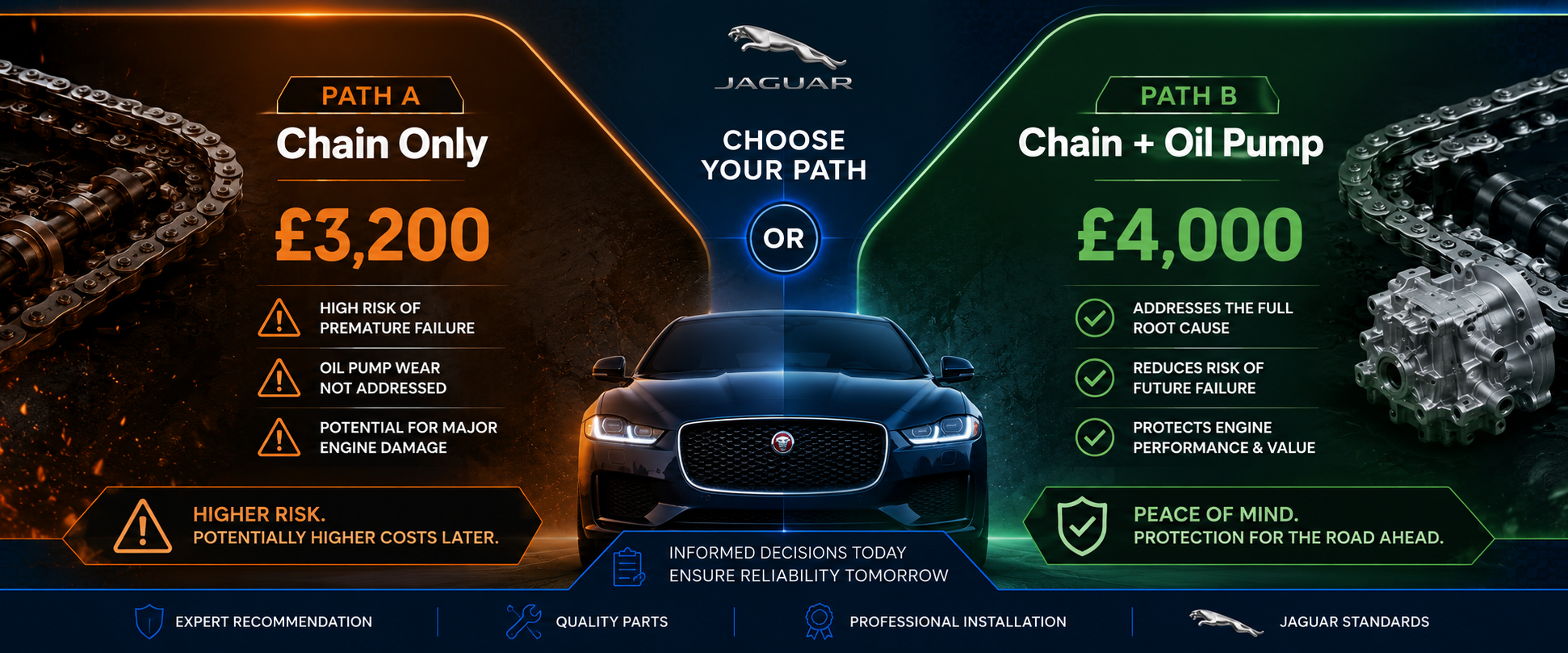

Replace timing components only.
£3,200If oil pump fails later: add £800-£1,200. If turbo fails later: add £1,200-£1,800.
Replace oil pump and flush turbo oil lines at the same time.
£4,000Higher upfront cost, but significantly reduces post-repair oil-system failure risk.
The vehicle was worth approximately £8,000-£12,000 before failure. A dealer engine replacement at £6,000-£10,000+ was hard to justify. A specialist timing-chain repair at £4,000 was viable.
£6,000-£10,000+. Full engine swap; dealer refused chain-only repair.
£4,000 total. Timing chain kit, oil pump and labour with upgraded tensioners.
The owner responded after the CEL appeared, before timing jumped catastrophically. A specialist could still repair the existing engine.
Pre-failure value set the ceiling for viable repair spend.
£4,000 specialist repair was around 33-50% of the car's value.
Owner planned to keep the car long enough for warranty to matter.
Valve damage was prevented because the owner acted after the check engine light.
Oil pump replaced with chain kit to reduce debris contamination risk.
Specialist chain kit, oil pump and labour - versus £8,000+ dealer route.
The decision balanced vehicle value, dealer pricing, early detection, and oil-system contamination risk without paying for a full dealer engine replacement.
Three days later, the XE was back on the road. The repair avoided catastrophic valve damage and gave warranty cover without dealer engine-replacement pricing.
The commercial lesson is simple: timing-chain symptoms are cheaper when caught early. Waiting for P0011 or P0016 can push the car toward dealer-level engine replacement costs.
Specialist timing chain replacement when caught before catastrophic timing failure.
Jaguar dealer engine replacement - avoid if a specialist can still repair the chain.
Independent rebuild with 5-7 days off road and potential valve damage risk.
| Component | Jaguar OEM Part Number |
|---|---|
| Timing chain kit (full) | LR090991 |
| Timing chain tensioner | LR090992 |
| Upper chain guide | LR090993 |
| Lower chain guide | LR090994 |
| Camshaft sprocket (intake) | LR090995 |
| Camshaft sprocket (exhaust) | LR090996 |
| Crankshaft sprocket bolt | LR090997 |
| Timing cover gasket | LR091005 |
| Oil pump assembly | LR091003 |
| Oil pump chain | LR091004 |
| Injector seal kit (per injector) | LR091006 |
Data sources: EM-VERIFIED n=590 from EnginesMarket.co.uk 2025 internal data, workshop consensus, Auto Trader UK market data March 2025, and known failure patterns data.
