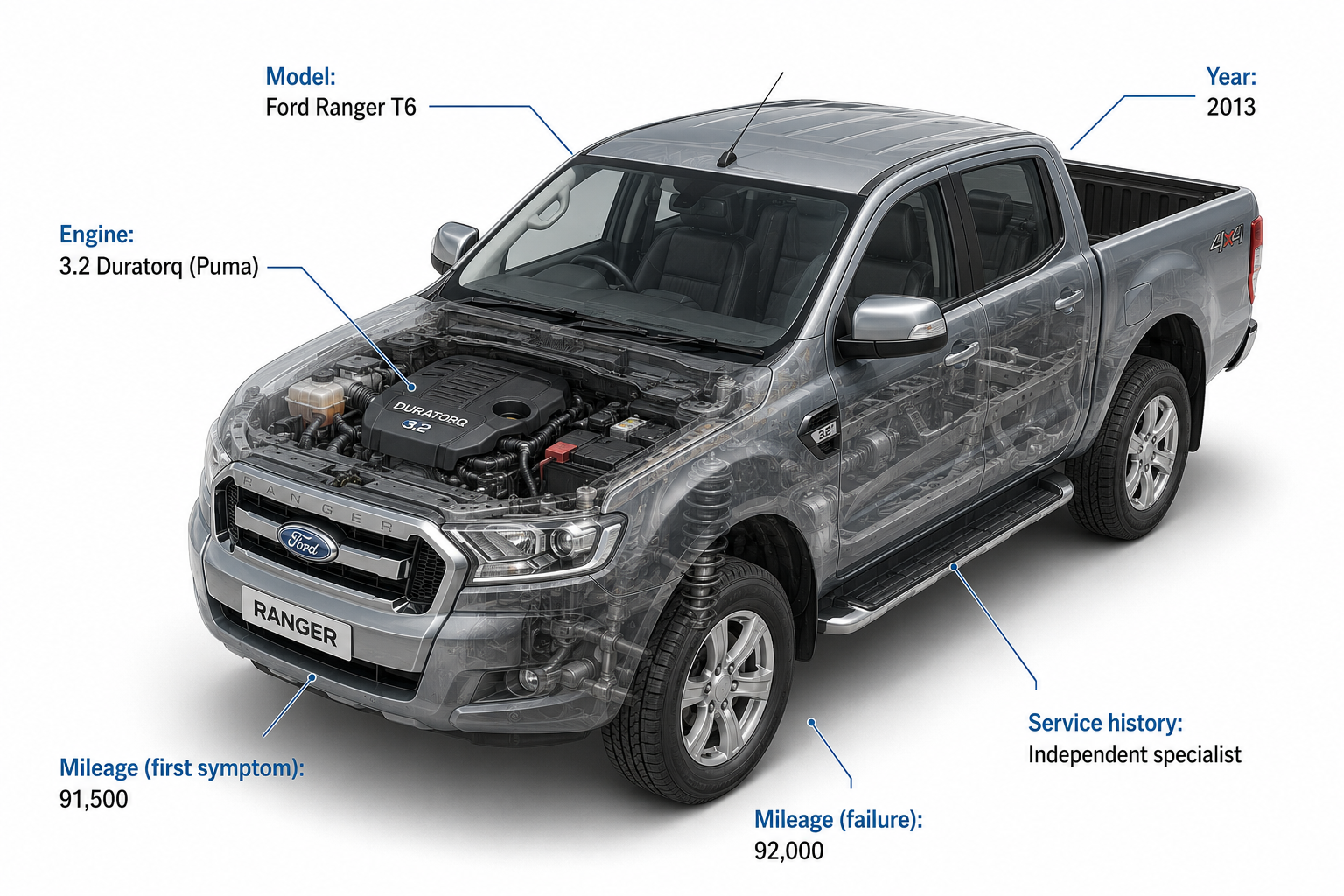

A visual breakdown of a 2013 Ford Ranger 3.2 Duratorq oil pump failure: the ticking noise, the flickering oil pressure light, the seized engine, the repair options, and the decision that followed.
The owner heard a faint ticking at idle around 91,500 miles. The oil level was full, so when the oil pressure light began flickering, they kept driving. The next day, the light came on solid at motorway speeds and the engine seized within minutes.
The danger signal was not low oil level. It was the pump losing the ability to maintain pressure, especially at low RPM and when hot.

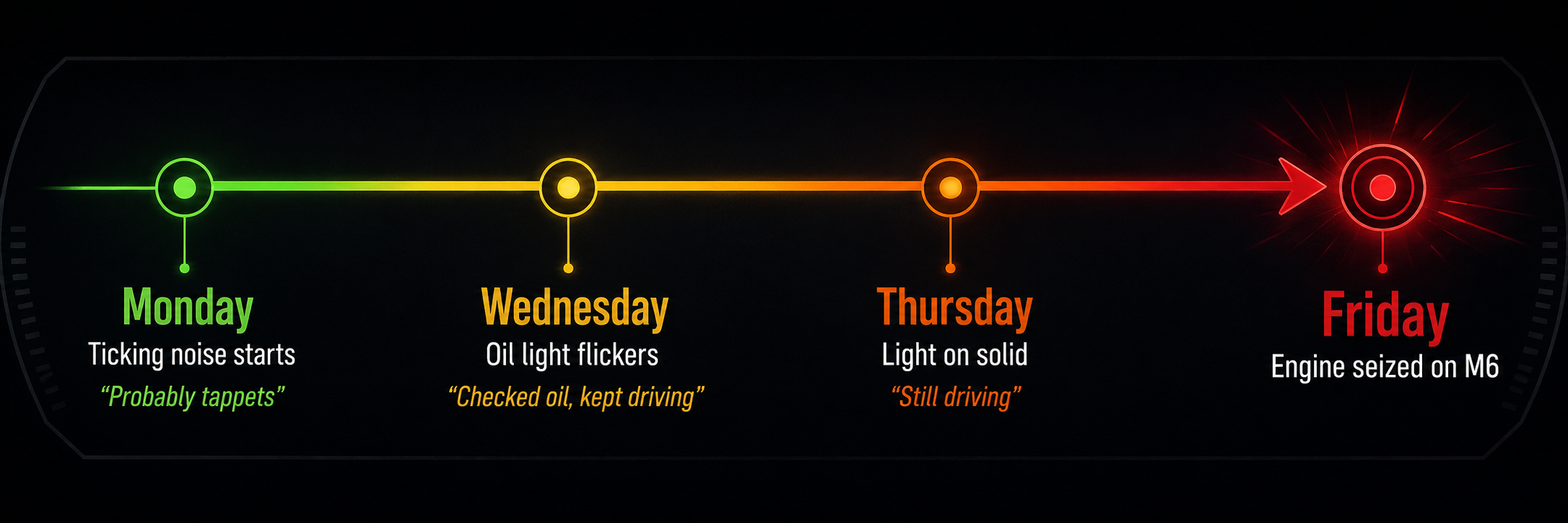

From first tick to seizure took less than a week. The owner assumed diesel injector or tappet noise because the oil level looked normal.
"Probably a tappet or injector." Common diesel noise was assumed, not oil pressure failure.

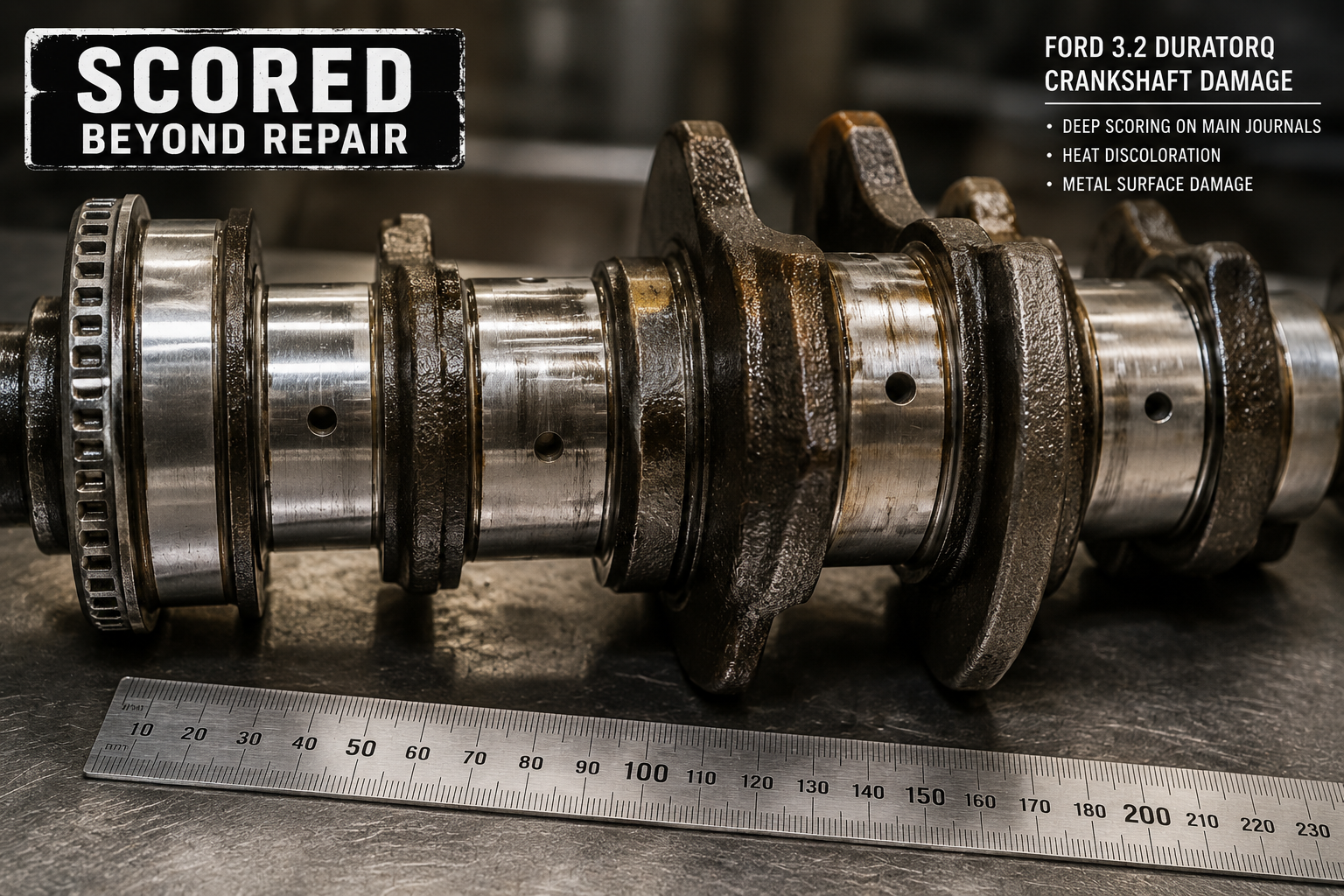

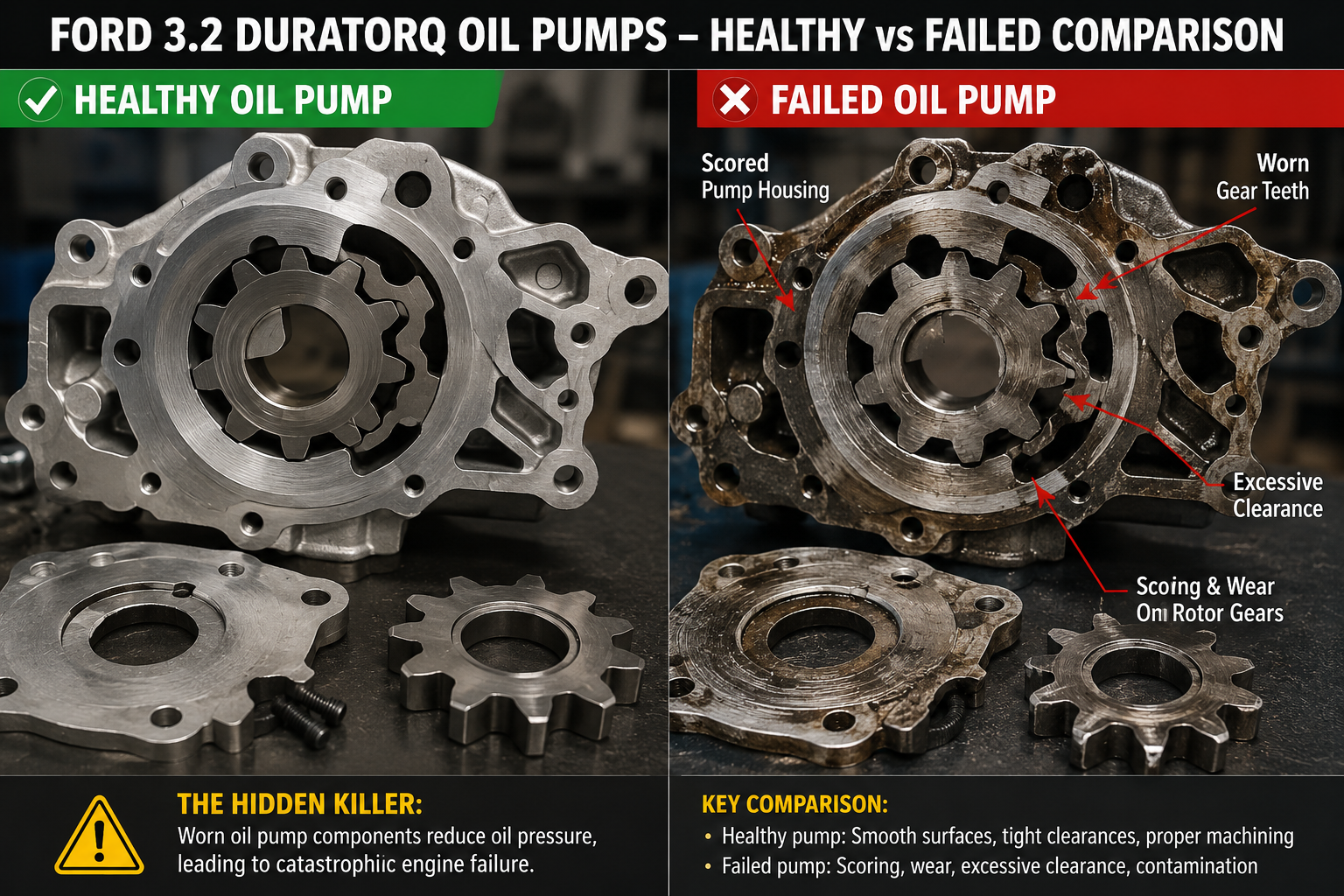

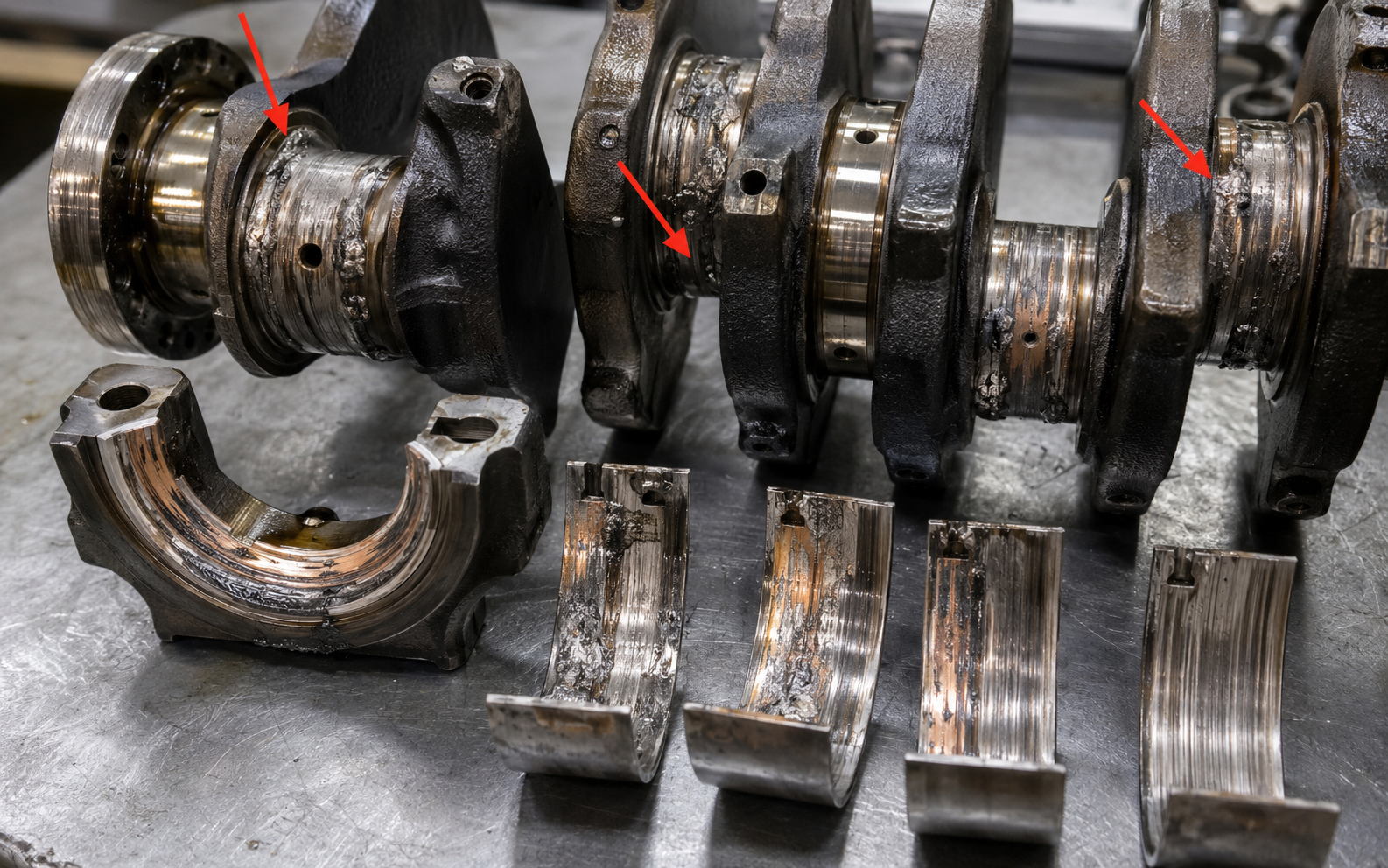

The oil pump was failing internally. Bearings starved, the crankshaft scored, and the bottom end seized.
"The car still drove, but every journey sounded worse than the last."
The vehicle was recovered to a Ford specialist. The engine would not turn manually. There was no blocked pickup; the pump had simply stopped maintaining oil pressure.
"The oil pump failed internally. It stopped pumping oil. The bottom end starved, and the crankshaft seized. There's nothing rebuildable here."
Use the interactive toggle to compare the routes the owner faced after the seized engine diagnosis. Low-mileage used is selected by default because that was the route chosen.
Fitted cost. Cheap and fast, but unknown history and the same oil pump weakness.
Fitted cost with 3-6 month warranty. Better condition than a high-mileage unit, but no guarantee on the oil pump.
New oil pump, bearings, rings and gaskets with a stronger warranty.

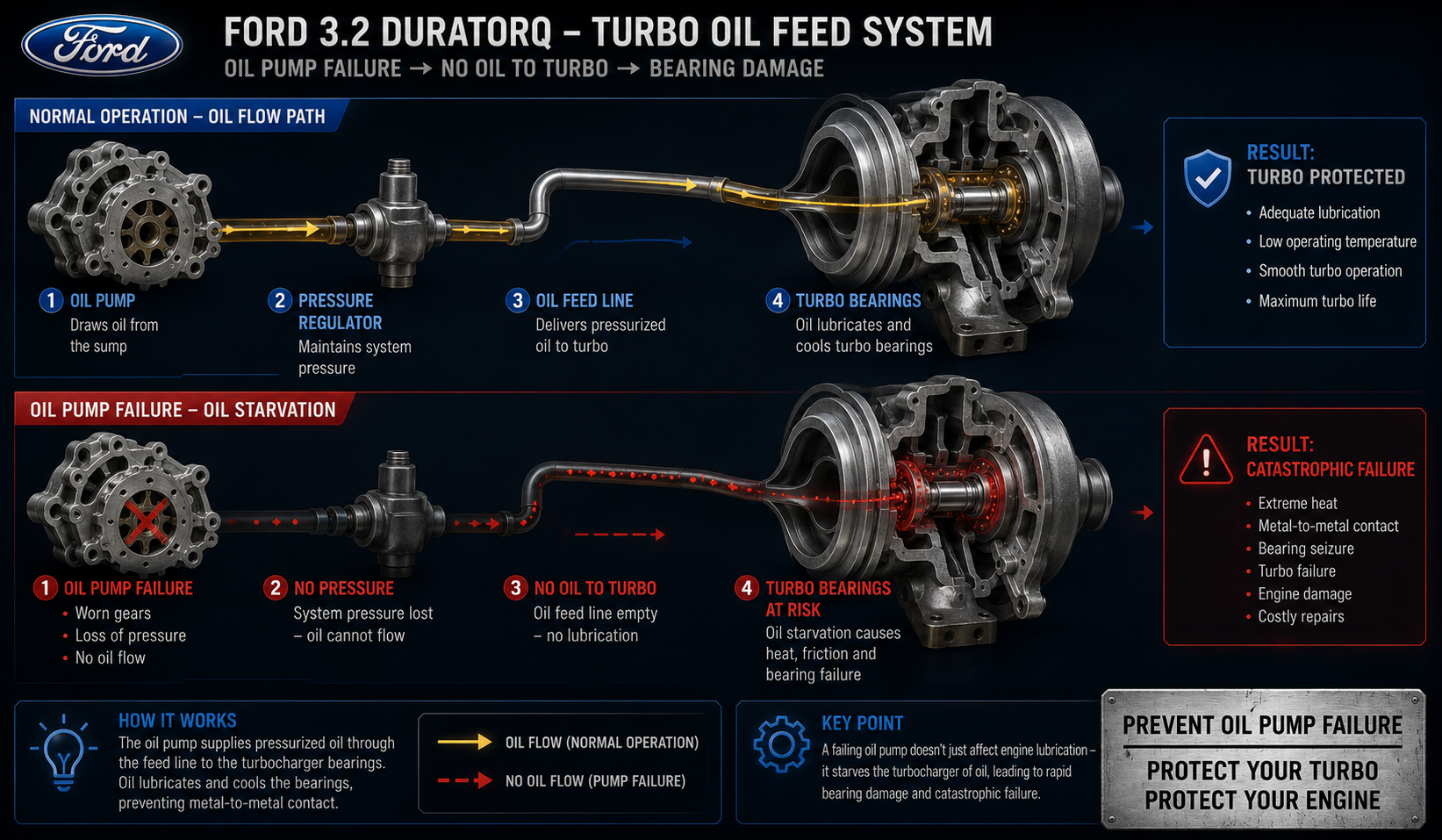

When the oil pump fails, every component relying on oil pressure is at risk. The turbo could fail weeks or months after the replacement engine is fitted.

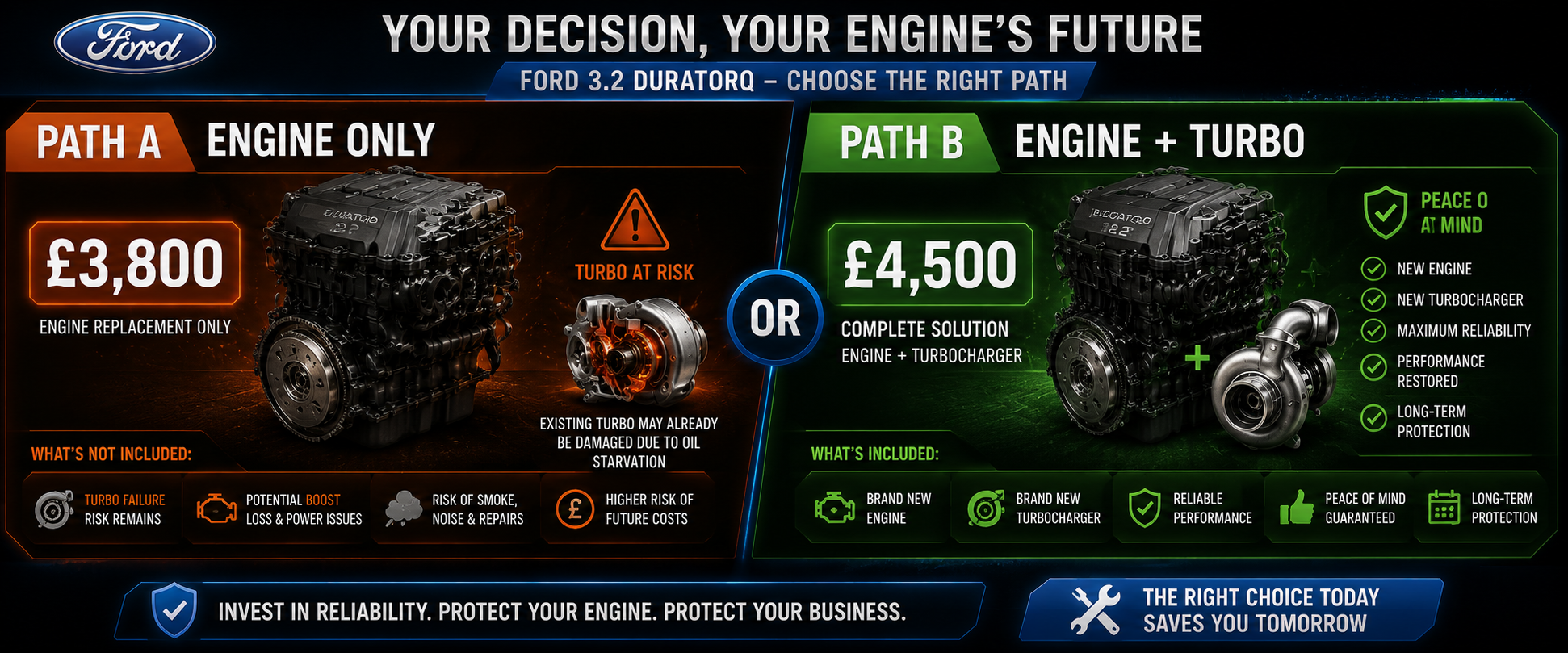

Fit only the used engine and risk the existing turbo.
£3,800If turbo fails later: add £800-£1,200 plus labour. Kept upfront cost down but left a known risk.
Replace the turbo preventatively at the same time as the engine.
£4,500£3,800 engine + ~£700 turbo. Eliminates the risk entirely.
The truck was worth around £8,000-£12,000 before failure. The owner needed it back as a daily driver and work vehicle, but did not have the budget for a reconditioned engine.
Sell non-running as spares/repair. Return: £1,500-£3,000.
£3,800 fitted. Chosen compromise for speed and cost. Timeline: 5-7 days.
A £4,500-£6,000+ reconditioned route offered better reliability but was unaffordable. The owner agreed to change oil every 6,000 miles going forward.
Truck value before failure set the ceiling for repair spend.
£3,800 was roughly 30-40% of pre-failure value - within the watch zone.
The owner needed the truck back quickly as a daily driver and work vehicle.
Could not afford £5,000+ for a reconditioned engine with new oil pump.
Turbo had likely run without oil; owner accepted future failure risk.
Low-mileage used engine fitted. Turbo not replaced preventatively.
The decision balanced vehicle value, budget limits, daily-use needs, and accepted turbo contamination risk over upfront savings.
Six days off the road, £3,800 paid, and 18,000 more miles without turbo failure.
If your 3.2 Duratorq Ranger makes a ticking noise at idle or the oil pressure light flickers even once, stop driving and test the oil pressure before the bottom end seizes.
Can confirm whether the pump is losing pressure before major damage occurs.
Keeps the engine running safely if the issue is caught early.
Car off the road for 5-7 days and short warranty.
Higher cost, but new oil pump and stronger warranty.
| Component | Ford OEM Part Number |
|---|---|
| Oil pump assembly | BK3Q-6600-AA |
| Oil pump chain | BK3Q-6K255-AA |
| Oil pump chain tensioner | BK3Q-6K254-AA |
| Crankshaft bearing set | BK3Q-6C349-AA |
| Conrod bearing set | BK3Q-6C350-AA |
| Crankshaft (new) | BK3Q-6303-AA |
| Oil pickup strainer | BK3Q-6622-AA |
| Oil filter | BK3Q-6714-AA |
| Sump gasket | BK3Q-6710-AA |
| Turbocharger (remanufactured) | BK3Q-6K682-AA |
| Timing chain kit | BK3Q-6K255-BA |
Data sources: [ESTIMATED - using Ford DV6 1.6 TDCi enquiry data (n=780) as proxy] from EnginesMarket.co.uk 2025 internal data | [INDUSTRY ESTIMATE] based on workshop consensus | [THIRD-PARTY] Auto Trader UK market data March 2025 | [KNOWN FAILURE PATTERNS] from EM_Proprietary_Data_2025.txt
If your Ranger is over 80,000 miles, ticking at idle, or showing any oil-pressure warning, compare quotes from UK Ford diesel specialists before the engine seizes.
Data sources used in the content: Engines Market 2025 internal quote data, workshop consensus, third-party vehicle market references, and known Ford 3.2 Duratorq failure-pattern data.
