BMW 630d GT N57D30 Crankshaft Bearing Failure Representative Case Study

BMW N57 Crankshaft Bearing Failure: Why a Knocking Engine Cost �8,500

A visual breakdown of how a deep bottom-end knock progressed from a cold-start warning into bearing failure, metal contamination, and a full replacement decision.

�The AA driver said: �That�s bottom end, mate. This is going to be expensive.��
Compare BMW N57 Engine Quotes See the Failure Timeline
128kFirst knock
133kFailure mileage
�6,800Engine only route
�8,500Final cost
18 moWarranty
Case summary

A high-mileage 630d with a knock that should not have been driven.

The owner first heard a deep knocking at around 128,000 miles. It began as a short cold-start noise, then became constant within six weeks. By the time the engine management light flashed on the M6, the bottom end was already in serious trouble.

VehicleBMW 630d Gran Turismo G32
Year2016
EngineN57D30 � 3.0-litre 6-cylinder diesel
First symptom128,000 miles
Failure133,000 miles
Service historyIndependent specialist, then DIY oil changes
Disclaimer: This is an illustrative representative scenario based on common N57 failure patterns, Engines Market 2025 quote-request data, workshop consensus, and known failure-pattern data. Individual outcomes vary.

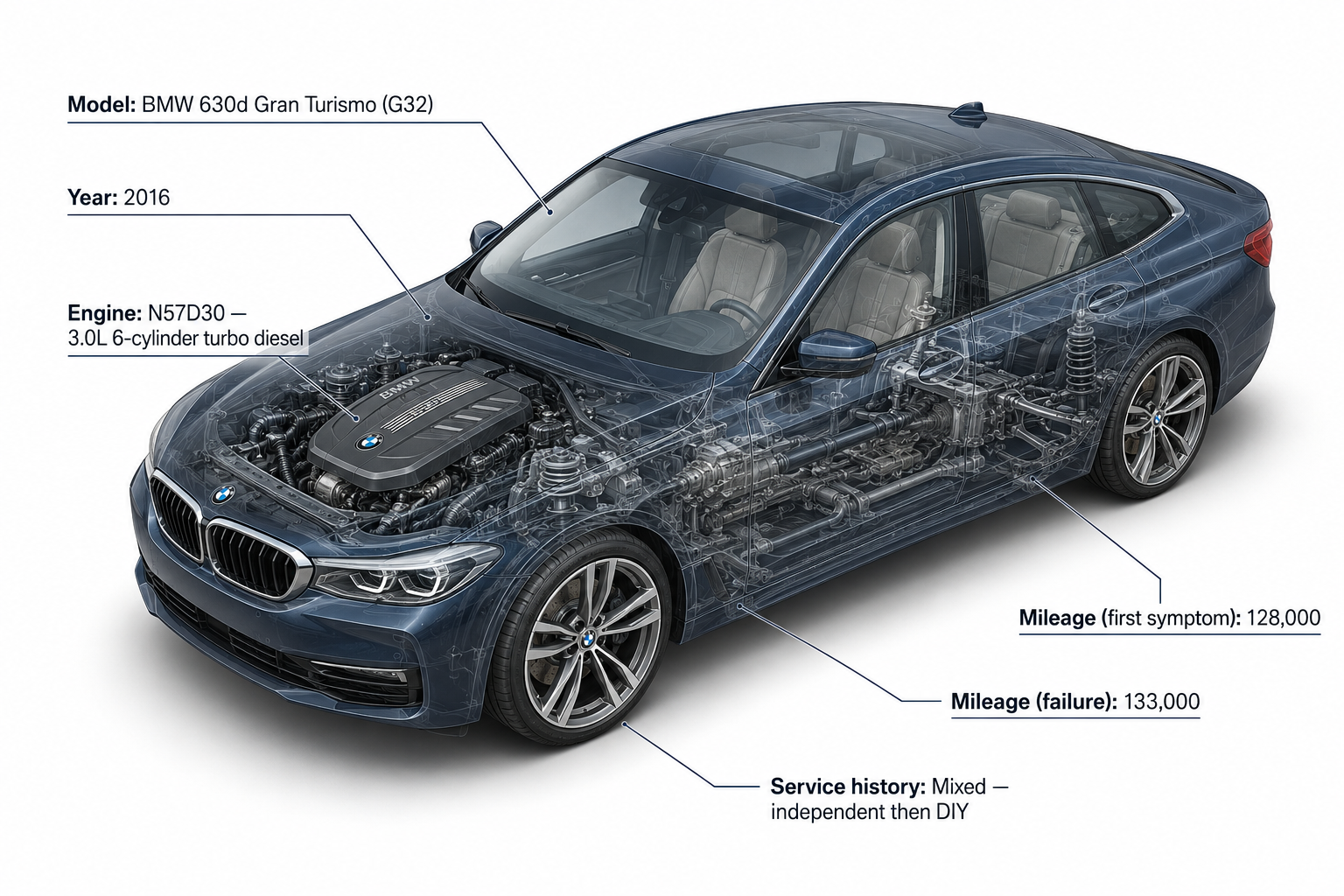

Isometric 3D render of 2016 BMW 630d Gran Turismo G32 with N57 diesel engine and vehicle specifications
Early warning

The clue was already in the oil.

A deep rod-knock sound is not the same as normal diesel clatter. In this case, the owner also noticed metallic glitter in the oil � a serious warning sign for bearing-shell wear.

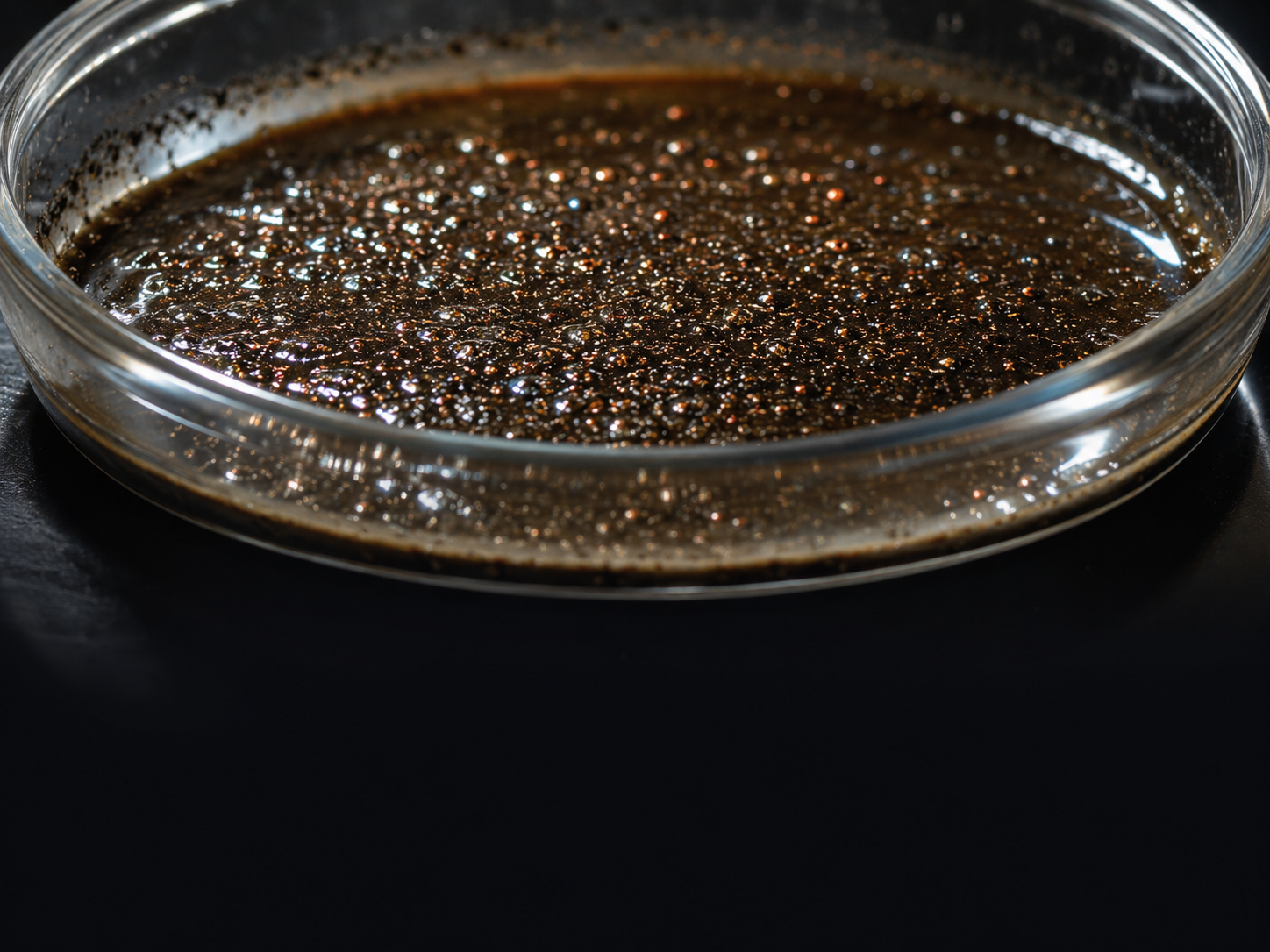

Macro photograph of used engine oil showing copper and silver metallic glitter particles from BMW N57 crankshaft bearing failure
Stage 1Cold-start knock

Deep rhythmic noise for around 10 seconds, then quieter once warm.

Stage 2Knock under load

The sound became louder and more consistent during acceleration.

Stage 3Metal in oil

Copper and silver glitter suggested bearing-shell material circulating through the oil.

If an N57 develops a deep bottom-end knock, do not keep driving it. Every journey can increase crankshaft journal scoring and reduce the chance of a repairable rebuild.
Failure timeline

5,000 miles from first knock to recovery.

The knock started around 128,000 miles and ended with a flashing engine management light at 133,000 miles. The car was recovered to a BMW specialist in Birmingham.

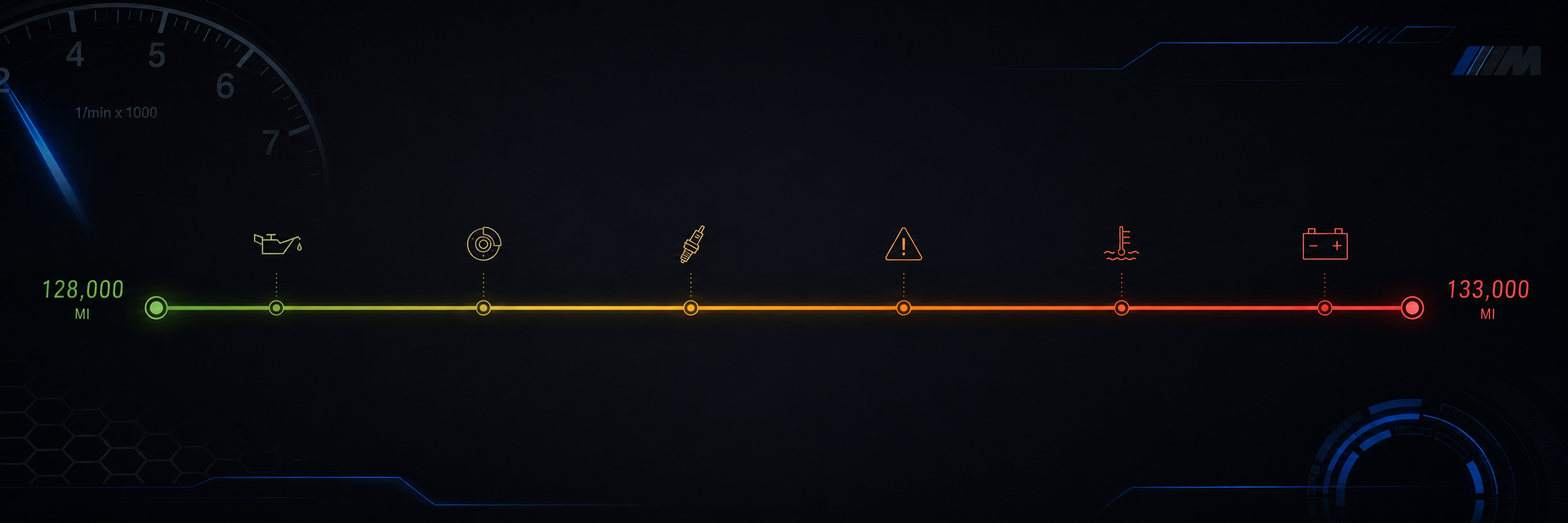

BMW N57 failure timeline background showing 5,000 mile progression from first knock at 128,000 miles to catastrophic failure at 133,000 miles
What the owner was told

�Probably just the injectors settling.� The car still drove, so the warning was underestimated.

What was actually happening

Bearing-shell wear was producing metal contamination and likely scoring the crankshaft journals.

�The car still drove, but every journey sounded worse than the last.�

Symptom 1Gradual loss of power over 3�4 weeks
Symptom 2Deep rhythmic knock, louder under load
RecoveryFlashing EML on the M6
Workshop diagnosis

The oil filter confirmed bottom-end damage.

The specialist drained the oil, cut open the oil filter, and found copper and silver particles visible to the naked eye. An oil analysis then confirmed elevated copper, lead, and iron.

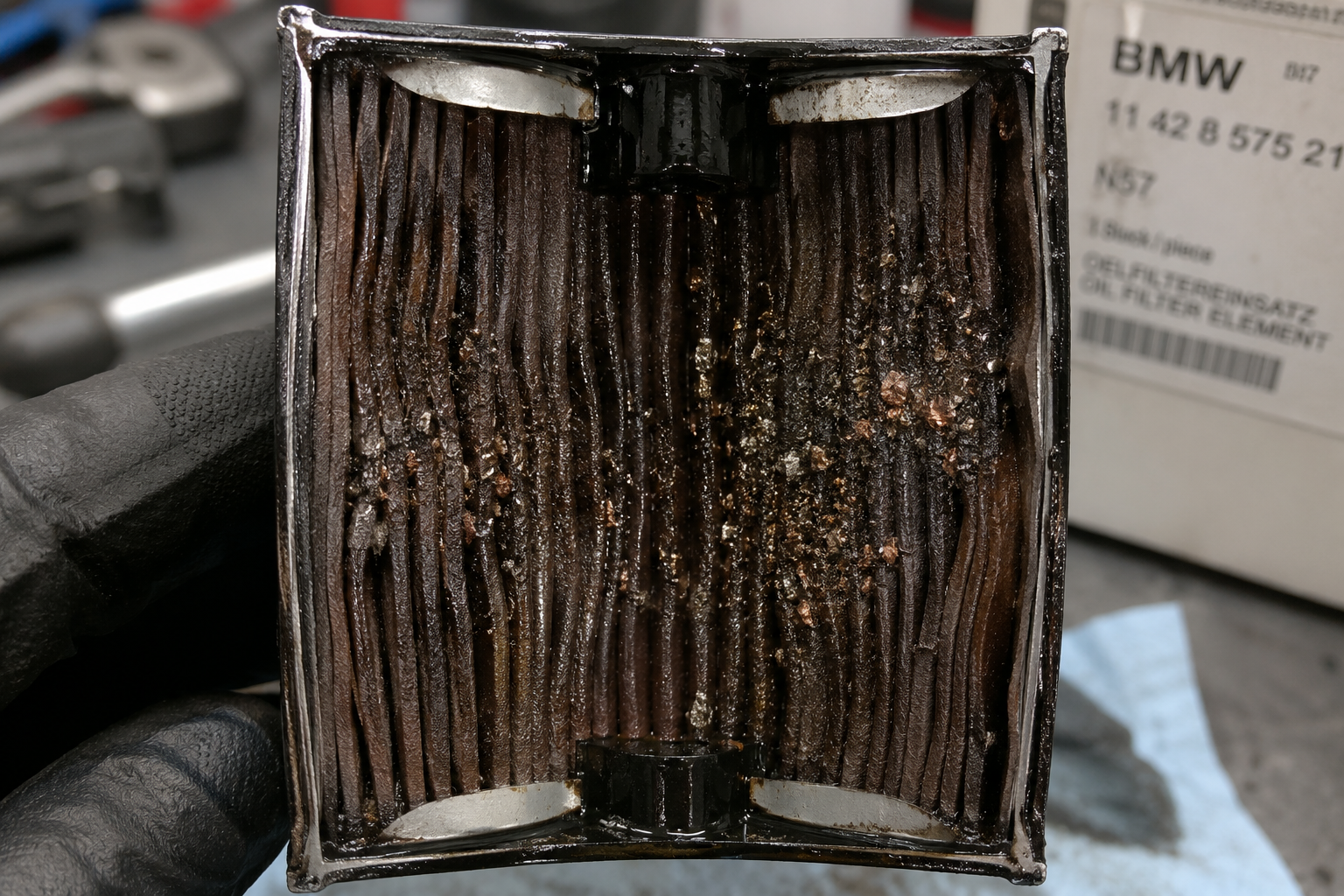

Cut-open BMW N57 oil filter showing metal particles and copper glitter trapped in filter media from crankshaft bearing failure

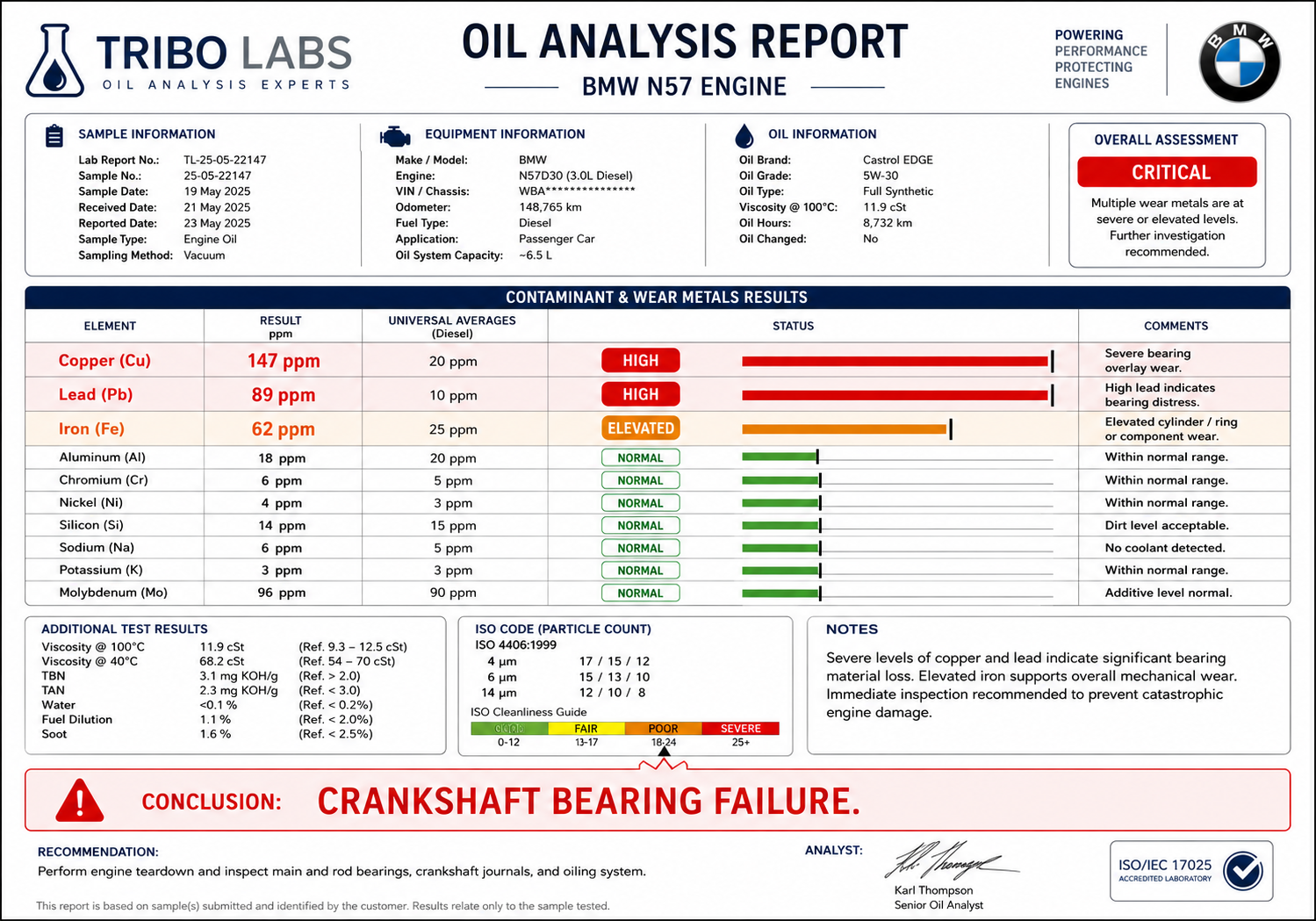

BMW N57 oil analysis report showing elevated copper 147 ppm, lead 89 ppm, and iron 62 ppm indicating crankshaft bearing failure

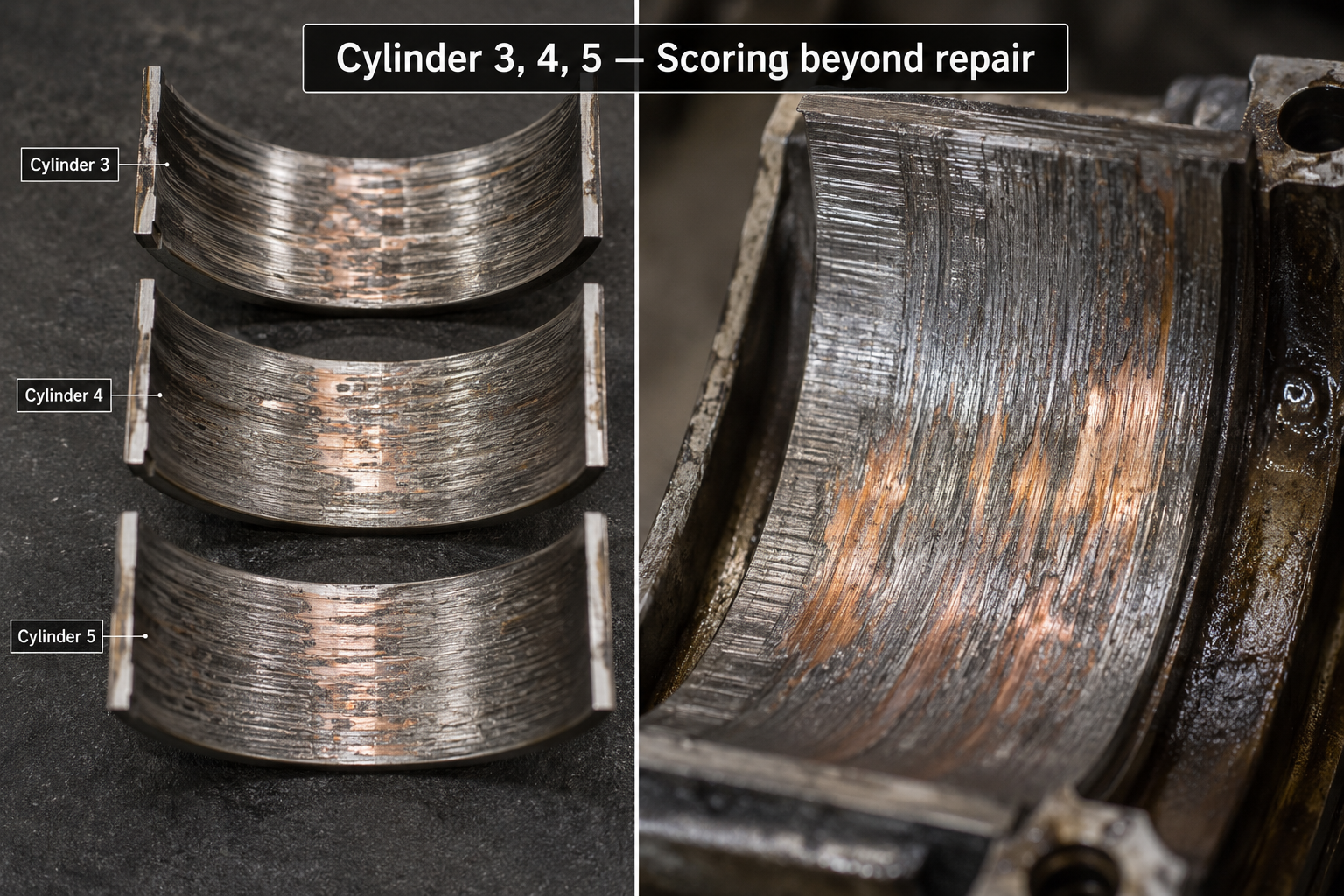

BMW N57 crankshaft bearing shells showing severe scoring and copper wear on cylinders 3, 4, and 5
Copper147 ppm � bearing shell wear
Lead89 ppm � bearing shell wear
Iron62 ppm � crankshaft journal scoring
Crank journalsCylinders 3, 4, and 5 scored
InspectionSump drop recommended at �450
ConclusionCrankshaft bearing failure
Specialist verdict

The crank journals were almost certainly scored beyond repair. Rebuilding would only be viable if the crank was still saveable.

Replacement options

Used, reconditioned, or new BMW engine-

The page should present this as an interactive decision tool. Reconditioned is selected by default because it was the most common choice in the data and the best fit for this owner�s risk profile.

Lowest upfront

Used N57 Engine

�3,500��6,000

Fitted cost, supplier dependent.

Supply cost�2,500��4,500 [ESTIMATED � Table A]
Warranty1�6 months
Lead time2�5 days
Best forVehicles worth under �5,000 or owners selling within 12 months
Key concernUnknown bearing history and limited warranty protection
Selected route

Reconditioned N57 Engine

�6,500��7,500

Fitted cost with 12�24 month warranty.

Supply cost�4,500��7,000 [ESTIMATED � Table A]
Warranty12�24 months
Lead time5�10 days
Best forVehicles worth �8,000��20,000 or owners keeping the car 2+ years
Why chosenBetter warranty confidence and lower risk than a used engine
Factory route

New BMW Engine

�12k��16k+

Main-dealer fitted cost estimate.

Supply cost�8,000��12,000+ [THIRD-PARTY � BMW dealer pricing]
Warranty24 months
Lead time10�21 days
Best forVehicles worth �25,000+ or insurance claims
Key concernOften too expensive relative to vehicle value
The uncertainty play

When the bottom end fails, debris does not stay in one place.

Metal from the bearing shells could circulate through the oil pump and turbo oil supply. A new engine paired with contaminated old components can become an expensive repeat failure.

Path A

Fit only the reconditioned engine and risk the existing oil pump and turbo.

�6,800

If oil pump fails later: +�800��1,200 plus labour. If turbo fails later: +�1,200��2,500 plus labour.

Path B

Replace oil pump and turbo preventatively at the same time.

�8,500

�6,800 engine + �800 pump + �900 turbo. Both risks reduced upfront.

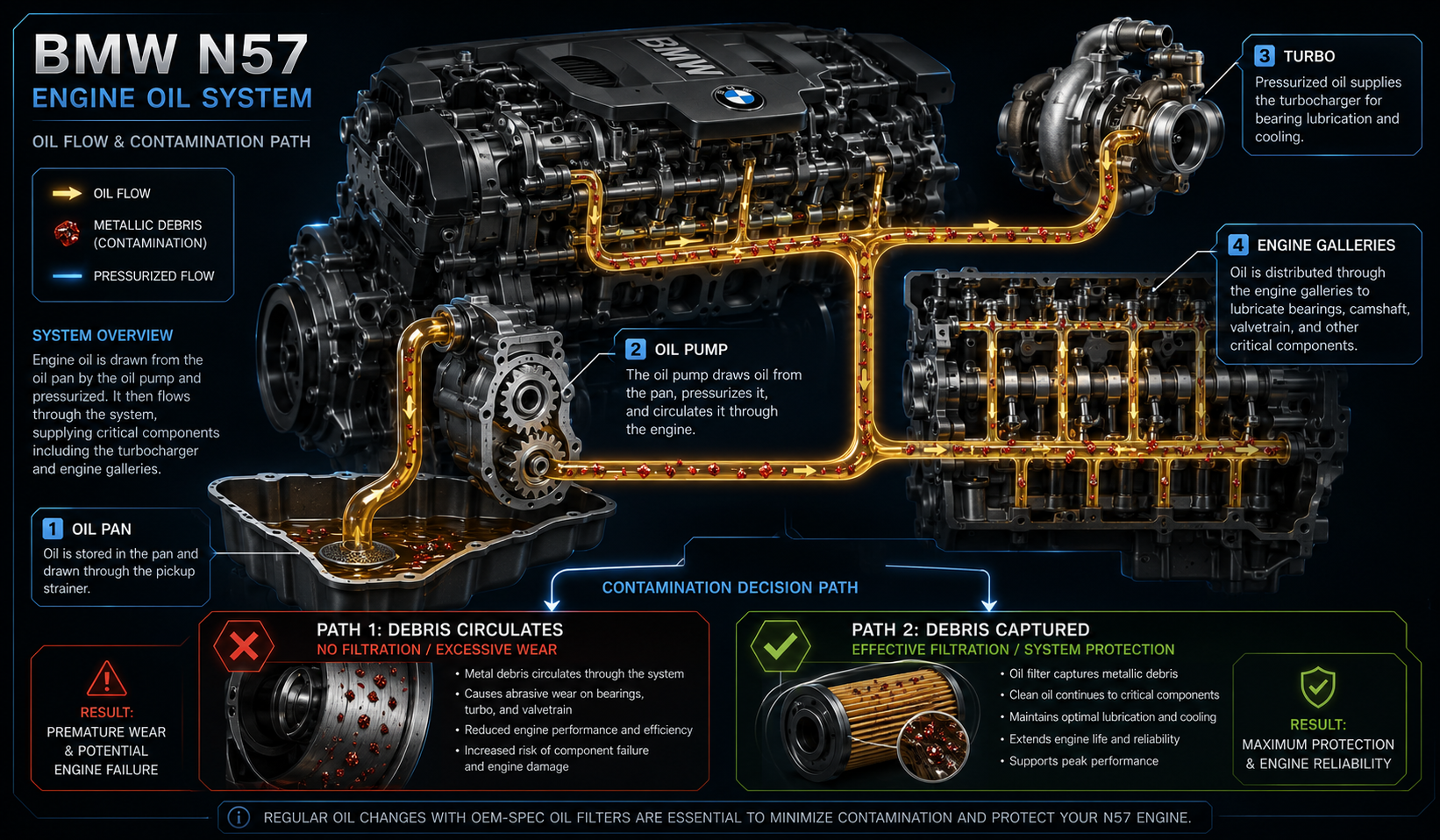

BMW N57 oil system diagram showing debris contamination path from bearing failure through oil gallery to turbo and oil pump
Fork in the road

Rebuild the damaged engine or replace it-

The owner first had to decide whether the original N57 was saveable. The key question was whether the crankshaft could be reground or whether the scoring was beyond limits.

BMW N57 repair decision paths � engine only at �6,800 with risks versus engine, pump and turbo at �8,500 with peace of mind
Rebuild existing enginePath 1

�4,500��6,500 if the crank is saveable. Timeline: 14�21 days.

Replace with reconditioned unitPath 2 � chosen

�6,500��7,500 for a fully reconditioned N57 with warranty. Timeline: 5�10 days.

Crank journals beyond regrind limitsWhy

Cylinders 4 and 5 were scored too heavily, making rebuild uneconomical or unviable.

�12,000��16,000Vehicle value

A �6,800 reconditioned engine was around 45�55% of value for a high-spec example.

18 monthsWarranty

Parts and labour cover gave confidence a used engine could not match.

Pump + turboPreventative work

The owner replaced both to reduce post-repair failure risk.

LowRisk tolerance

The owner preferred a higher upfront repair over a second failure months later.

Full documentationResale confidence

Documentation later helped the car sell for a stronger price.

�8,500Total paid

Engine, oil pump, turbo, and fitting included.

Reconditioned engine + preventative oil pump and turboFinal verdict

The decision balanced vehicle value, warranty protection, debris contamination risk, and resale confidence.

Outcome

What happened after the repair-

The owner paid more upfront, but avoided repeat engine-related issues and sold the car with full documentation.

Final cost�8,500 total
Lead time8 days
Warranty18 months / 18,000 miles
Warranty resultNo claims made
Long-term result22 months / 18,000 miles
Sold for�11,000
"�8,500 was a shock. But friends who bought used engines had failures within a year. I sold the car for �11,000 because I had full documentation."
BMW 630d Gran Turismo after successful N57 crankshaft bearing repair
Lessons learned

The cheapest diagnostic could have changed the whole outcome.

If your N57 has over 80,000 miles, an oil analysis at the next service can flag elevated copper or lead before the crankshaft becomes unsaveable. If you already have a knock, go straight to a specialist and do not drive it.

Oil analysis�80��120

Early warning that can detect elevated wear metals before catastrophic bearing damage.

Preventative bearing replacement�2,500��4,000

If caught early, the crank journals are more likely to be saveable.

After catastrophic failure�6,500��7,500+

Car off road for 8+ days, with oil pump and turbo contamination risk.

An �80 oil analysis at 128,000 miles could have detected elevated copper levels. Instead, the owner paid �8,500 after the bearing failure became catastrophic.
Click to expand � BMW N57 OEM part numbers
ComponentBMW OEM Part Number
Crankshaft (new, if regrind not possible)11 21 7 811 037
Main bearing set11 21 7 808 391
Big end bearing set11 24 7 808 392
Oil pump assembly11 41 7 808 395
Timing chain kit11 31 7 808 393
Timing chain tensioner11 31 7 808 394
Turbocharger (remanufactured)11 65 7 808 396
Oil filter housing gasket set11 42 7 808 397
Sump gasket11 13 7 808 398
Head gasket set11 12 7 808 399
