A premium visual breakdown of ignored warning signs, catastrophic timing chain failure, replacement options, and the decision that protected the owner from a second major bill.
For three months before the snap, the owner had heard a brief rattle on cold starts. It slowly worsened from one second of noise into a metallic clatter that sounded like a bag of spanners under the bonnet.
The page should make visitors recognise the warning immediately: a short cold-start rattle that becomes longer, sharper, and more metallic.

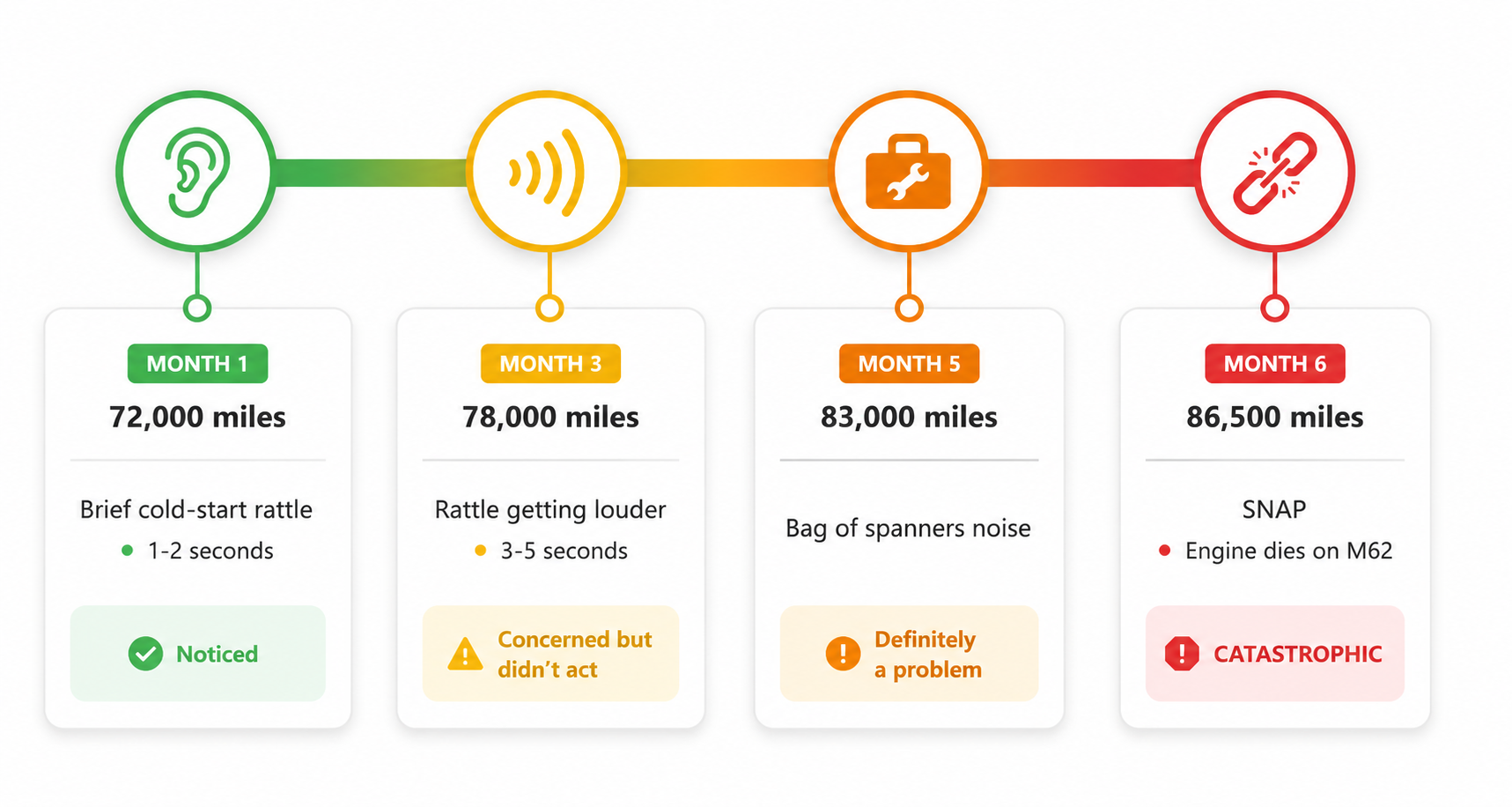

A brief cold-start rattle became a prolonged metallic clatter over six months.

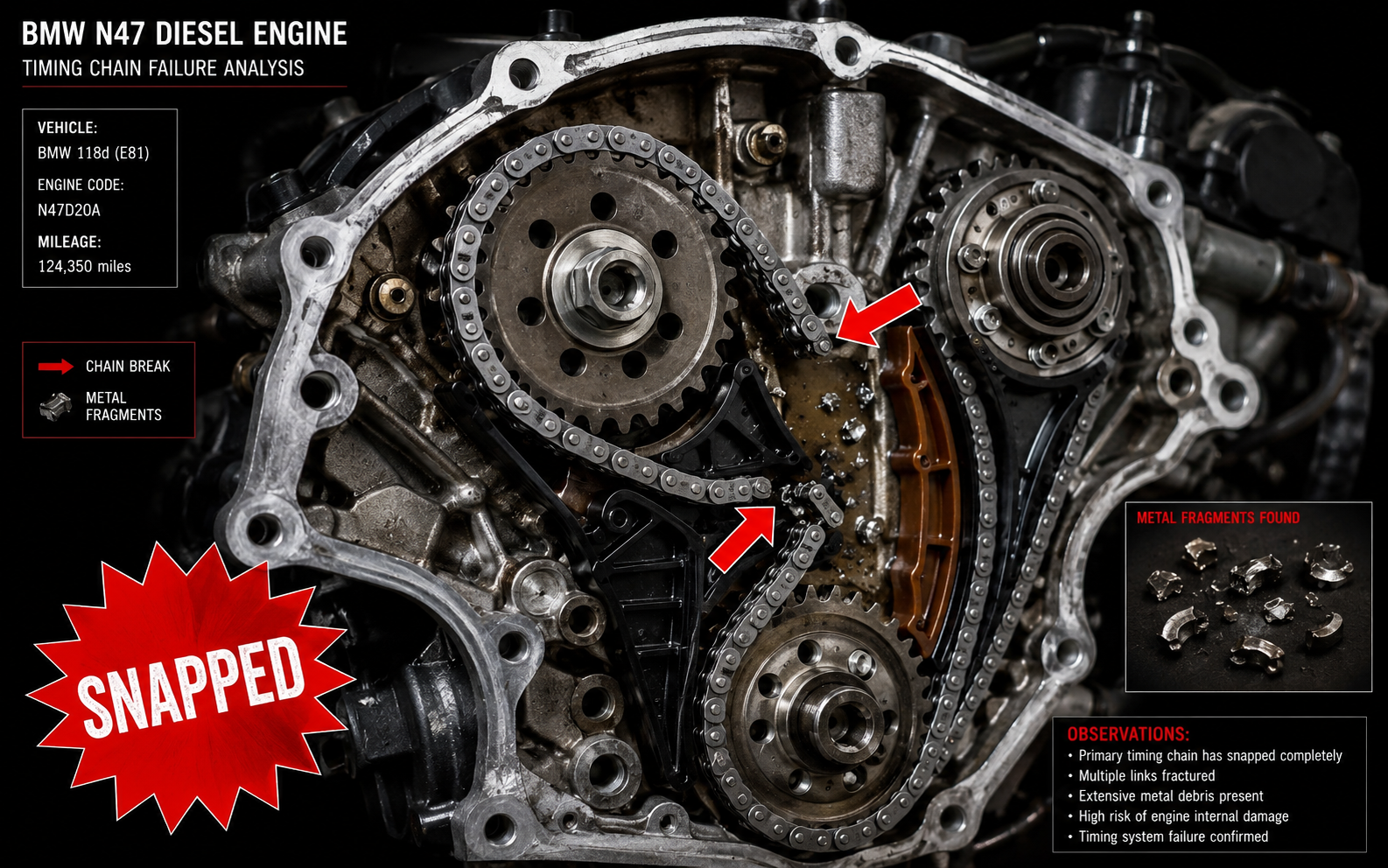

The timing chain was slapping against the guides, while metal debris silently circulated through the engine oil.
On the M62 near Manchester, the owner accelerated to merge. At around 3,200 RPM, there was a loud snap.
The car was accelerating under load.
The engine immediately lost all power.
The car coasted to the hard shoulder and would not restart.

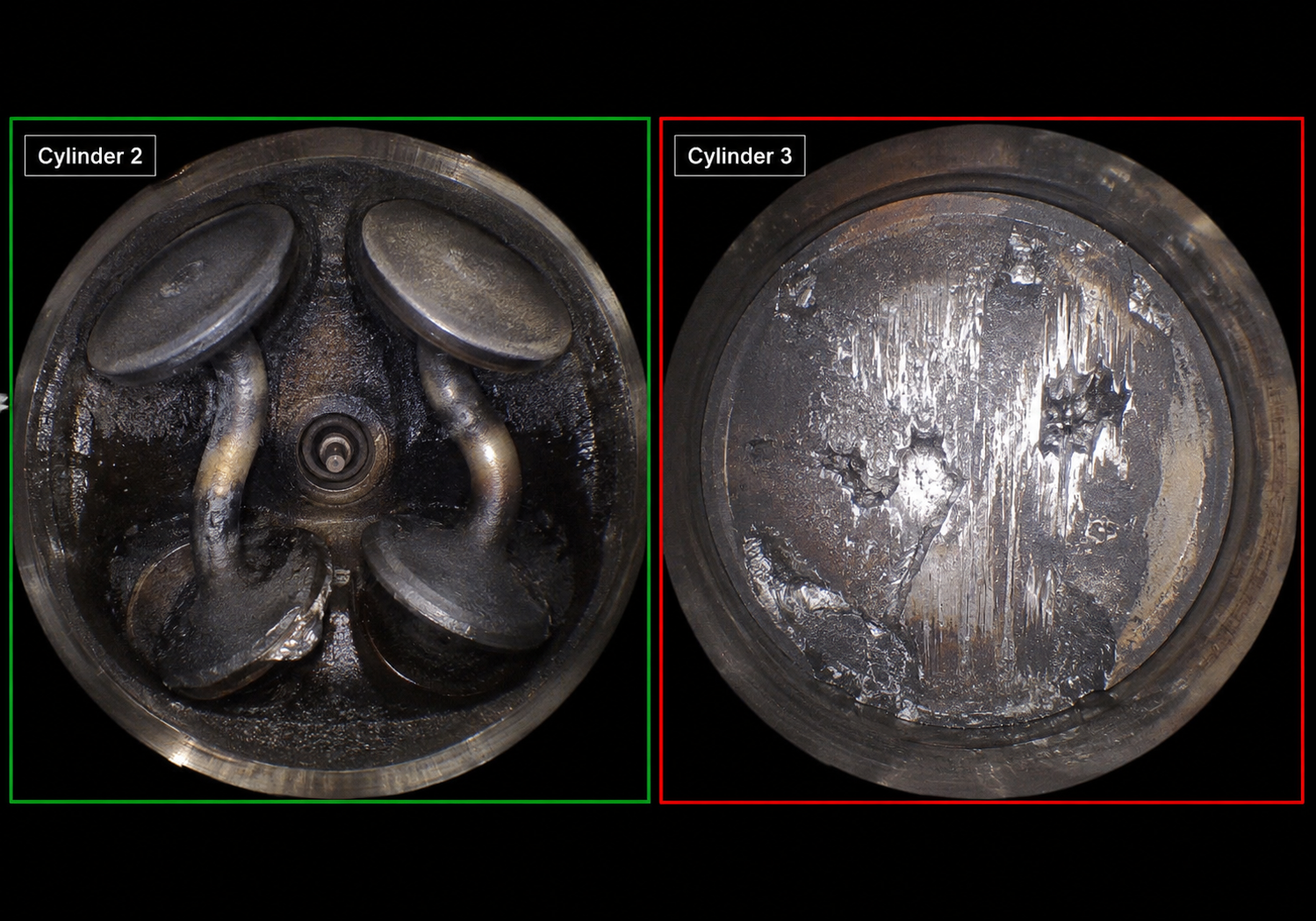

The specialist performed a compression test and borescope inspection. The diagnosis took less than an hour, and the findings were severe.
“The engine is mechanically destroyed. Repair is not economically viable. You need a replacement engine.”
This section works as a marketplace-style price toggle. It lets visitors compare risk, warranty, lead time, and suitability without feeling pushed into one option.
Fitted cost at an independent specialist. Best when budget matters more than long-term certainty.
Default recommendation in this case because it balanced cost, warranty, and long-term confidence.
The highest certainty option, but difficult to justify unless vehicle value or insurance context supports it.

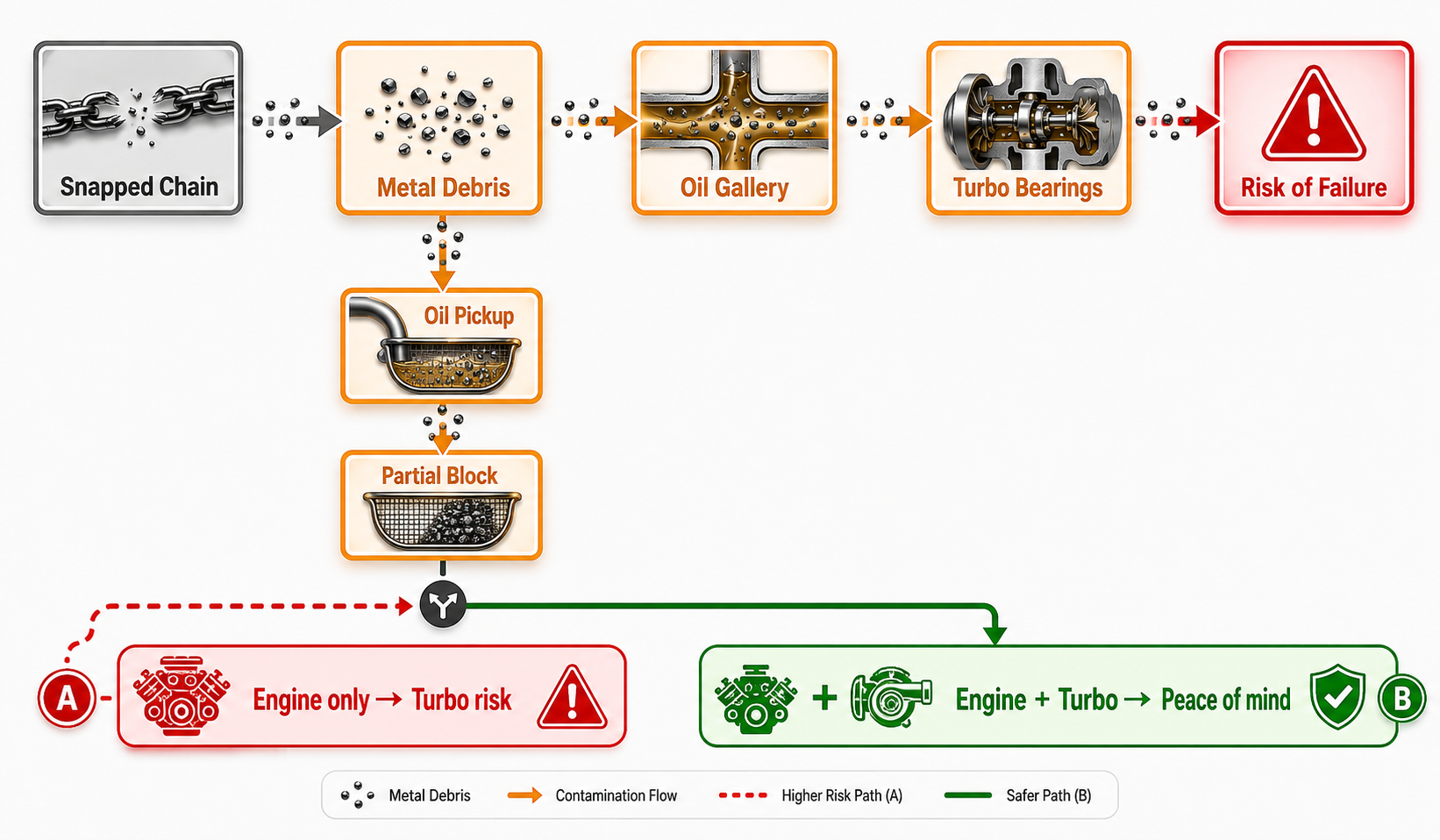

When the specialist dropped the oil sump, they found chain guide debris and fine metal particles. The turbo oil supply comes from the main oil gallery, so debris could have scored the turbo bearings.
Fit only the reconditioned engine and take the risk on the existing turbo.
£4,200If turbo fails later: add £800-£1,500 plus labour.
Replace the turbo preventatively at the same time as the engine.
£5,050£4,200 engine + £850 turbo. Risk reduced upfront.

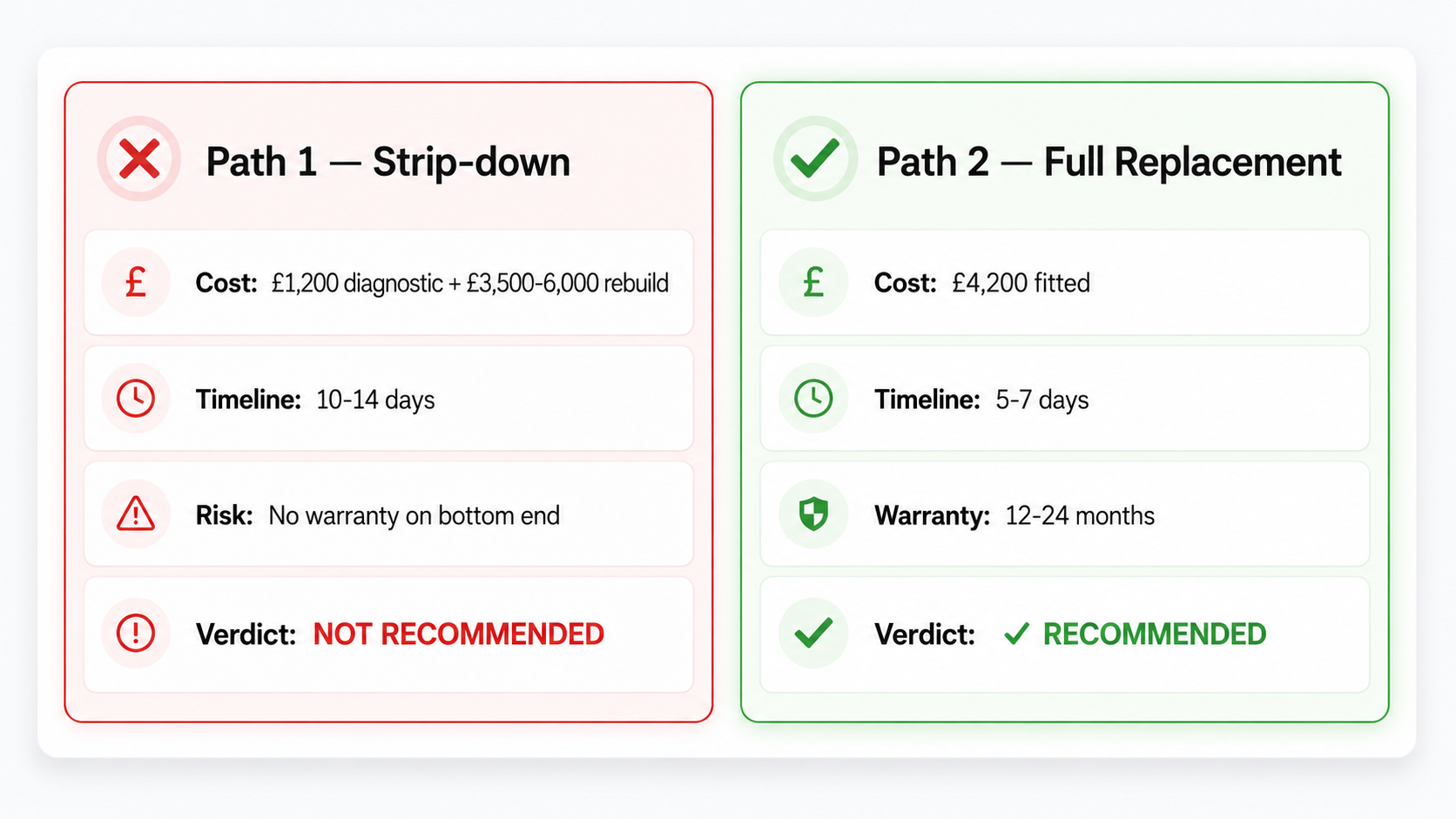

The owner had to decide whether to pay for a strip-down inspection or move straight to a warrantied replacement engine.
£1,200 diagnostic plus £3,500-£6,000 rebuild if salvageable. Timeline: 10-14 days.
£4,200 fitted for a reconditioned N47 with warranty. Timeline: 5-7 days.
Rebuilding would cost nearly as much as replacement without the same bottom-end warranty confidence.
Repair was around 50% of vehicle value, within the watch zone but still viable.
The owner planned to keep the car long enough for warranty to matter.
A young family meant another unexpected £4,000 bill was not acceptable.
A reconditioned engine with paperwork carried more confidence than a used unit.
The owner preferred higher upfront cost for lower long-term risk.
Reconditioned engines were the most common choice in Engines Market 2025 quote data.
The decision balanced replacement cost, warranty protection, contamination risk, and the owner’s need for peace of mind.
The final decision was painful upfront, but the warranty later paid off and gave the owner confidence when selling the car.
If your N47 sounds like a bag of spanners on cold start, even for one second, book a timing chain inspection within seven days. Do not wait for the next service.
Engine continues to run safely when action is taken at the first rattle.
Car off the road for 5-7 days, with possible turbo contamination and replacement risk.
| Component | BMW OEM Part Number |
|---|---|
| Timing chain (primary) | 11 31 7 798 980 |
| Timing chain (oil pump) | 11 41 7 802 343 |
| Chain tensioner (primary) | 11 31 7 798 982 |
| Chain tensioner (oil pump) | 11 41 7 802 344 |
| Upper chain guide | 11 31 7 798 990 |
| Lower chain guide | 11 31 7 798 991 |
| Crankshaft sprocket bolt | 11 21 7 800 341 |
| Timing case gasket set | 11 14 7 798 654 |
| Oil pan gasket | 11 13 7 798 234 |
| Turbocharger (remanufactured) | 11 65 7 802 345 |
| Injector seal kit (per injector) | 13 53 7 798 212 |
Compare quotes from UK BMW engine specialists for timing chain failure, reconditioned engines, used engines, and full replacement options.
Data sources used in the content: Engines Market 2025 internal quote data, workshop consensus, third-party vehicle market references, and known N47 failure-pattern data.
