A premium visual breakdown of how a snapped timing chain at 90,000 miles led to a £7,000 dealer engine quote — and how a specialist top-end rebuild saved the car for £2,800.
At 85,000 miles the owner heard a cold-start rattle which was dismissed as normal diesel behaviour. Within 5,000 miles, the chain snapped at 30mph, causing bent valves and a destroyed top end.
The rattle lasted only 1-2 seconds at first, then quietened. The owner assumed it was normal for a diesel. By 90,000 miles, the chain had snapped.
This case is a classic catastrophic N47 timing-chain failure: the owner ignored the warning signs and paid the price.
A cold-start rattle became a loud metallic snap at 30mph within 5,000 miles.
The tensioner failed, the chain stretched and snapped, causing valve-to-piston contact and destroying the top end.
“The dealer made it sound like the engine was a write-off. The independent specialist said, ‘Look, the bottom end is fine. The pistons aren’t damaged. We can rebuild the top end for a fraction of what a new engine costs.’ I saved over £4,000. Never again will I accept a dealer’s first quote for an engine replacement.”

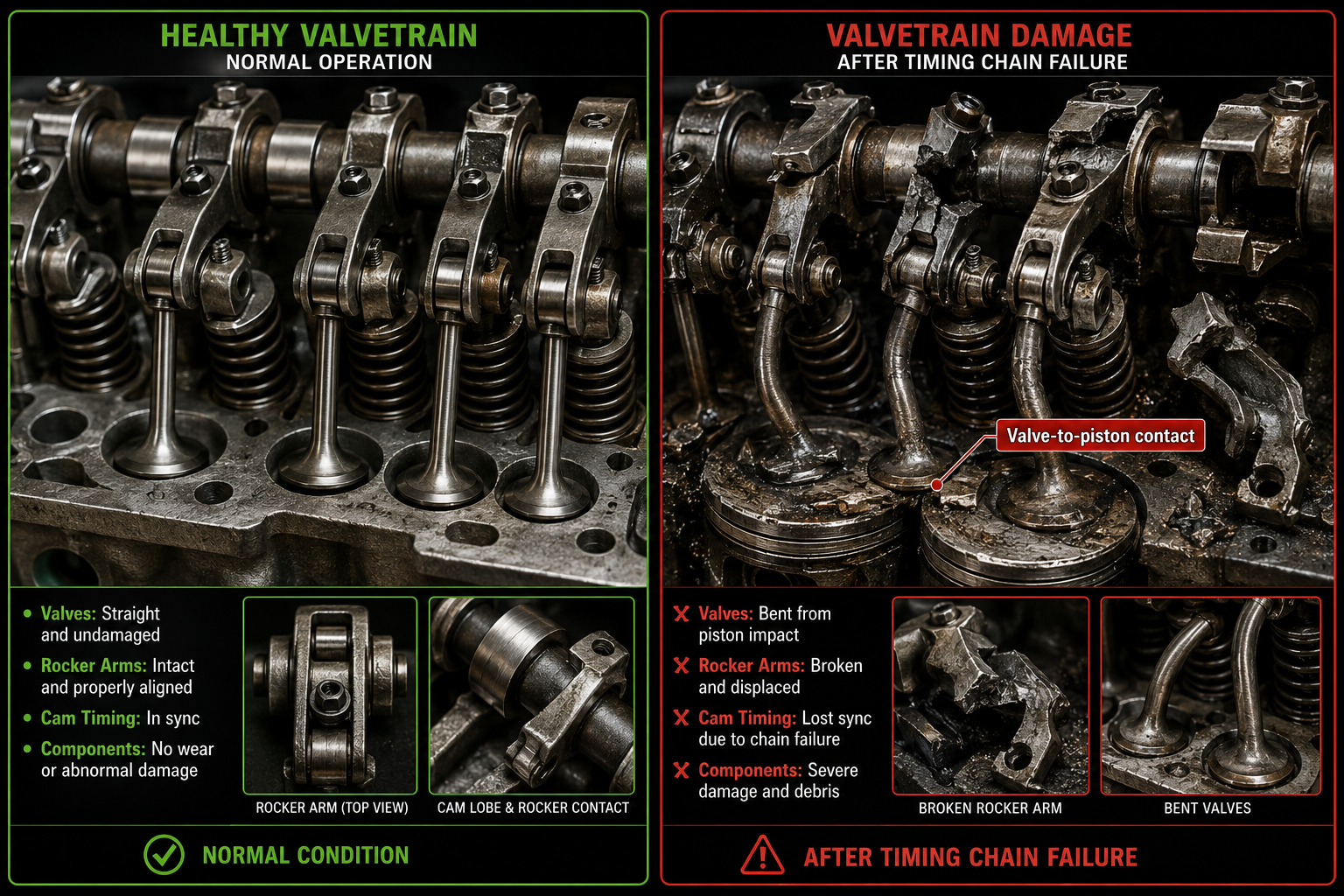

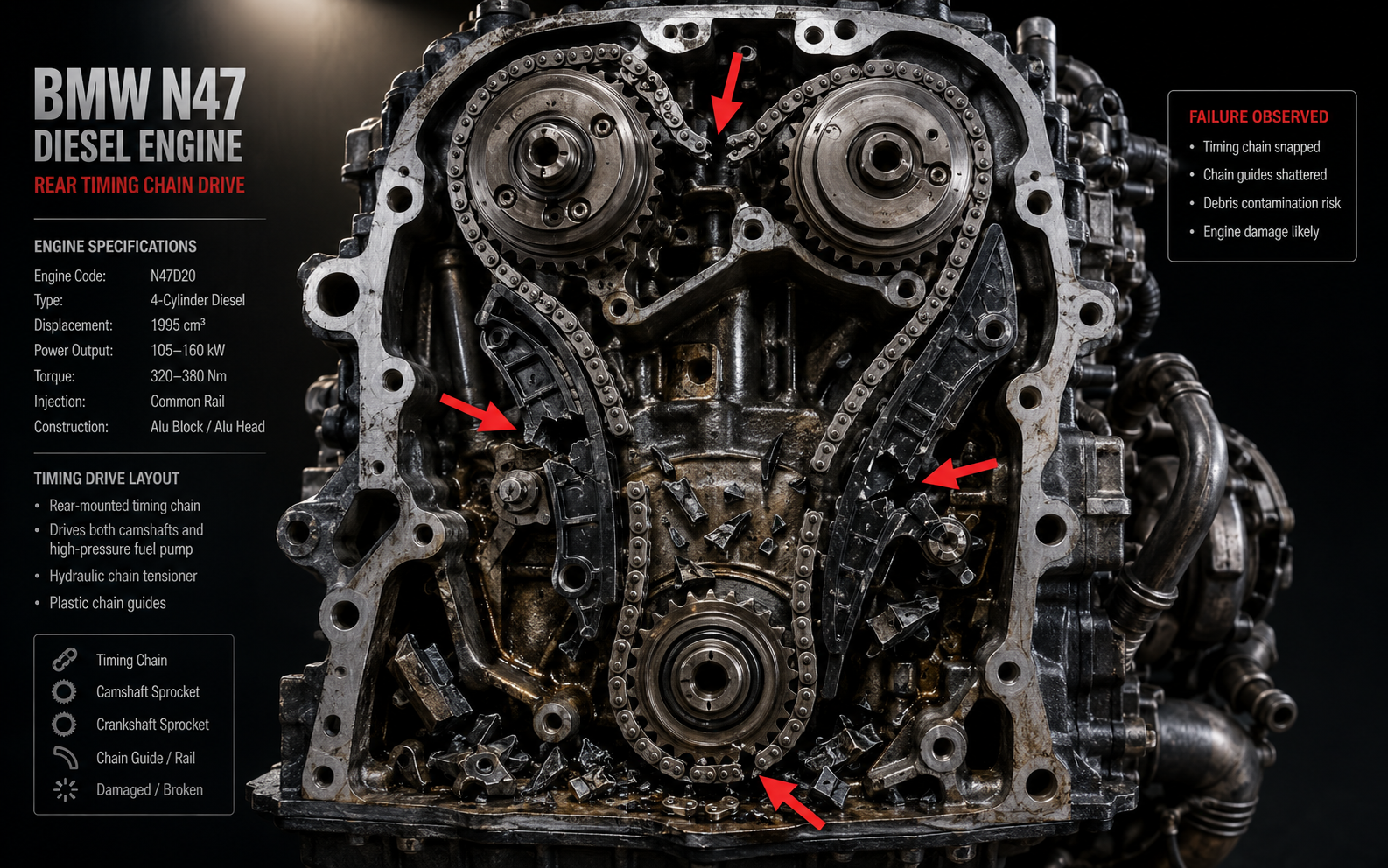

The dealer removed the rocker cover and found the chain snapped, guides shattered, and multiple valves bent. The engine had destroyed its top end.
“The timing chain has snapped. It’s taken the top end with it. BMW does not authorise top-end rebuilds on these engines. You need a complete new engine from BMW. That’s £7,000 for the engine plus fitting.”
Compare the routes the owner faced after diagnosis. The independent top-end rebuild is selected by default because that was the chosen route.
Sell as spares/repair. An E90/F30 with a snapped chain is worth significantly less.
Brand new BMW crate engine — dealer policy for snapped chain engines.
Remove cylinder head, replace bent valves, damaged rockers, camshaft (if required). Fit new timing chain kit.
Fully reconditioned N47D20C long engine — single-point responsibility without dealer pricing.

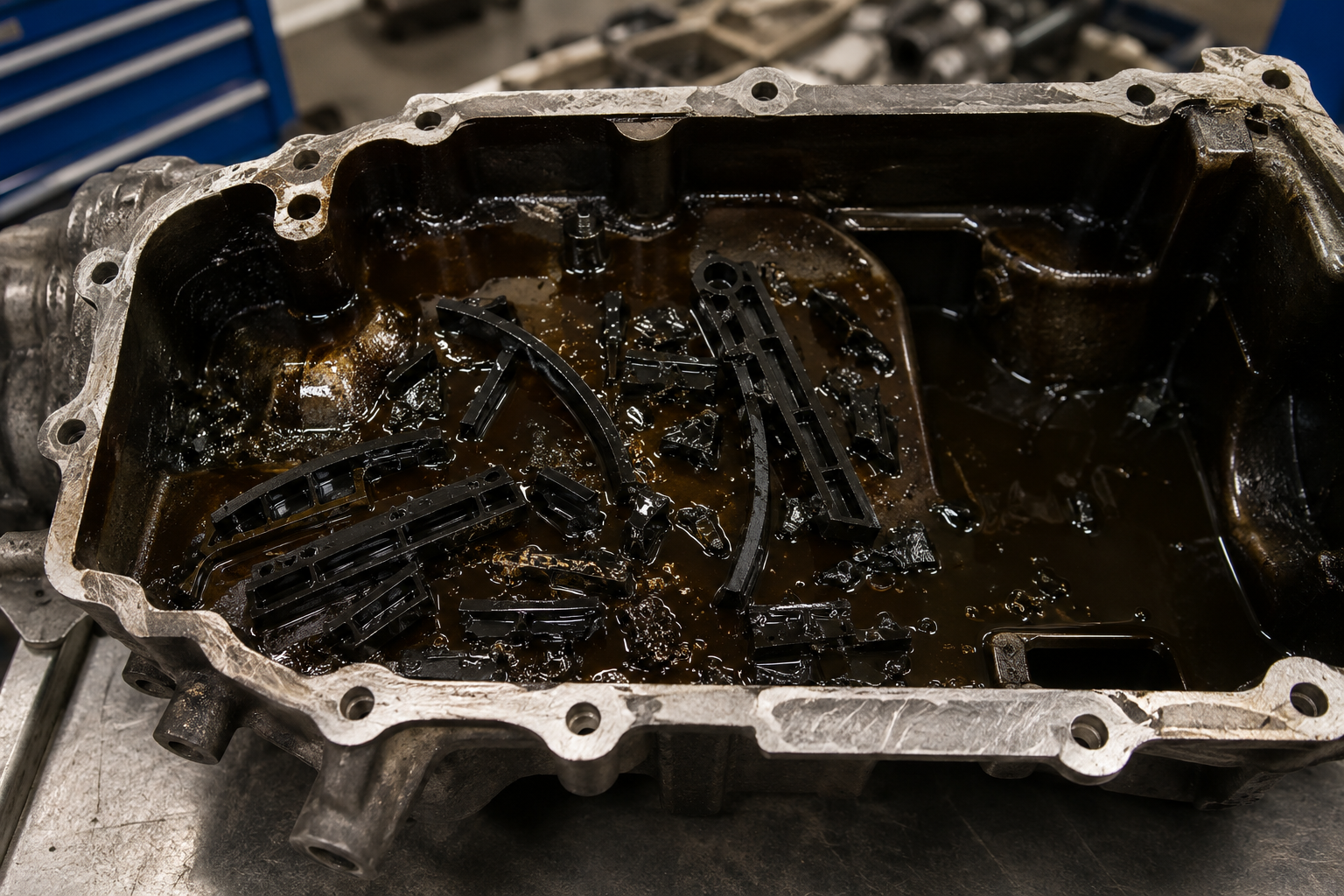

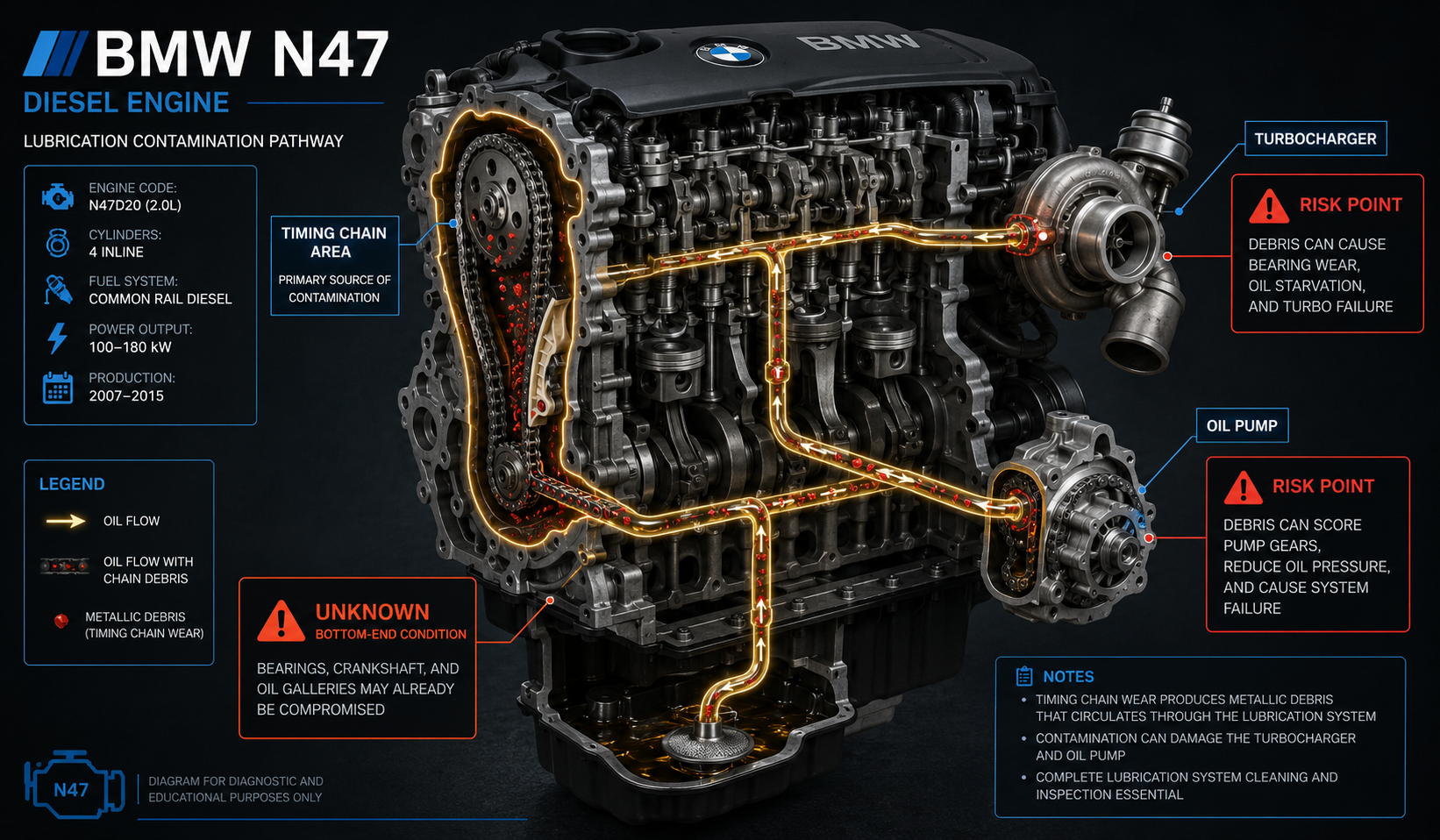

With shattered guide pieces and metal particles throughout the oil system, the specialist could not fully know whether the turbocharger or bottom end had already been affected without further disassembly.

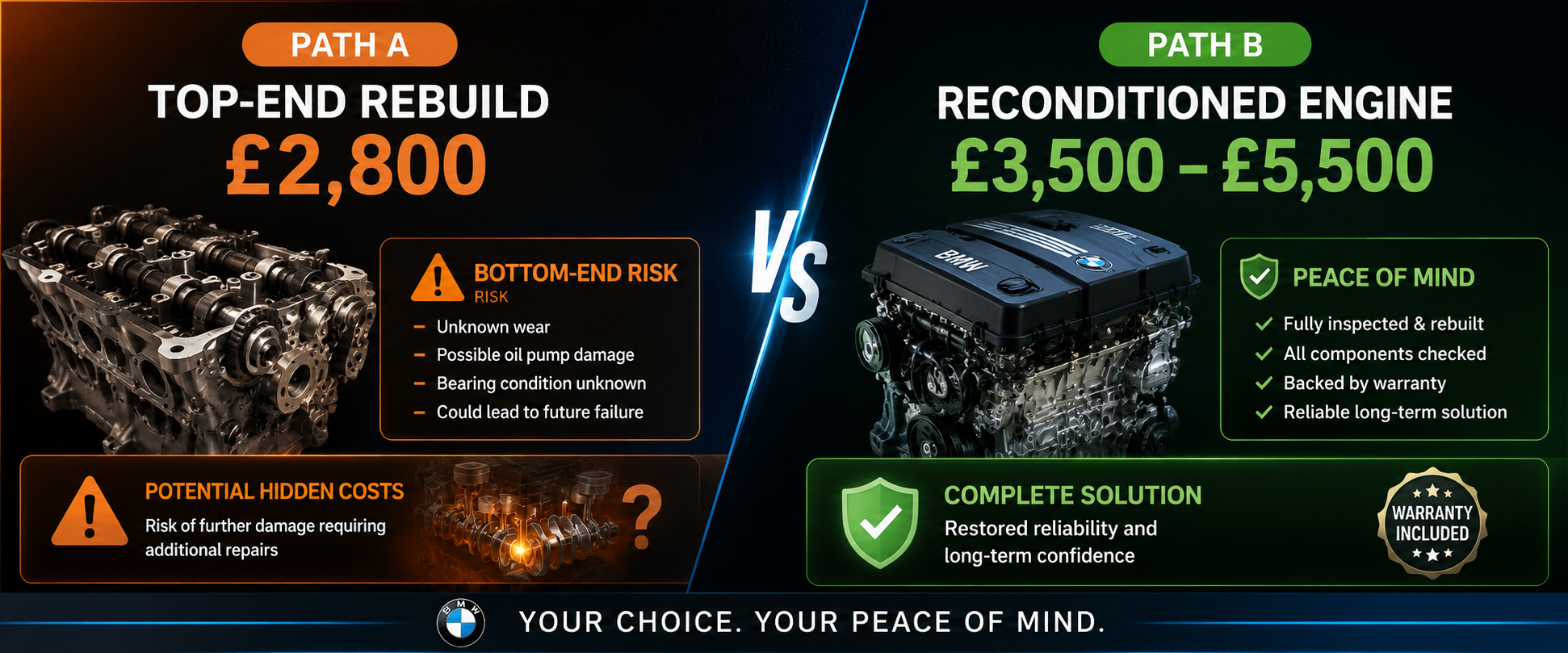

Top-end rebuild only — new valves, rockers, camshaft (if needed), timing chain kit. Bottom end remains untouched.
£2,200–£3,500If debris caused unseen bottom-end damage, future failure is possible.
Full reconditioned engine.
£3,500–£5,500Eliminates all risk of hidden bottom-end damage. Complete warranty coverage.
The vehicle was worth approximately £4,000–£7,000 before failure. A £2,800 top-end rebuild was well within the vehicle's value. A £9,000 dealer new engine was financial suicide.
Sell as spares/repair — return £500–£1,500.
£8,500–£11,000+ fitted — 130-225% of vehicle value.
£2,800 total. New valves, rockers, timing chain kit.
The independent specialist performed a thorough inspection and confirmed the pistons and bores were intact. A top-end rebuild was viable.
Pre-failure value set the ceiling for viable repair spend.
£2,800 rebuild = 40-70% of value — justifiable. £9,000 dealer engine = 130-225% — illogical.
Owner planned to keep the car another 2-3 years — top-end rebuild with 12-month warranty provided sufficient coverage.
BMW does not authorise top-end rebuilds — dealer's only option was new engine.
Owner chose lower-cost repair after specialist confirmed bottom end was safe.
Top-end rebuild + new timing chain kit + fitting.
The decision balanced vehicle value, dealer pricing, specialist inspection, and ownership horizon. A top-end rebuild saved over £4,000 compared to the dealer's new engine quote.
Seven days later, the BMW was back on the road. The owner saved over £4,000 by choosing a specialist over the dealer.
The commercial lesson is simple: timing-chain symptoms are cheaper when caught early. Catching it early allows preventative chain replacement. Ignoring it can lead to a snapped chain and a £7,000 dealer engine quote.
Catch it early and save thousands.
Specialist repair if bottom end is undamaged.
Avoid at all costs - independent options exist.
| Component | BMW OEM Part Number |
|---|---|
| Timing chain kit (full — crankshaft to camshaft) | 1131 7 798 980 |
| Timing chain tensioner | 1131 7 798 982 |
| Upper timing chain guide | 1131 7 798 983 |
| Lower timing chain guide | 1131 7 798 984 |
| Crankshaft sprocket | 1121 7 798 985 |
| Camshaft sprocket (intake) | 1131 7 798 986 |
| Camshaft sprocket (exhaust) | 1131 7 798 987 |
| Cylinder head gasket set | 1112 7 798 988 |
| Cylinder head bolt set | 1112 7 798 989 |
| Valve (each — 16 valves per engine) | 1134 7 798 990 (intake) / 1134 7 798 991 (exhaust) |
| Rocker arm (each — 16 per engine) | 1133 7 798 992 |
| Camshaft (intake) | 1131 7 798 993 |
| Camshaft (exhaust) | 1131 7 798 994 |
| Oil pump chain | 1141 7 798 995 |
| Oil pump tensioner | 1141 7 798 996 |
| Oil pickup strainer | 1141 7 798 997 |
| Sump gasket | 1113 7 798 998 |
| Turbocharger (remanufactured) | 1165 7 798 999 |
| Injector seal kit (per injector) | 1353 7 799 000 |
Data sources: [INDUSTRY ESTIMATE] based on workshop consensus | [THIRD-PARTY] BMW dealer pricing, UK breaker market, and Auto Trader BMW 3 Series values June 2025 | [EM-VERIFIED n=1,450] N47D20C request volume.
